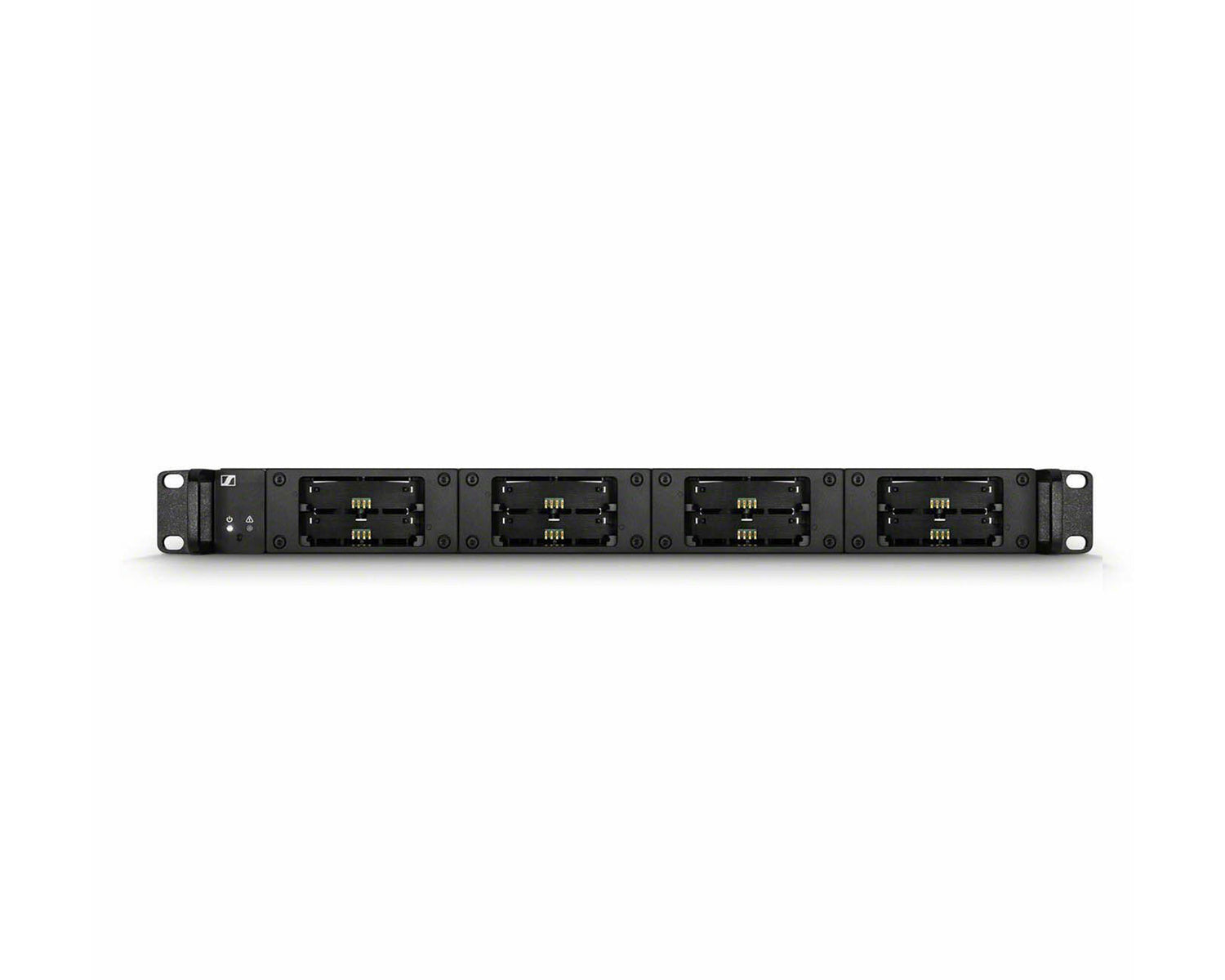

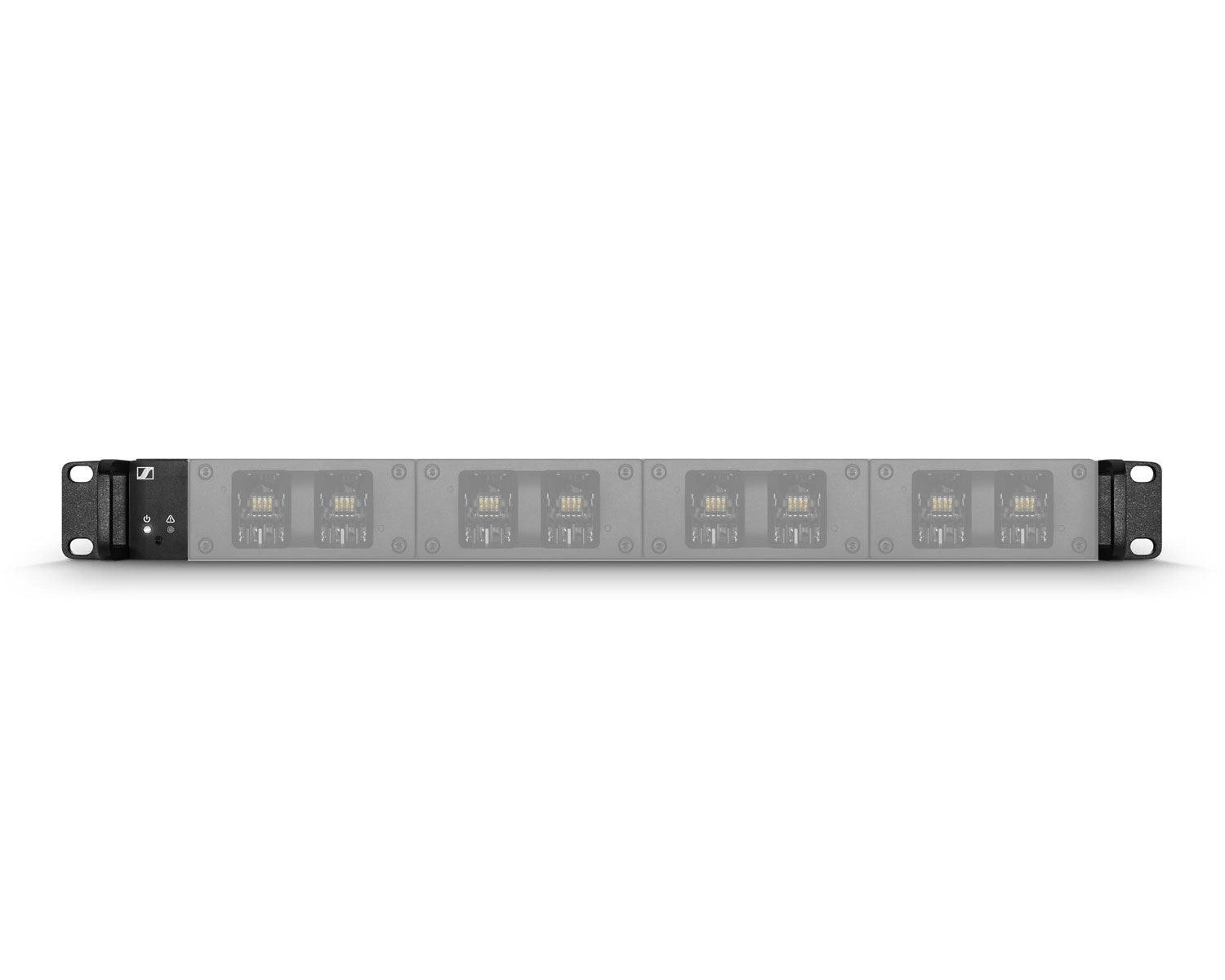

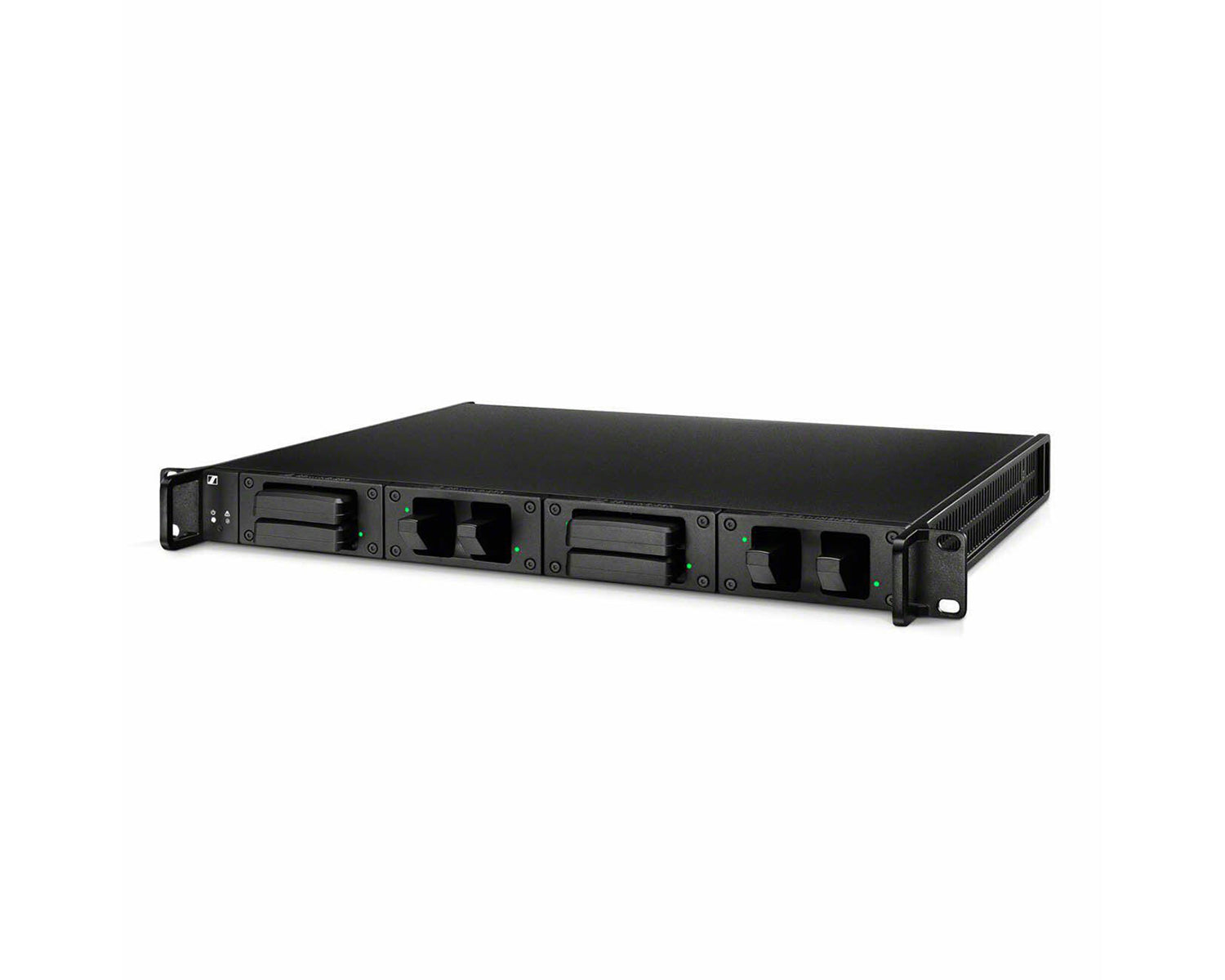

L 6000 expands the Digital 6000 and Digital 9000 series with a practical and intelligent charging station. Up to four modules can be fitted as needed with two charging ports each for bodypack or handheld transmitter batteries. Three-color LEDs simplify the quick overview of the charging status. Can also be controlled via WSM software.

Charing Station Only - Batteries and modules not included

Product Features

• 19 inch charging station in 1 RU
• Flexible configurations with loading modules for handheld transmitters or bodypack battery packs (Digital 6000 and Digital 9000)
• Quick overview of charging status with three-color LED
• Intelligent charging control with four fans for optimum cooling
• Storage mode keeps battery packs in optimum charge condition for longer storage periods
• Integrates into the Wireless Systems Manager

Charing Station Only - Batteries and modules not included

Product Specifications

• Dimensions: 44 x 483 x 373
• Weight: 5.1kg
• Power cosumption: Max. 85W / Min. 1W
• Power supply: 100-240 V AC, 50/60 Hz
• Charging time: BA 6O: 80 %: approx. 1:5 h, 100%: approx. 2:30h | BA 61: 80%: approx. 1:45 H, 100%: pprox. 3.15 h | BA62: 80% approx. 1:15 h, 100%: approx. 2:45 h
• Capacity: Up to 8 battery packs (BA 60 and BA 61) via 4 exchangeable charging modules (LM 6060 and LM 6061)
• Operating relative humidity: Max. 90 % at 40 °C
• Charging Current: 2 A
• Display: Multi-colored
• Network protocol: IEEE 802.3-2002 (10/100 Mbit/s), shielded RJ-45 connection
• Temperature Range: Charging: 0 - 50 °C Ambient: -10 - 50 °C
• Charging voltage: 4.2 V
• Power plug: 3-pin, protection class I as per IEC/EN 60320-1
• Average discharge current: 0.15 A
• Water Protection Code: The product must not be exposed to dripping and splashing (IP2X)
