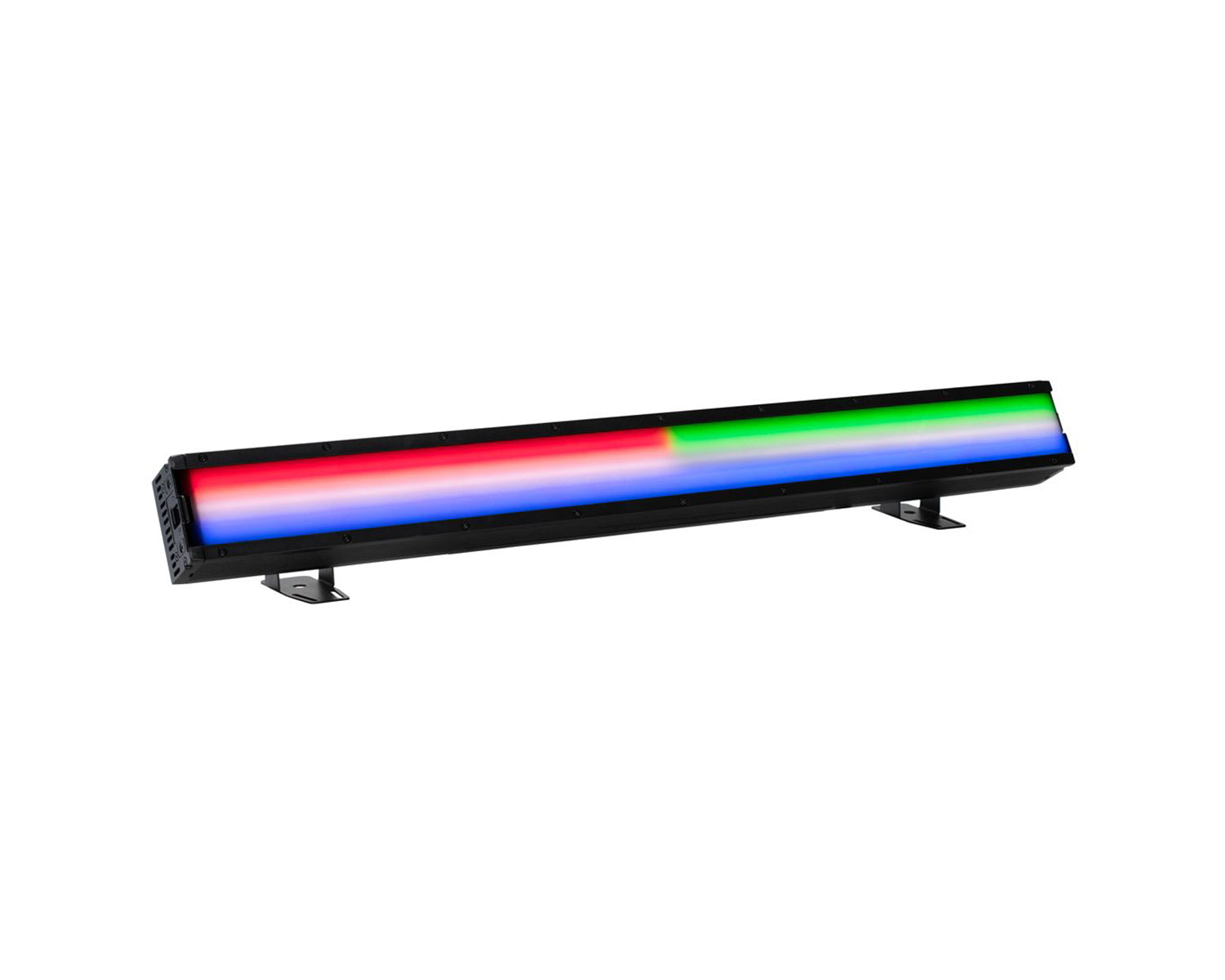

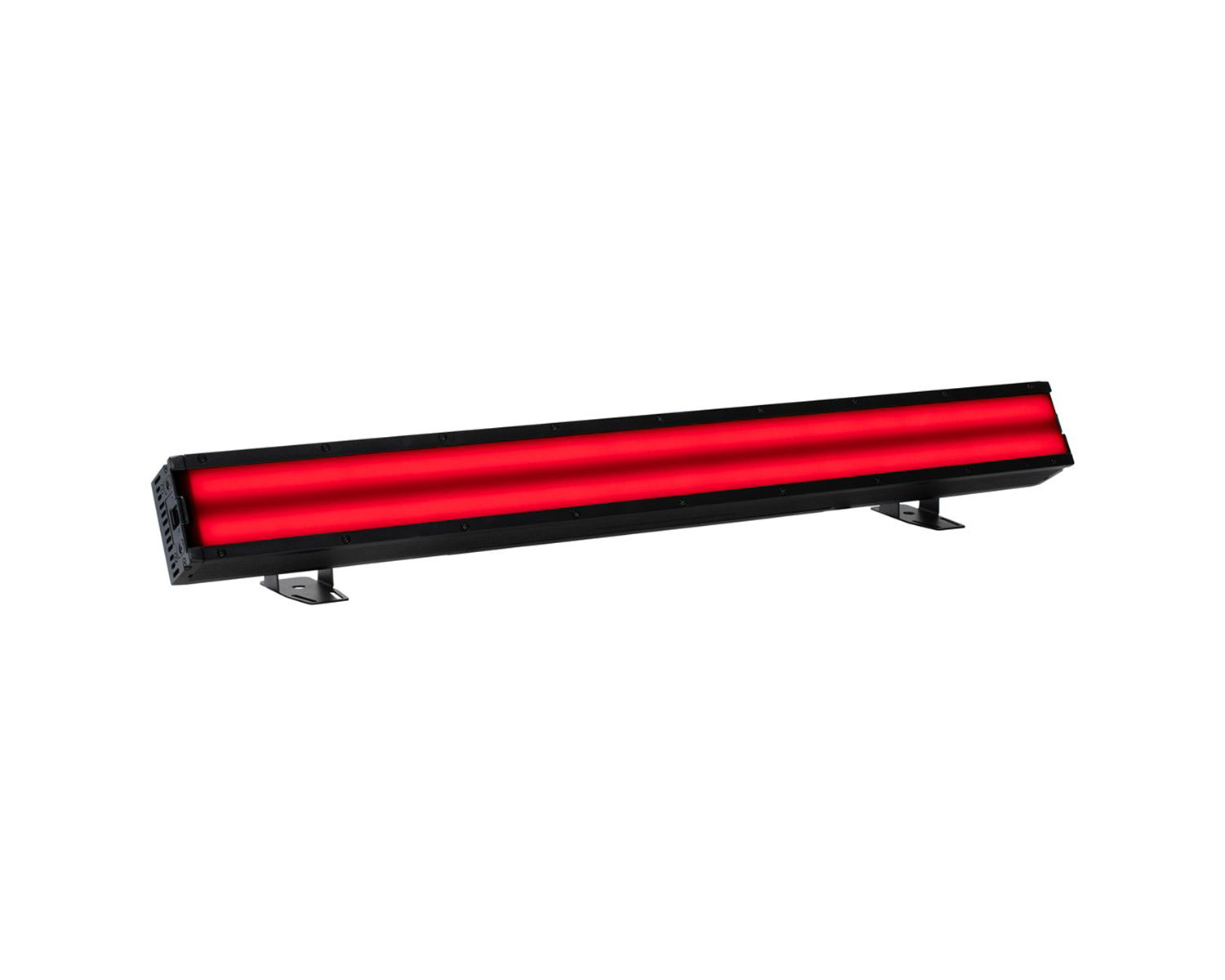

The Jolt Bar FXIP is an IP65-rated professional linear LED fixture that delivers Lighting Designers huge output as well as the creative potential of brilliant bright white strobe/blinder LEDs combined with multi-coloured chase effects in one versatile unit. It is a highly flexible fixture that can be used to create a wide variety of effects ideal for concert productions, festival stages and other largescale events.

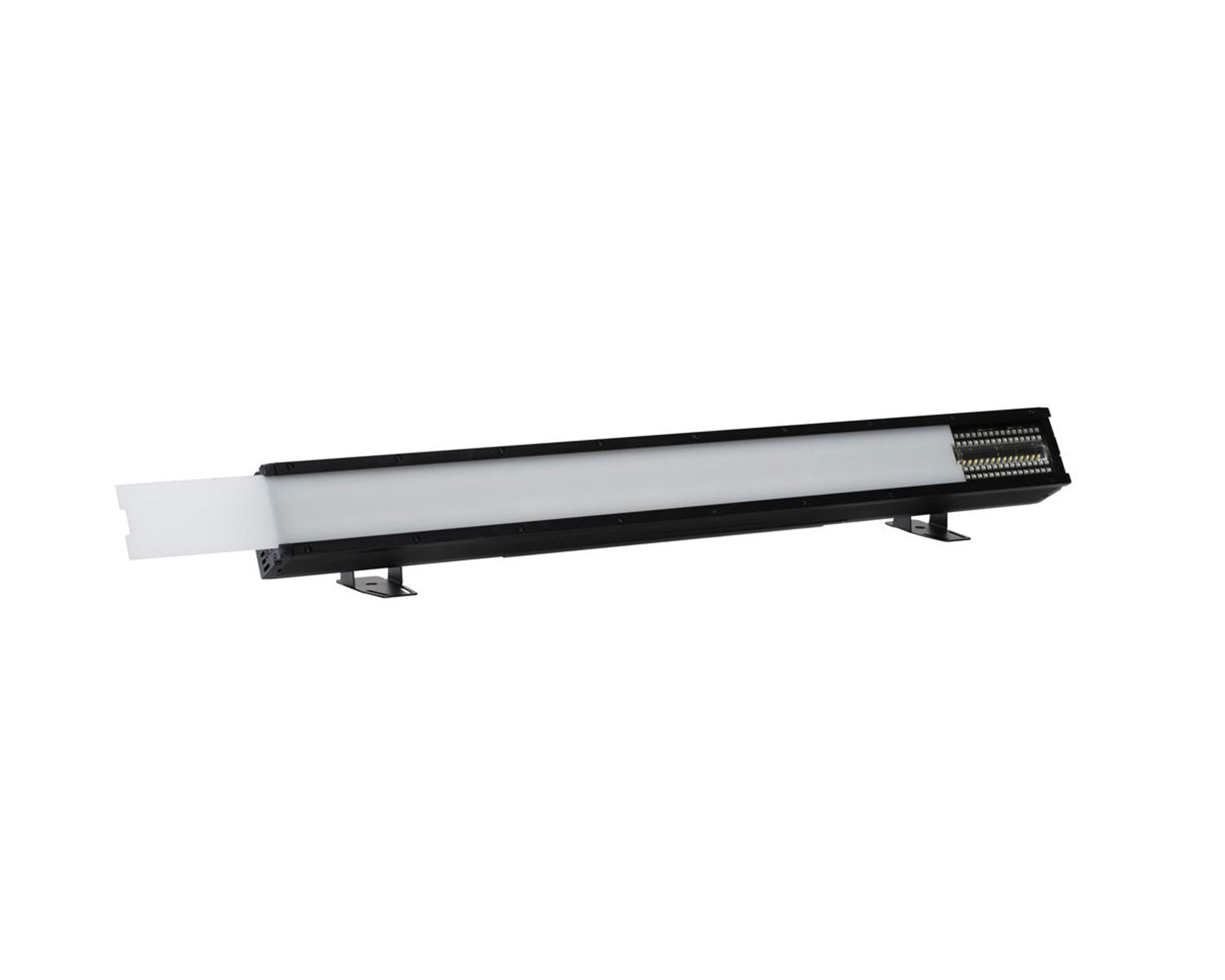

Building on the success of the original Jolt Bar FX, the Jolt Bar FXIP features upgrades that will help Lighting Designers add a new level of creativity to their lightshows. The fixture is IP65-rated for temporary use outdoors as well as indoor use. ADJ’s proprietary Aria X2 wireless DMX is built-in to each fixture (also compatible with ADJ’s WiFLY EXR wireless DMX), which allows data distribution to occur wirelessly. The fixture is supplied with a frost lens assembly that easily attaches to the front of the unit to change its look and output. The frost blurs the pixel dots, providing designers another creative way to change the effect from project to project. And, each fixture is also supplied with a connecting plate that allows multiple units to be joined together seamlessly.

Product Features

32 x RGB LED Zones (112, 127 and 129CH Modes)
16 x Cool White LED Zones (64, 78, 80, 112, 127 and 129CH Modes)
67 Built-In Color Temperature Presets (2300K-8900K)
25 Built-in RGB LED Program Macros
9 Built-in Cool White LED Program Macros

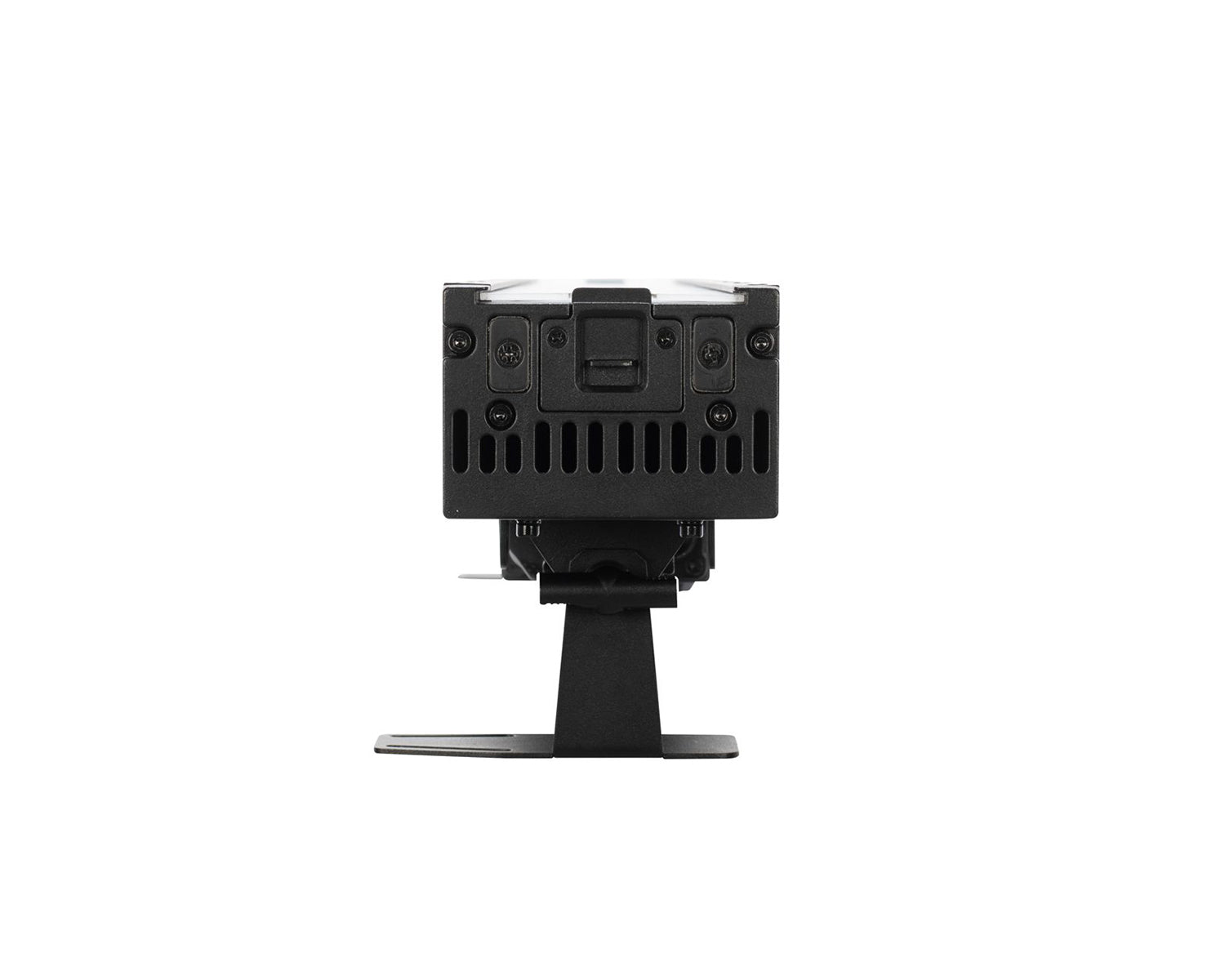

180 degree mounting bracket system
IP65-rated (for temporary outdoor use)
Integrated Aria X2 Management Suite
Includes Frost Lens Filter
Includes Alignment Bracket to attached units together side by side

Product Specifications

Light Source

448 x 0.5-Watt RGB SMD LEDs + 112 x 5-Watt Cool White SMD LEDs
76.6° Beam Angle (Full On) (See Full Photometric Reports in Downloads Section)
92° Field Angle (Full On) (See Full Photometric Reports in Downloads Section)
RGB LEDs: Red: 620-630nm; Green: 515-530nm; Blue: 460-470nm
White LEDs CCT: Typical 7400K (Min 6900 - Max 8000), 472nm
CRI: 86
50,000 Hour Average LED Life

Control

Control Protocols: DMX, Aria X2 and RDM
17 DMX Channel Modes: 6, 9, 13, 16, 18, 20, 32, 34, 38, 43, 45, 64, 78, 80, 112, 127 and 129 channel modes
Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law and S Curve)
0-100% Smooth Dimming
Strobe: Ramp Up / Down, Lighting and Random
Max Strobe Rate 25Hz; Min Strobe Rate: 0.35Hz
Selectable LED Refresh Rate: 900Hz - 25kHz
With Wired Digital Communication Network

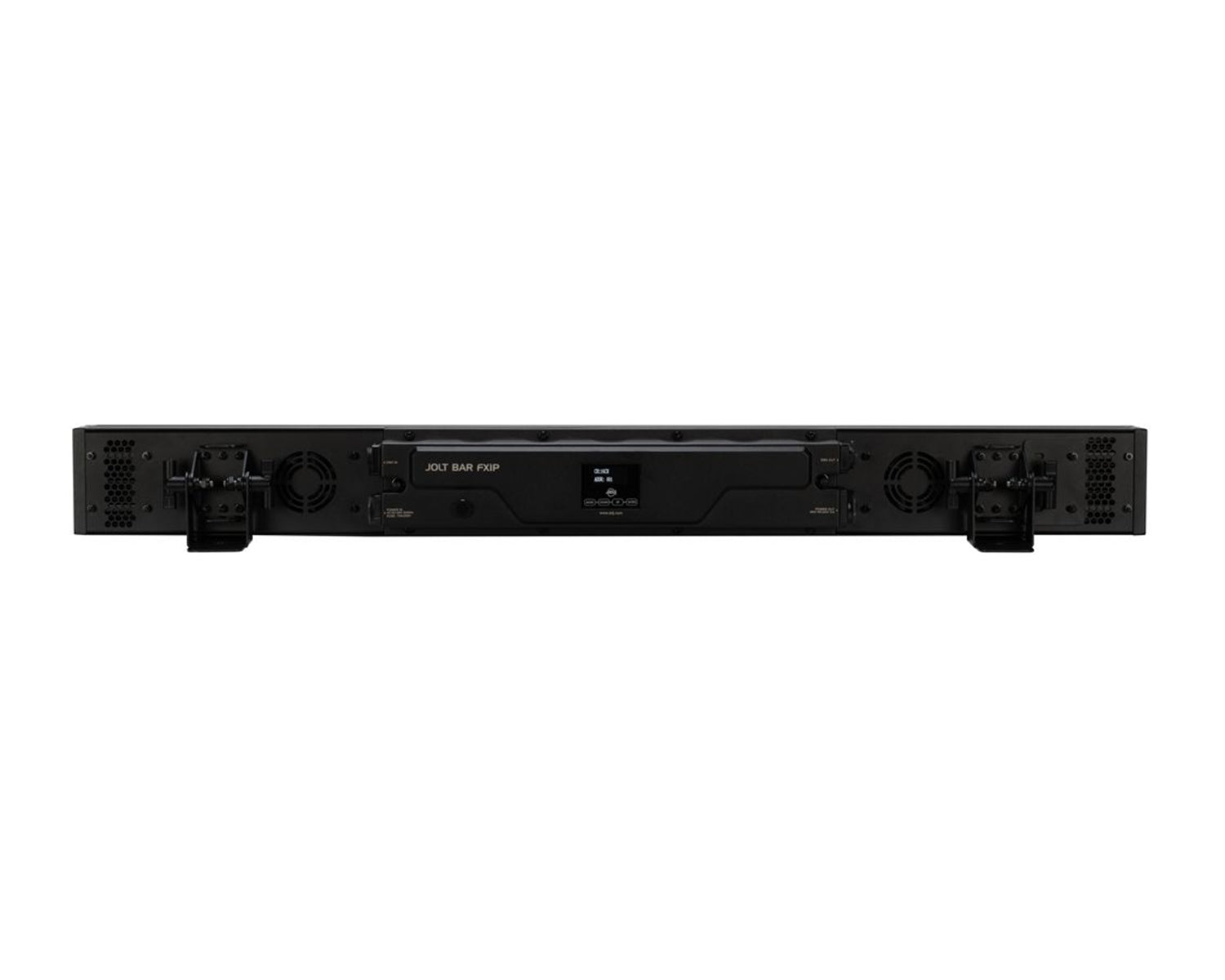

Display: OLED display with 4-button touch menu
