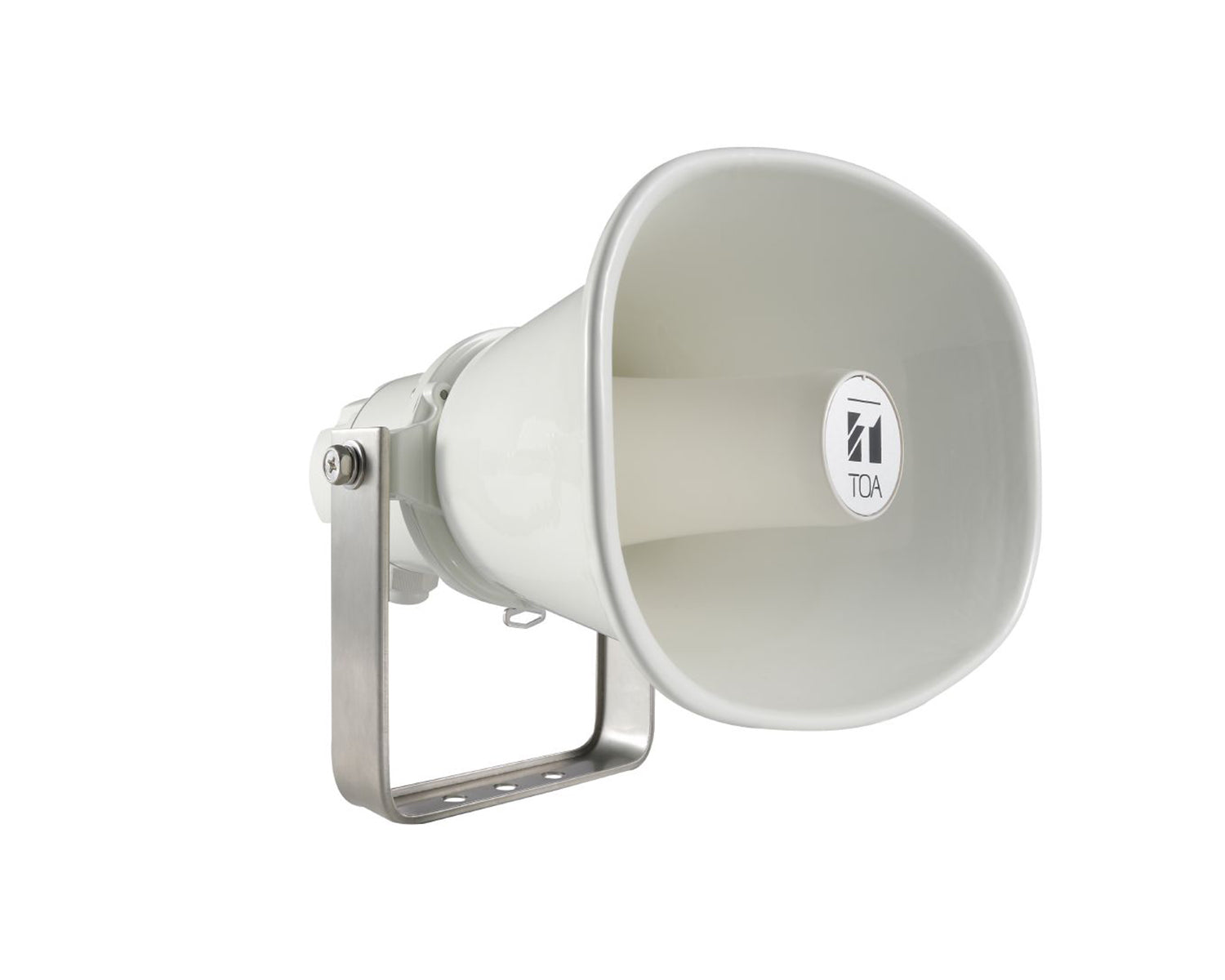

TOAIPA1SC15 - TOA IP A1SC15 IP Horn Speaker IP66 15W @ PoE and or 8W @ PoE Image 1

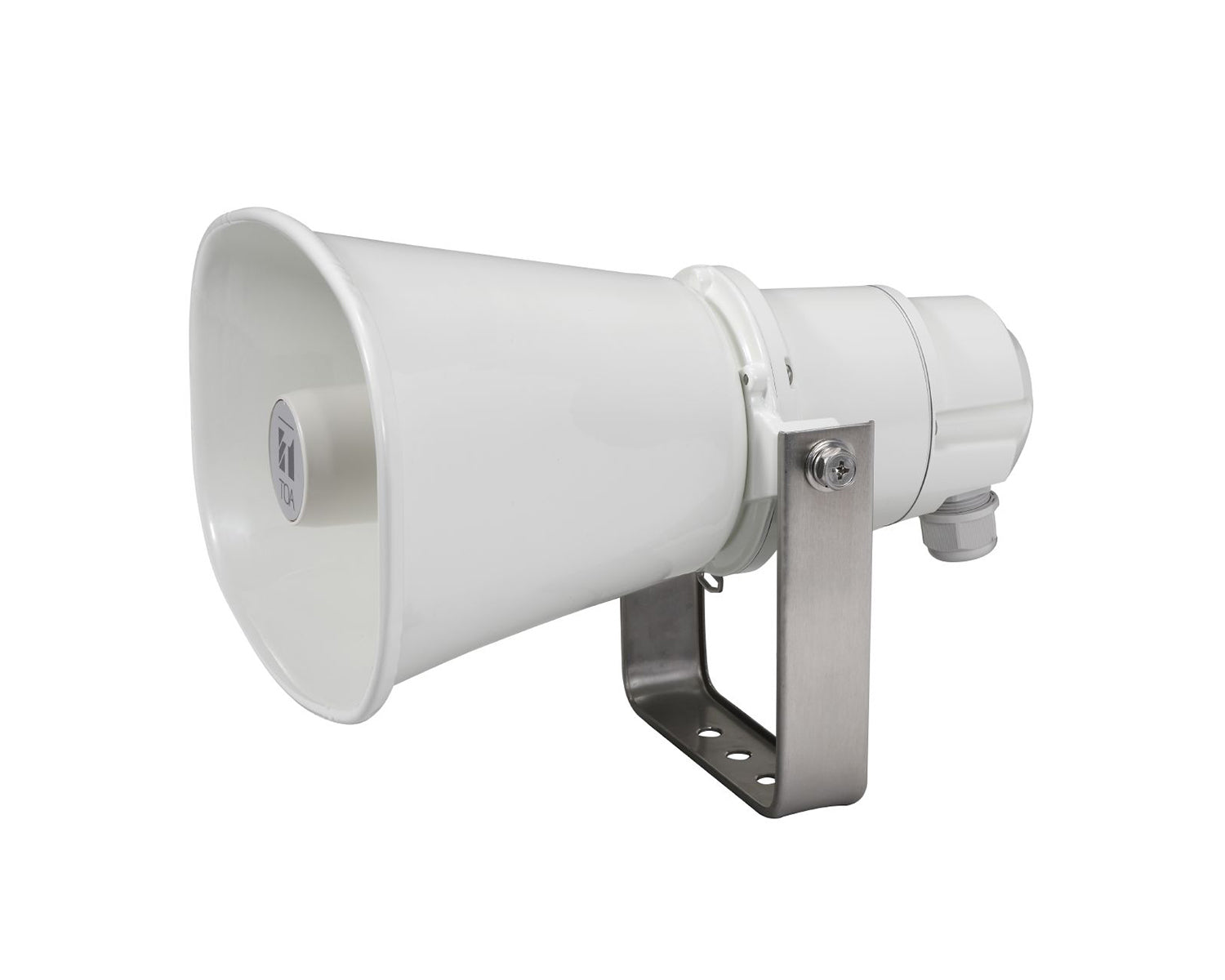

TOAIPA1SC15 - TOA IP A1SC15 IP Horn Speaker IP66 15W @ PoE and or 8W @ PoE Image 2

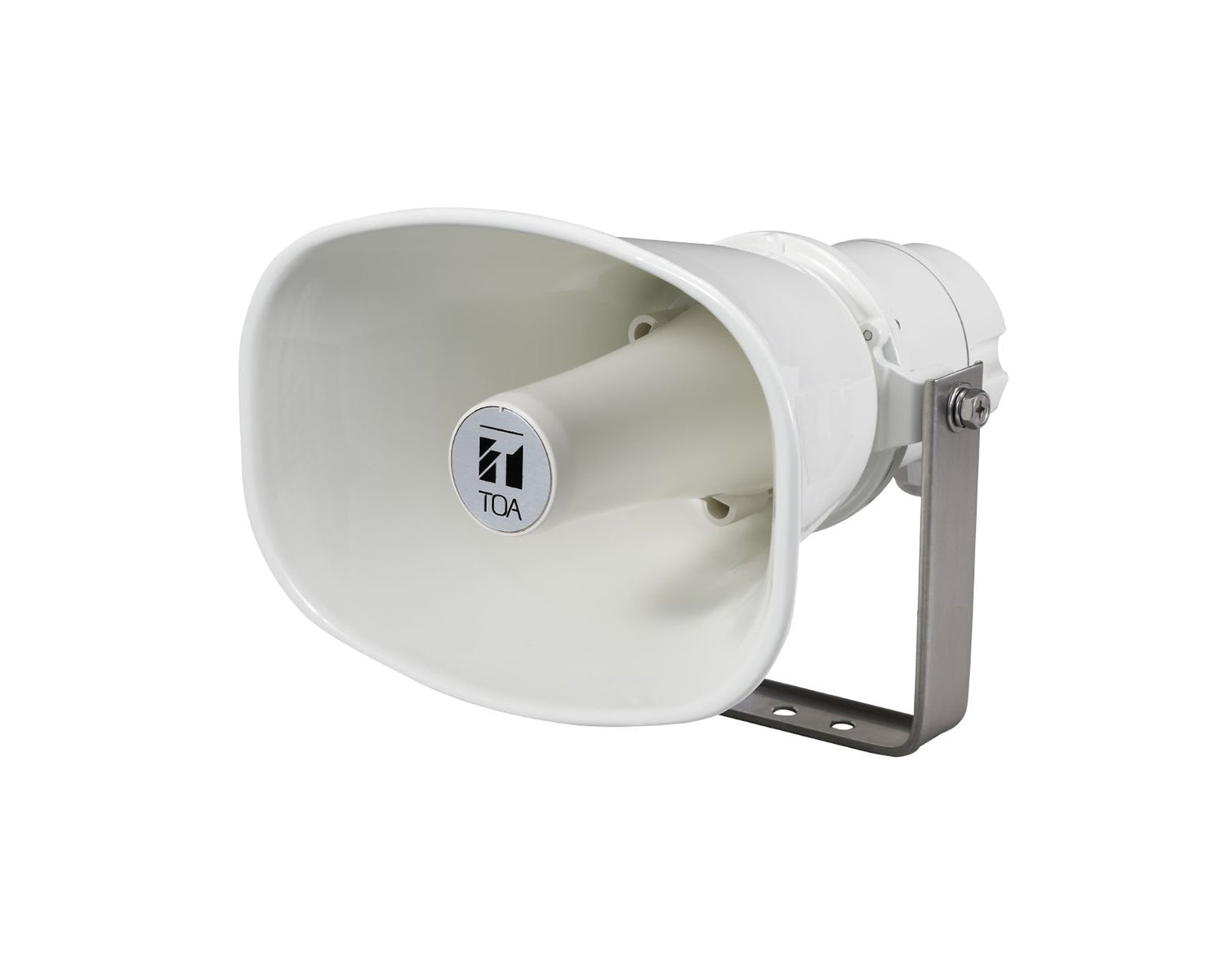

TOAIPA1SC15 - TOA IP A1SC15 IP Horn Speaker IP66 15W @ PoE and or 8W @ PoE Image 3

Plug & Sound: Based on open standards, the IP-A1SC15 IP Horn Speaker plugs right into standard IP networks and can be easily integrated with your VMS or SIP-based system. The IP horn speaker broadcasts crystal clear pre-recorded voice messages, manually or automatically triggered by IP cameras, image sensing or motion detection video systems, or live speech announcements via VoIP (Voice over IP) / SIP phone or video management systems.

High sound pressure level: The integration of the IP horn speaker via PoE+ enables the integrated amplifier to broadcast excellent sound quality at a very high sound pressure level over long distances. Robust weather resistant housing: The IP-A1SC15 combines the TOA proven robust construction with the latest IP technology. Its weatherproof enclosure is perfectly suited for outdoor applications. Simple to install wherever you need a strong voice: A single standard network cable provides both power and connectivity with your network. Easy to customize over API (Application Programming Interface): Adapt the individual volume to the environmental noise level and optimize it to time of day, distance, and degree of emergency. Flexible group paging: The IP-A1SC15 IP Horn Speaker can be addressed via multicast enabling audio paging into groups of IP devices simultaneously.

Product Features

124 dB max. SPL
Receive SIP audio, ONVIF* audio backchannel and multicast (up to 20 addresses)
15 W (PoE+) / 8 W (PoE) built-in amplifier
IP66 rating for outdoor installations
Operating temperature from -30 °C to +55 °C
API (HTTP commands)
Audio file storage (20 files, total 80 MB, WAV/MP3)
Individual volume level adjustment to each audio source to ensure uniform and harmonized output
Different playback programs (repeat, duration, weekly timer)

Product Specifications

Indicator: LAN: LINK/ACT (green), STATUS (orange)
Internal Messages:
- Max. 20 messages (Max. recording capacity: 80 MB)
- Supported file formats:
- WAV file: 8/16/44.1/48 kHz sampling frequency, 8/16 bit, monaural/stereo
- MP3 file: 32/44.1/48 kHz sampling frequency, 64 - 320 kbps, CBR/VBR, monaural/stereo
- Repeat playback: Playcount (1 - 10 times), Duration (5 - 3600 s) or Timer (from start time to end time)
- Interval time: 0 - 60 s, Delay time: 0 - 30 s
- Trigger: Control Input or Remote API (HTTP)
Audio Codec: PCMU (G.711u), PCMA (G.711a), G.722
Power source: PoE+ (IEEE802.3af Class 4) , PoE (IEEE802.3af Class 3)
Rated output: 15 W (at PoE+ powered), 8 W (at PoE powered)
Sensitivity (1 W, 1 m): 112 dB (500 Hz - 2.5 kHz, peak level)
Broadcasting Mode:
- SIP Broadcasting Mode: PCMU/PCMA/G.722, P2P/SIP Server Connection
- Multicast Broadcasting Mode: PCMU/PCMA/G.722, Auto codec recognition, 20 ports
- VMS Broadcasting Mode: ONVIF Audio Backchannel, PCMU
- Internal Message Broadcasting Mode
- Note: Each broadcast mode can be assigned an order of priority using the Priority Setting function.
- ONVIF is a registered trademark of ONVIF Inc.
Control input: 2 channels, no-voltage make contact inputs, open voltage: 5 V DC,short-circuit current: 2 mA or less, removable terminal block (3 pins)
Frequency response: 280 Hz - 12.5 kHz
Power consumption:
- 22 W (at PoE+ powered, rated output)
- 12.95 W (at PoE powered, rated output)
- 5 W (IEC62368-1)
Control output: 1 channel, open collector output, withstand voltage: 30 V DC,control current: 10 mA or less, removable terminal block (3 pins)
Digital control: I/F Remote API (HTTP commands)
Max. SPL (1 m):
- 124 dB (at PoE+ powered, 15 W) (500 Hz - 2.5 kHz, peak level)
- 121 dB (at PoE powered, 8 W) (500 Hz - 2.5 kHz, peak level)
Network I/F: 100BASE-TX, Auto MDI/MDI-X, RJ-45 connector
Network protocol: TCP/IP, UDP, HTTP, RTP, RTSP, RTCP, ARP, ICMP, IGMPv3, NTP, SIP (RFC3261)
Clock Accuracy: ±13 s per month, Power outage protection period: 24 h (RTC time retention, at 40 °C)
Time Adjustment: Manual time setting, Time adjustment by NTP server
Finish: Aluminium, ABS resin, Polycarbonate, Stainless steel, paint, off-white (RAL 9010 or equivalent),
Operating humidity: 90% RH or less (no condensation)
Operating temperature: -30°C to +55°C
