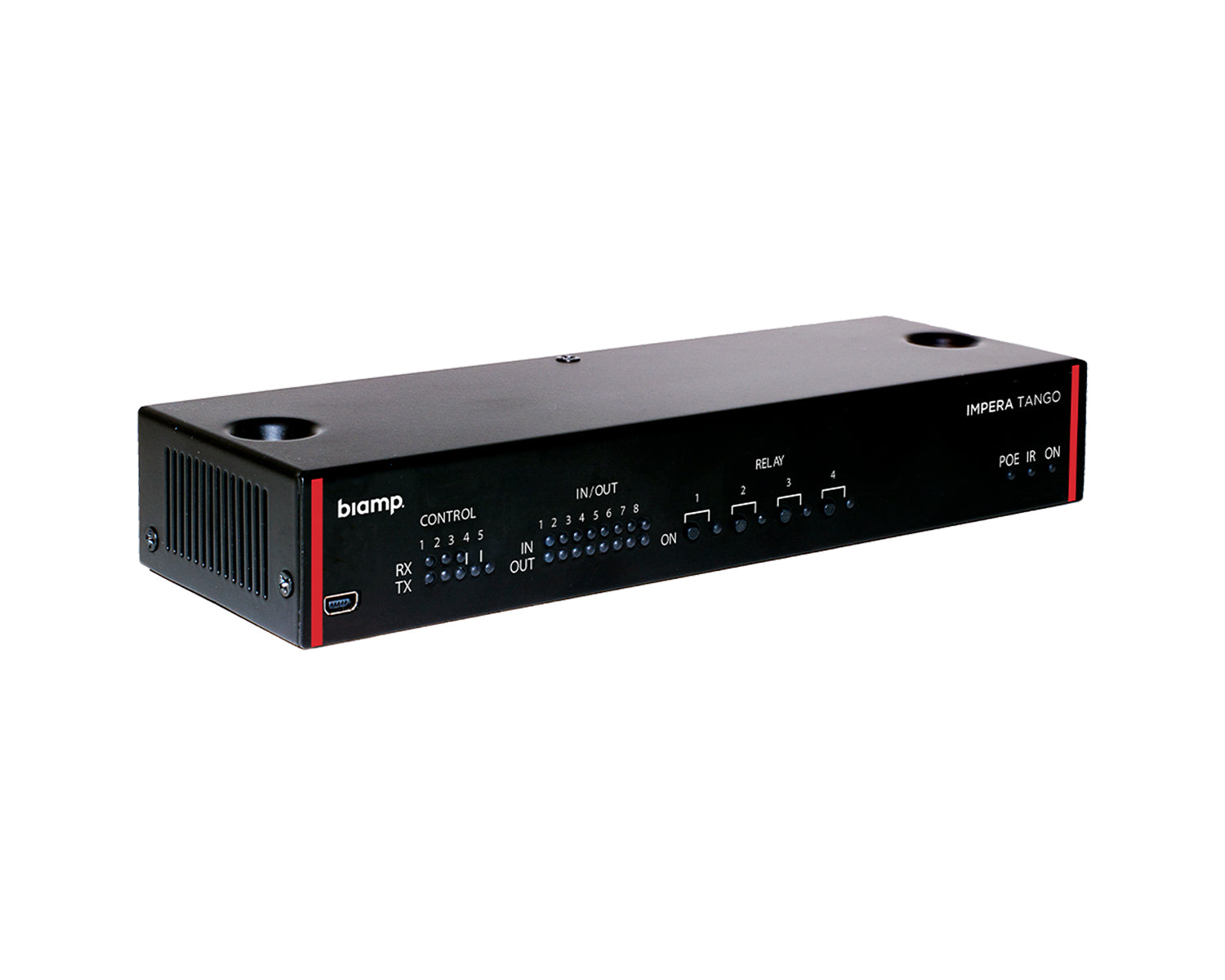

The Impera Tango serves as a controller for Biamp keypad controls and touch panels, providing easy control of all room functions. The Tango is equipped with three bi-directional RS-232 interfaces for sending commands to AV devices with feedback functionality. It is additionally equipped with 2 uni-directional RS-232 interfaces for sending commands to AV devices using serial or infrared communication. 8 GPIO are available for control of relays, switches and sensors. Impera Tango is a versatile AV control system for medium and large conference rooms.

Product Features

• Programmed via Project Designer software
• 3 bi-directional RS-232 ports or 6 IR ports
• 2 uni-directional RS-232 ports or 4 IR ports
• 4 built-in assignable relays
• 8 GPIO for control of relays, switches, and sensors
• PoE powered (IEEE 802.3at Class 3, 15W)
• Covered by Biamp Systems’ five-year warranty

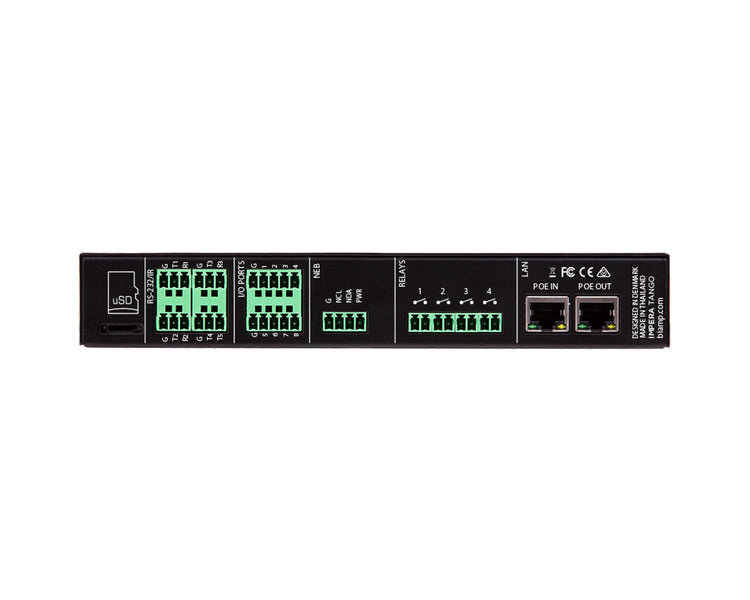

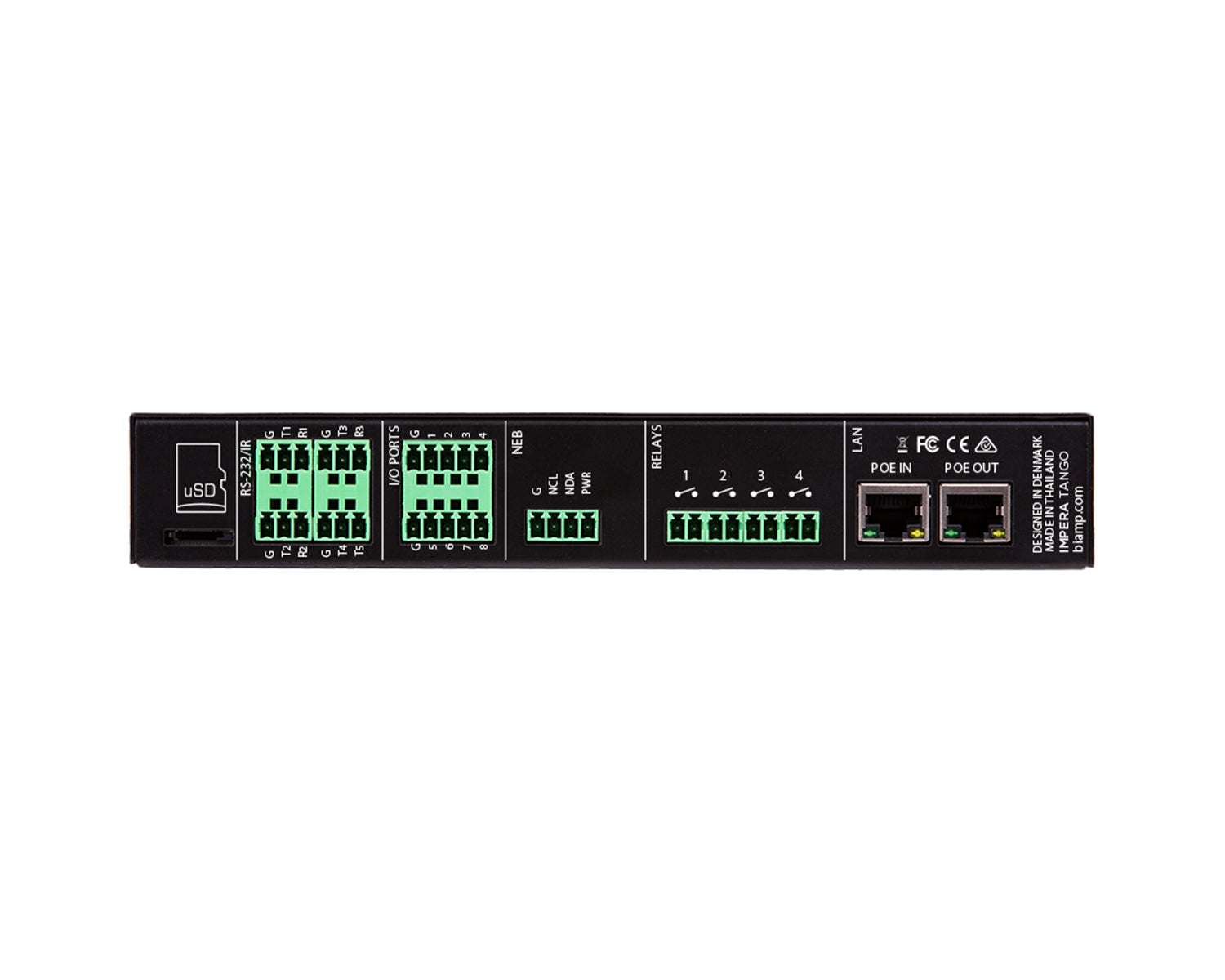

Product Specifications

General

• Network Connection: RJ-45 with Ethernet (CAT5e or better)
• RS-232 / IR
  • Number of Ports:
  • 3 (bi-directional)
  • 2 (uni-directional)
  • Connector: 3-pin, 0.3-inch Euroblock
  • Baud Rate: 1200 – 115200 bit/sec
  • Data Bits: 7, 8
  • Parity: Even, Odd, None
  • Stop Bits: 1, 2
  • IR Frequency Range: 400 Hz to 500 kHz
• GPIO
  • Number of Ports: 8
  • Connector: 5-pin, 0.3-inch Euroblock
  • Type: Open drain
  • Input Trigger Low: < 1VDC
  • Input Trigger High: > 4VDC
  • Isolated Output: No
  • Max Voltage: 24VDC
  • Max Current: 0.5A
• Relays
  • Quantity: 4
  • Connector: 2-pin, 0.3-inch Euroblock
  • Power capacity: 30VDC / 0.5A
• Power: IEEE 802.3at Class 3, 15W
• Cooling: Convection
• Environmental
  • Ambient Operating Temperature Range: 32 - 86° F (0 – 30° C)
  • Humidity: 10-90% relative humidity (non-condensing)
  • Altitude: 0-6,600 ft (0-2000m) MSL

Physical

• Height: 1.4 inches (35 mm)
• Width: 8.7 inches (220 mm)
• Depth: 2.8 inches (70 mm)
• Weight: 1.1 lbs (0.5 kg)
