The ILD122 is a professional audio induction loop driver capable of driving loop areas in excess of 200m2 with an unsurpassed clarity of sound for both music and speech for superior intelligibility. Based on proven and highly reliable technology it is backed by an unrivalled 5 year warranty and free technical support.

Improved power output provides outstanding value without compromise. It boasts all the usual features found on Ampetronic equipment such as metal loss correction and speech optimised gain control.

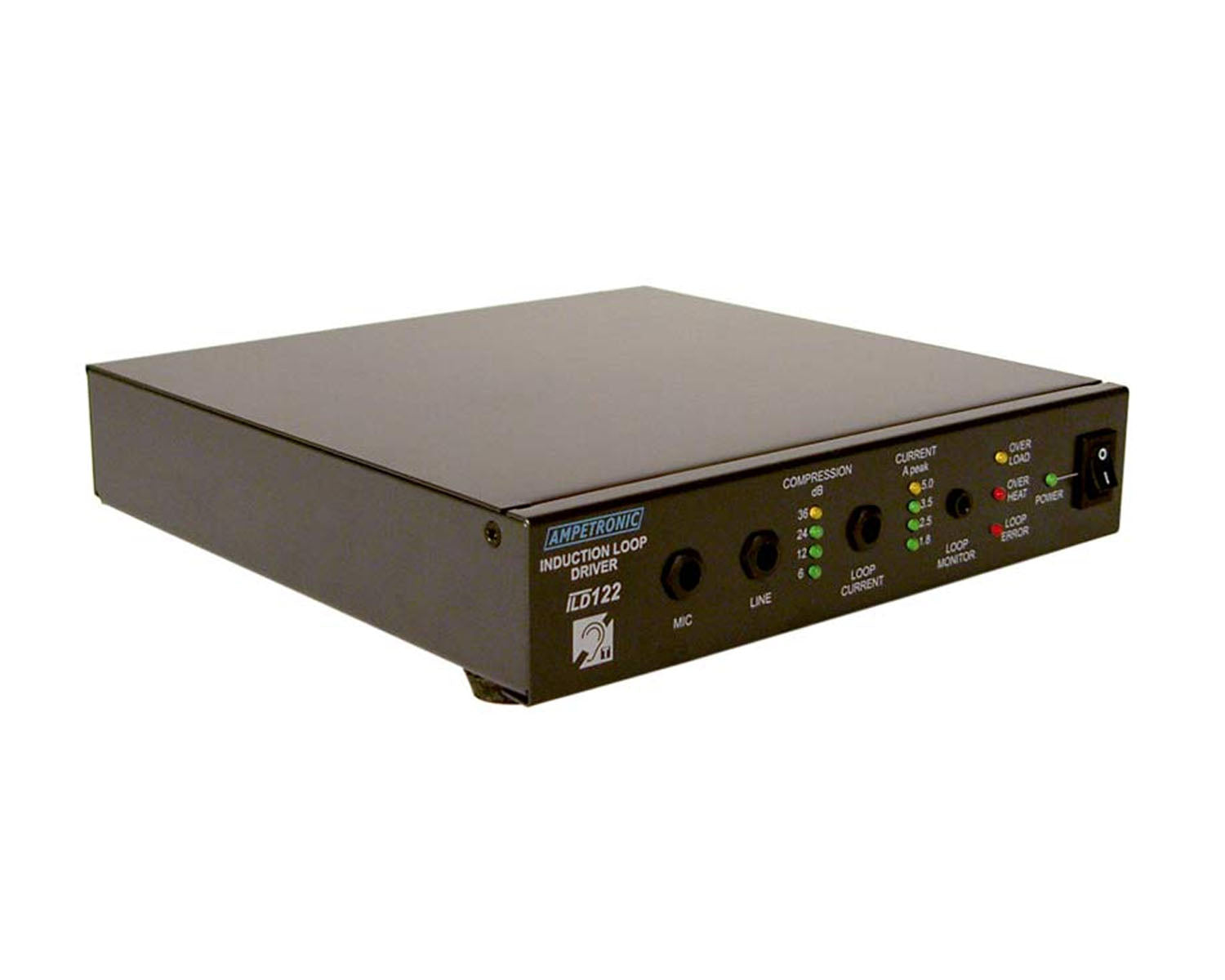

The ILD122 is very compact and elegant, suitable for freestanding, wall mounting or rack mounting.

Product Features

• Area coverage to >200m2
• Low lifetime cost
• Excellent proven reliability
• 5 year warranty
• Unparalleled sound quality
• Excellent intelligibility
• Speech optimised gain control
• High voltage headroom avoids high frequency clipping
• Metal loss corrector corrects frequency dependent loss from metal structures
• Very compact: 215 x 220 x 44mm
• Microphone (XLR) and line inputs
• Extensive input adaptors available for any audio input requirements
• Free technical support line for advice, design and install
• High voltage headroom suited to long cable lengths

Applications

• Conference facilities
• Theatres
• Sports halls
• Educational environments
• Places of worship
• Lecture Halls

Product Specifications

INPUTS

• Power:
  • 35 W 230 V AC nominal, 45-65 Hz [120 V option available]
  • Power switch and LED indicator on front panel
• Microphone input:
  • XLR balanced microphone input for 200-600 Ω microphones;
  • 15 dB user selectable gain boost; + 15 V DC phantom power (selectable); sensitivity – 70 dBu; front panel recessed gain control
• Line input: 6.4 mm jack socket balanced line input; sensitivity – 30 dBu; overload protected; front panel recessed gain control
• Slave I/O:
  • 6.4 mm jack insert point for connection of SP5 phase shifter
  • 0 dBu signal can be used for recording

OUTPUTS

• Drive voltage: 8.5 Vrms (12V peak) at maximum output current
• Drive current
  • 3.5 Arms (5 Apk) continuous 1 kHz sine wave
  • Short term peaks >7 Apk
  • Front panel recessed control
  • Drive current indicated on 4-LED display in 3 dB increments
• Loop connector: Wieland ST17/2 (supplied)
• Loop Monitor: Provides access to actual audio signal in loop via a 3.5 mm stereo headphone connector on front panel

AUDIO SYSTEM

• Freq. response: 80 Hz to 6.5 kHz
• Distortion: THD+N
• Automatic Gain Control:
  • The AGC is optimised for speech. Range >36 dBu
  • Front panel recessed input level control
• Metal loss correction: Corrects system frequency response due to metal structures in a building. Gain constant at 1 kHz, adjustable gain slope from 0 to 3 dB per octave
• This does not compensate for signal loss from metal structures, which can be significant

ADDITIONAL FUNCTIONS

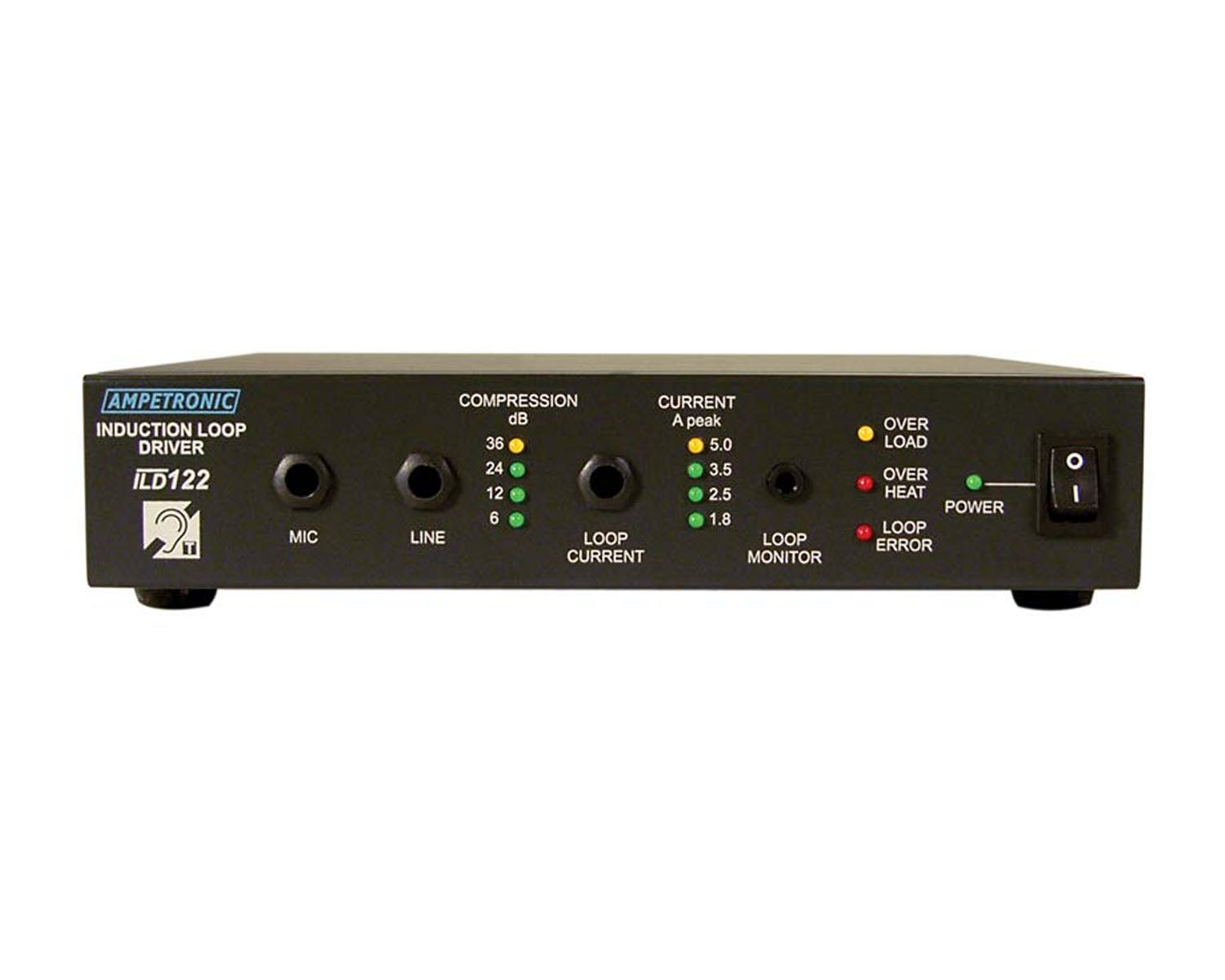

• Fault Monitoring:
  • Three LED fault indicators on the front panel:
    • Overload – delivering over the rated current
    • Overheat – unit is too hot (mutes output signal)
    • Loop error – short circuit / open circuit error

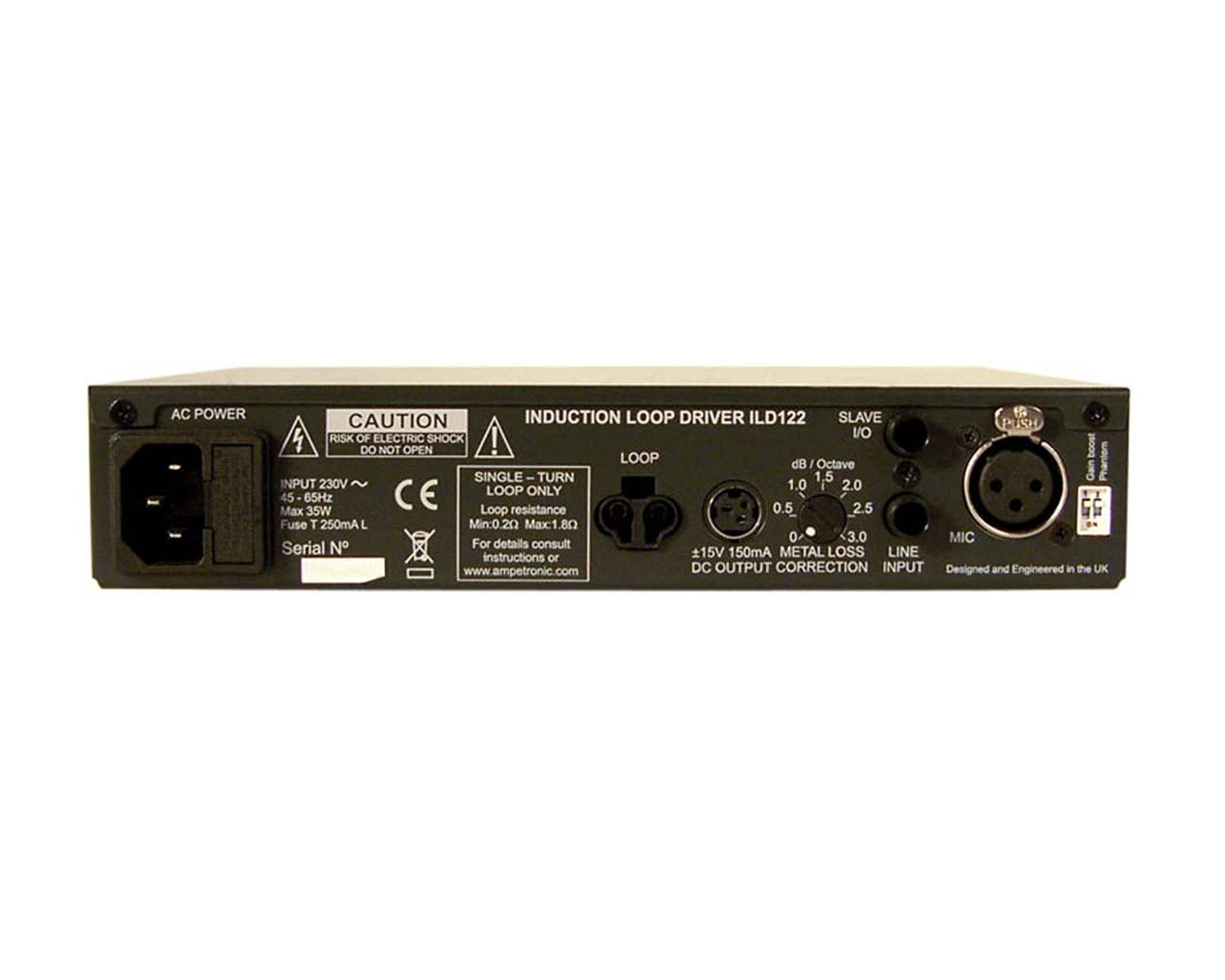

• Ancillary:
  • To supply Ampetronic ancillary units
  • ±15 V DC 0.15 A power outlet on rear panel
• Cooling: Cooling is by natural convection from product casing

PHYSICAL

• Dimensions:
  • Half width 1U 19″ rack mount
  • Width 215 mm Depth 220 mm Height 44 mm
• Mounting options:
  • Freestanding
  • 1U 19″ rack mount (requires additional rack tray)
  • Wall mounting (requires additional brackets)
• Weight: 1.8kg
• Environment: IP 20 protection; 20 to 90% relative humidity; 0 to 35 ºC
