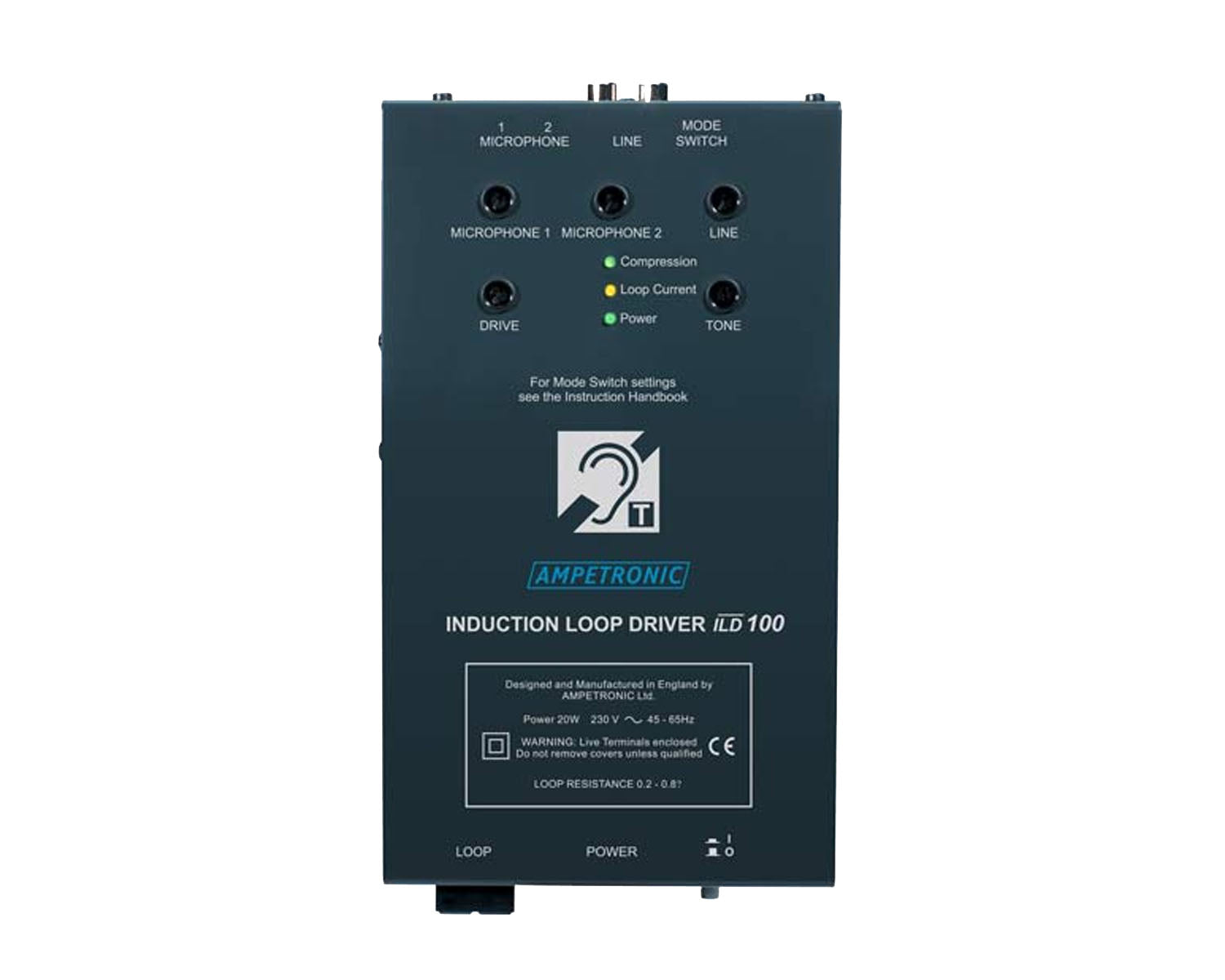

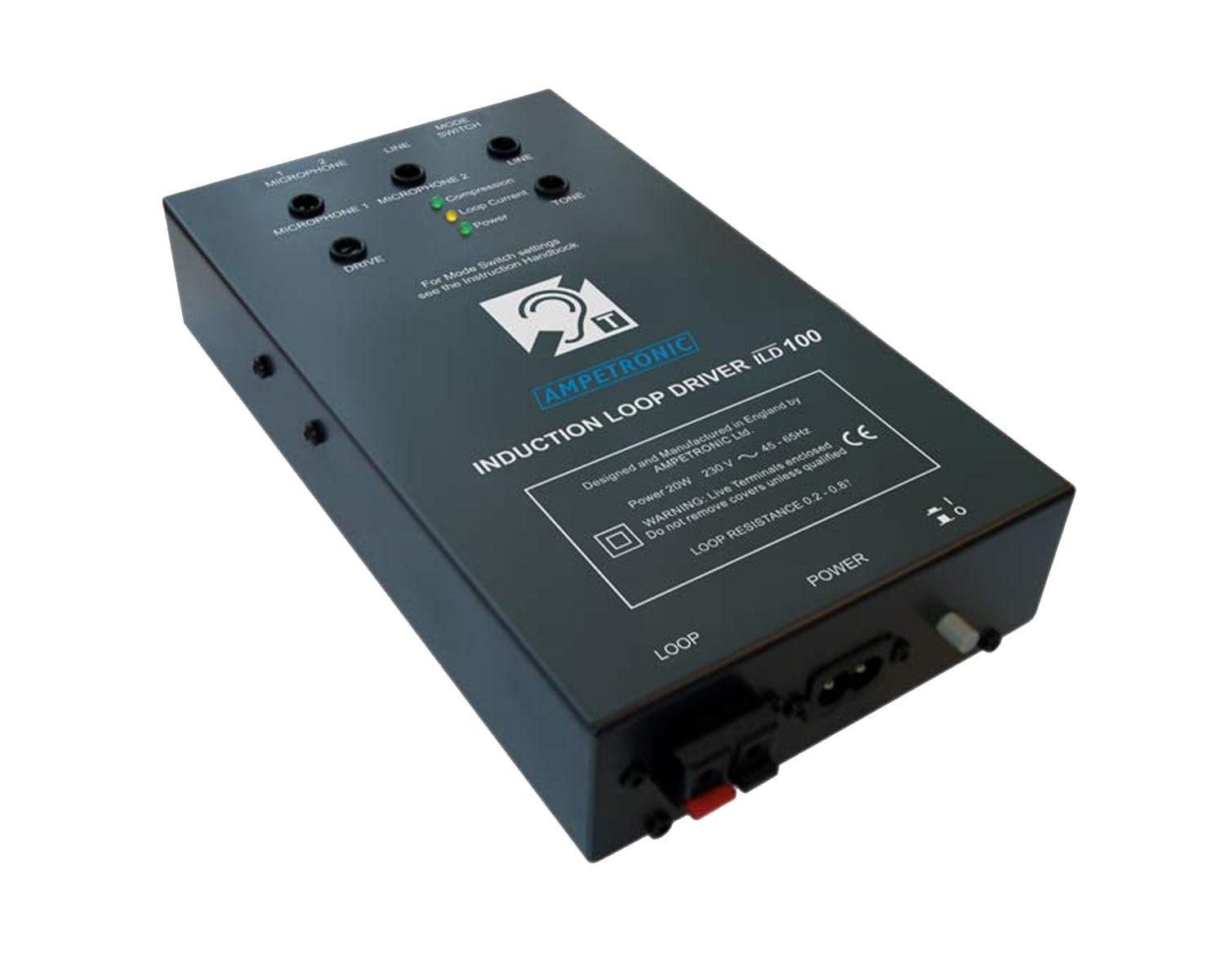

The ILD100 audio induction loop driver is in a class of its own. This compact and stylish unit is capable of driving loop areas in excess of 100m2 with an unrivalled clarity of sound for superior intelligibility. Based on proven and highly reliable technology it is backed by a full 5 year warranty and free technical support.

All connections are plug and socket style for simple quick installation. Configuration VOX switching sets priorities for each input e.g. emergency announcements can override other audio inputs. Twin phono (RCA) inputs provide a simple interface to hi-fi systems and televisions. Available with a range of microphones, interface cables and accessories.

Freestanding or wall mounted, the ILD100 is the obvious choice for smaller installations such as TV loop systems, private home loops, video conference rooms, nursing homes, reception and waiting rooms area loops.

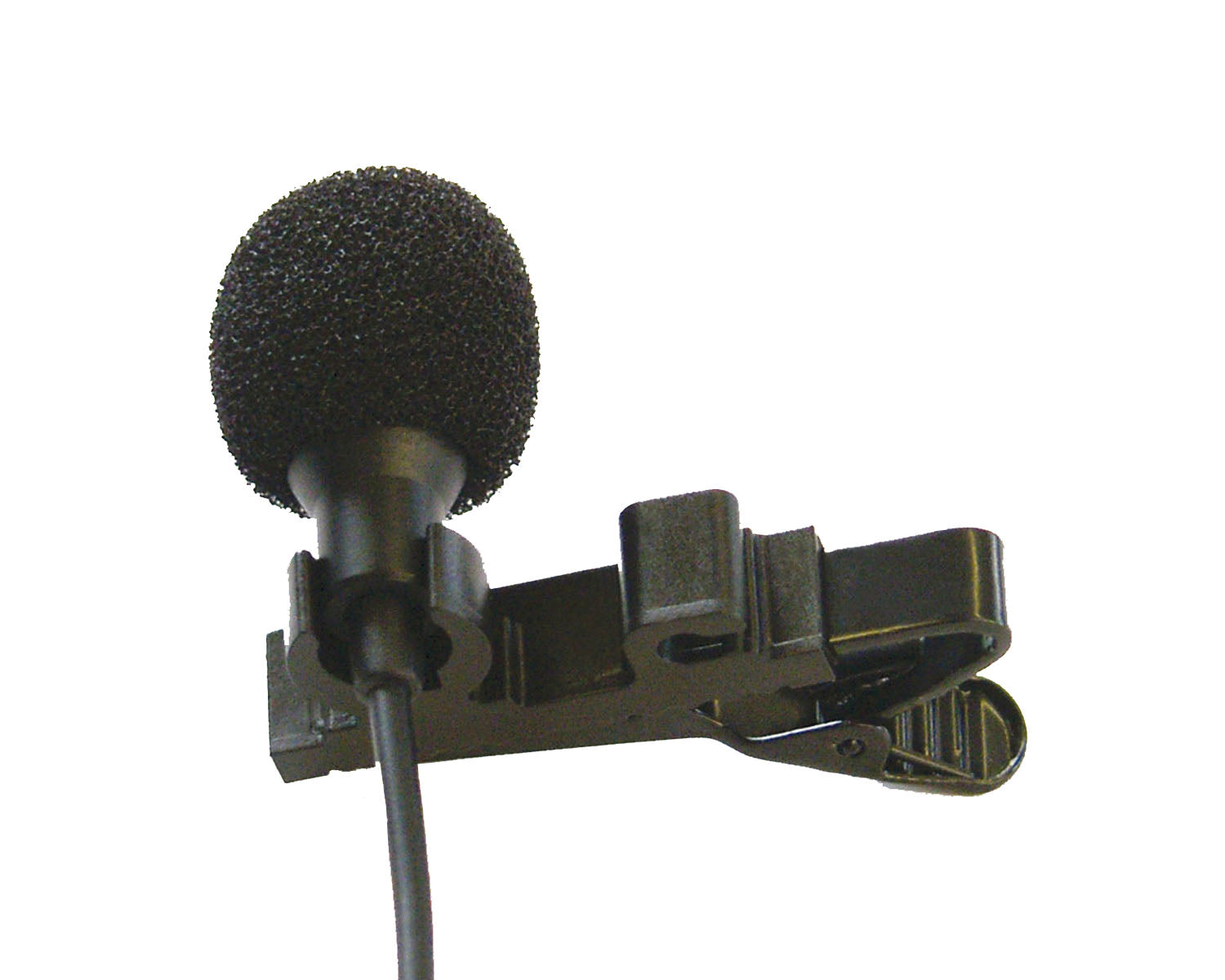

ILD100TX: ILD100 Loop Driver, Tie-Clip Mic, A6 Loop Present Sign, Installation Guide, Region Specific Mains Cable

Product Features

Area coverage to >200m2
Low lifetime cost
Excellent proven reliability
5 year warranty
Unrivalled intelligibility
VOX switching – configured to prioritise Mic 1 input
Built in tone control
Very compact – 216 x 124 x 44mm
2 microphone inputs (electret)
1 line input – twin phono (RCA) connectors for TV / hi-fi connection
Input adaptors and accessories for any audio input requirements,
e.g. SCART lead, assorted microphones

Applications

Video conference facilities
Meeting rooms
Small seminar rooms
Television rooms
Nursing homes
Private homes
Receptions and waiting rooms

Product Specifications

INPUTS

Power:
- 15W 230V AC nominal, 45-65Hz
- 120V and 12V DC options also available
- Power switch and LED indicator on front panel
Microphone input:
- 2 inputs: 3.5mm mono connector for electret microphones
- DC powering for electret capsules. (Requires MAT60 adaptor to take XLR balanced microphone input).
- Front panel recessed gain control

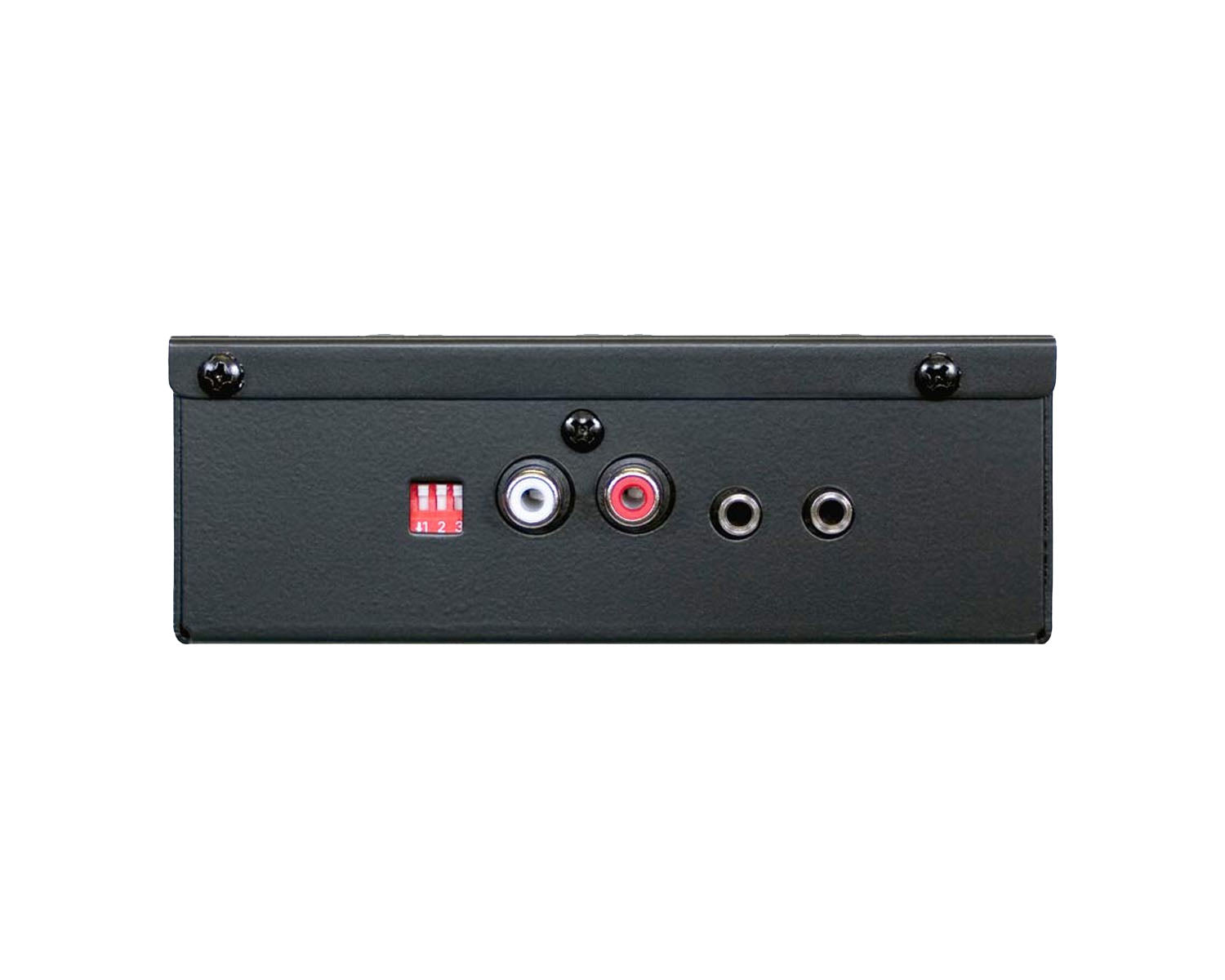

Line input:
- 2 x phono (RCA) connectors, impedance 60kΩ each side,
- 20kΩ differential. Sensitivity matched to?SCART signal level.
- Front panel recessed gain control

OUTPUTS

Drive voltage: 3.0Vrms (4.2Vpk) at maximum output current
Drive current:
- 3.4Arms (4.8Apk) continuous 1kHz sine wave
- Short term peaks. 6.5A
- Front panel recess drive control
- Front panel LED indicates current peaks

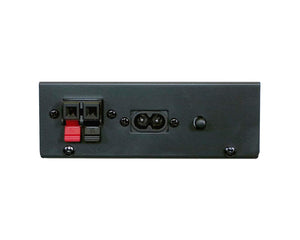

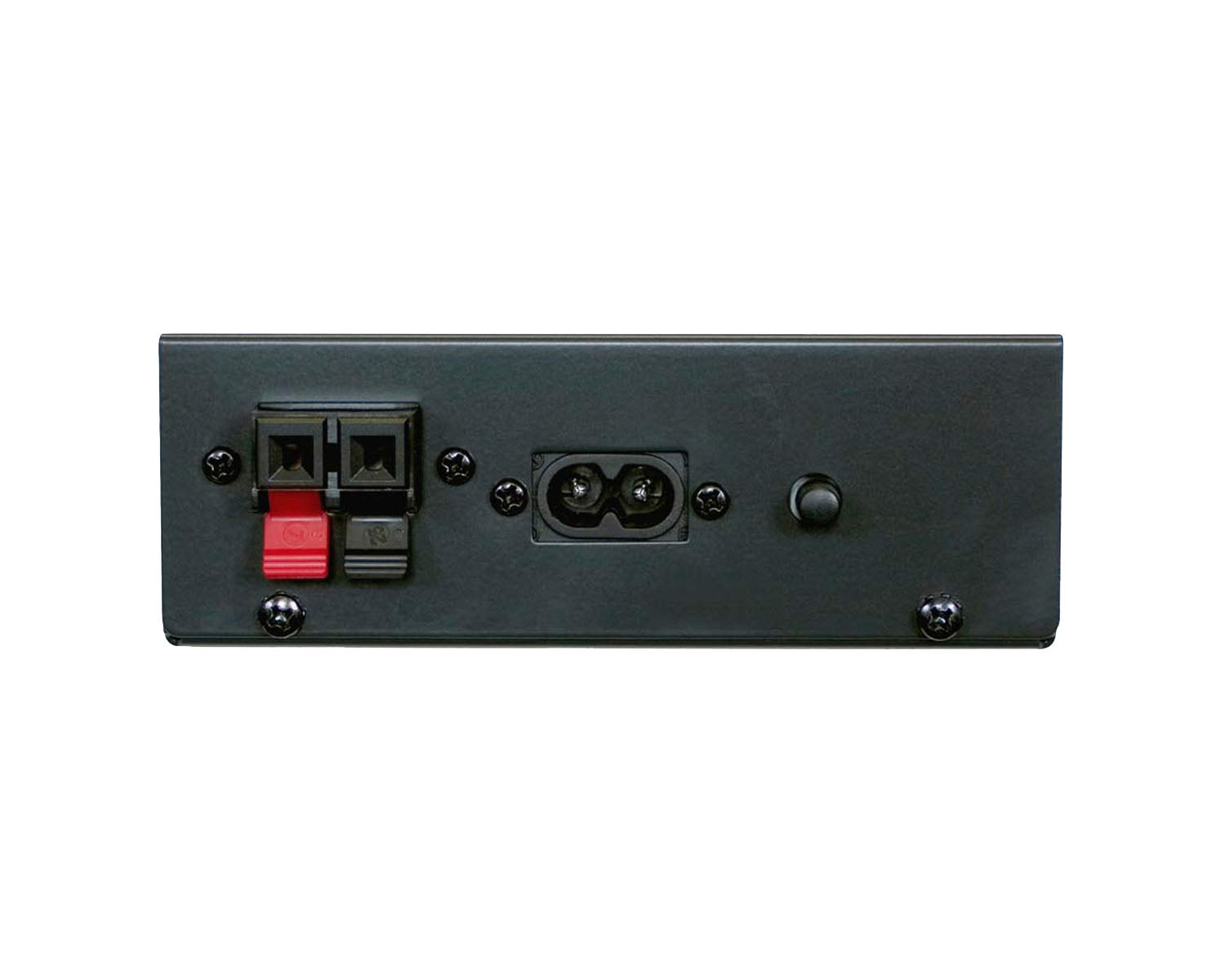

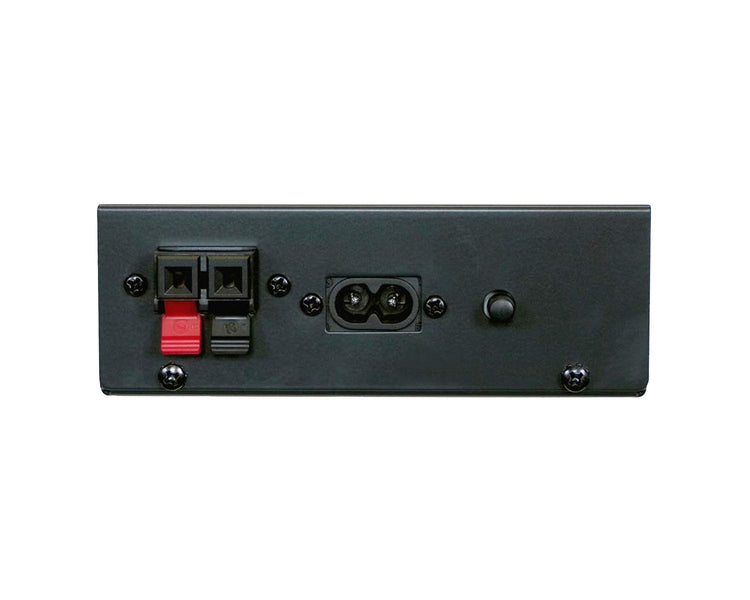

Loop connector: Lever cable clamp

AUDIO SYSTEM

Freq. response: 80Hz to 6.5kHz
Automatic Gain Control:
- The AGC is optimised for speech. Dynamic range >36dB
- Front panel recessed input level control
Tone control: Front panel recessed control

ADDITIONAL FUNCTIONS

VOX switching: To control prioritisation of microphone 1 input. 4 different actions when microphone 1 level is at the onset of compression. Options to attenuate or turn off other inputs when microphone 1 is active, and to turn microphone 1 off when below threshold if required.
Cooling: Cooling is by natural convection from the product casing.

PHYSICAL

Dimensions: Width 124mm Depth 216mm Height 44mm
Mounting options:
- Freestanding
- Wall mounting – mounting holes provided on rear panel
Weight: 1.3kg
Environment: IP20 protection; 20 to 90% relative humidity; 0 to 35ºC
