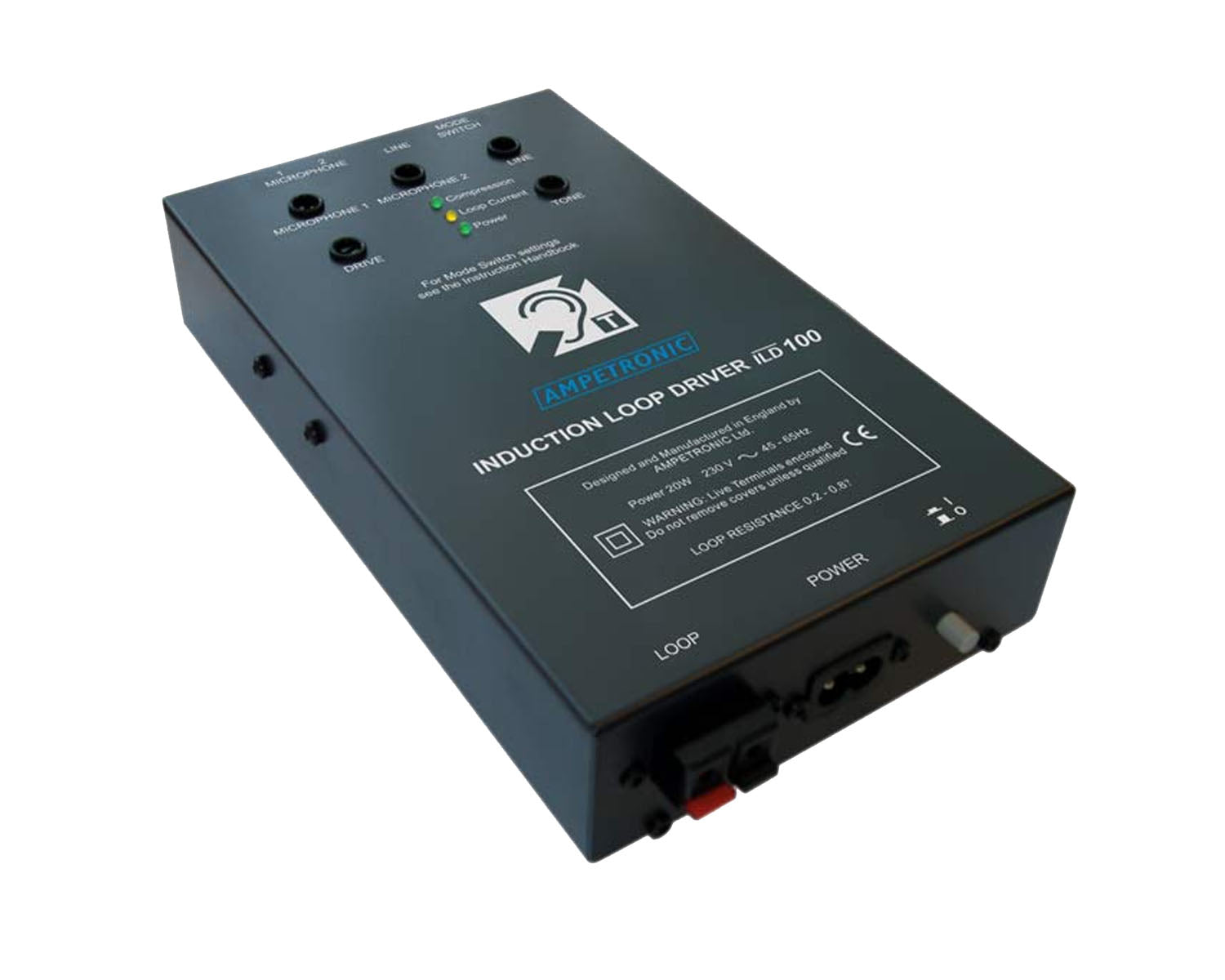

The ILD100 audio induction loop driver is in a class of its own. This compact and stylish unit is capable of driving loop areas in excess of 100m2 with an unrivalled clarity of sound for superior intelligibility. Based on proven and highly reliable technology it is backed by a full 5 year warranty and free technical support.

All connections are plug and socket style for simple quick installation. Configuration VOX switching sets priorities for each input e.g. emergency announcements can override other audio inputs. Twin phono (RCA) inputs provide a simple interface to hi-fi systems and televisions. Available with a range of microphones, interface cables and accessories.

Freestanding or wall mounted, the ILD100 is the obvious choice for smaller installations such as TV loop systems, private home loops, video conference rooms, nursing homes, reception and waiting rooms area loops.

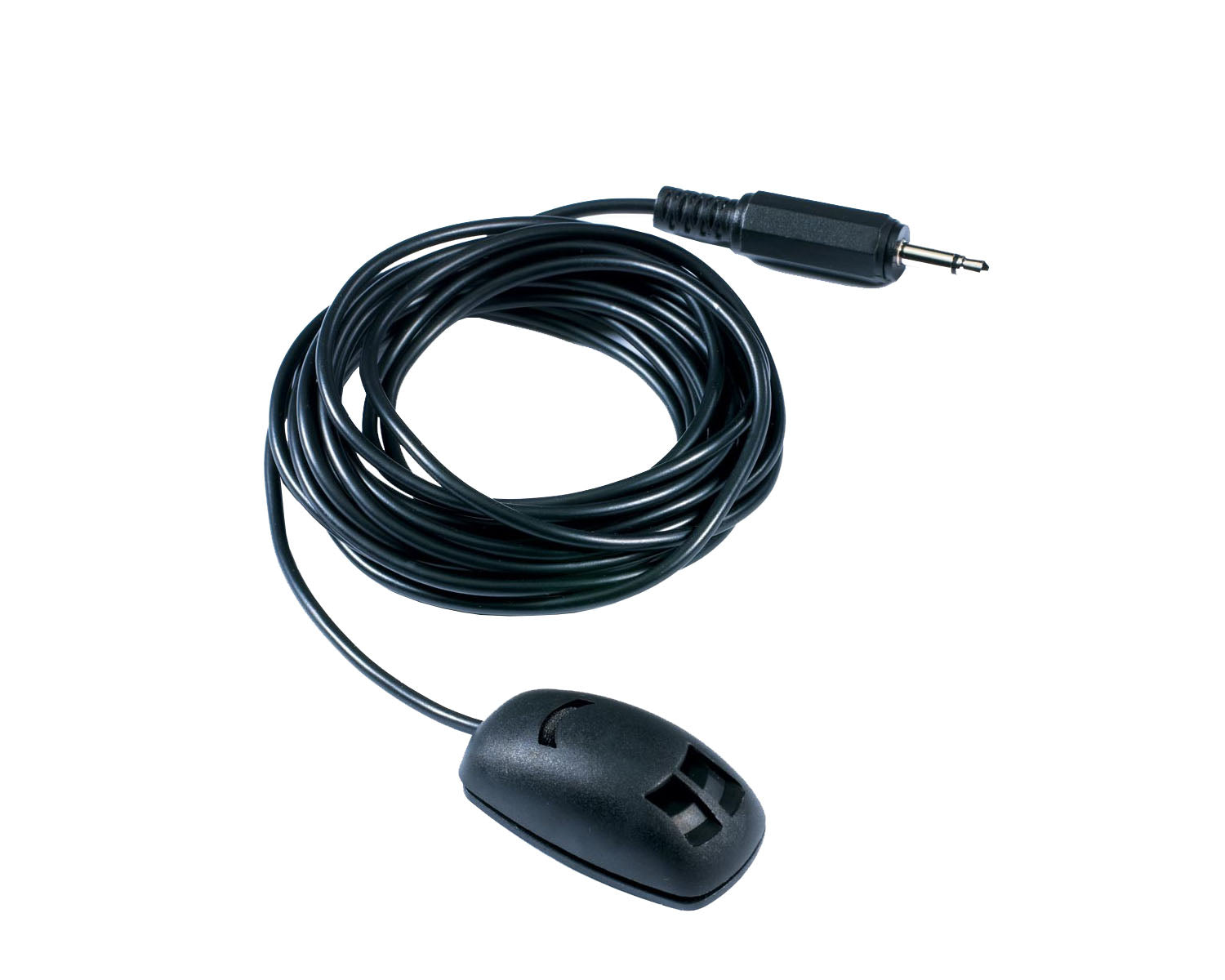

ILD100BX: ILD100 Loop Driver, Boundary Mic, A6 Loop Present Sign, Installation Guide, Region Specific Mains Cable

Product Features

• Area coverage to >200m2
• Low lifetime cost
• Excellent proven reliability
• 5 year warranty
• Unrivalled intelligibility
• VOX switching – configured to prioritise Mic 1 input
• Built in tone control
• Very compact – 216 x 124 x 44mm
• 2 microphone inputs (electret)
• 1 line input – twin phono (RCA) connectors for TV / hi-fi connection
• Input adaptors and accessories for any audio input requirements,
• e.g. SCART lead, assorted microphones

Applications

• Video conference facilities
• Meeting rooms
• Small seminar rooms
• Television rooms
• Nursing homes
• Private homes
• Receptions and waiting rooms

Product Specifications

INPUTS

• Power:
  • 15W 230V AC nominal, 45-65Hz
  • 120V and 12V DC options also available

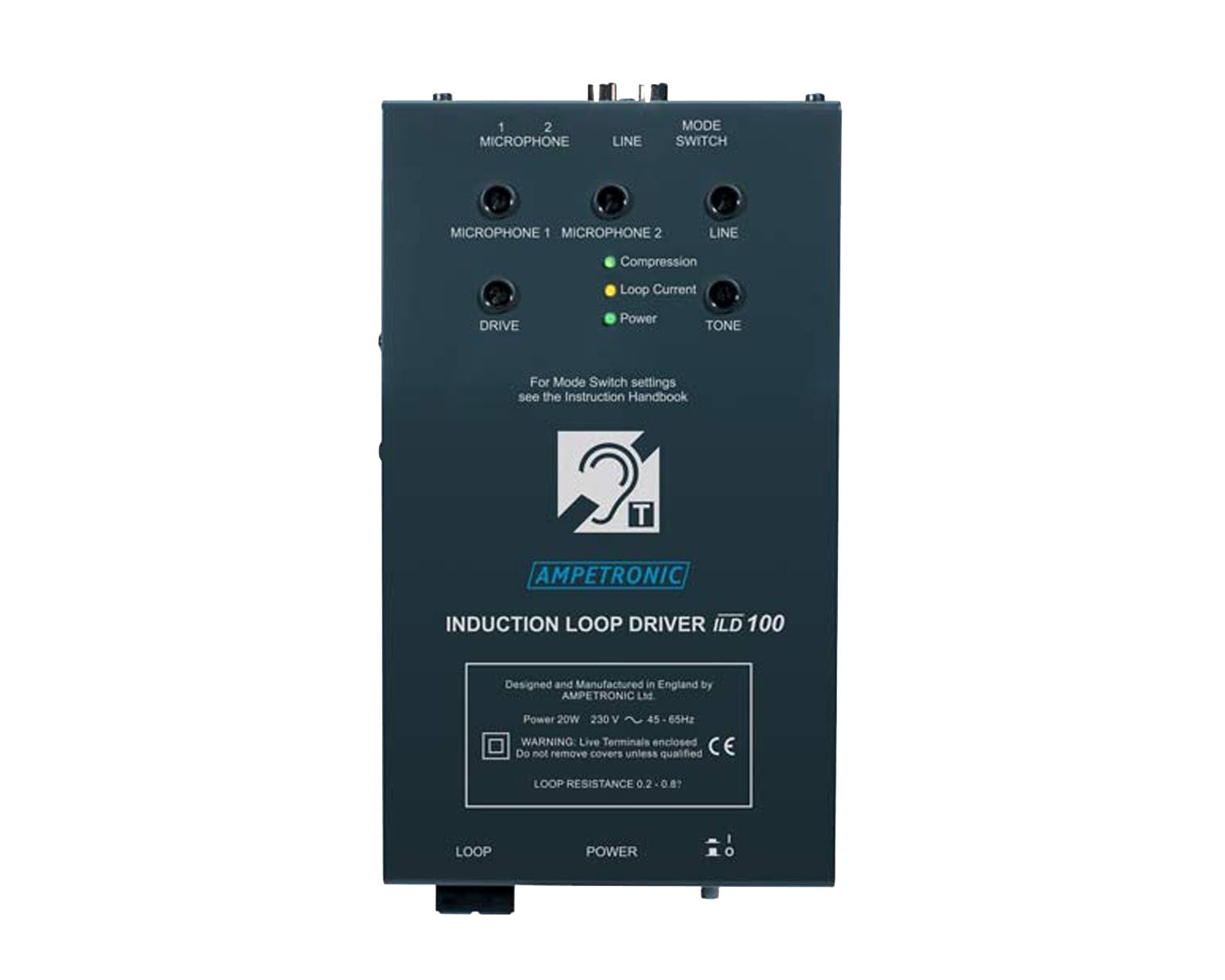

  • Power switch and LED indicator on front panel
• Microphone input:

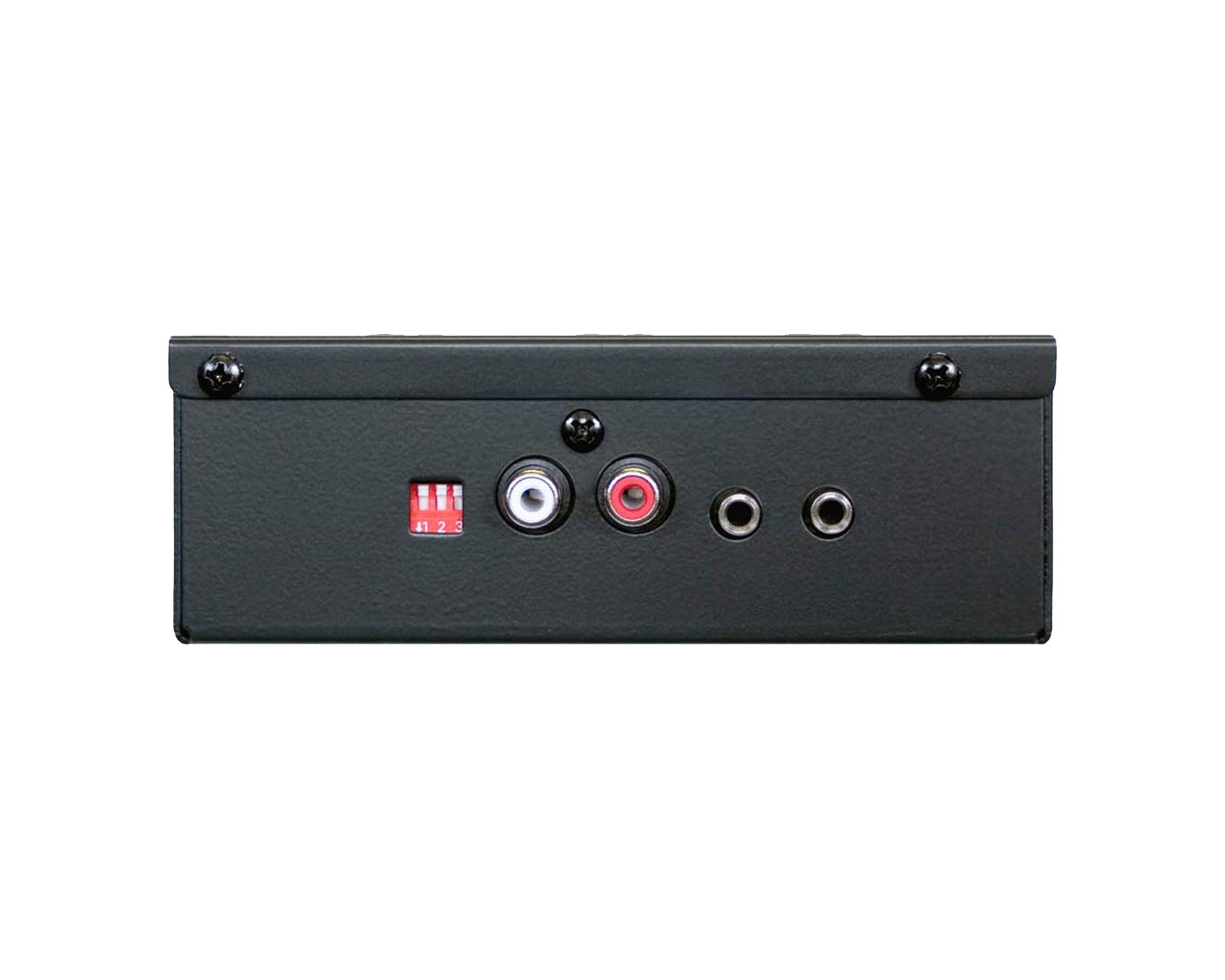

  • 2 inputs: 3.5mm mono connector for electret microphones
  • DC powering for electret capsules. (Requires MAT60 adaptor to take XLR balanced microphone input).
  • Front panel recessed gain control
• Line input:
  • 2 x phono (RCA) connectors, impedance 60kΩ each side,
  • 20kΩ differential. Sensitivity matched to?SCART signal level.
  • Front panel recessed gain control

OUTPUTS

• Drive voltage: 3.0Vrms (4.2Vpk) at maximum output current
• Drive current:
  • 3.4Arms (4.8Apk) continuous 1kHz sine wave
  • Short term peaks. 6.5A
  • Front panel recess drive control
  • Front panel LED indicates current peaks

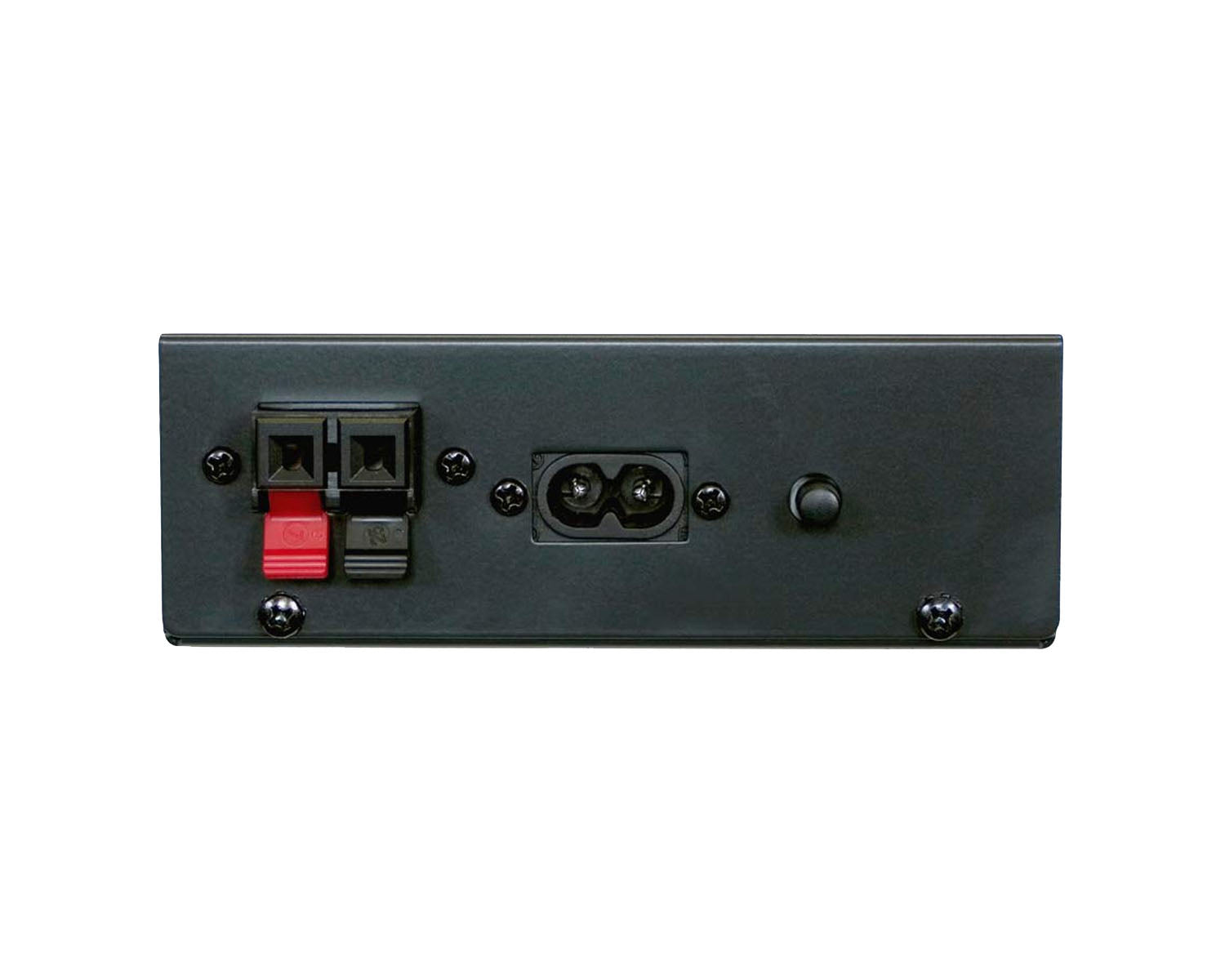

• Loop connector: Lever cable clamp

AUDIO SYSTEM

• Freq. response: 80Hz to 6.5kHz
• Automatic Gain Control:
  • The AGC is optimised for speech. Dynamic range >36dB
  • Front panel recessed input level control
• Tone control: Front panel recessed control

ADDITIONAL FUNCTIONS

• VOX switching: To control prioritisation of microphone 1 input. 4 different actions when microphone 1 level is at the onset of compression. Options to attenuate or turn off other inputs when microphone 1 is active, and to turn microphone 1 off when below threshold if required.
• Cooling: Cooling is by natural convection from the product casing.

PHYSICAL

• Dimensions: Width 124mm Depth 216mm Height 44mm
• Mounting options:
  • Freestanding
  • Wall mounting – mounting holes provided on rear panel
• Weight: 1.3kg
• Environment: IP20 protection; 20 to 90% relative humidity; 0 to 35ºC
