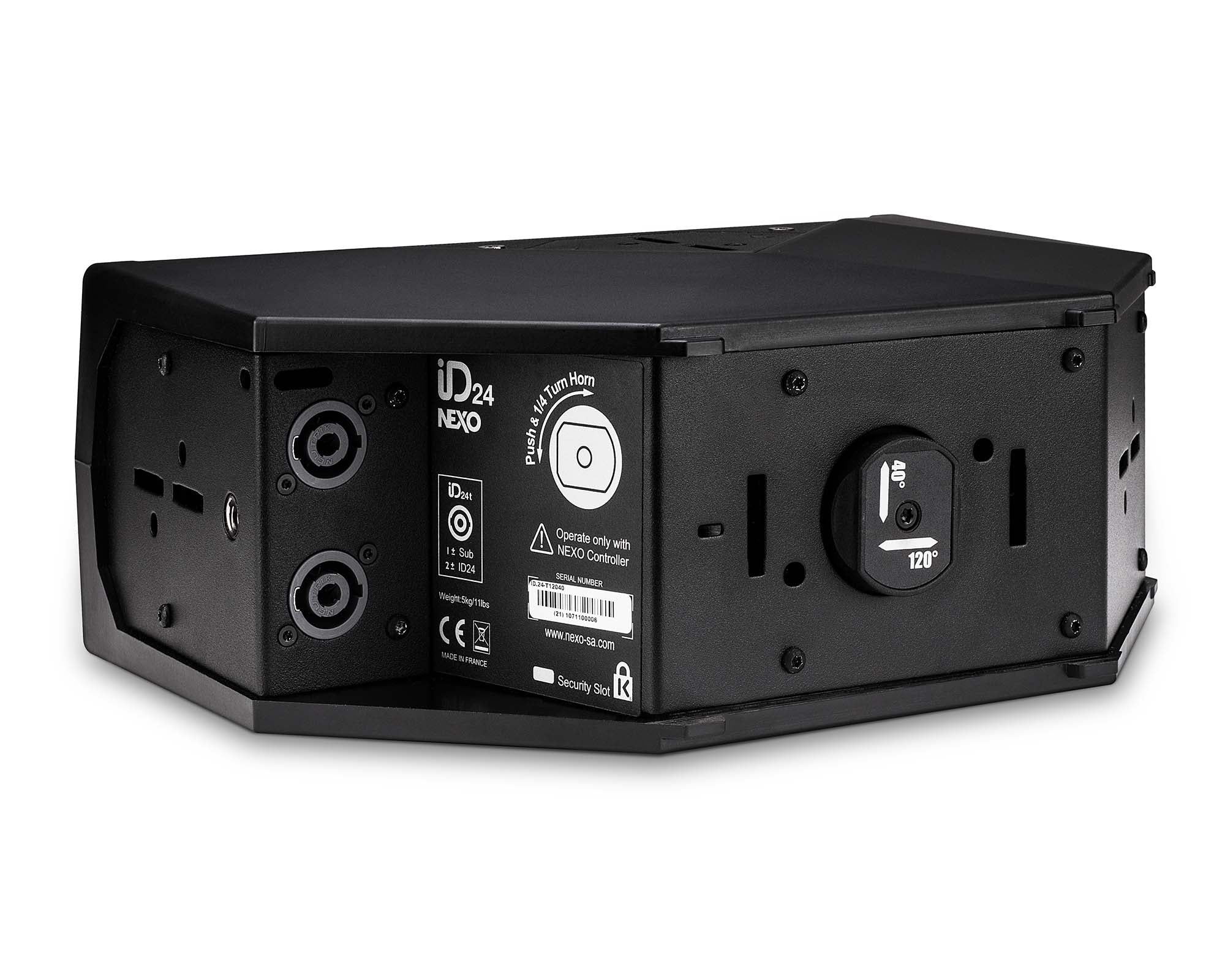

NEXIDT12040 - NEXO ID24 T 2 Way 2x4inch Touring Speaker 120x40degree Rotatable Horn Black Image 1

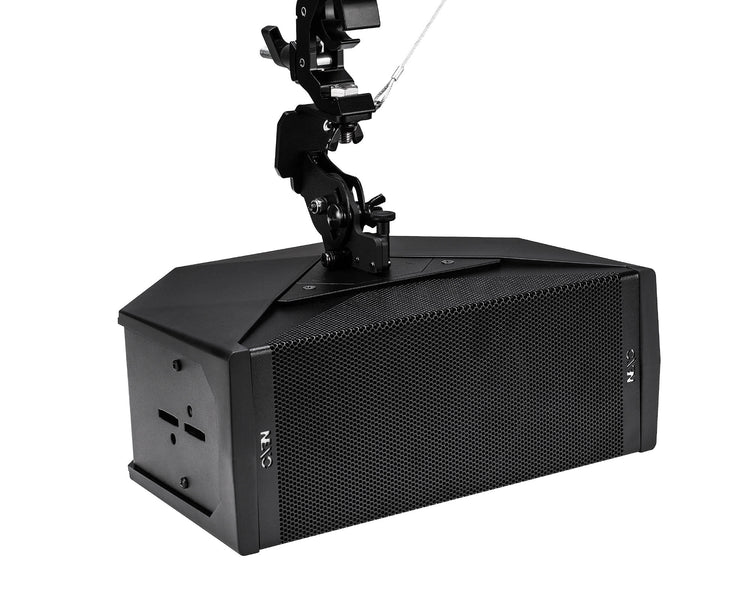

NEXIDT12040 - NEXO ID24 T 2 Way 2x4inch Touring Speaker 120x40degree Rotatable Horn Black Image 2

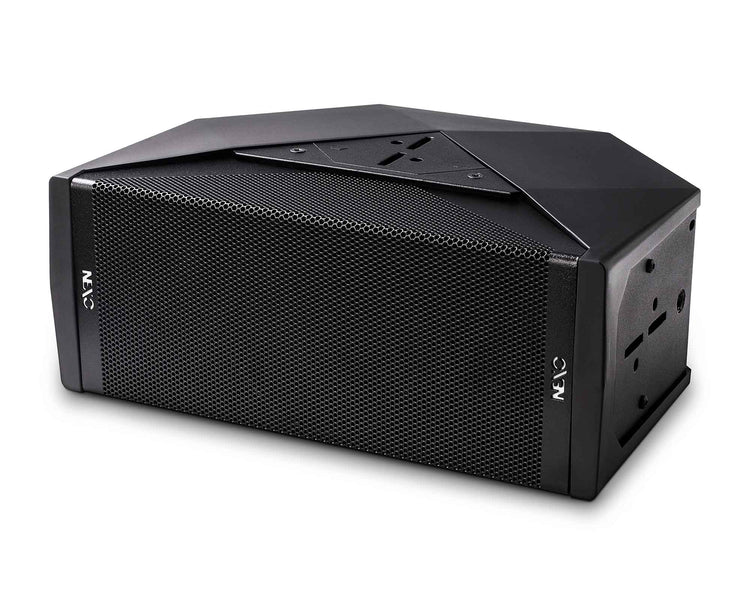

NEXIDT12040 - NEXO ID24 T 2 Way 2x4inch Touring Speaker 120x40degree Rotatable Horn Black Image 3

With a unique user-rotatable horn that lets users quickly select between 120° x 40° or 40° x 120° HF coverage, ID24 brings unparalleled flexibility to the world of compact speakers with a cabinet that delivers trademark NEXO sound and performance, whether mounted horizontally or vertically.

Measuring just 309mm wide, 132mm high and 233mm front to back, the ID24 uses twin 4 inch drivers in a V formation, and is ideal as part of a full range system, or as a dedicated ‘sound beaming’ unit in difficult spaces. Mounted horizontally or vertically, ID24 delivers superior performance in all scenarios.

ID24 is available in install (ID24i) and touring (ID24t) versions, plus an ‘A La Carte’ variant with enables specifiers to choose from a range of colour, mounting, connectivity and HF dispersion options to configure the perfect speaker for the given application.

Compatible with a huge range of NEXO and third party touring and installation hardware, the ID Series also encompasses two dedicated low-profile subs.

Product Features

Features a unique user-rotatable horn to enable quick and easy HF coverage
Selectable between 120° x 40° or 40° x 120° HF coverage
ID24 features 4 twin drivers in a V formation, ideal as a range or dedicated ound beaming\' unit in difficult spaces
Brings an "unparalleled flexibility to the world of compact speakers"
Despite being compact, the ID24 still delivers NEXO prestigious sound, reliability and performance
ID24 can be mounted vertically or horizontally, perfect for a wide variety of applications
Measures just 309mm wide, 132mm high and 233m front to back
Specified for installation professionals for optimum productivity, efficiency and performance
ID24i features threaded holes for a wide range of compatibility with NEXO & 3rd party mounting hardware (inc NEXO IDI-WB02 and IDI-WM01)
Equipped with captive cable for fast, secure connectivity with existing wiring
Available in black or white
Features a clean and professional fabric grill to blend in with any décor

System Applications

Ceiling or wall mounted, horizontally or vertically

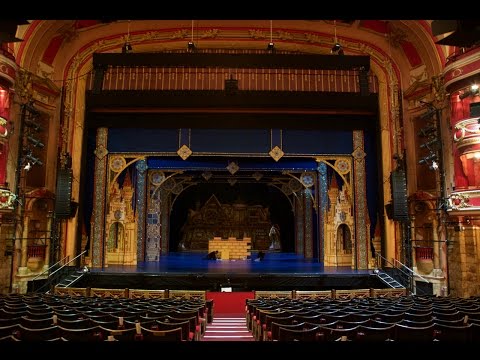

Under balcony in theatres
Stage front-fill
Pole-mounted
Flown in a touring system
Wedge monitor

Product Specifications

General

Frequency Range: 95Hz – 20kHz (+/- 6dB)
Sensitivity: (1W / 1m) 100dB SPL Nominal
Peak SPL Level: (1m) 126dB Peak
HF Dispersion Selection of (according to horns): 60° x 60°, 90° x 40°, 120° x 40°, 120° x 60°
Nominal Impedance: 16Ω
Recommended amplification per box: 200 to 500W

Components

LF: 2x4" – Long excursion – Neodymium magnet
HF: 1" voice coil ½" throat – Neodymium magnet

Physical & Dimensions

Height x Width x Depth: 132 x 309 x 233mm (5.2" x 12.2" x 9.2")
Weight: 6 Kg (13 lbs)
Material: Water-resistant Polyurethane
Finish (white): Structural paint
Finish (black): Raw sandblasted polyurethane
Grille: Stainless steel, acoustic fabric, black or white
Rigging: 6 x 6mm threaded inserts

System Operation - Electric Controllers

NXAMP4x1 and 4x4 Powered Controller
DTD - Controller + DTDAmp 4x0.7
DTD - Controller + DTDAmp 4x1.3
Note: The NEXO controller presets are precisely matched to the ID Series cabinets and include sophisticated protection. Using ID Series cabinets without properly connected NEXO controllers will result in poor sound quality and can damage components.
Sub Bass: ID S110 and ID S210 low profile subwoofers
