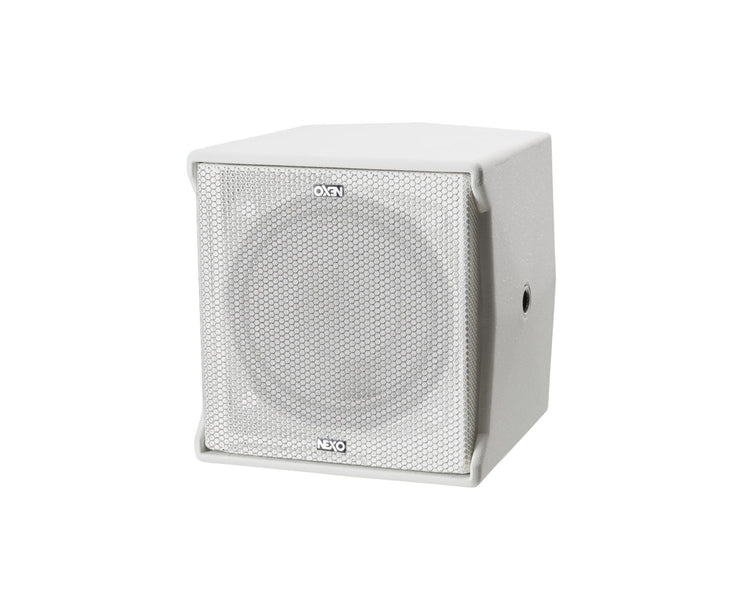

NEXO has always been well-known for its compact and very powerful versatile point source speakers, ideal in both FOH and wedge application.

This expertise is now applied to the ID14, featuring a new extremely powerful coaxial 4” speaker and lots of innovation, making it unique in its category.

Advanced NEXO technology included

The ID14 enclosure uses a home made Polyurethane shell, inherited from the ID24. The result is a robust enclosure with exceptionally good sound quality and trully outdoor resistant.

The custom-designed coaxial driver with a 1.3” voice coil for the 4” LF driver and a 1.4” diaphragm for the HF motor is the heart of the ID14 and responsible both for its smooth, clean sound and impressive power.

Multiple rigging solutions

A threaded M10 on each side is foreseen to be used with the dedicated U bracket, but can be used to install the ID14 on a microphone stand as well.

At the back two M6 inserts with a 73 mm pitch are ready to receive the NEXO ID-WM01 or ID-WB02 accessory for wall mount applications.

Installation or touring version

While sharing the same acoustic components, the Touring version uses a front Magnelis steel grill, and its back plate holds two Speakon® connectors.

On the other side the Installation version features an acoustic cloth on the front grill, and a cable gland with a 2 core cable for audio input, ensuring IP55 protection.

One box fits all applications

Thanks to its fully symmetric design, there is no left or right version of the ID14 and all speakers in inventory can be the same.

To match even more precisely every possible application the ID14 is available with 2x different directivity.

As standard, the ID14 uses a 100°x100° horn, but an assymetric dispersion can be ordered as well, offering 90°x140° dispersion.

For each horn a dedicated setup is available on the NXAMP powered controller to ensure perfect coverage at any frequency.

ID14 acoustic phase response is NEXO phase signature allowing inter-operability between all NEXO speakers at all crossover points, except for the monitor setups where latency is minimized.

Product Features

• Compact, high-powered sound reinforcement speaker
• 116 dB peak SPL
• Measures just 130mm W x 130mm H x 120mm D
• Available in 100° x 100° and 90° x 140° HF dispersion versions
• Touring version with Magnelis steel grille and Speakon connectivity
• Black, white and custom RAL colours

Product Specifications

General

• Frequency Response @-6 dB: 120 Hz to 20 kHz
• Sensitivity 1W@1m: 95 dB
• Peak SPL@1m: 116 dB
• Available Crossover Frequencies: 120, 150 Hz
• HF Dispersion (upon ordering): 100° x 100° or 90° x 140°
• Nominal Impedance: 16 Ohms
• Recommended Power: 110 to 180 Watts / 16 Ohms (requires a 220 to 360 Watts / 8 Ohms amplifier)

Specification Features

• Number of ways: 2 ways passive
• Components: 1 x Coaxial Neodymium LF 4” long excursion & HF 1.4“ diaphragm
• Connectors: 2 x NL4, 4 poles connectors (1+/1- Through / 2+/2- ID14)
• Rigging points: 1 x M10 on each side for dedicated U bracket + 2 x M6 / 73 mm pitch at the back
• Construction: Polyurethane
• Finish: Black: Raw sandblasted polyurethane / White: Structural paint
• Front Finish: Magnelis® front grill with back mesh
• Operating temperature range: 0°C - 40 °C (32° F - 104° F)
• Storage temperature range: -20 °C - 60 °C (-4 ° F - 140° F)
• Height x Width x Depth: 130 mm x 130 mm x 120 mm (5.1” x 5.1” x 4.7”)
• Weight: Net: 1.7 kg (3.7 lbs)
• System Operation:
  • Recommended powering solution: DTDcontroller + DTDAMP4x0.7 : up to 4 x ID14 per channel
  • Optional powering solution:
    • DTDcontroller + DTDAMP4x1.3 : up to 4 x ID14 per channel
    • NXAMP4x1mk2 Powered TDcontroller: up to 8 x ID14 per channel
    • NXAMP4x2mk2 Powered TDcontroller: up to 8 x ID14 per channel
    • NXAMP4x4mk2 Powered TDcontroller: up to 8 x ID14 per channel
