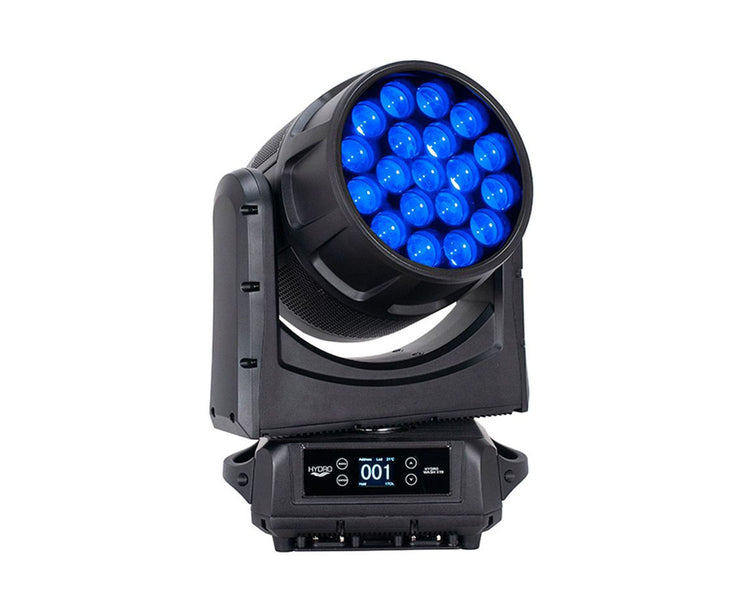

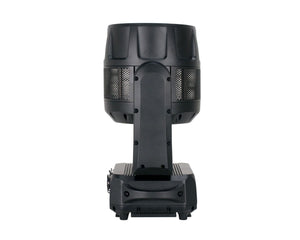

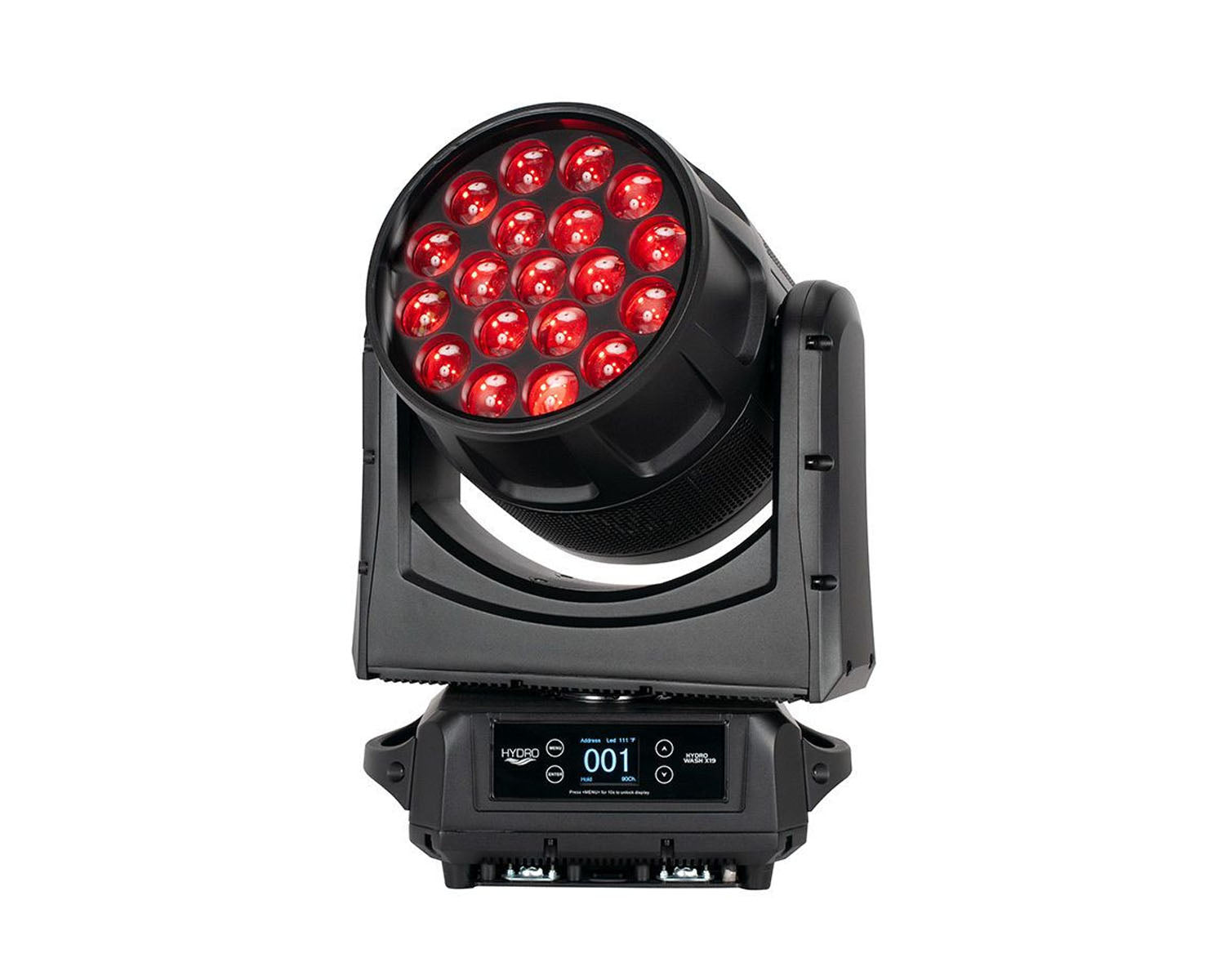

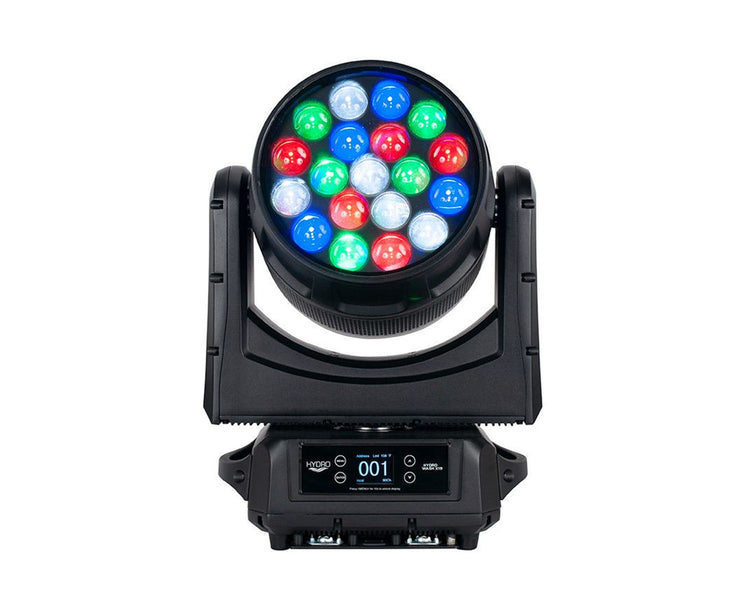

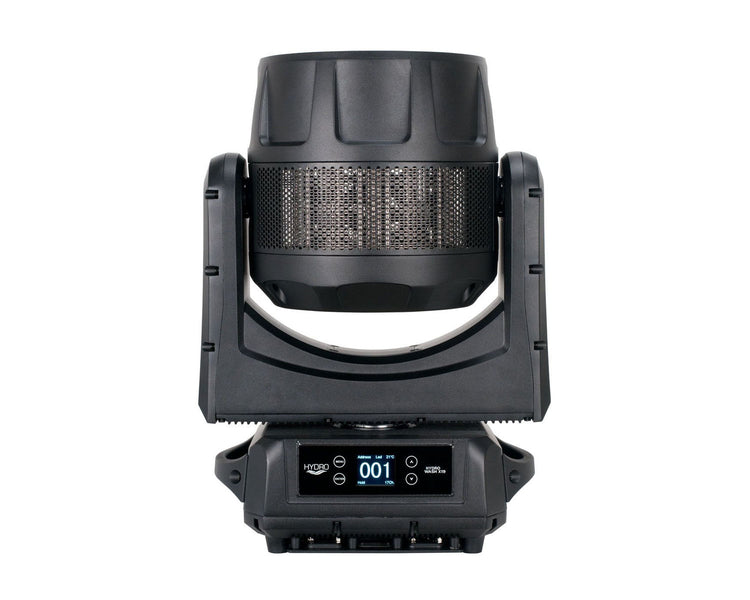

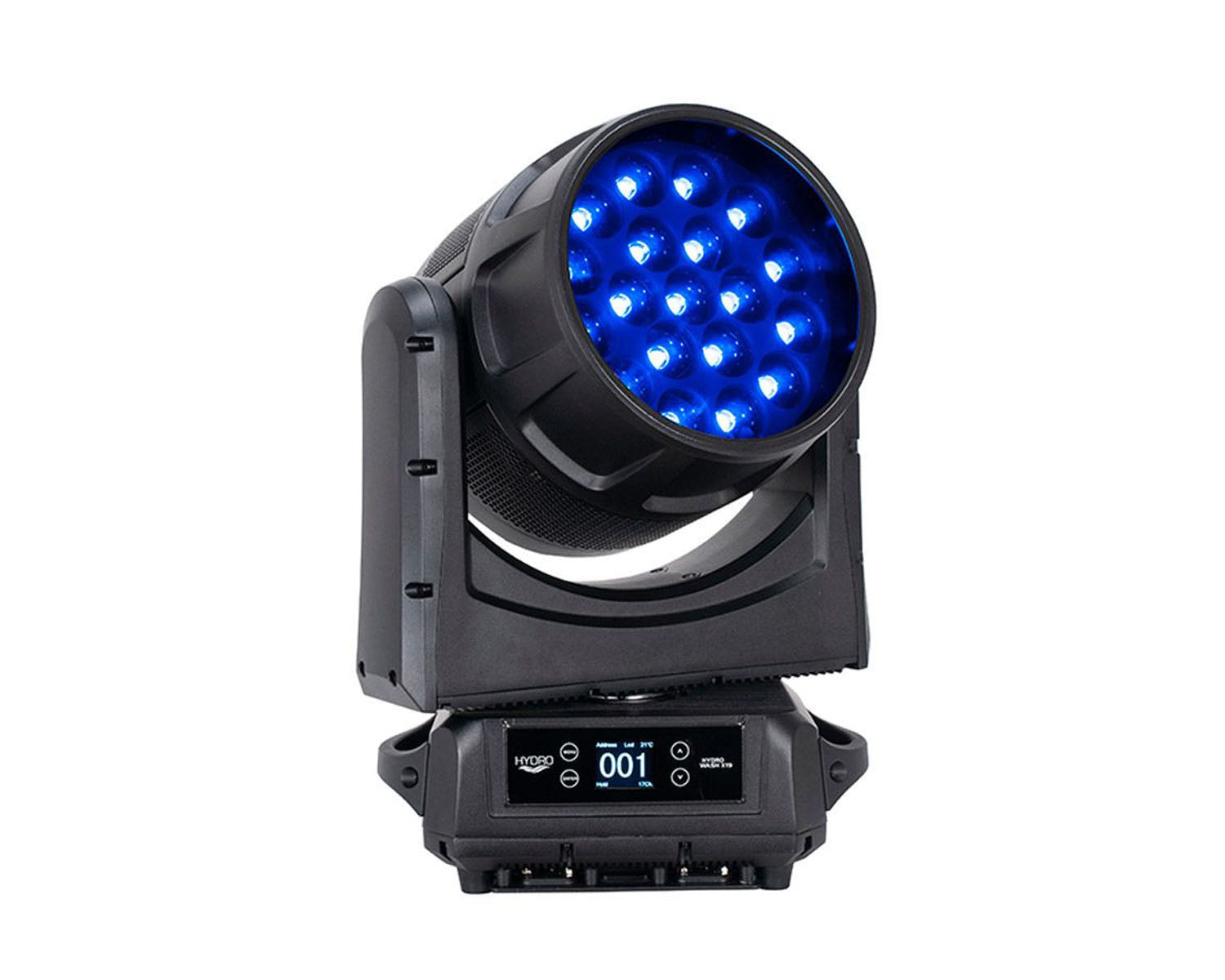

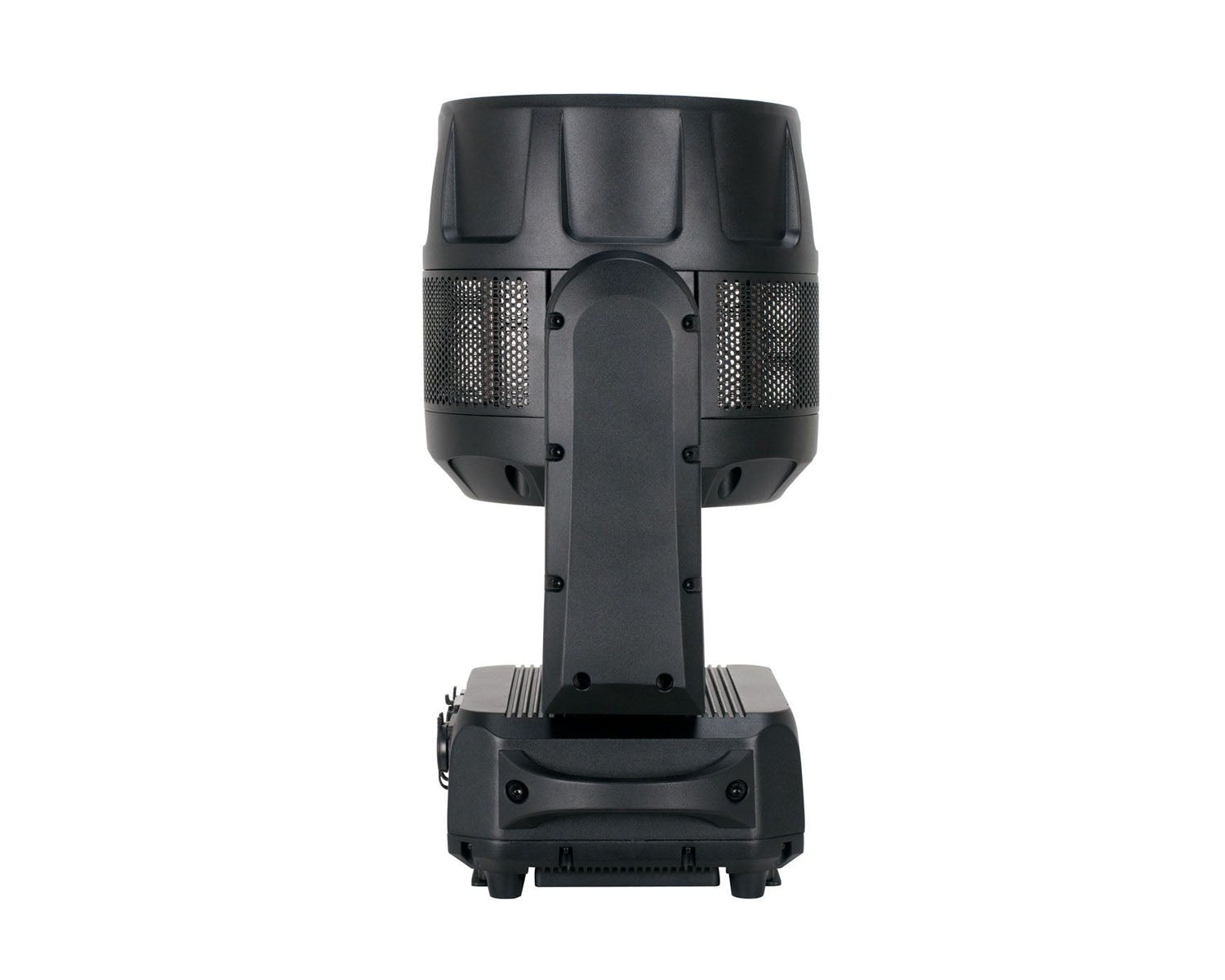

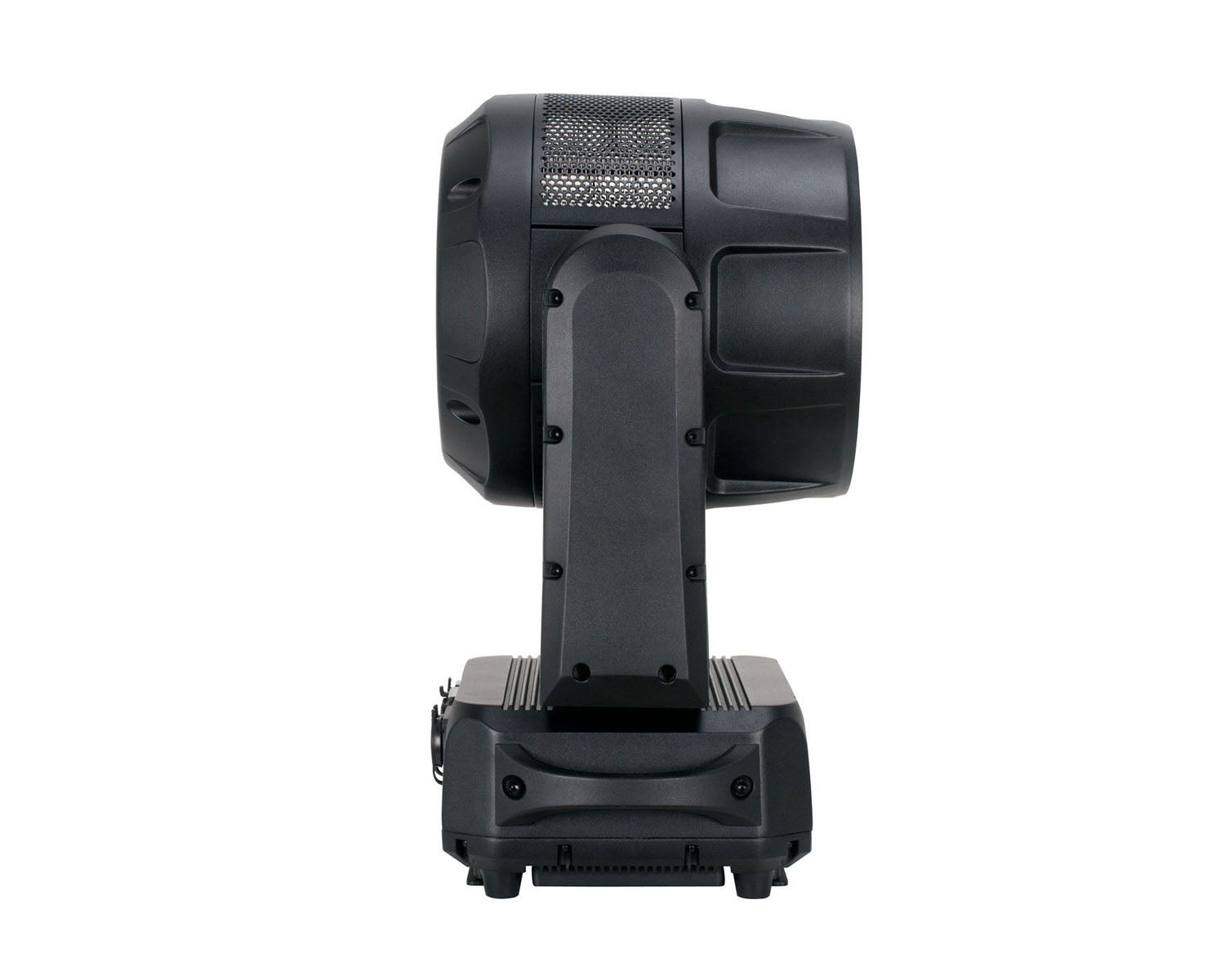

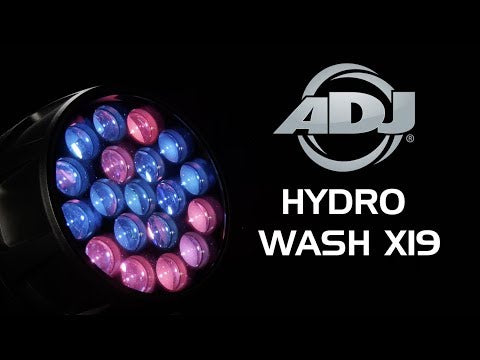

The ADJ Hydro Wash X19 is an IP65 rated 760W professional moving head wash fixture with nineteen 40W RGBW (4-IN-1) LEDs.

With robust construction and IP65-ratings, the Hydro Wash X19 is designed for both indoor or outdoor use. Its durable metal casing protects it from dust, sand, moisture and liquids, making it ideal for use in all situations from dusty deserts in California to rainy fields in England. Perfect for festivals and outdoor events, as well as installation in open-air clubs and other outside entertainment spaces where wash lighting is a must. This groundbreaking fixture offers extended operational life and reduced maintenance requirement due to its long-life LED and sealed casing design.

The Hydro Wash X19 has a wealth of features such as motorized focus (6 ~ 40-degrees), WiFly EXR wireless DMX, fine pan/tilt and dimming, 6 dimmer modes, LED refresh rate and gamma control settings.

It fitted with IP65 5-pin DMX In/Out and IP65 Locking Power In/Out connectors to daisy chain power. It offers a USB port for software updates. All connections are IP65 rated with rubber protective covers.

Product Features

• IP65 outdoor rated – protects the fixture from dust, sand, moisture and liquid
• Motorized Zoom: 6 ~ 40-degrees
• Colour display with touch buttons
• Data In/Out: 5-pin DMX IP65 (with rubber protective covers over connections)
• Power In: IP65 locking power input (with rubber protective covers over connection)
• All metal case design
• WiFLY EXR Wireless DMX built-in (Up to 2,500 ft / 700M line of sight)
• 4 DMX channel modes: 15, 26, 87 & 89 channels
• Protocols: DMX-512, RDM, KlingNet and Artnet
• Control modes: DMX-512, KlingNet and Artnet
• 0-100% dimming plus 16-bit fine dimming
• 6 dimmer modes, Strobe & pulse effects
• Gamma correction: 1.0, 2.0, 2.2, 2.4, 2.6 and 2.8
• 16-bit Pan/Tilt: 540-degrees / 230-degrees

Product Specifications

Source

• 19x Osram 40W RGBW (4-IN-1) LEDs
• 7500 Lumen
• Average LED lifetime: approx. 50,000hrs

Optics

• Motorized Zoom: 6 ~ 40-degrees

Control

• 4 DMX channel modes: 15, 26, 88 & 90 channels
• RDM, KlingNet and Artnet
• WiFLY EXR Wireless DMX built-in (Up to 30M line of sight)
• 16-bit Dimming
• 16-bit Pan 540o
• 16-bit Tilt 230o
• Pixel Control
• 6 dim curves
• 6 dimmer modes
• Strobe & pulse effects
• Various Pixel/Zone macros
• Colour display with touch buttons

Colours

• RGBW Colour mixing
• Colour Macros

Construction

• All metal case design
• IP65 outdoor rated
• Quicklock Omega Brackets included

Electrical

• Multi-voltage operation: 100-240V, 50/60Hz
• Maximum power draw: 990W

Connections

• Data In/Out: IP65 5-pin DMX (with rubber protective covers over connections)
• Power In/Out: IP65 Locking Power (with rubber protective covers over connection)
• Firmware Upgrade: Update via IP65 USB port (with rubber protective cover)

Dimensions & Weight

• Dimensions (LxWxH): 384x275x524mm
• Weight: 24 kg.
