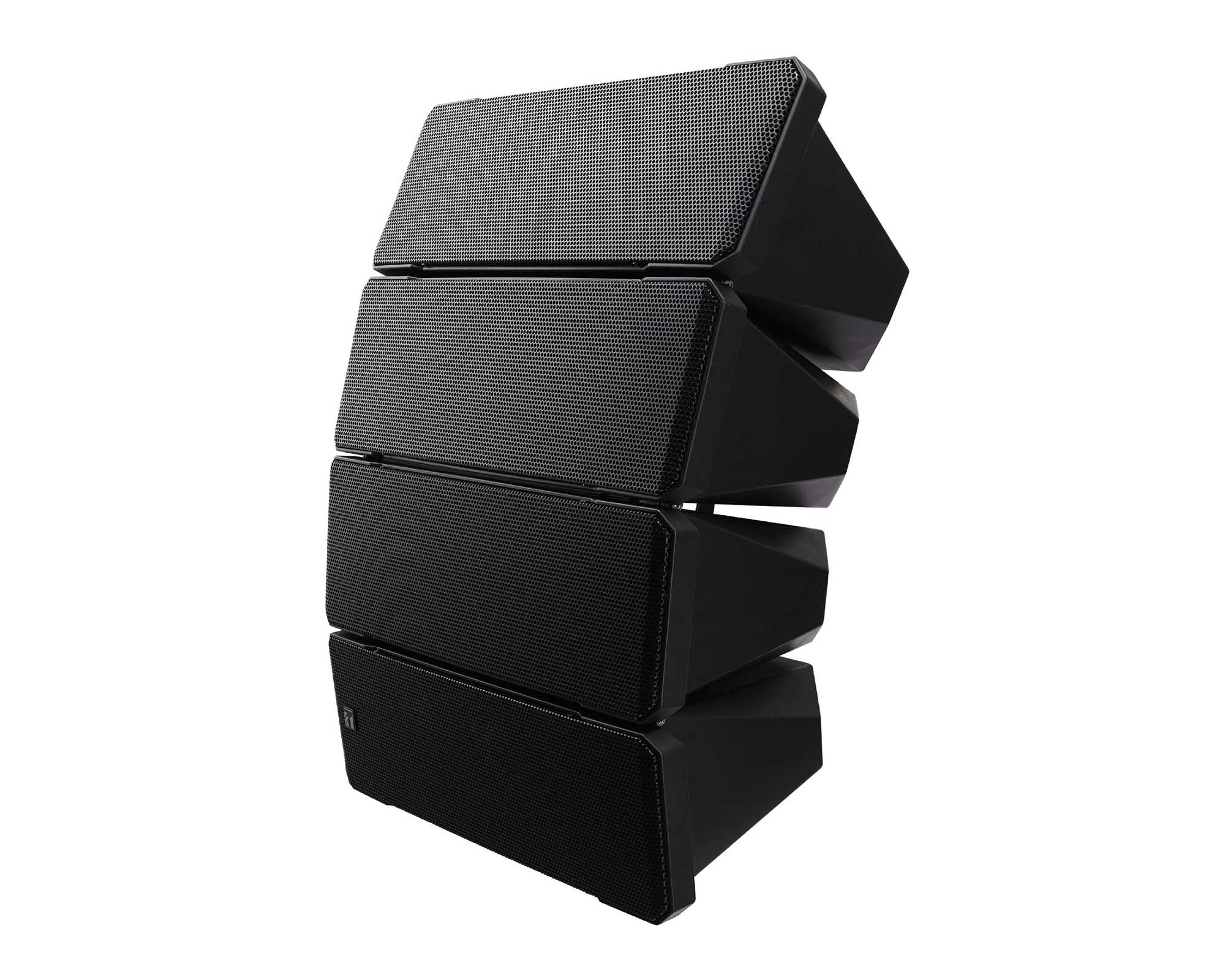

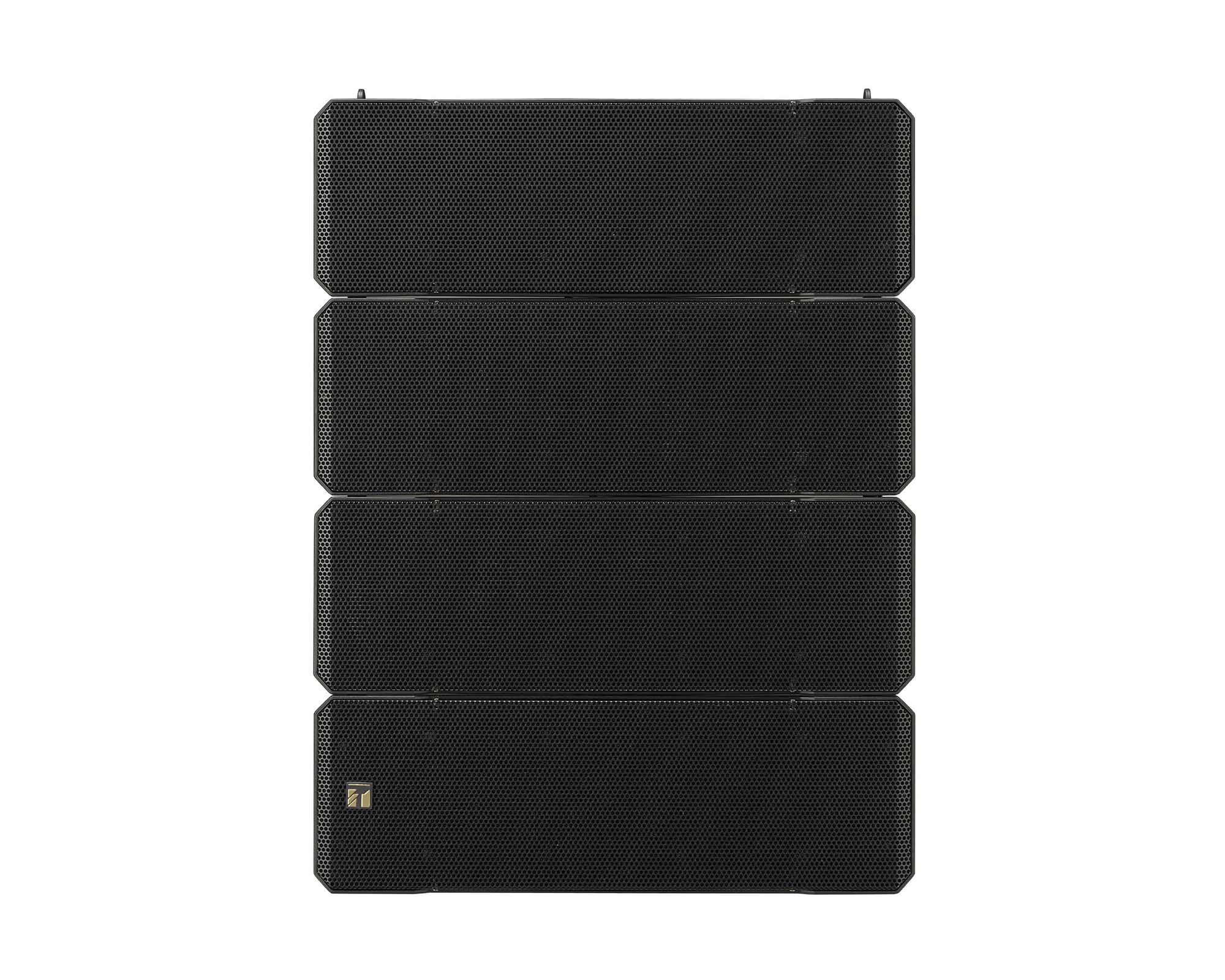

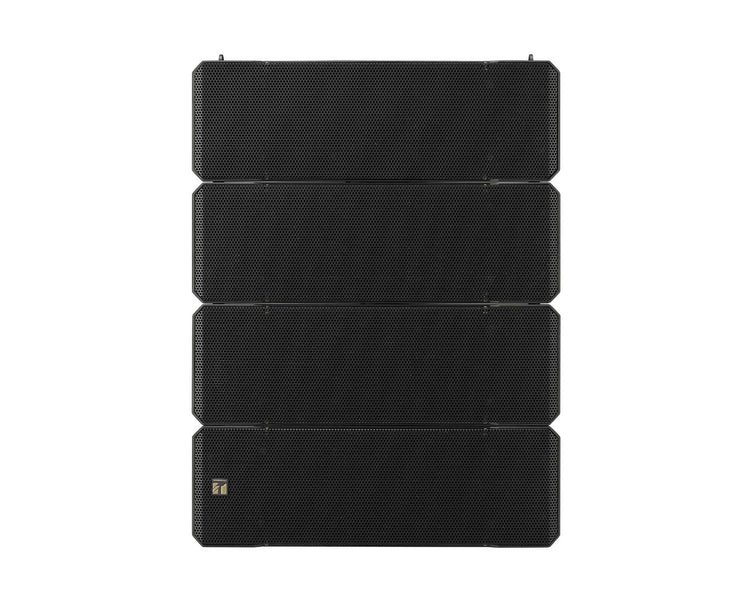

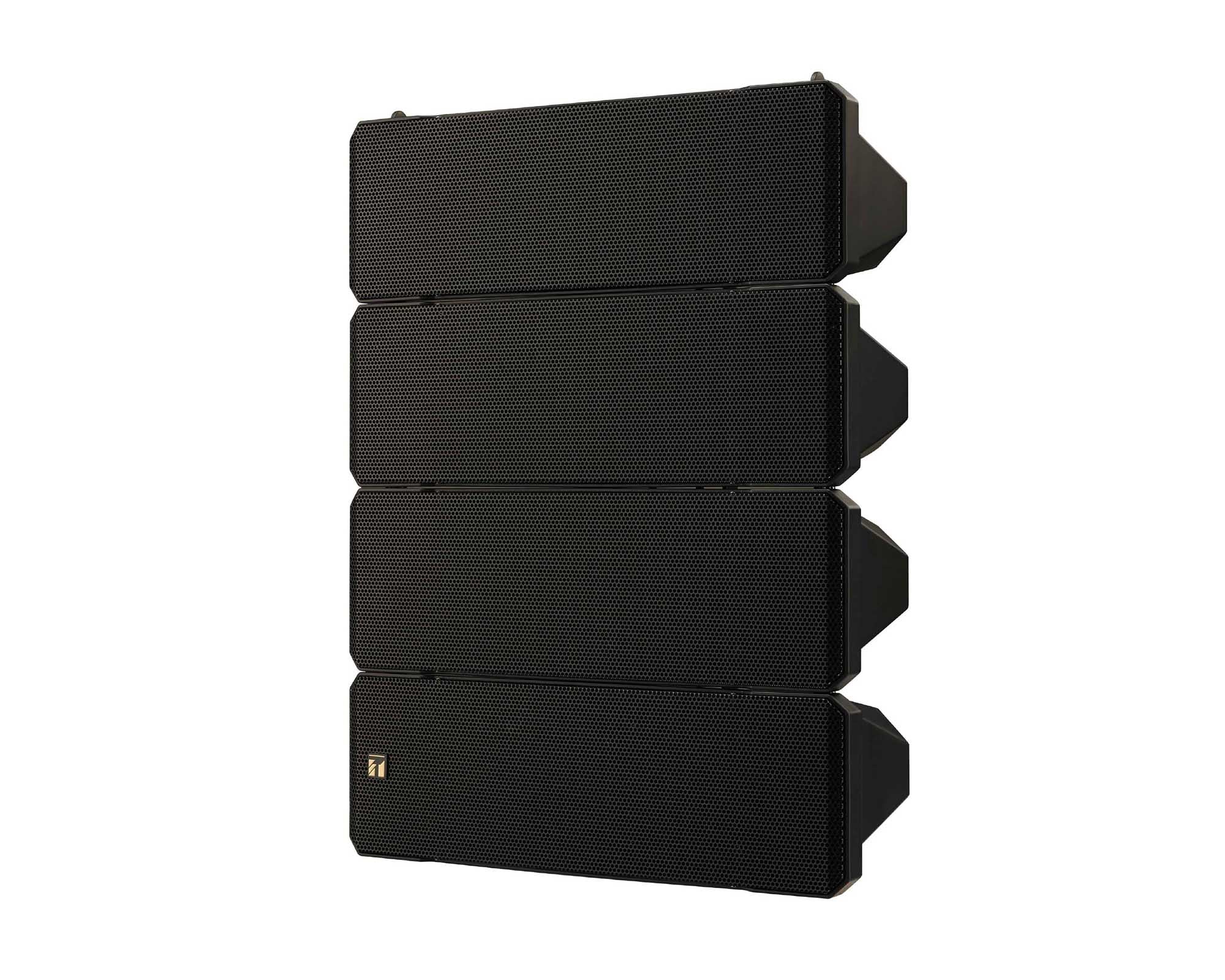

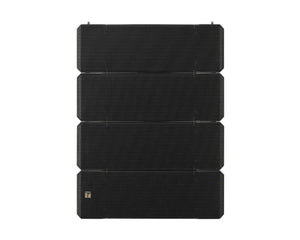

The HX-7B is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in vertical directivity. Its adopted wave front control technology is ideal for reproducing clear sound in spaces with long reverberation times or high background noise. The HX-7B is designed for indoor use.

Product Features

• High power handling

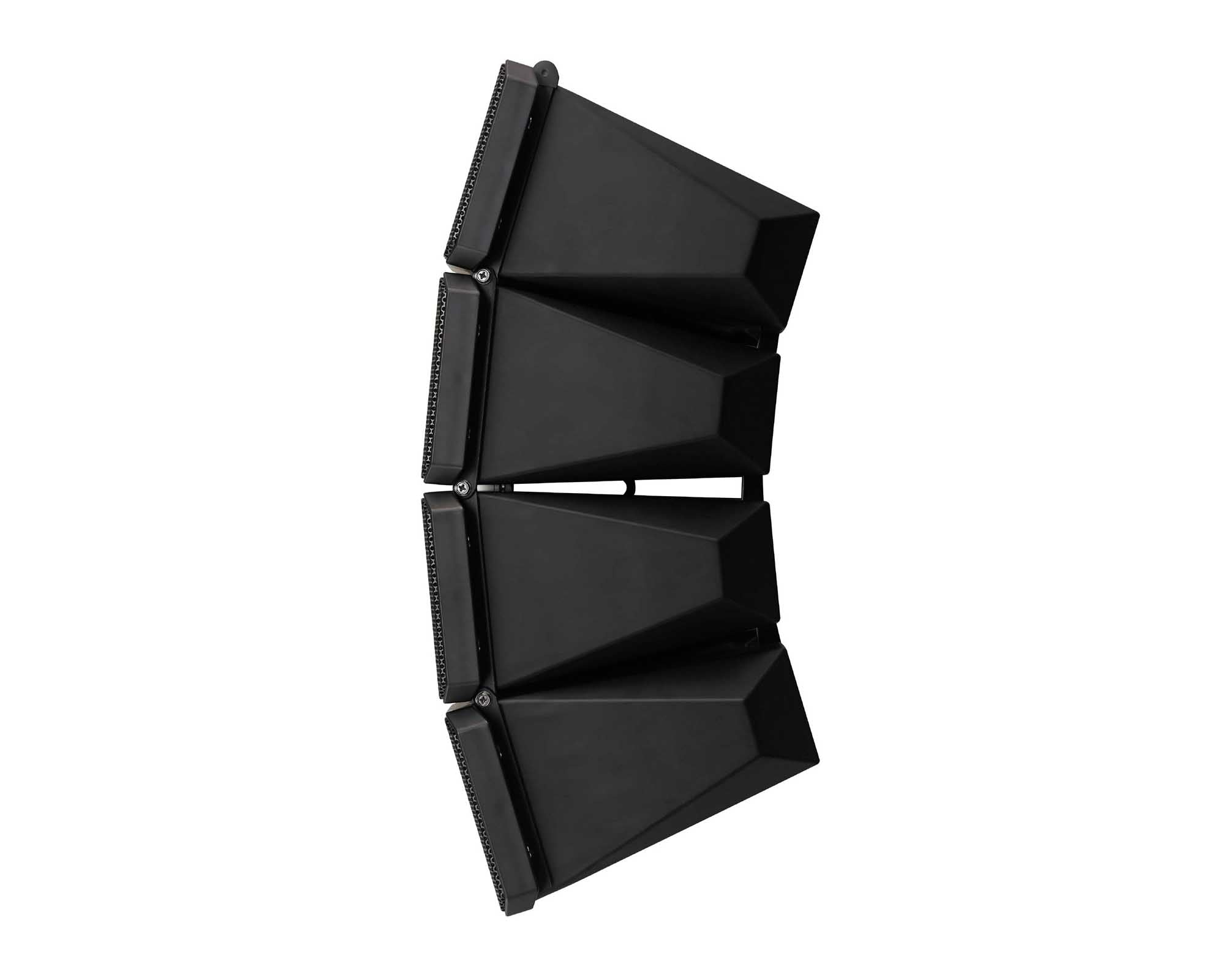

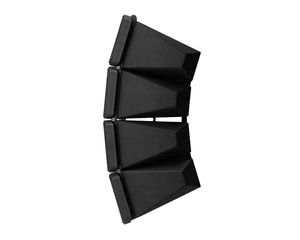

• Speaker design consists of four integrated modules that can be adjusted individually to optimize the vertical dispersion angle
• Built-in isophasic wavefront control horn with compression driver ensures precise HF control and superior reproduction of HF sounds

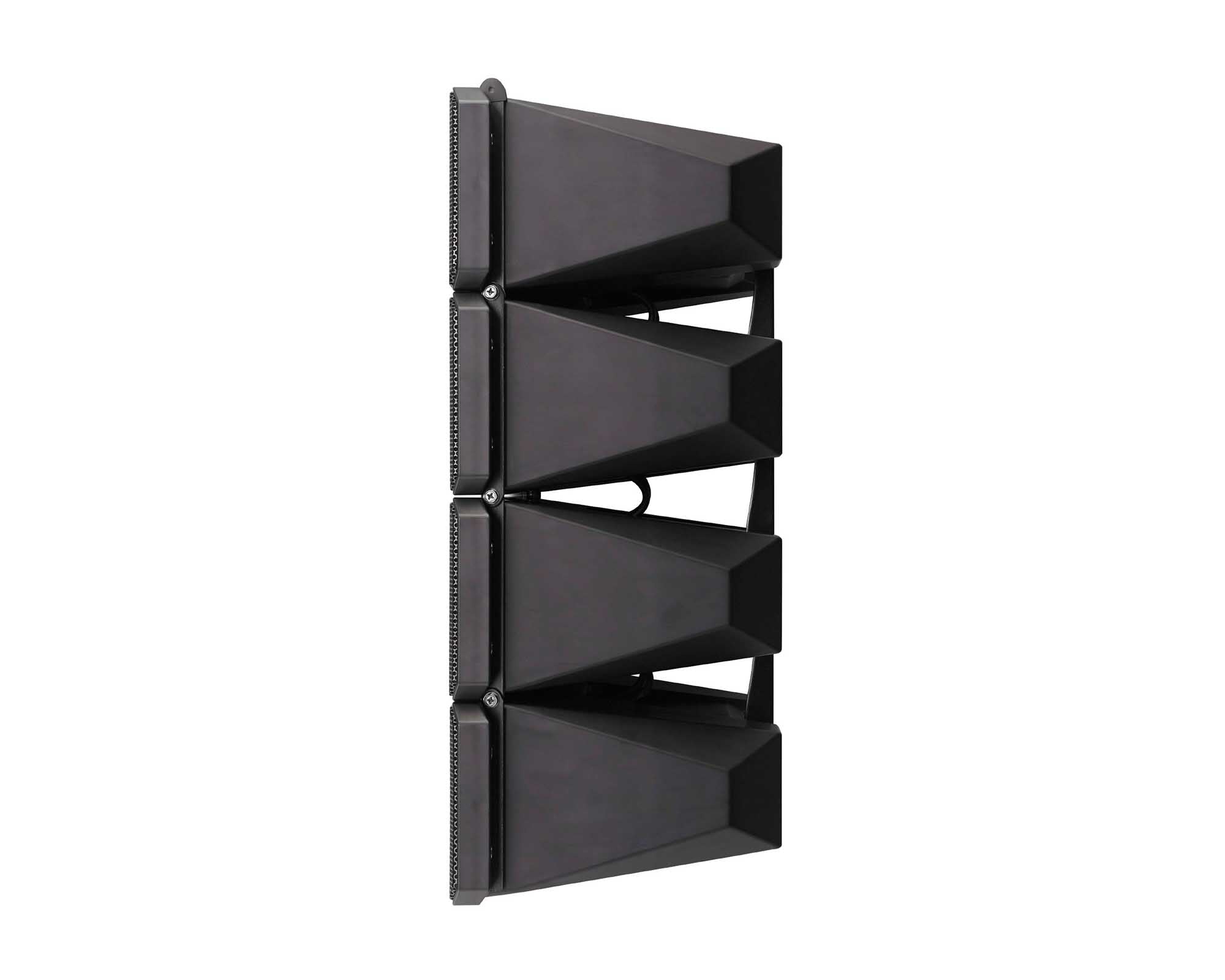

• 0° mode facilitates the most effective line array set-up
• Easily adjustable vertical dispersion angle

Product Specifications

• Frequency response: 75 Hz - 20 kHz
• Connection: Speakon NL4MP x 2 and M4 screw terminal, distance between barriers: 9 mm (0.35”)
• Sensitivity (1 W, 1 m): 100 dB

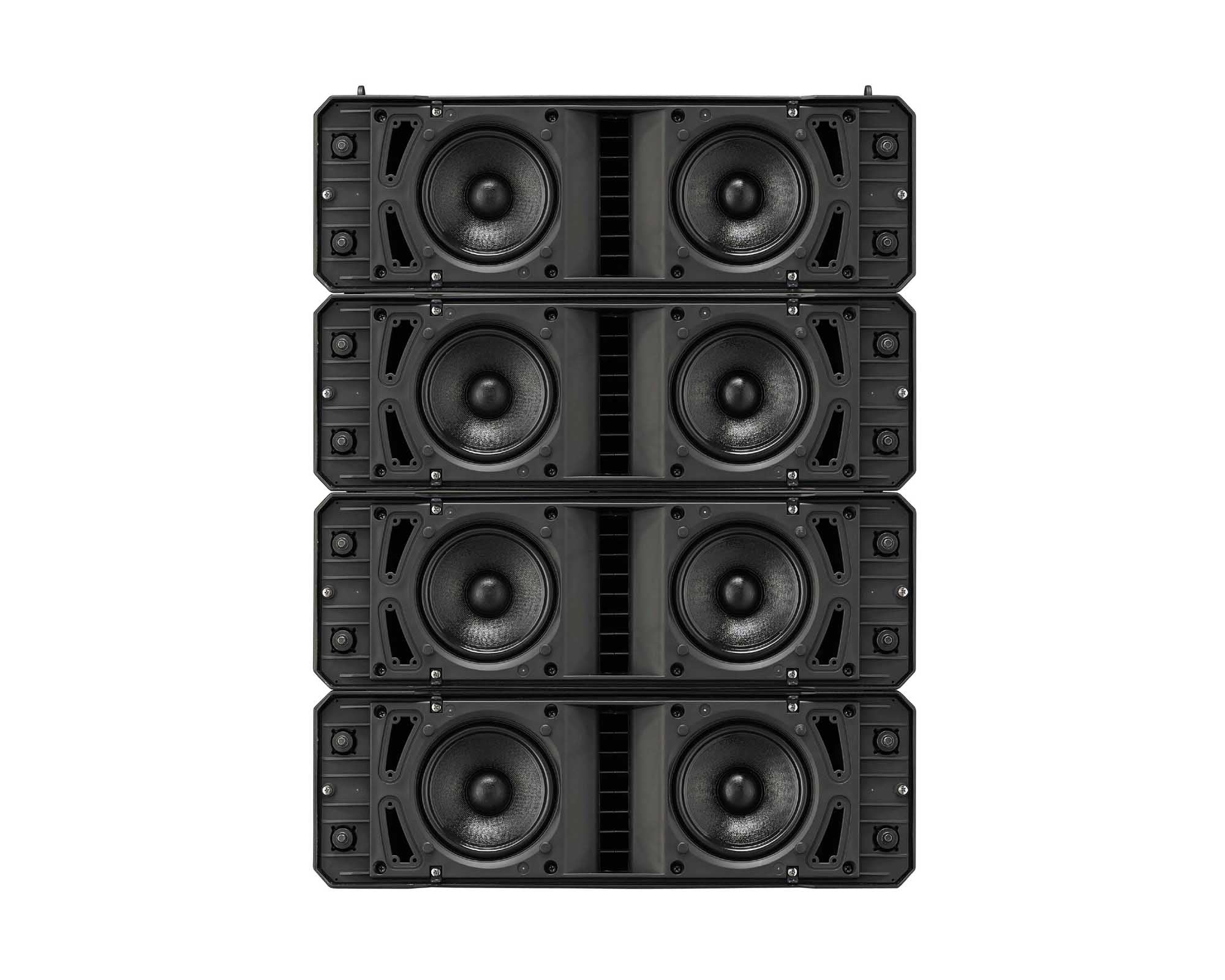

• Speaker component: Low frequency: 13 cm cone-type x 8; High frequency: Wave front control horn with compression driver x 4
• Rated input (High Impedance): 250 W
• Rated impedance: 8 Ω
• Crossover frequency: 2 kHz
• Rated Input (Low Impedance): Continuous pink noise: 250 W (IEC60268-5: 350 W) / Continuous program: 750 W
• Operating humidity: 90% at 40°C, 2 h
• Operating temperature: -10°C ~ +50°C
• Finish: Polypropylene resin, paint, signal black (RAL 9004 or equivalent)
• Dimensions: 497 x 664 x 274 mm (W x H x D)
• Weight: 30 kg
