The Radial HotShot MD gives music directors and artists easy and discreet control over their microphone outputs to enable seamless transitions between singing, cueing the band, and coordinating with techs and engineers—all without disrupting the audience experience. Engineered with Radial’s signature road-ready construction and noise-free switching, the HotShot MD streamlines communication, boosts efficiency, and enables bandleaders to focus on delivering flawless performances.

A noise-free solution for momentarily rerouting a dynamic microphone on stage, the HostShot MD allows signal to pass through Output-A when no footswitches are depressed, so your vocal mic feeds the PA system normally. If either the B or C footswitches are engaged singly, Output-A will be muted, and signal will be diverted to Output-B or Output-C, depending on which footswitch is depressed. This allows you to instantly reroute your mic to speak with band members or technicians as needed without the audience hearing a thing. Both footswitches can also be engaged simultaneously, so you can communicate with all parties at once. The moment you release either footswitch, your vocal mic automatically redirects back to the PA system so the performance can continue.

Product Features

• Redirects mic signal to communicate with techs, band members, or both
• Noise-free switching for a seamless stage performance
• Pristine signal path preserves the sound quality of the vocal mic
• 100% passive design does not require external power to operate

Product Specifications

• Audio circuit type:  Passive, true-bypass
• Frequency response:  20Hz - 20kHz, +0dB/-0.05dB
• Total harmonic distortion:  <0.00016% @ +4dBu, 20Hz - 20kHz
• Intermodulation Distortion:  <0.0014% 60Hz/7kHz, 4:1, +4dBu
• Signal to Noise:  >110dB re +4dBu, 22kHz BW
• Total Harmonic Distortion + Noise:  .<0.00037% @ +4dBu, 20Hz - 20kHz, 20kHz BW

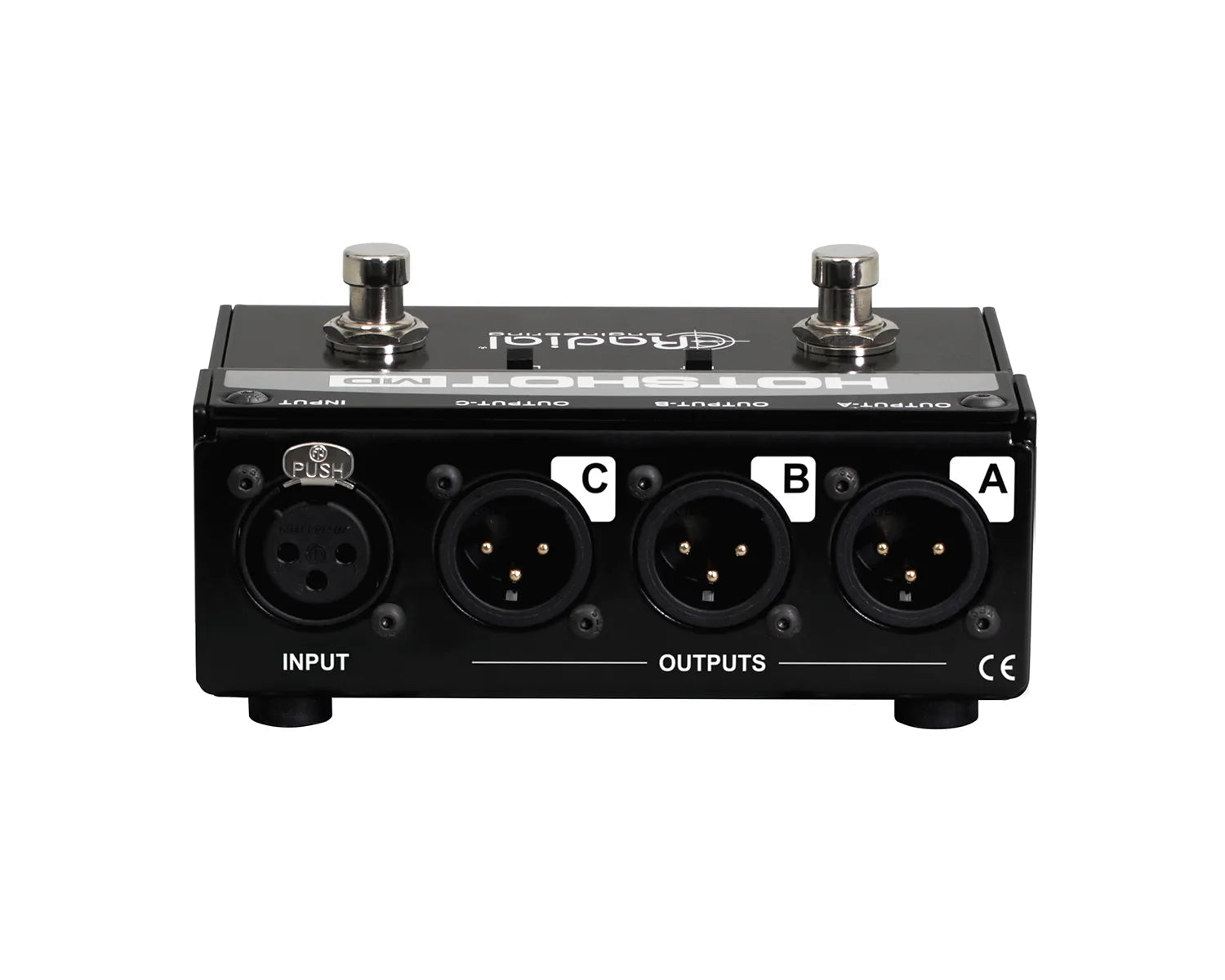

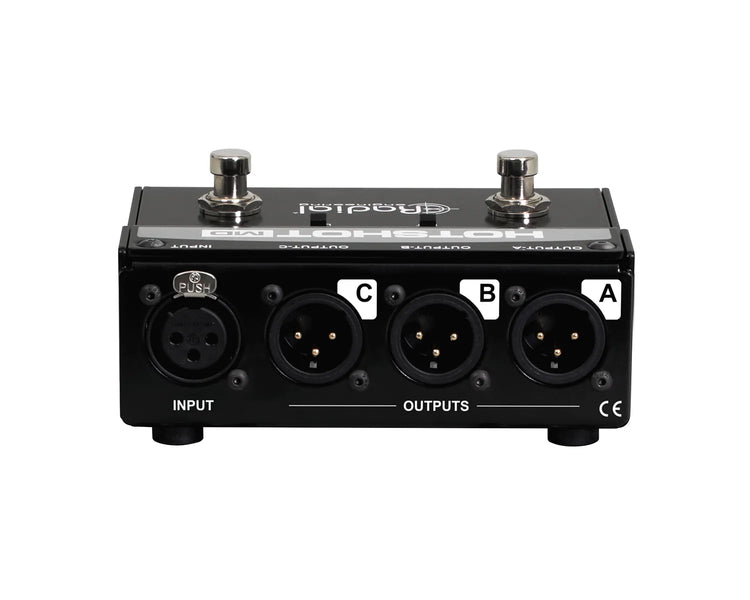

• Input Connectors:  1 locking XLRF, 3 XLRM
• Footswitches:  Momentary
• Ground Lift Switches:  Disconnects Pin-1 on associated XLRM
• Construction:  14-gauge Steel Chassis
• Finish:  Durable Powder Coat
• Size (L x W x D):  3.70" x 4.63" x 2.00" (93.85mm x 117.50mm X 50.8mm)
• Weight:  1.41lb (0.64kg)
• Shipping size (L x W x D):  6.25" x 4.25" x 3.00" (158.75mm x 107.95mm x 76.20mm)
• Shipping weight:  1.59lb (0.72kg)
• Warranty:  Radial 3-year, transferable
• Conditions:  For use in dry locations only between 5°C and 40°C
