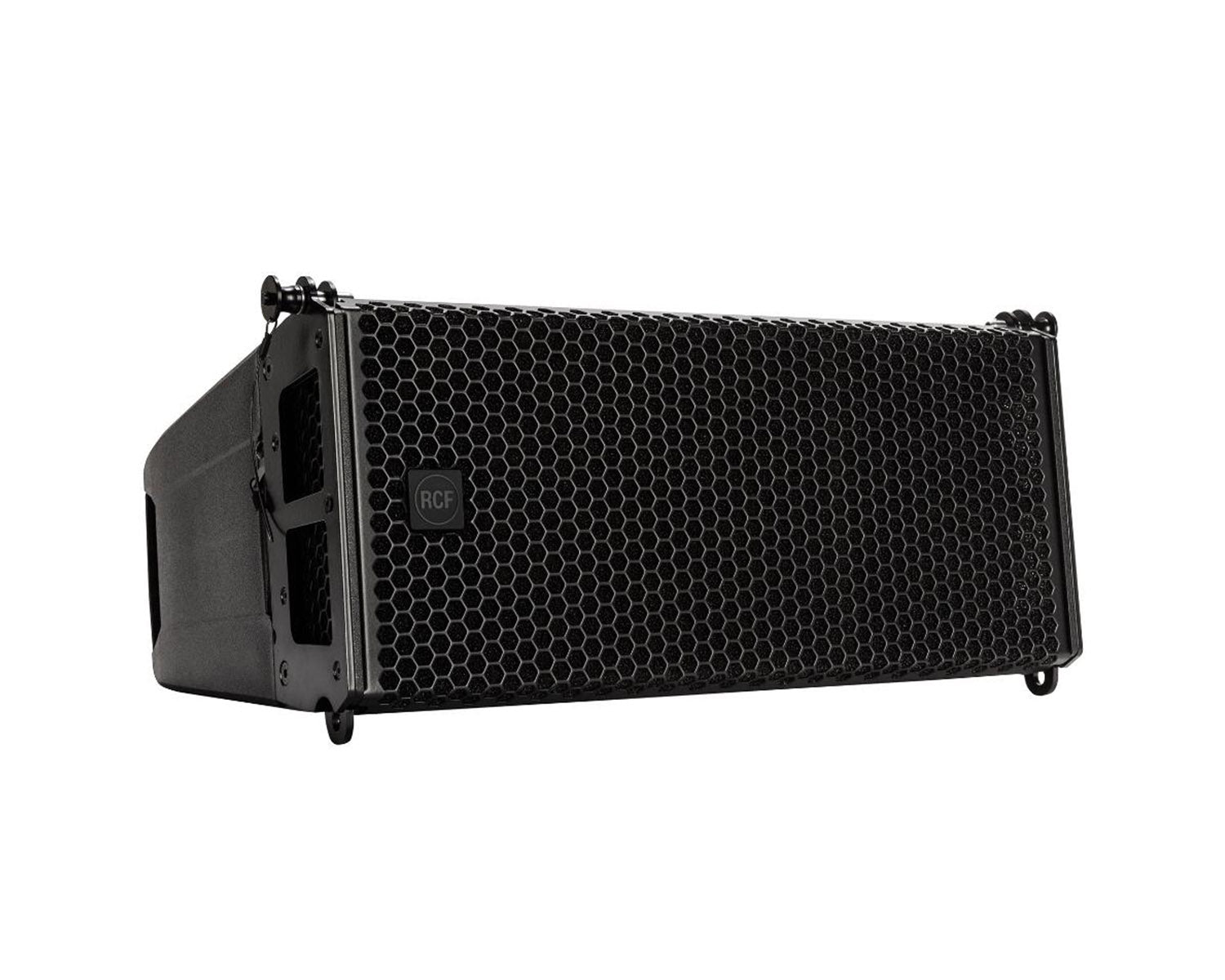

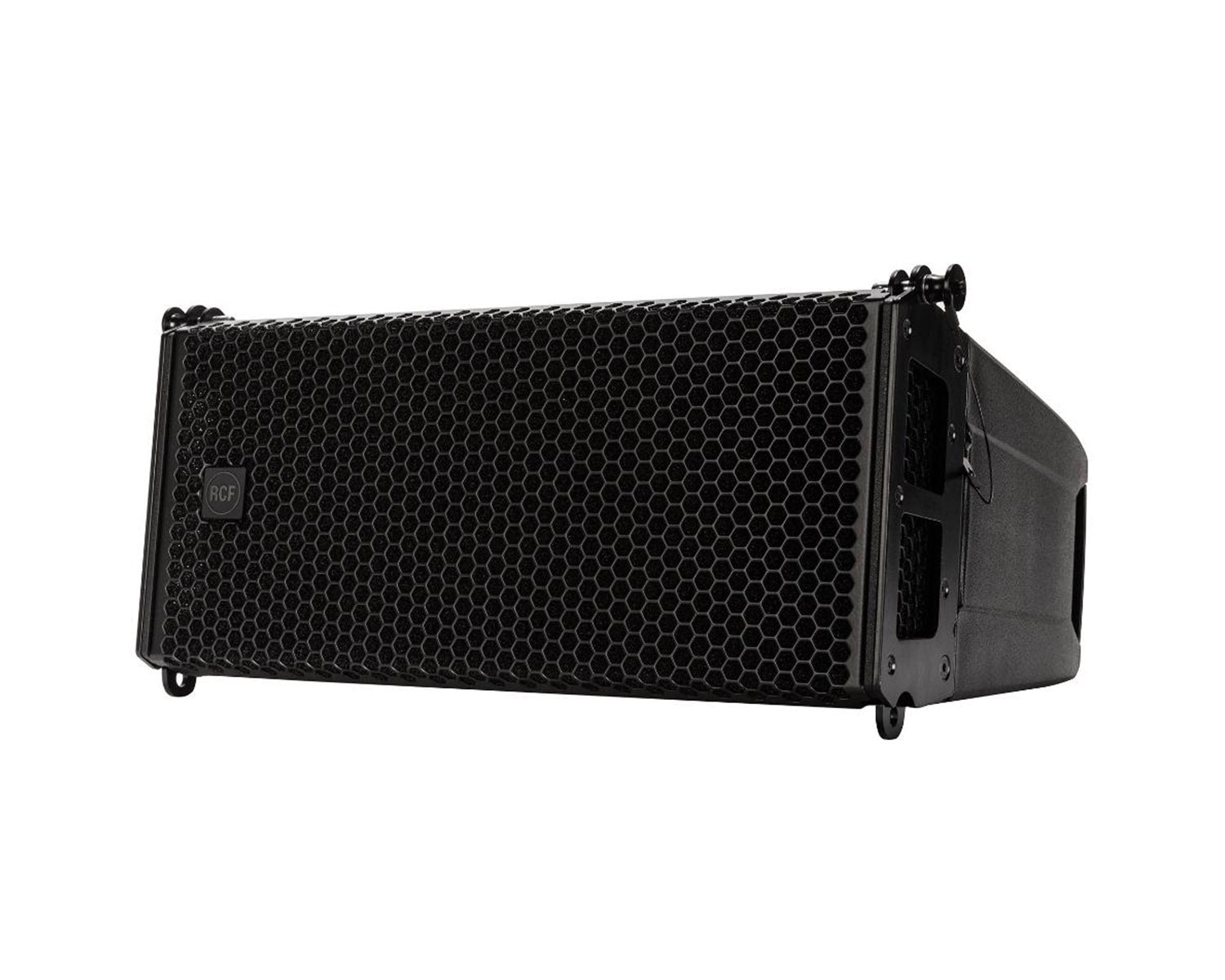

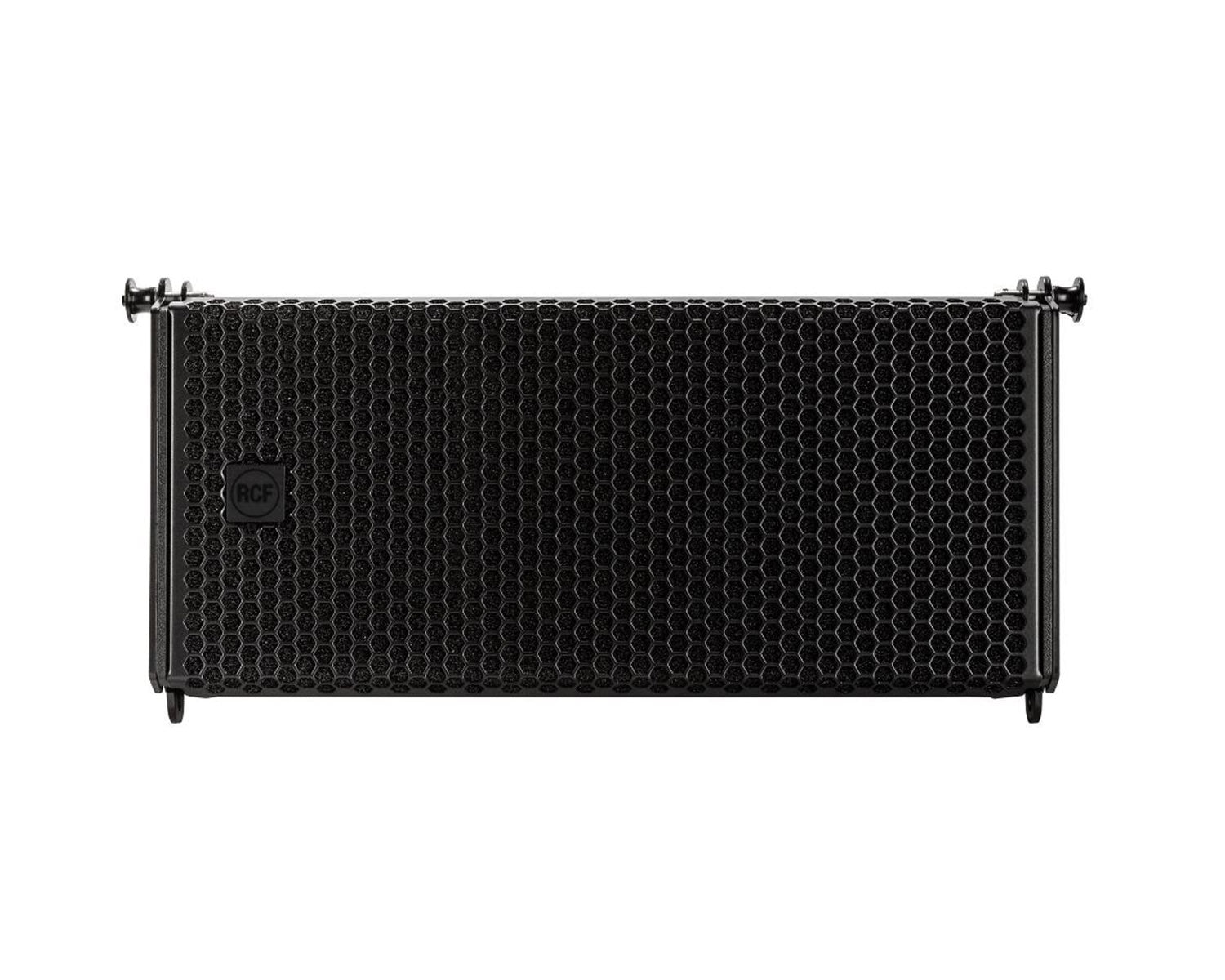

HL 6 is two-way full range system, ideal when line array performance is needed, and a fast and easy set-up is a must. The concept of this speaker derives from the touring industry, bringing in a compact cabinet all the experience of RCF professional sound. HL 6 features state-of-the art RCF transducers, two powerful 6.0” woofers for a solid bass reproduction, plus a high powered 1.75” voice coil compression driver mounted on a precise 100° x 10° waveguide to deliver vocal clarity with high definition and incredible dynamic. Due to its symmetrical design the HL 6 produces constant coverage without break up or attenuation, maintaining intelligibility, definition, and signal strength over distance. HL 6 comes in a structurally wooden reinforced composite polypropylene enclosure, and it is equipped with two rear handles for portability.

Product Features

• 250 W RMS power handling
• 131 dB max SPL
• 65 ÷ 20000 Hz frequency range
• 100° x 10° coverage angles
• Fully equipped with neodymium transducers
• Horn Loaded symmetric design
• Wooden reinforced polypropylene enclosure
• Steel grille with clothing
• 2 x SPEAKON connectors

Product Specifications

Acoustical specifications

• Frequency Response (-10dB): 65 Hz ÷ 20000 Hz
• Max SPL @ 1m: 131 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 10°
• Directivity index Q: 16

Power section

• Amplification: Full Range
• Nominal Impedance: 16 ohm
• Power Handling: 250 W
• Peak Power Handling: 1000 W PEAK
• Recommended Amplifier: 500 W
• Protections: Dynamic Active Mosfet
• Crossover Frequencies: 900 Hz
• Transducers Compression Driver: 1 x 1.0\'\' neo, 1.75\'\' v.c
• Woofer: 2 x 6.0\'\' neo, 2.0\'\' v.c

Input/Output section

• Input connectors: Speakon
• Output connectors: Speakon

Standard compliance

• CE marking: Yes

Physical specifications

• Cabinet/Case Material: PP Composite
• Hardware: Integrated array mechanics
• Handles: 2 on the rear panel
• Grille: Steel
• Color: Black - RAL 9005

Size

• Height: 237 mm / 9.33 inches
• Width: 470 mm / 18.5 inches
• Depth: 377 mm / 14.84 inches
• Weight: 11.8 kg / 26.01 lbs

Shipping information

• Package Height: 260 mm / 10.24 inches
• Package Width: 550 mm / 21.65 inches
• Package Depth: 425 mm / 16.73 inches
• Package Weight: 13.3 kg / 29.32 lbs
