For audio installations where good sound is required as well as the near invisibility of speaker units and related hardware, TOA H Series speakers prove ideal. The H Series have been designed to o­ffer high-quality audio for locations that place priority on interior appearance and feature designs that can e­ffectively blend into the background. This can be further enhanced as the grilles may be painted to blend in more unobtrusively with the colour scheme of the environment. Performance without aesthetic compromises present new possibilities that conventional speakers cannot provide.

The attractively styled H Series enclosures can be semi-flush mounted to minimize out-of-phase sound reflections that often pose problems in similar installations. The H Series o­ffers several models to suit desired sound dispersion characteristics or for use in exterior locations. And to augment the frequency response of the H-Series for a fuller-bodied sound that is preferred today, a dedicated subwoofer can easily be flush-mounted into ceilings or between standard wall studs, also blending perfectly into any interior decoration scheme. The H Series off­ers an ideal solution to the problem of providing high-quality audio in appearance-critical environments.

Product Features

• Attractive and compact design permits bracketless direct wall standard gang-box installation at above head-height.
• Controlled 180° coverage pattern eliminates between-speaker audio dead spaces.
• Powerful TOA-designed neodymium magnet cone driver, plus tweeter.
• Built-in steep-slope crossover circuitry ensures smooth dispersion pattern and audio response.
• Transformer included to allow both high- and low-impedance operation.

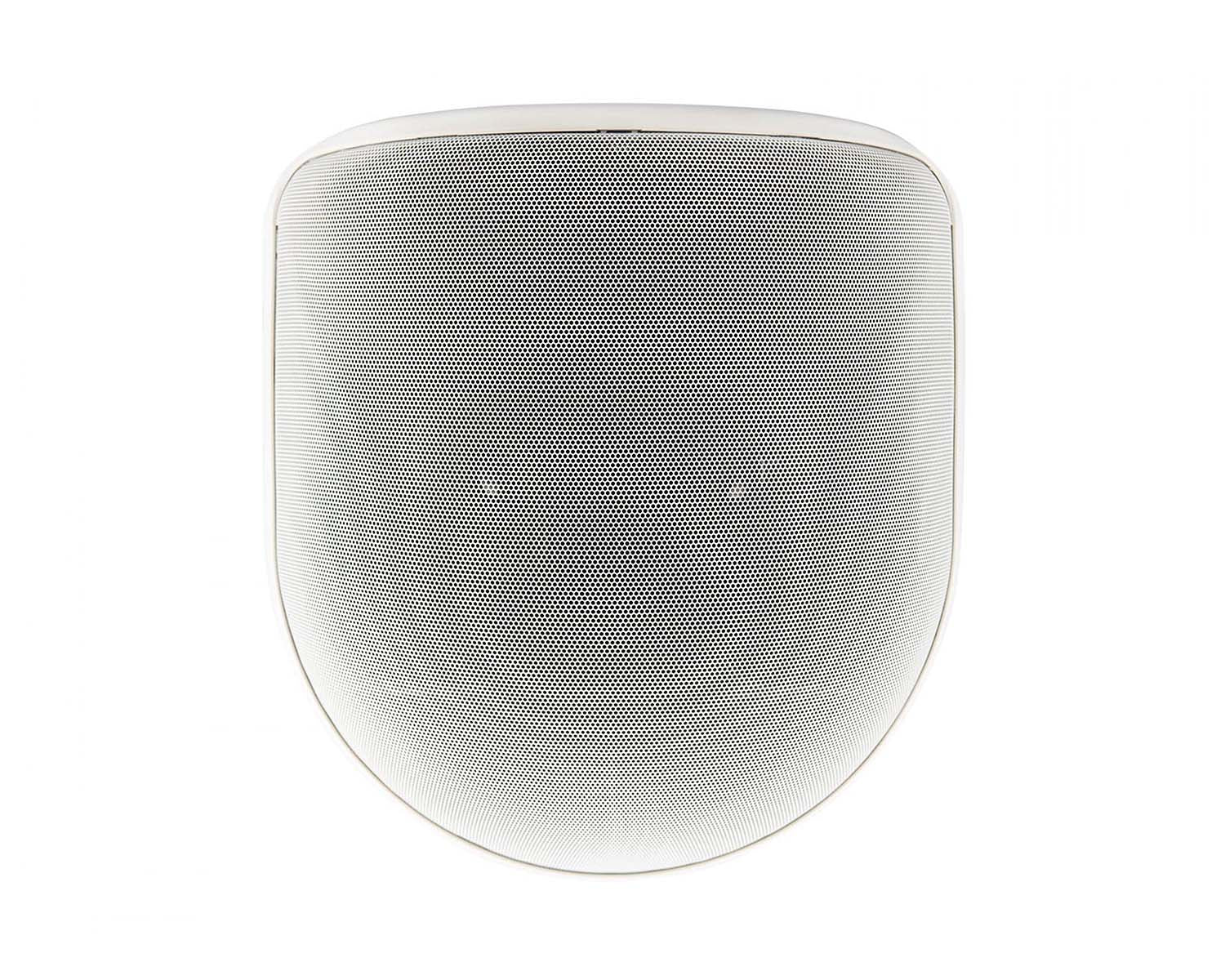

• Paintable grilles enhance interior decor.
• Fire resistant ABS (UL Standard 94: V-0 Grade) enclosure

Product Specifications

General

• Enclosure Type: Sealed type
• Power Handling Capacity: 150W (continuous program/4 Ω)/40W (continuous pink noise/4 Ω).
• Rated Input: 12W (16 Ω, high impedance)
• Rated Impedance: 4 Ω or 16 Ω/100V line; 830 Ω (12W), 17k Ω (6W), 3.3k Ω (3W)/70V line; 420 Ω (12W), 830 Ω. (6W), 17k Ω (3W), 3.3K Ω (1.5W)
• Sound Pressure Level: 88dB (1W/ 1m), mounted in half-opened space
• Frequency Response: 100 ~ 20,000Hz
• Speaker Component: Low frequency; 10cm cone woofer (neodymium magnet)/High frequency; Balanced dome tweeter

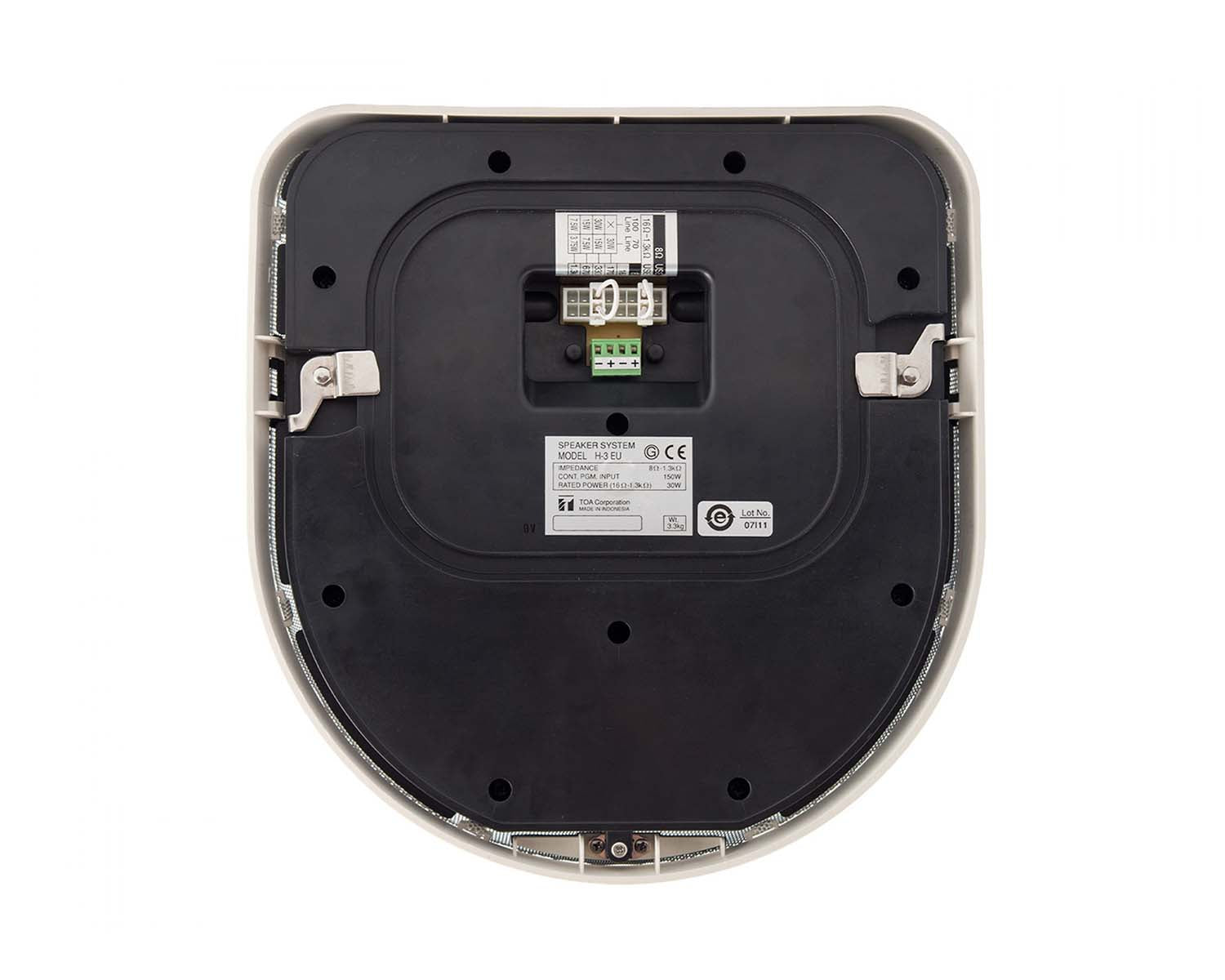

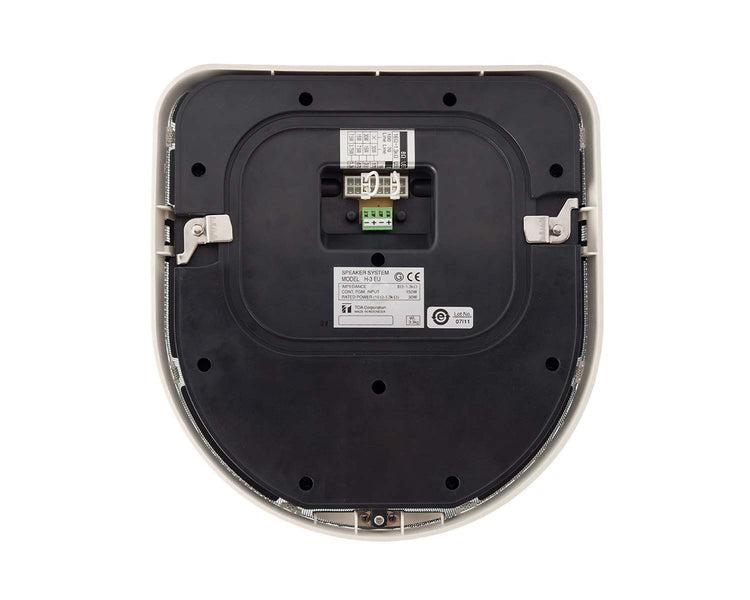

• Input Terminal: Detachable screw terminal, (+)/(-) 2 each (for bridge connection)

Physical & Dimensions

• Usable cable: Solid cable, stranded cable: 0.2-2.5mm² (AWG No. 24-14 equivalent)
• Finish: Grille; steel plate, white paint/Frame; Fire-resistant ABS resin, white/Base Frame; steel plate
• Dimensions: ø268 x 111mm
• Weigh: 2.1kg (including Base Frame)
• Accessory: Base Frame x1
• Usable: Electrical Box 1-gang size switch box (with cover)
