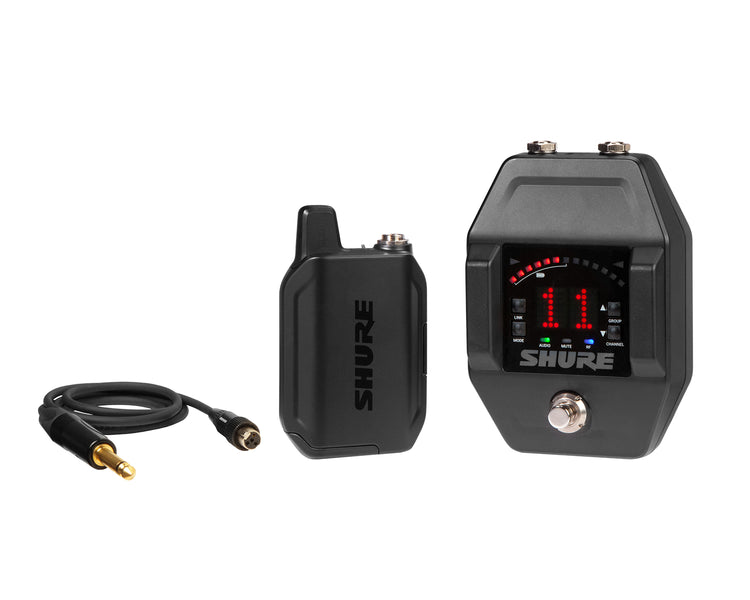

The GLX-D+ Wireless Guitar Pedal System features the WA305 Premium Guitar Cable, the GLXD1+ Digital Bodypack with SB904 rechargeable battery, and the GLXD6+ Guitar Pedal w/ tuner. Go wireless without compromising your tone or complicating your rig.

Product Features

• Dual Band technology provides reliable and consistent performance in 2.4 and 5.8GHz.
• Rugged metal chassis design that can be completely integrated into your pedalboard.
• GLXD6+ Guitar Pedal Receiver is compatible with 9V power supply in Pedalboards (minimum current: 400mA).
• Transmitter battery life monitoring via highly visible LED segment display.
• Included Tuner with adjustable mode (Strobe / Needle) and selectable reference pitch (432 – 447 Hz).
• Included SB904 rechargeable battery delivers up to 12 hours of runtime.
• ¼" true bypass input allows you to switch between two instruments (one wired and one wireless guitar/bass) during live performance by toggling the push button on the pedal receiver. Integrated guitar input also enables easy transition from practice to live performance.
• Output ¼" connector for easy daisy-chain connection with other pedals.

GLXD1+ Bodypack Features

• Rugged Metal Construction
• Included Rechargeable Battery Delivers up to 12 Hours of Runtime
• Compatible with instrument cable, and a variety of headset and lavalier microphone options
• Range: up to 100 feet (30 meters)

Product Specifications

GLXD6+ Guitar Pedal Receiver Specifications

• Power Requirements: 9 V – 15 V, 400 mA (efficiency level VI power supply)
• Antenna Type: Dual-band PIFA
• Dimensions: 5.4 x 3.7 x 1.89 in. (138 x 95 x 48 mm)
• Weight: 19.75 oz (560 g)
• Housing: Aluminium alloy
• Spurious Rejection: > 35 dB, typical
• Gain Adjustment Range: -20 to 40 dB in 1 dB steps
• Audio Input Modes: Tuner or True Bypass
• Audio Output:
• Configuration
  • 6.35 mm (1/4") output
  • Impedance balanced
• Impedance
  • 6.35 mm (1/4") output
  • 100 Ω (50 Ω, Unbalanced)
• Maximum Audio Output Level
  • 6.35 mm (1/4") connector (into 3 kΩ load)
  • +8.5 dBV
• Pin Assignments
  • 6.35 mm (1/4") connector
  • Tip=audio, Ring=no audio, Sleeve=ground
• Receiver Antenna Input:
  • Impedance: 50 Ω
  • Maximum Input Level: -20 dBm

GLXD1+ Bodypack Specifications

• Antenna Type: Dual-band Internal Monopole
• Dimensions: 4.5 x 2.6 x 1.1 in. (115 x 66.94 x 28.51 mm), (H x W x D)
• Weight: 5.4 oz (153.1 g), without battery
• Housing: Aluminium alloy, ABS plastic
• Input Impedance: 900 kΩ
• Connector: 4-pin male mini connector (TA4M)
• Maximum Input Level: +8.4 dBV (7.5 Vp-p)
• Configuration: Unbalanced
• Pin Assignments
  • 1: Ground (cable shield)
  • 2: + 5 V bias
  • 3: Audio
  • 4: Tied through active load to ground (on instrument adapter cable, pin 4 floats

What's in the Box?

• 1 x GLXD6+ Guitar Pedal Receiver
• 1 x GLXD1+ Bodypack Transmitter
• 1 x PS24 Power Supply
• 1 xSB904 Lithium-Ion Rechargeable Battery
• 1 x WA305 Premium Instrument Cable
• 1 x SBC10-USBC Wall Charger
