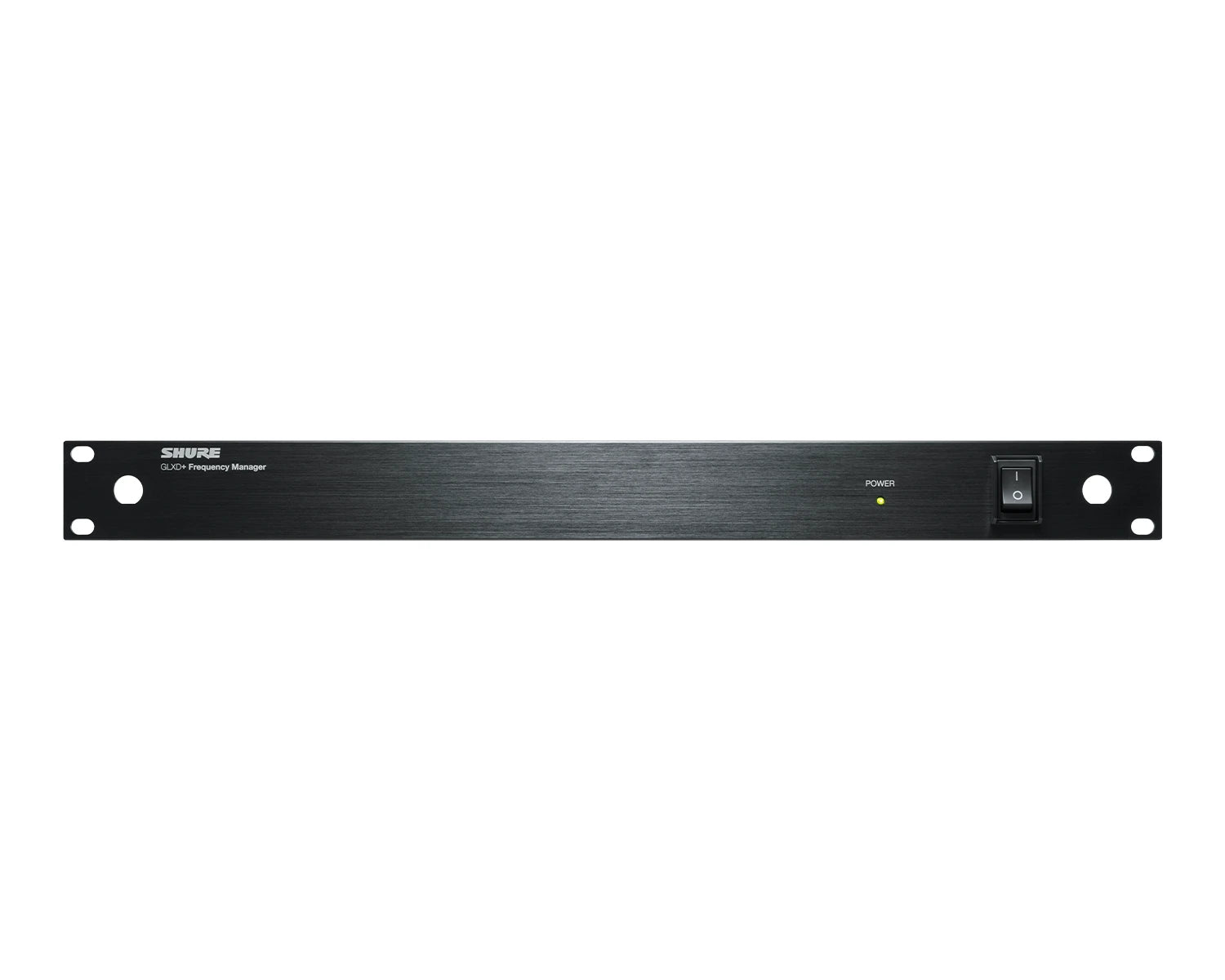

The GLXD+FM Dual Band Frequency Manager connects up to six GLXD4R+ receivers together, providing solid and reliable RF performance in demanding multi-channel applications. The channel count can go up to 11 simultaneous systems in typical environments and up to 16 under optimal conditions, with flexible antenna distribution options.

Product Features

• Provides automatic dual band frequency management to a linked receiver community for improved RF performance and increased channel count

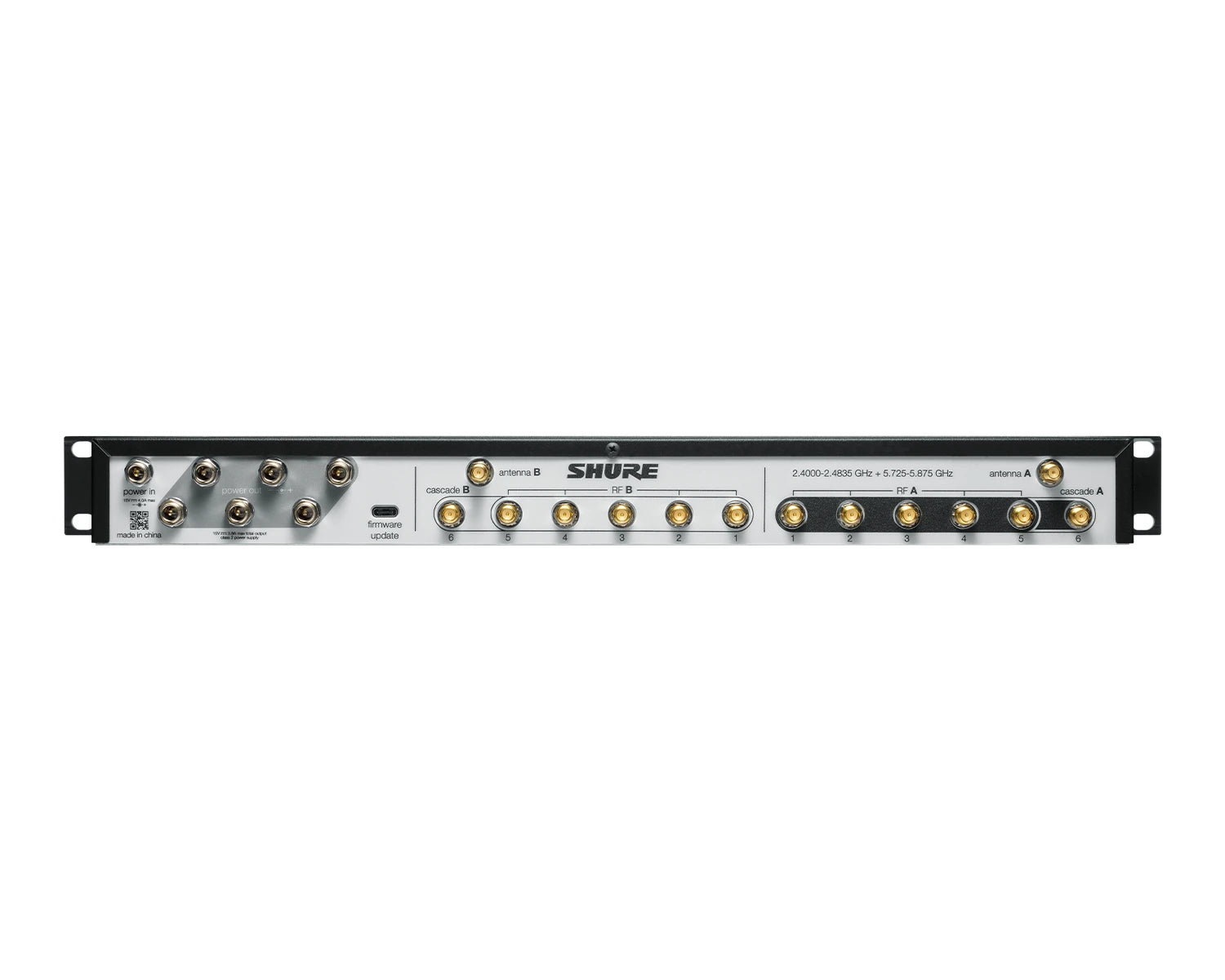

• Link up to 6 individual rack receivers via RF ports for traditional antenna distribution
• Daisy-chain cascade connection allows up to 3 Frequency Managers linked as a single managing unit for 16 receivers
• Intelligent frequency management quickly identifies the best frequencies
• Identifies and assigns optimal frequencies to receiver/transmitter pairs
• In case of interference, automatically and seamlessly transitions to backup frequencies
• Provides power to the GLXD4R+ receivers, eliminating need for power strips or multiple outlets
• Globally‐unlicensed 2.4GHz frequency band and 5.8 GHz frequency band

Product Specifications

• Power Requirements:  15 V DC
• DC Output:  15 V DC (x6)
• Output Current (Combined total from all DC outputs):  3.8 A, maximum
• Operating Temperature Range:  0°C (32°F) to 60°C (140°F)
• RF Frequency Range:  2400 - 2483.5 MHz and 5725 - 5875 MHz
• Gain:
  • Transmit Mode:  2400 - 2483.5 MHz: 0.5 dB maximum; 5725 - 5875 MHz: 1.0 dB maximum
  • Receive Mode:  1 dB nominal
• Maximum Antenna Input Power:  -10 dBm
• Maximum Receiver Port Input Power:  20 dBm (3 cascades)
• Maximum Total Receiver Port Input Power:  22 dBm (3 cascades)
• Connector Type:  Reverse SMA (RP-SMA)
• Impedance:  50 Ω
• Housing:  Steel
• Dimensions:  19 x 7.47 x 1.73 in. (482.6 x 189.82 x 43.94 mm)
• Weight:  61 oz (1735 g)

What's in the Box?

• 1 x AC Power Cable
• 1 x Rack-mount Hardware Kit
• 2 x RSMA Cables to connect to GLXD4R+ Receivers
