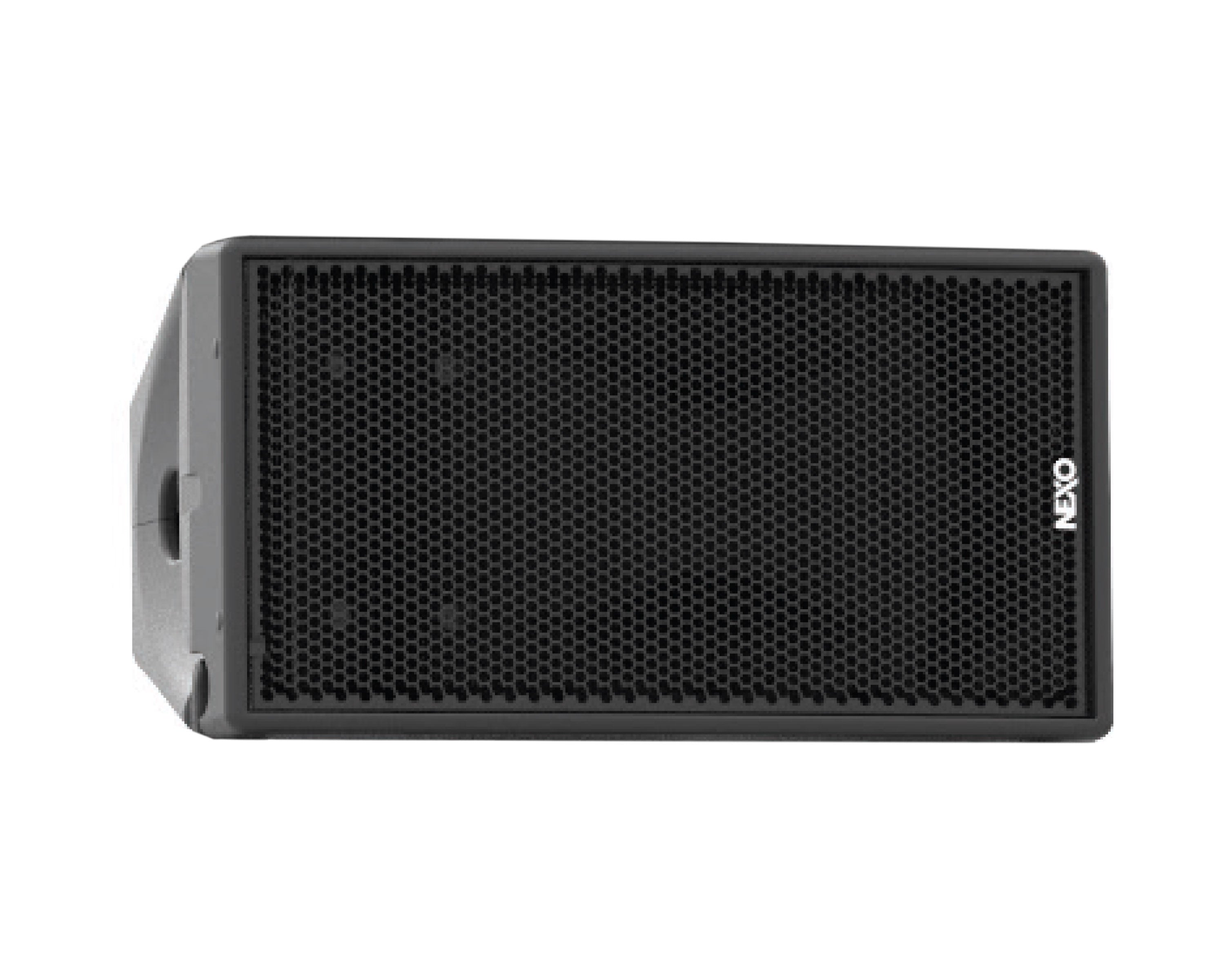

Measuring 531mm wide x 288mm high x 355mm deep and weighing 21Kg, the GEO M1012 is the Touring / 12° vertical dispersion version of the GEO M10 line array element. Cabinets can be set for 80° or 120° horizontal dispersion using magnetic flanges in the waveguide, with no tools required. Cabinets are constructed from a reticulated urethane co-polymer material and and feature integral rigging with no loose parts and handles on the rear and sides. GEO M10 is available in black, white or custom RAL colours.

Product Features

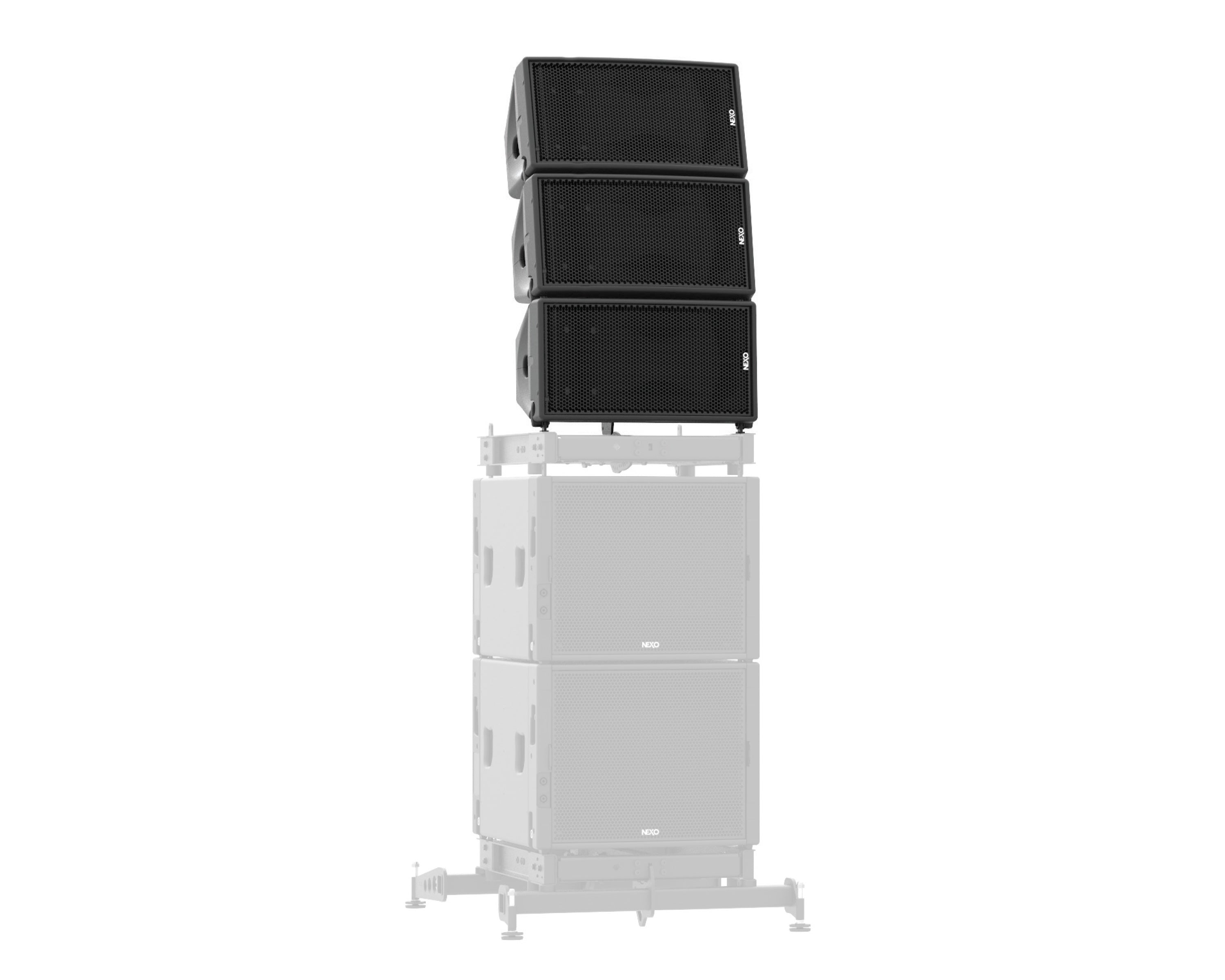

Compact line array element that can be stacked or flown
Can be used with or without its companion sub the MSUB15

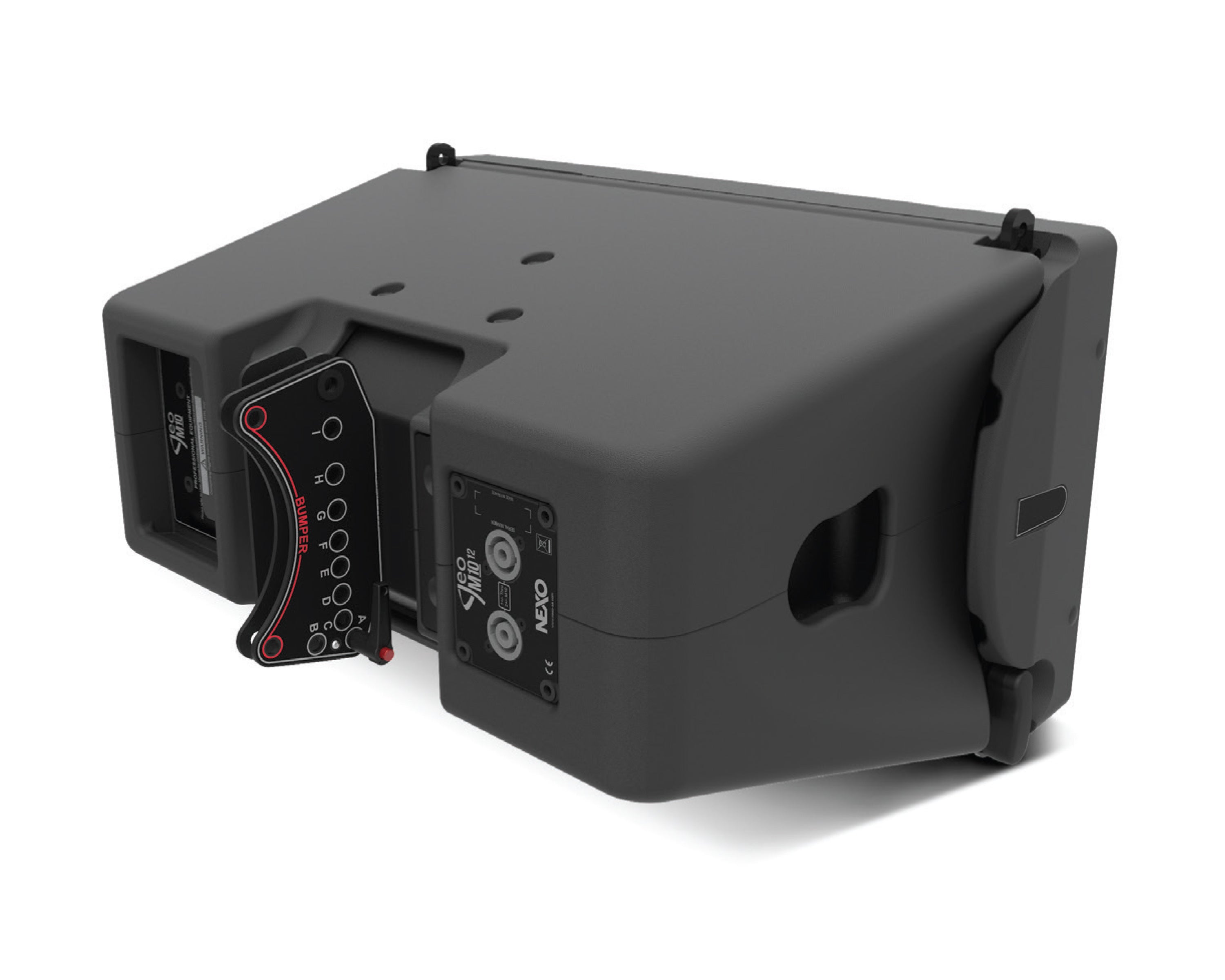

Integrated rigging hardware with no loose parts and AutoRigTM feature
Incorporates latest NEXO patented technology from the flagship STM series
Comprehensive range of versatile, multifunction accessories for deploying the GEO M10 in a wide variety of applications
Touring version with 12° vertical dispersion
IP Rating: IP54

Product Specifications

General

Frequency Response @-6 dB: 59 Hz to 20 kHz
Sensitivity 1W @ 1m: 100 dB SPL Nominal
Peak SPL @ 1m 136 dB
IP Rating: IP54
Vertical Dispersion: 12°
Horizontal Dispersion: 80° / 120°
Passive Crossover Frequency: 1.3 kHz
Nominal Impedance: 8 Ohms
Recommended Power: 750 Watts

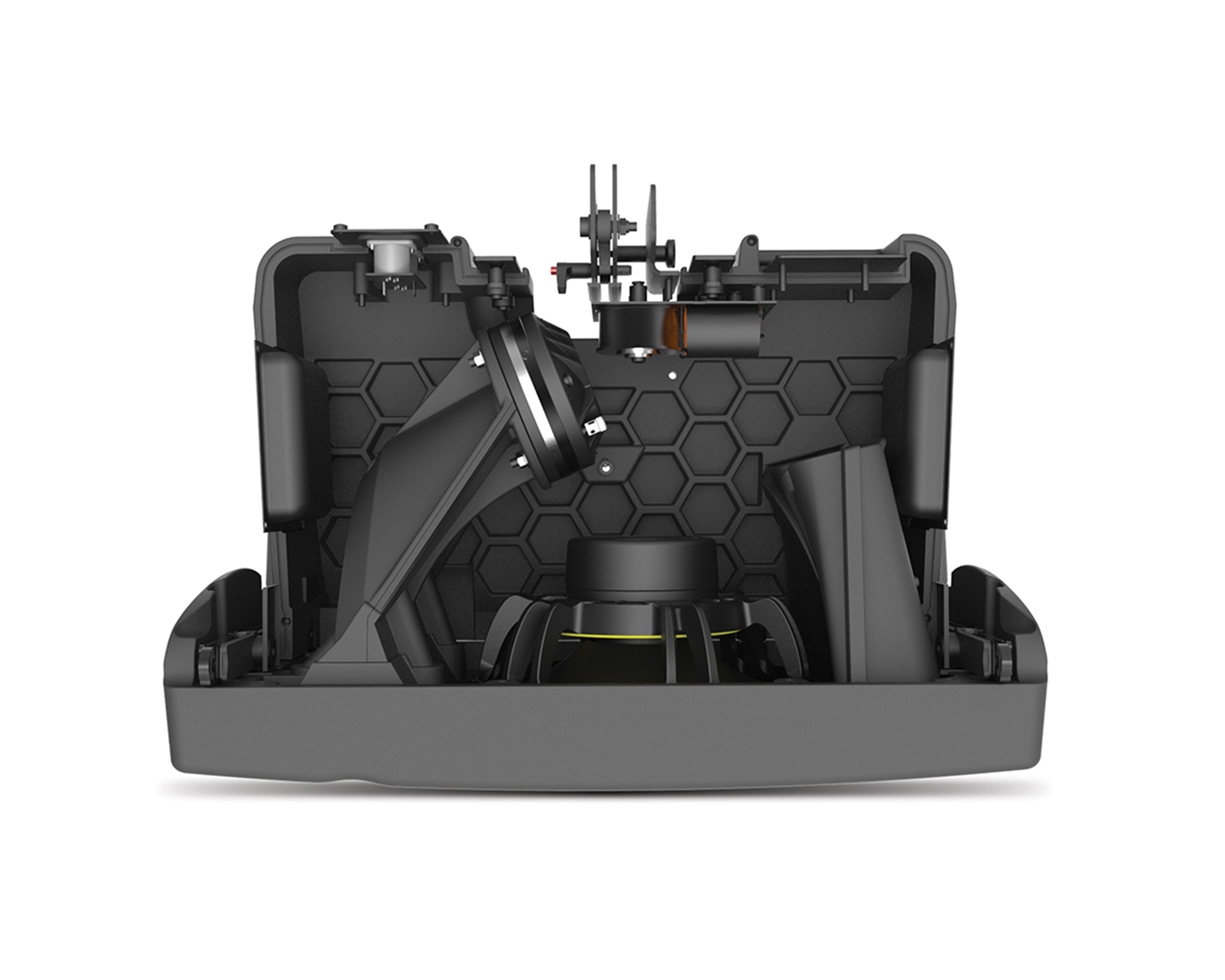

LF Component: 1 x 10” 8 Ohms long excursion Neodymium driver with PDDTM
HF Component: 1 x 1.4” throat driver on a BEA/FEA optimized HR WavesourceTM
Connectors: 2 x NL4, 4 poles connectors (1+/1- Through, 2+/2- GEO M10)
Construction: Lightweight Polyurethane Composite
Fittings: 4 x Side handles (2 vertical + 2 horizontal) + back grip
Front Finish: Steel front grill + back mesh
Operating temperature range: 0°C - 40 °C (32° F - 104° F)
Storage temperature range: -20 °C - 60 °C (-4 ° F - 140° F)
Recommended powering solution: NXAMP4x2mk2 Powered TDcontroller: up to 3 x GEO M10 per channel
Optional powering solution:
- NXAMP4x1 Powered TDcontroller: 1 x GEO M10 per channel
- NXAMP4x1 Powered TDcontroller (Bridged): up to 2 x GEOM10 per channel
- NXAMP4x4 Powered TDcontroller: up to 4 x GEO M10 per channel
- DTD TDcontroller + DTDAMP4x1.3 Power amplifier: up to 2 x GEO M10 per channel
