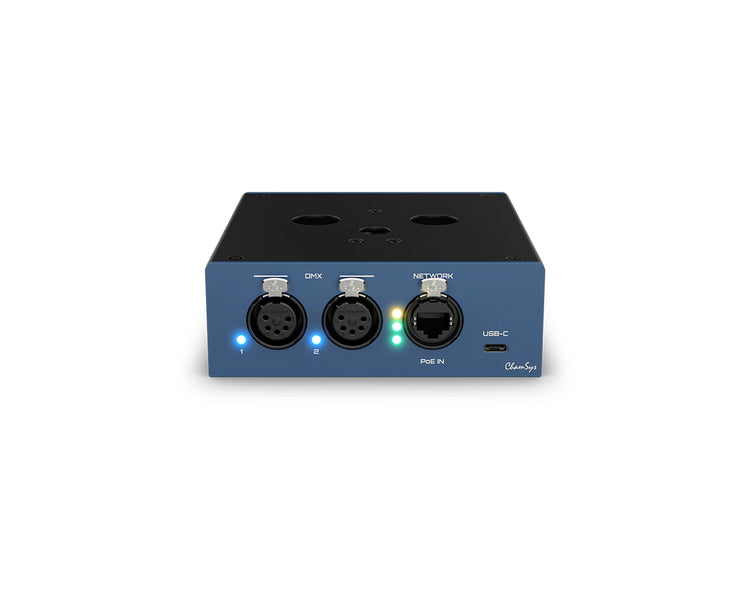

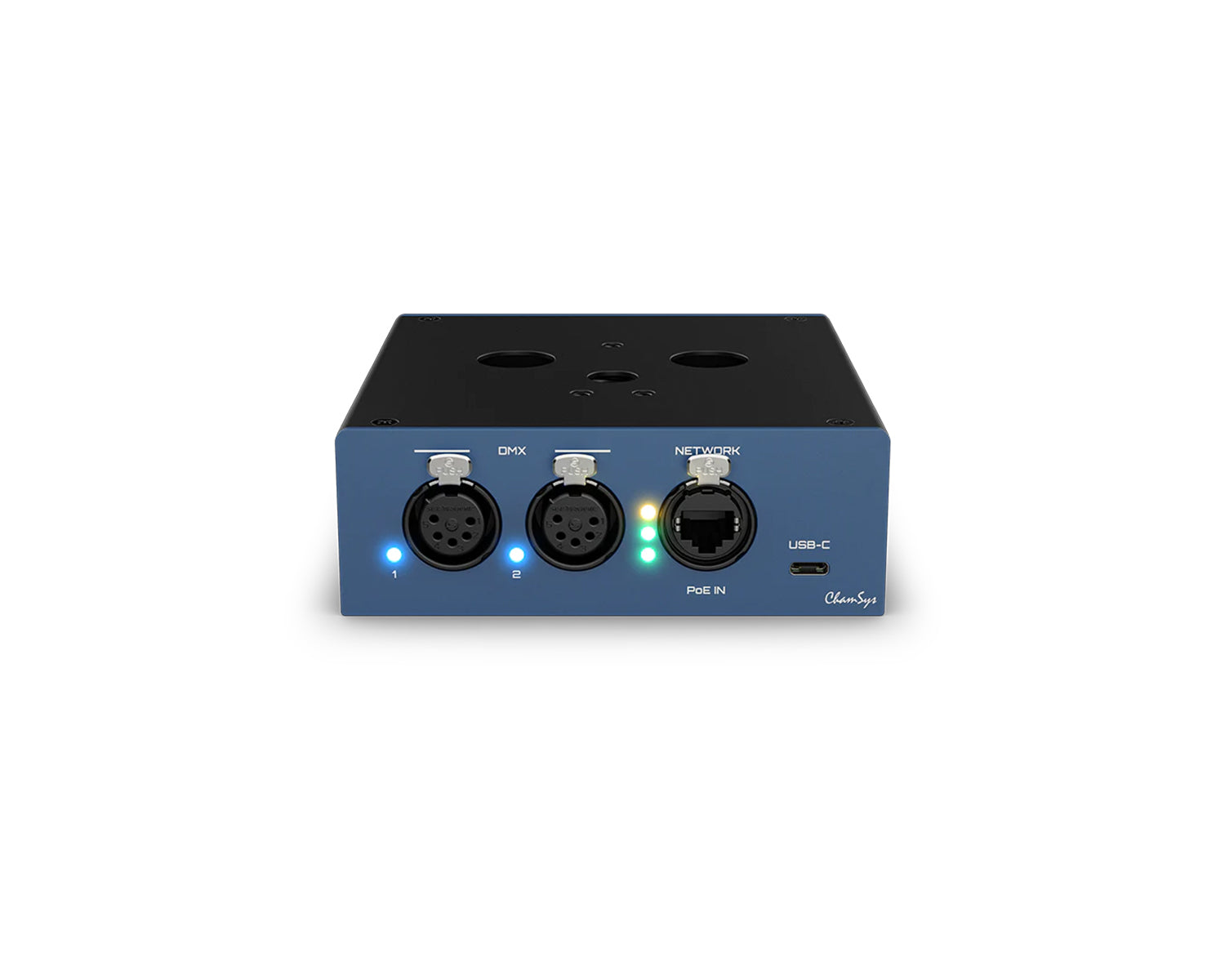

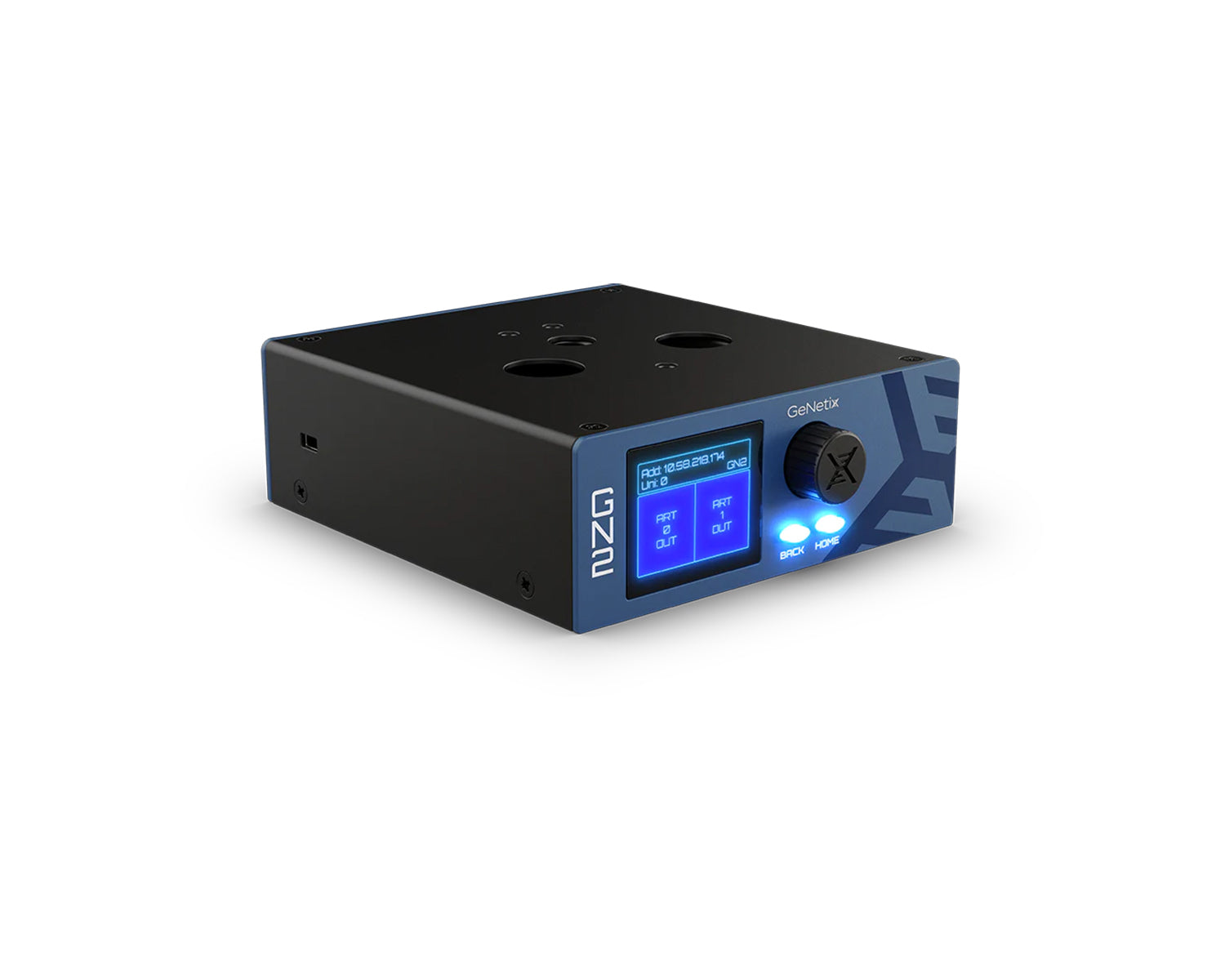

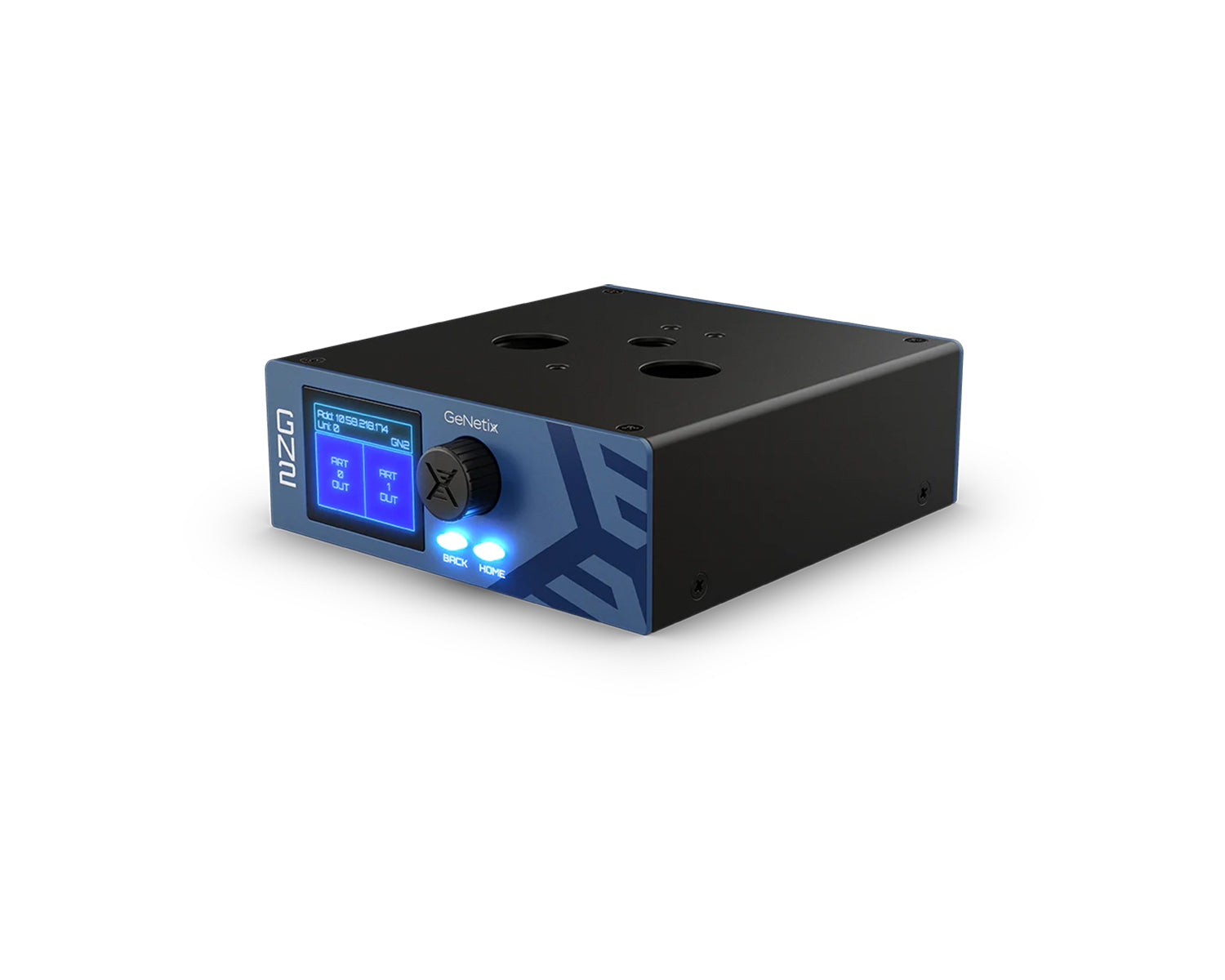

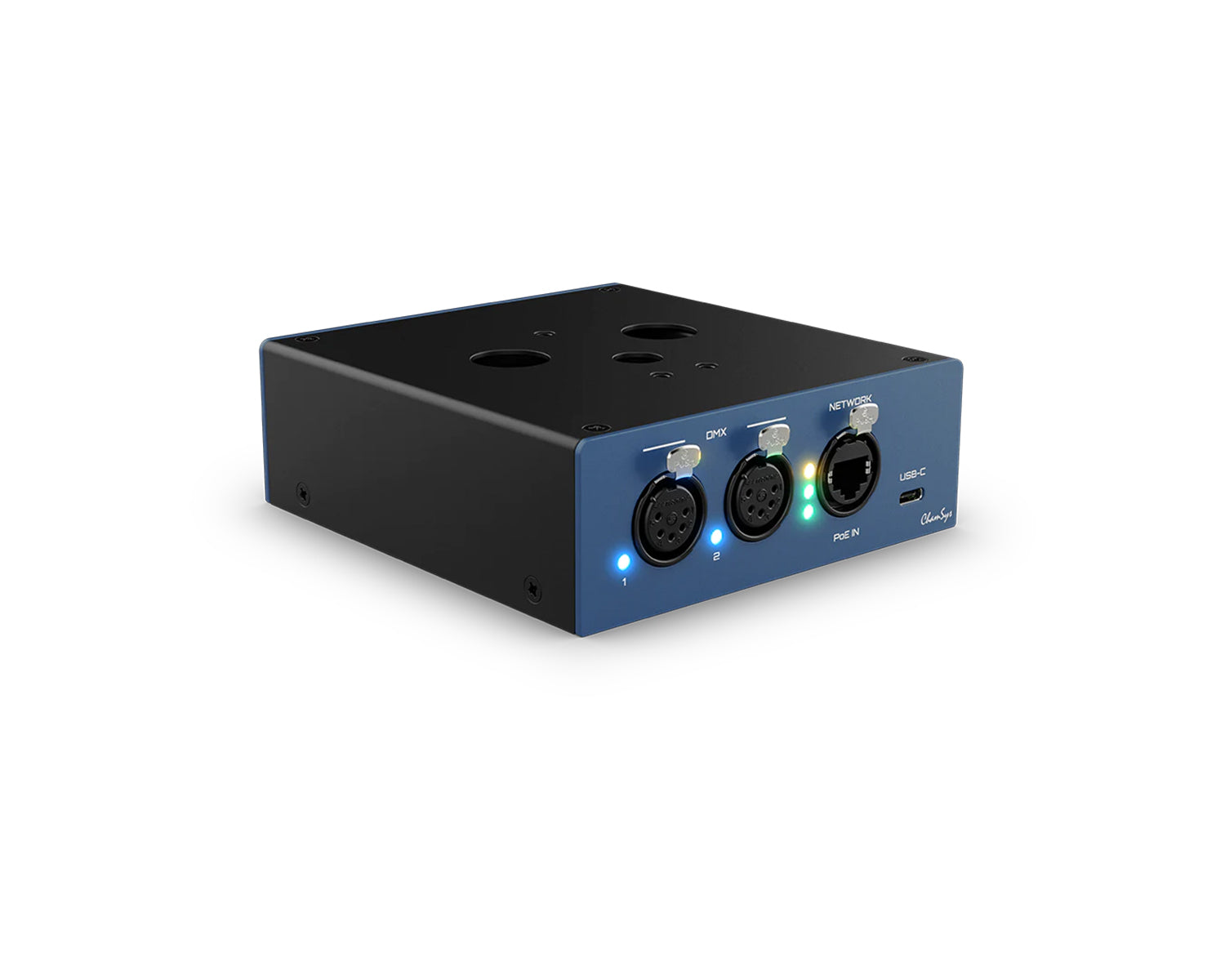

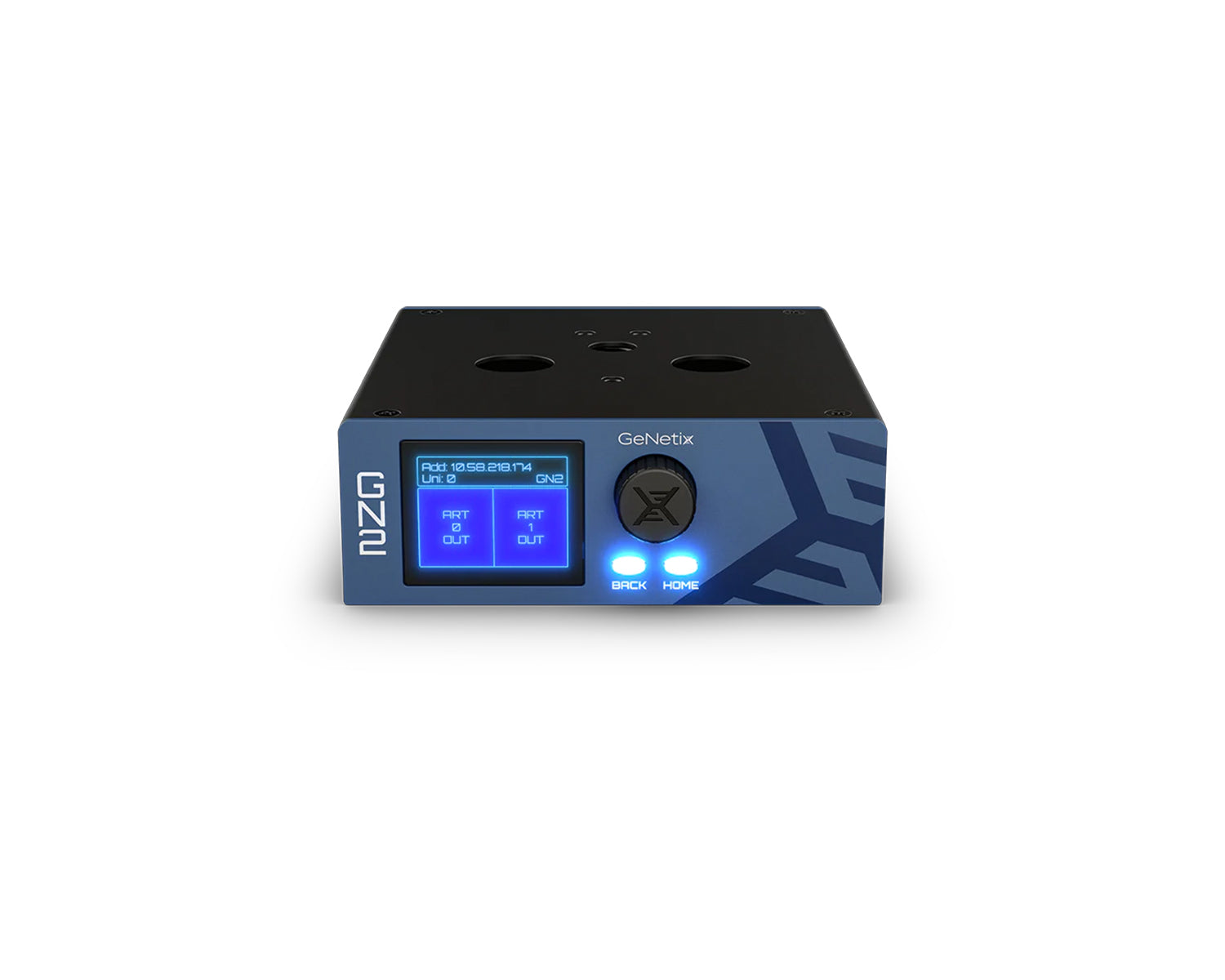

GeNetix Node 2 is a two-port Ethernet-DMX node that is compatible with any console supporting Art-Net and sACN. GeNetix Node 2 can also be used as a USB interface for MagicQ PC systems, unlocking MagicQ into reduced mode when connected via its USB-C or Network port.

Configuration is simple, whether done locally via its in-built display, remotely with its onboard web server or from the console. Powered by either PoE or its USB-C port, this versatile device is at home in many different environments as a standalone interface, truss-mounted in the rig via its M12 receiver or installed via its DIN rail mount.

GeNetix Node 2 supports Art-Net, sACN, RDM and supports both DMX input or output from its two DMX ports.

Product Features

• 2 RDM DMX Ports supporting Input and Output
• Supports Art-Net & sACN
• Webserver for remote configuration
• In-built display and encoder for local configuration
• Can be USB or PoE powered
• Unlocks MagicQ PC Systems into Reduced Mode via either USB or Network

Product Specifications

Hardware Specifications

• RDM Direct DMX Ports: 2
• Network Ports: 1
• PoE Input: Yes (Port 1)
• USB Ports: 1 USB-C
• Kensington Security Lock Fixing: Yes
• Power Input, Neutrik powerCON TRUE1 110 to 240 VAC

Software Specifications

• Art-Net/sACN: Yes
• ChamNet Support: Yes
• Configurable DMX Timings: Yes
• Web Server: Yes
• DMX Redundancy Support: Yes
• User Scene Store: Yes

Included Accessories

• Neutrik powerCON TRUE1 Power Cable: 1
• DIN Rail Mount Clip: 1
• USB A-C Cable: 1

Physical & Dimensions

• Width: 125mm (4.92 inches)
• Depth: 133mm (5.23 inches)
• Height: 44mm (1.73 inches)
• Weight: 0.85 KG (1.87 lb)

What's in the Box?

• Neutrik powerCON TRUE1 Power Cable x 1
• DIN Rail Mount Clip x 1
• USB A-C Cable x 1
