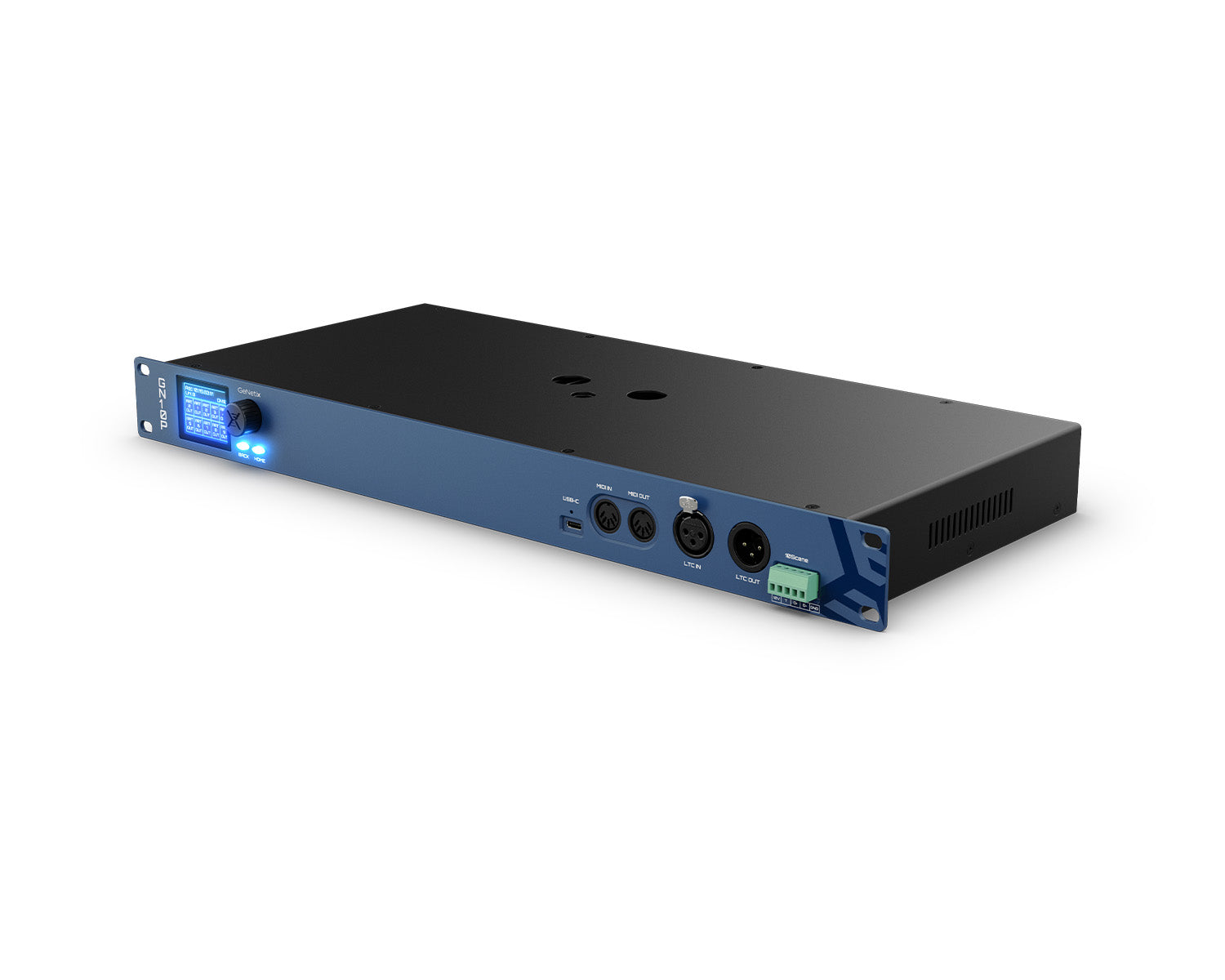

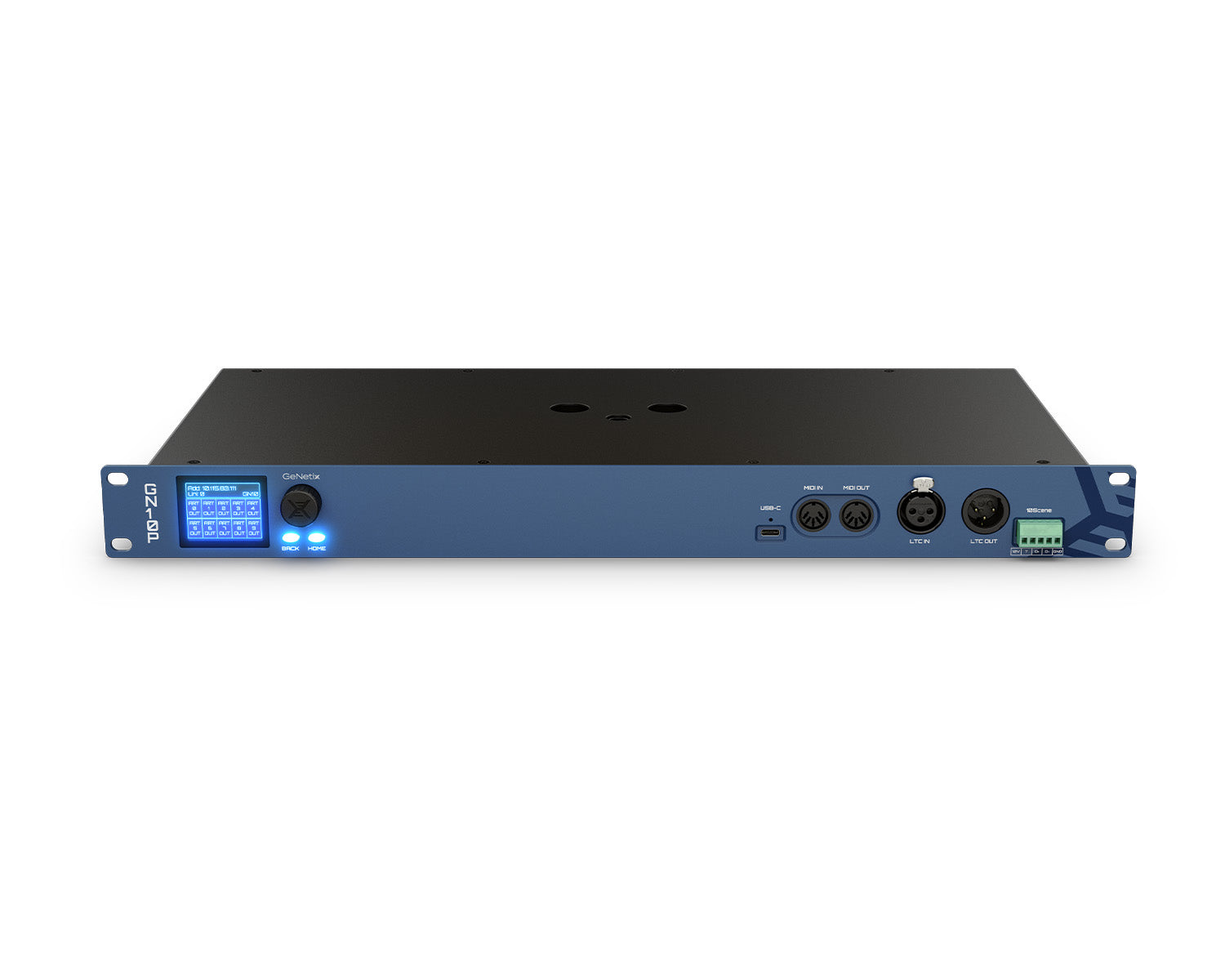

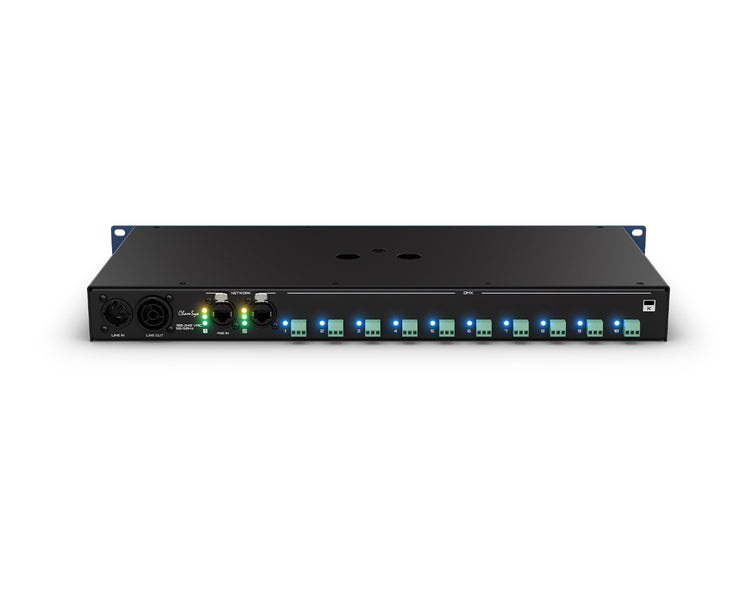

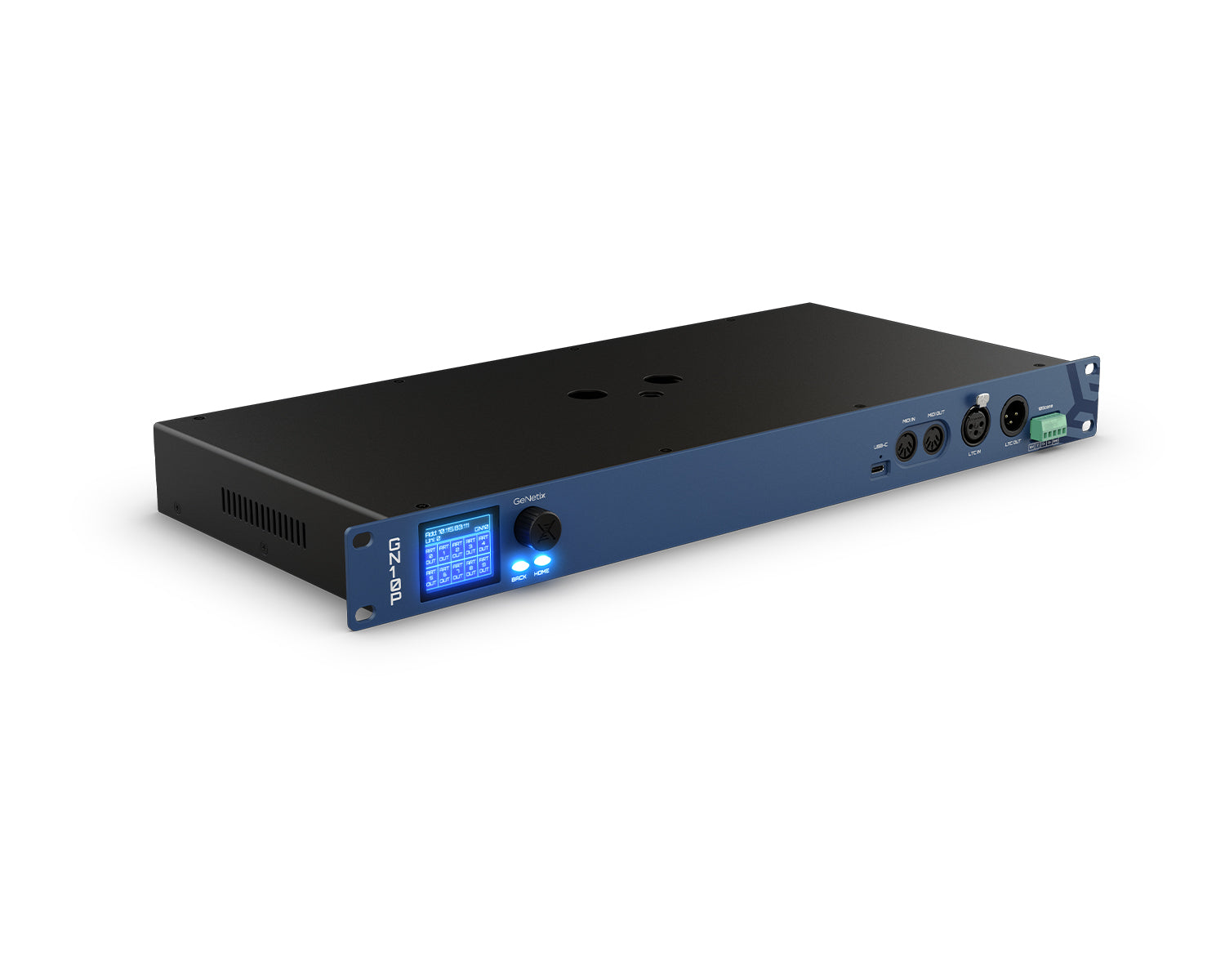

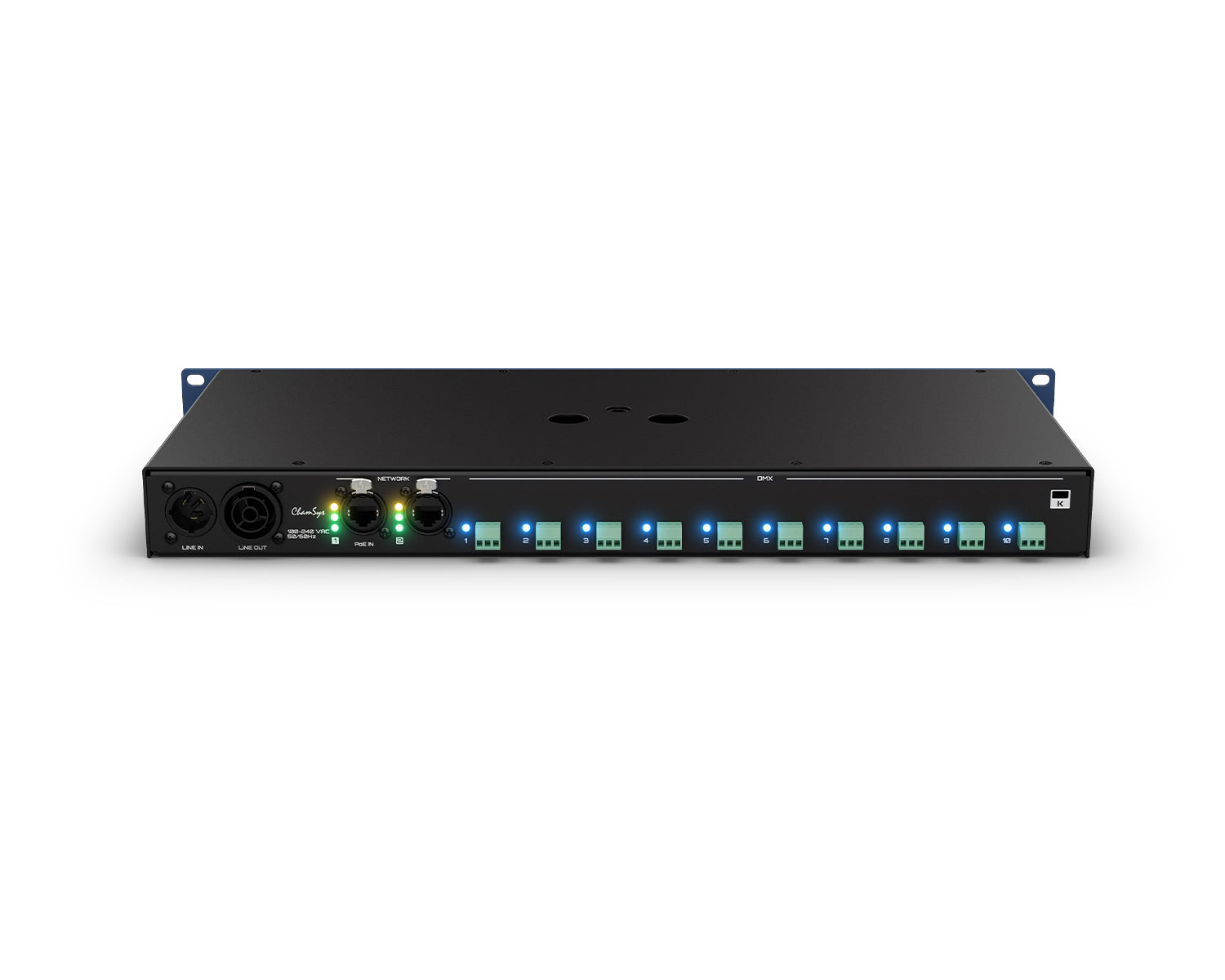

GeNetix Node 10P (GN10P) is a multipurpose node that provides a solution for remote data distribution in a wide variety of applications, notably offering support for Timecode, MIDI, and 10Scene. The P version of our GN10 series comes fitted with phoenix screw terminals for the DMX outputs from terminal block connectors located on the rear of the unit, offering a design ideally suited to the needs of permanent installations.

This universal interface supports Art-Net, sACN, RDM and like all GN10 nodes is fully configurable from ChamSys consoles, via its in-built web server or via the display on the unit. Its DMX ports are fully configurable, allowing for use as DMX Input or Output and has configurable DMX timings. With two network ports, GN10P can be either PoE or Mains powered via its powerCON TRUE1 line input. This versatile device is at home in many different environments as a standalone interface, truss-mounted in the rig via its M12 receiver or rack mounted via its rack ears.

The interface’s LTC and MIDI ports provide both Timecode and MIDI notes input/output to MagicQ systems over ChamNet as well as supporting Art-Net timecode compatible with any system supporting this, making GN10P ideal for applications where the Timecode or MIDI source is away from the console.

When connected to MagicQ PC Systems via USB, GN10P unlocks MagicQ PC Systems in Full Unlocked Mode, acting not only as a DMX interface, but also as a Timecode, MIDI, and 10Scene gateway, making the full power of MagicQ software available to systems running on Linux, Mac, or PC. When used as an Art-Net/sACN node, the GN10P unlocks up to 2 MagicQ Instances via Network.

Product Features

• 10 RDM DMX Ports with Phoenix screw terminals supporting Input and Output
• Supports Art-Net & sACN
• LTC & MIDI Timecode over Ethernet
• MIDI Notes over Ethernet
• Recall Scenes via UDP commands
• Webserver for remote configuration
• In-built display and encoder for local configuration
• Full Unlock of MagicQ PC Systems when connected via USB
• Full Unlock of up to 2 MagicQ Instances when connected via Network

Product Specifications

• Hardware Specifications
• RDM Direct DMX Ports (with Phoenix Screw Terminals): 10
• Network Ports: 2
• MIDI Ports: 2 (1 in, 1 out)
• LTC Timecode Ports: 2 (1 in, 1 out)
• 10Scene Ports: 1
• PoE Input: Yes (Port 1)
• USB Ports: 1 USB-C
• Kensington Security Lock Fixing: Yes
• Power Input: Neutrik powerCON TRUE1 110 to 240 VAC
• PoE or Mains Powered: Yes

Software Specifications

• Art-Net/sACN: Yes
• ChamNet Support: Yes
• LTC & MIDI Timecode over ChamNet: Yes
• MIDI Notes over ChamNet: Yes
• 10Scene Gateway Functionality: Yes
• Configurable DMX Timings: Yes
• Web Server: Yes
• DMX Redundancy Support: Yes
• User Scene Store: Yes
• Recall Scenes Via UDP: Yes

Weight and Dimensions

• Width: 480mm (18.9 inches)
• Depth: 218mm (8.59 inches)
• Height: 44.4mm (1.75 inches)
• Weight: 2.75 KG (6.06 lb)

What's in the Box?

• Neutrik powerCON TRUE1 Power Cable: 1
