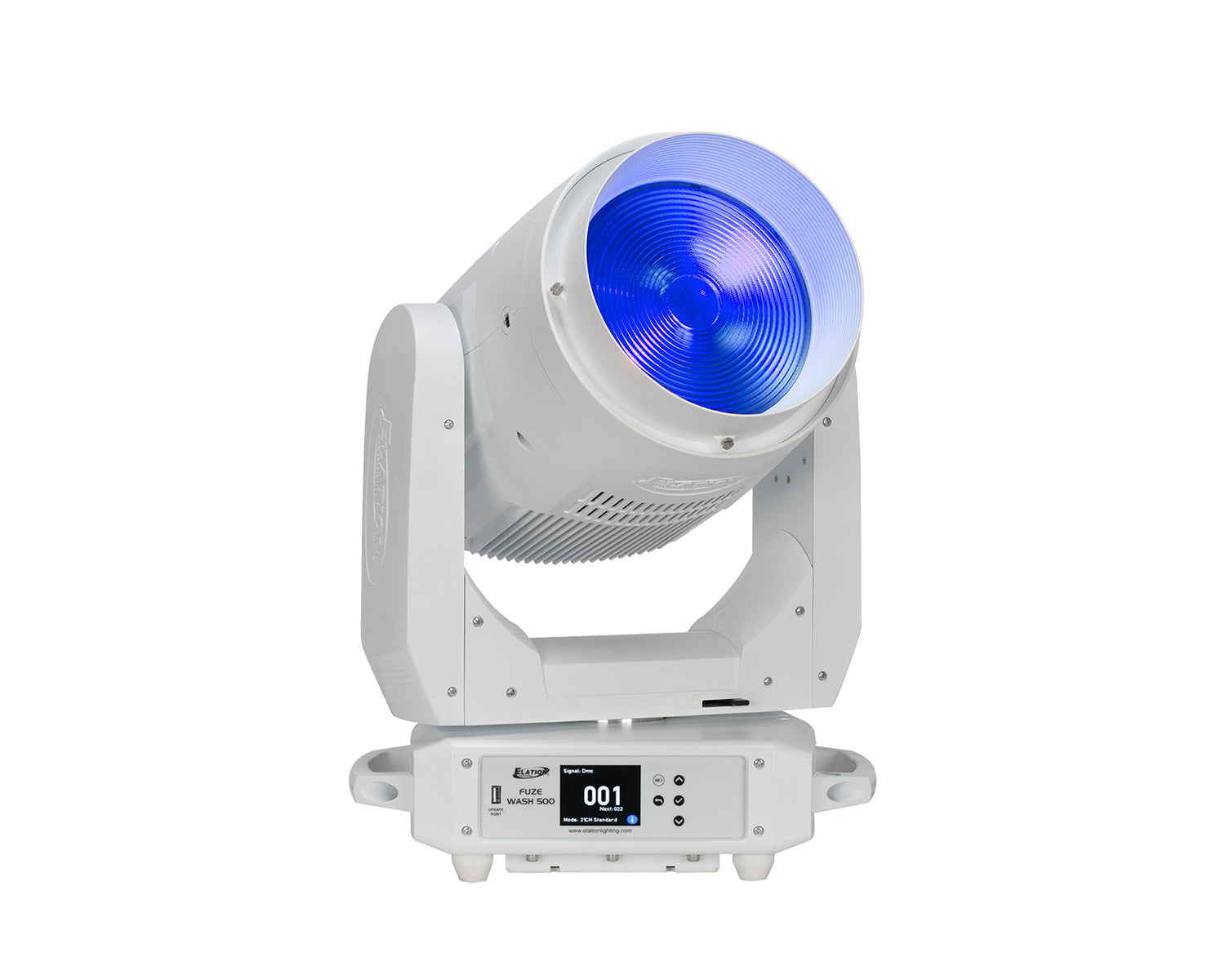

The FUZE WASH 500™ is a powerful automated LED Fresnel wash fixture designed for theatre, television, events and a wide array of other precision lighting applications. A High-CRI engine utilises a 5-colour homogenised LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate colour reproduction while delivering a powerful output of up to 17,000 lumens and maximum CRI of 92. Virtual colour temperature, Magenta / Green adjustment plus CMY or RGB emulation provide the designer with immediate access to the impressive LED colour array.

The FUZE WASH 500 is designed for any application where an automated Fresnel fixture with outstanding and impactful colours, a wide zoom range and a soft field is required. An optional indexable ovalizer lens and a fully automated barn door system is available for additional remote beam control.

Product Features

• 500W Full Spectrum RGBMA LED Engine
• Up to 17,000 Total Lumen Fixture Output @ 6500K
• CRI up to 92
• Wide Zoom Range from 6° to 53°
• Variable 16-bit Dimming Curve Modes
• CMY Emulation
• Virtual Colour Correction
• Green/Magenta Shift
• Virtual Gel Swatch Book

Product Specifications

Source

• 500W 6,500K RGBMA (Red, Green, Blue, Mint, Amber) LED Engine
• 30,000 Hour Average LED Life

Photometric Data

• 17,000 Total Lumen Fixture Output
• CRI 92.8
• Zoom Range: 6° – 53°
• Field Angle: 12.1° – 63.6°
• Beam Angle: 6.3° – 53.7°

Effects

• Motorised Zoom
• Optional Indexable Ovaliser Lens
• Optional Motorised Barn Doors
• Variable 16-bit Dimming Curve Modes
• High-Speed Electronic Shutter and Strobe

Colour

• RGBMA Colour Array
• CMY and RGB Emulation
• Variable CCT: 2400K – 8500K
• Green/Magenta Shift
• Virtual Gel Swatch Book

Control / Connections

• 6 DMX Channel Modes: (RGBMA 21 / 30), (CMY 17 / 24), (RGB 20 / 26)
• 16-bit Pan, Tilt, and Dimming Control
• DMX Adjustable LED Frequency
• Supports DMX, RDM, E-FLY Wireless, Art-Net, and sACN Protocols

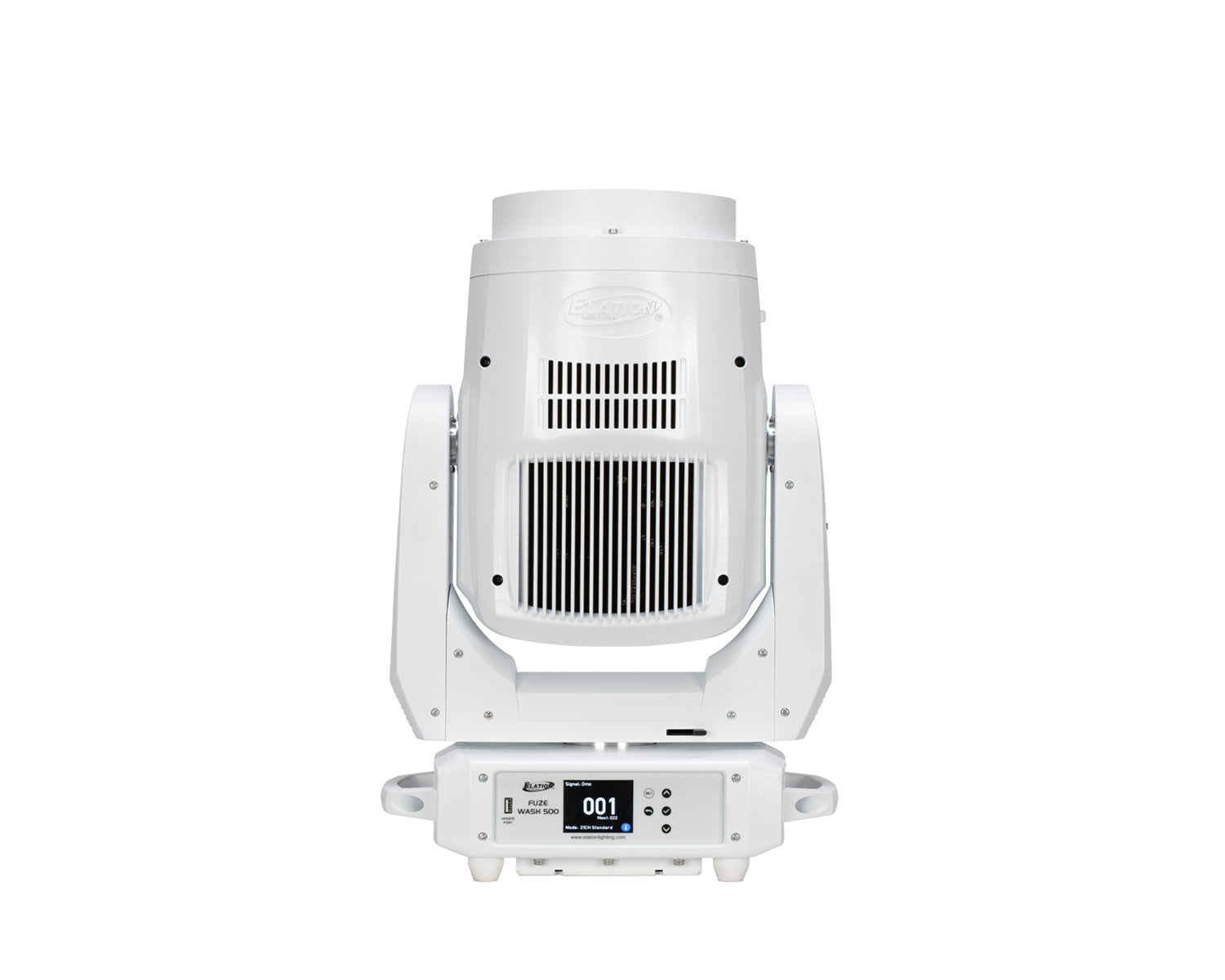

• 4-Button Touch Control Panel
• Full-Colour 180° Reversible LCD Menu Display

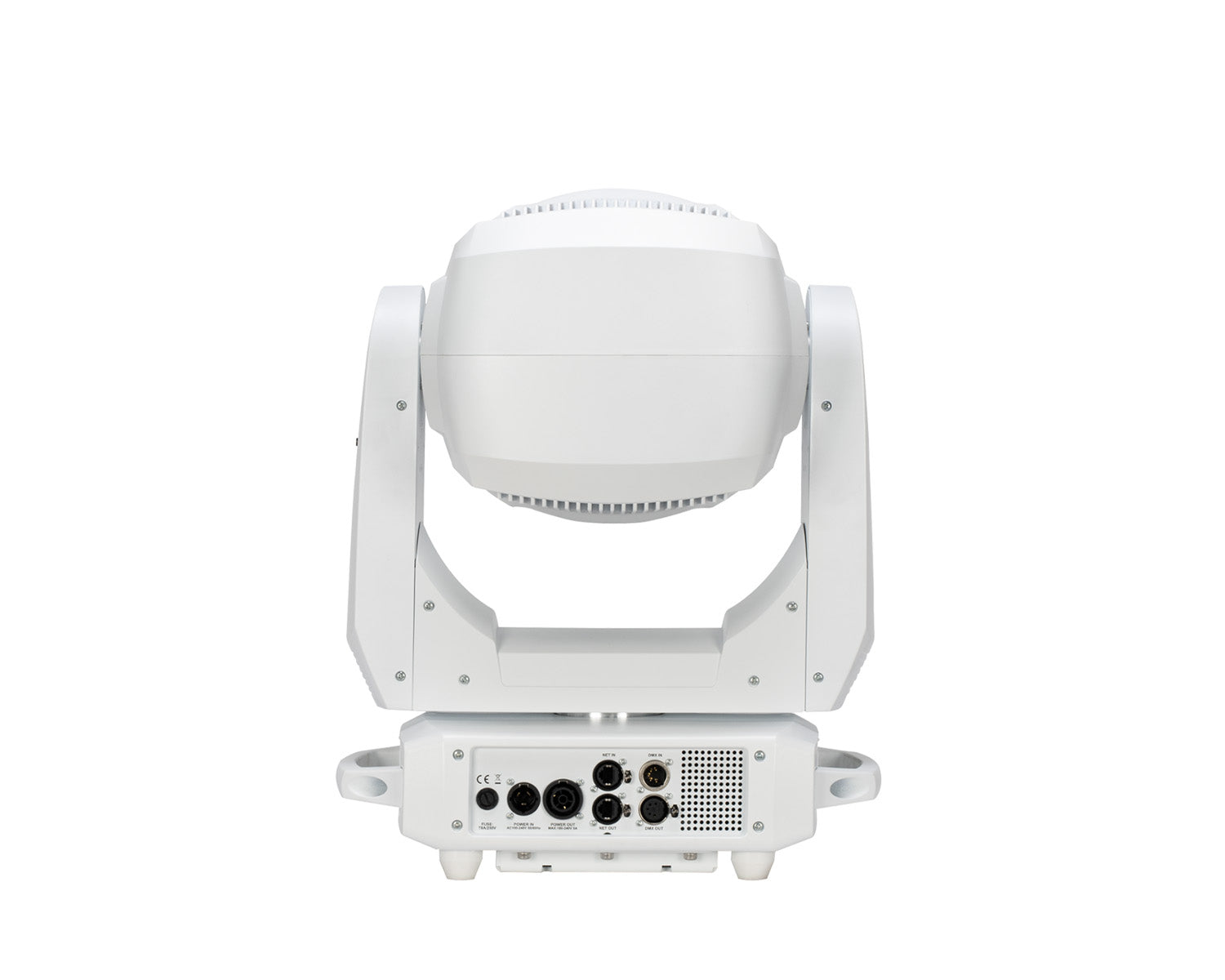

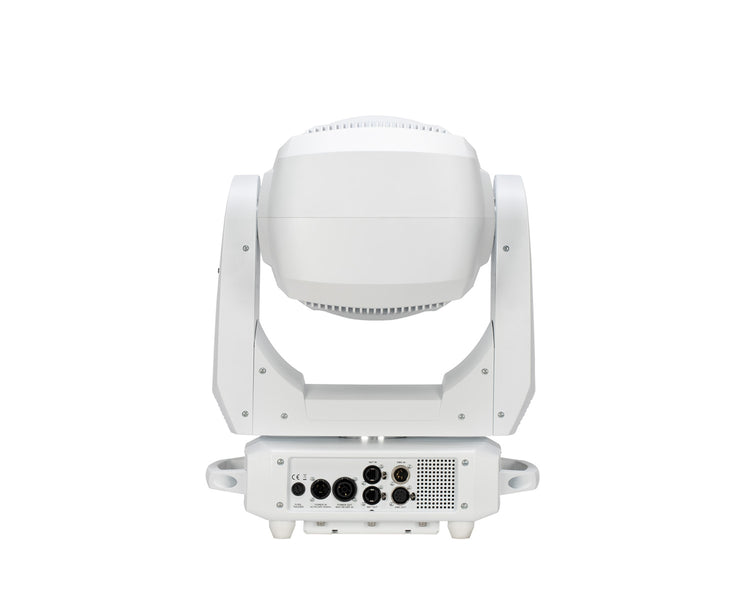

• Locking 5-pin XLR Connector In/Out
• Locking RJ45 Ethernet Connector In/Out
• Locking IP65 Power Connector In/Out
• USB Connection (Firmware Updates)

Electrical / Thermal

• AC 100–240V, 50/60Hz
• Max Power Consumption: 609W
• Operating Temperature: -10°C to 45°C (14°F to 113°F)
• BTU/hr (±10%): 2151.71

Approvals / Ratings

• CE | cETLus | IP20 | FCC

Size / Weight

• Length: 408 mm (16.06")
• Width: 256 mm (10.07")
• Vertical Height: 550 mm (21.7")
• Weight: 18.5 kg (40.8 lbs.)
