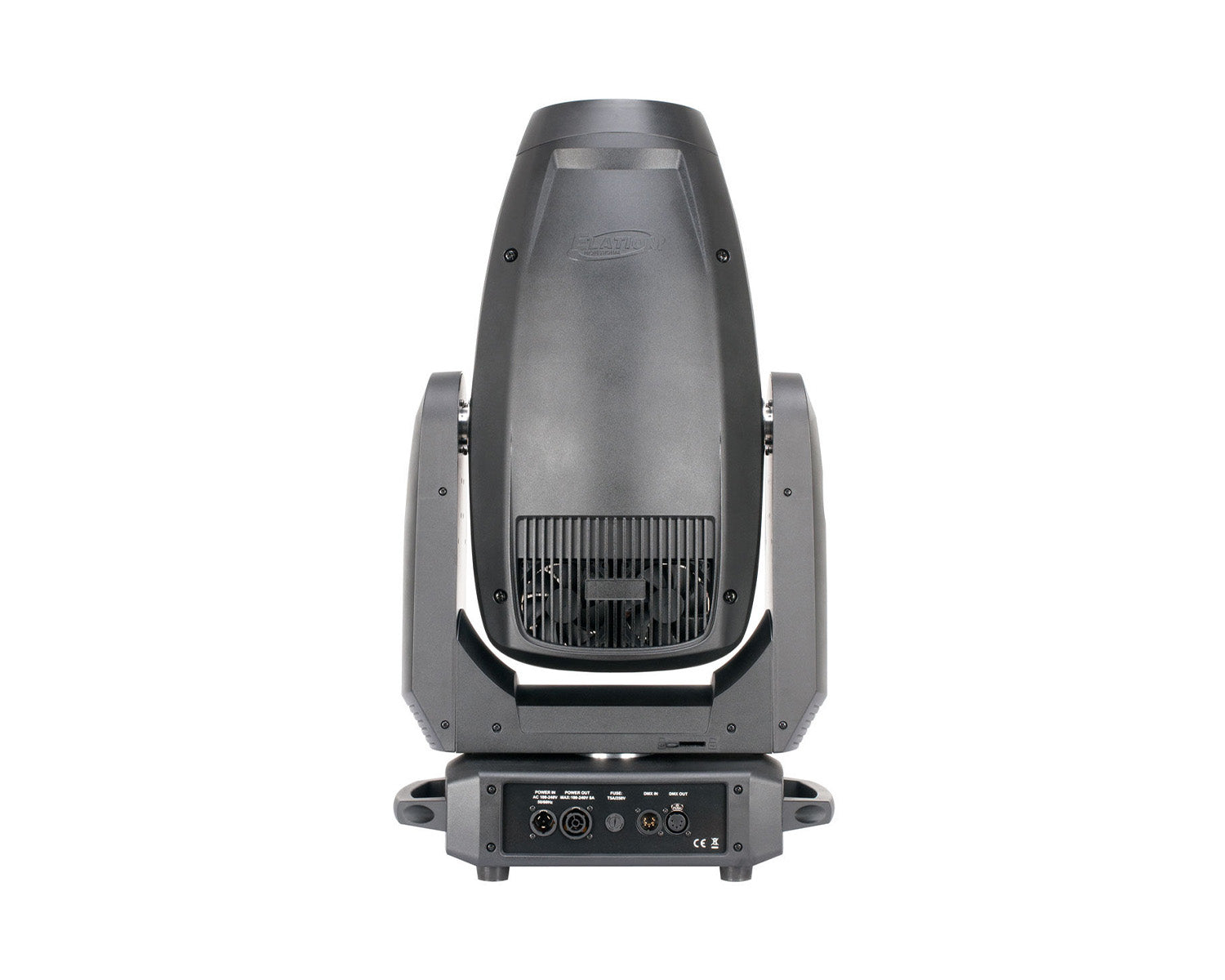

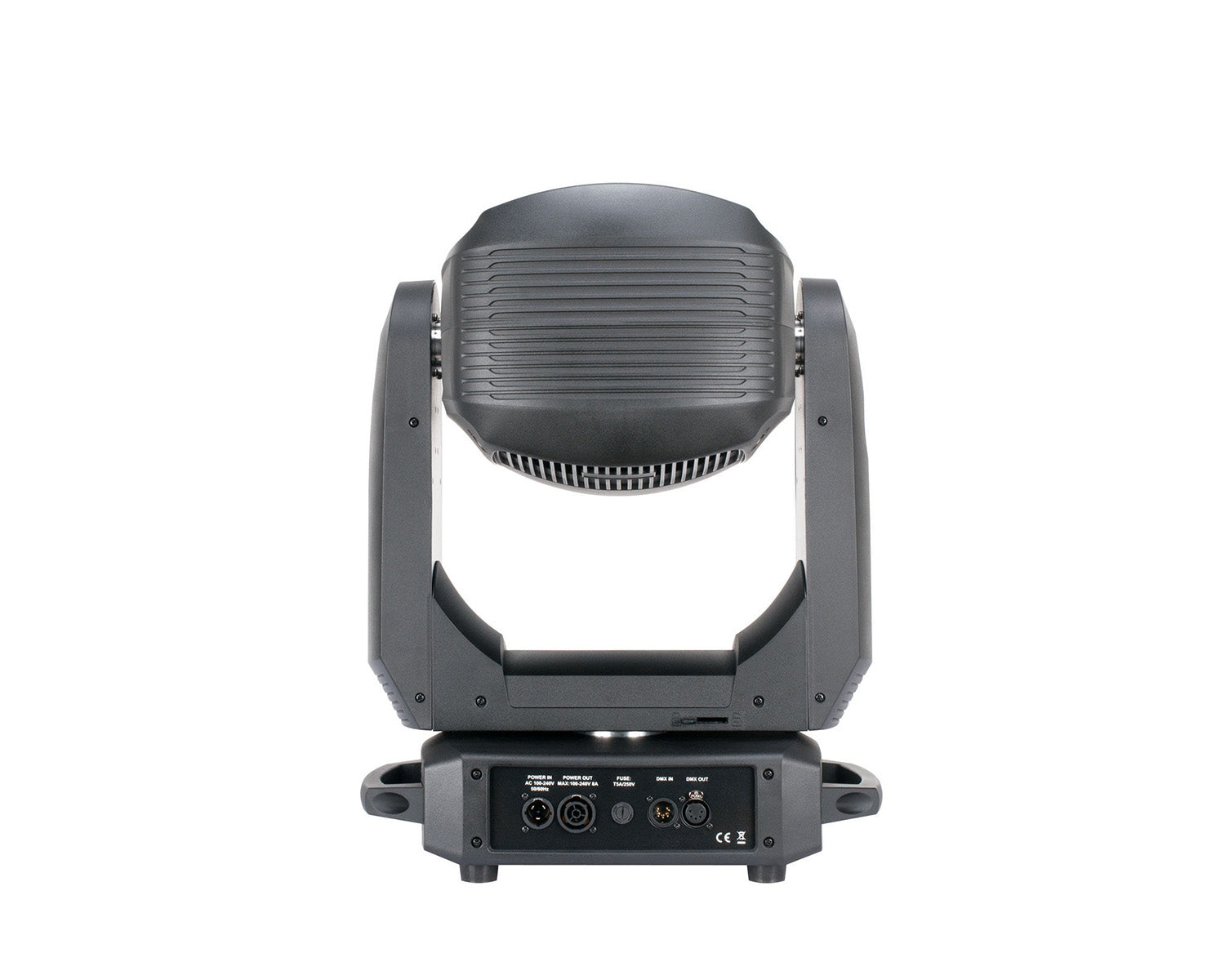

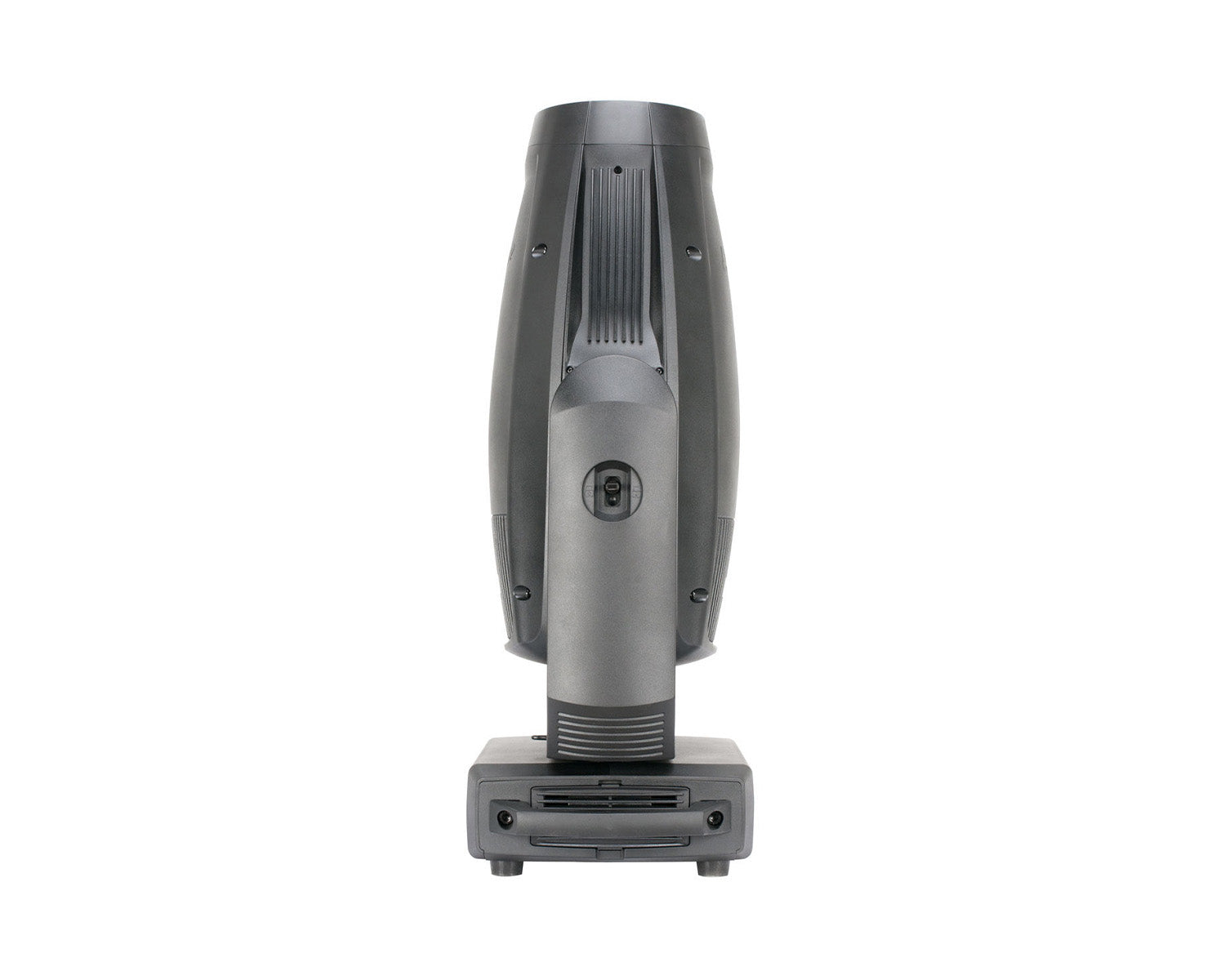

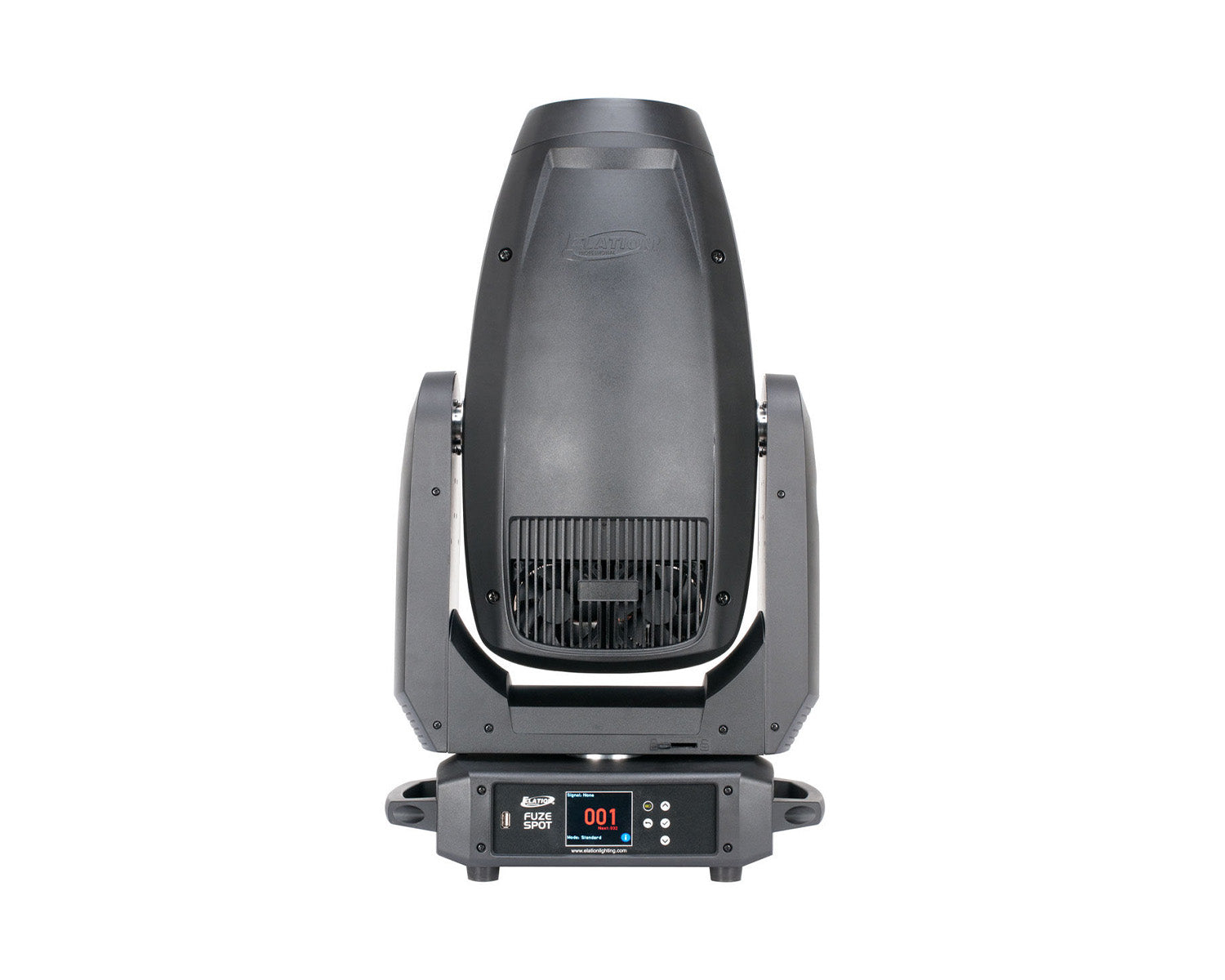

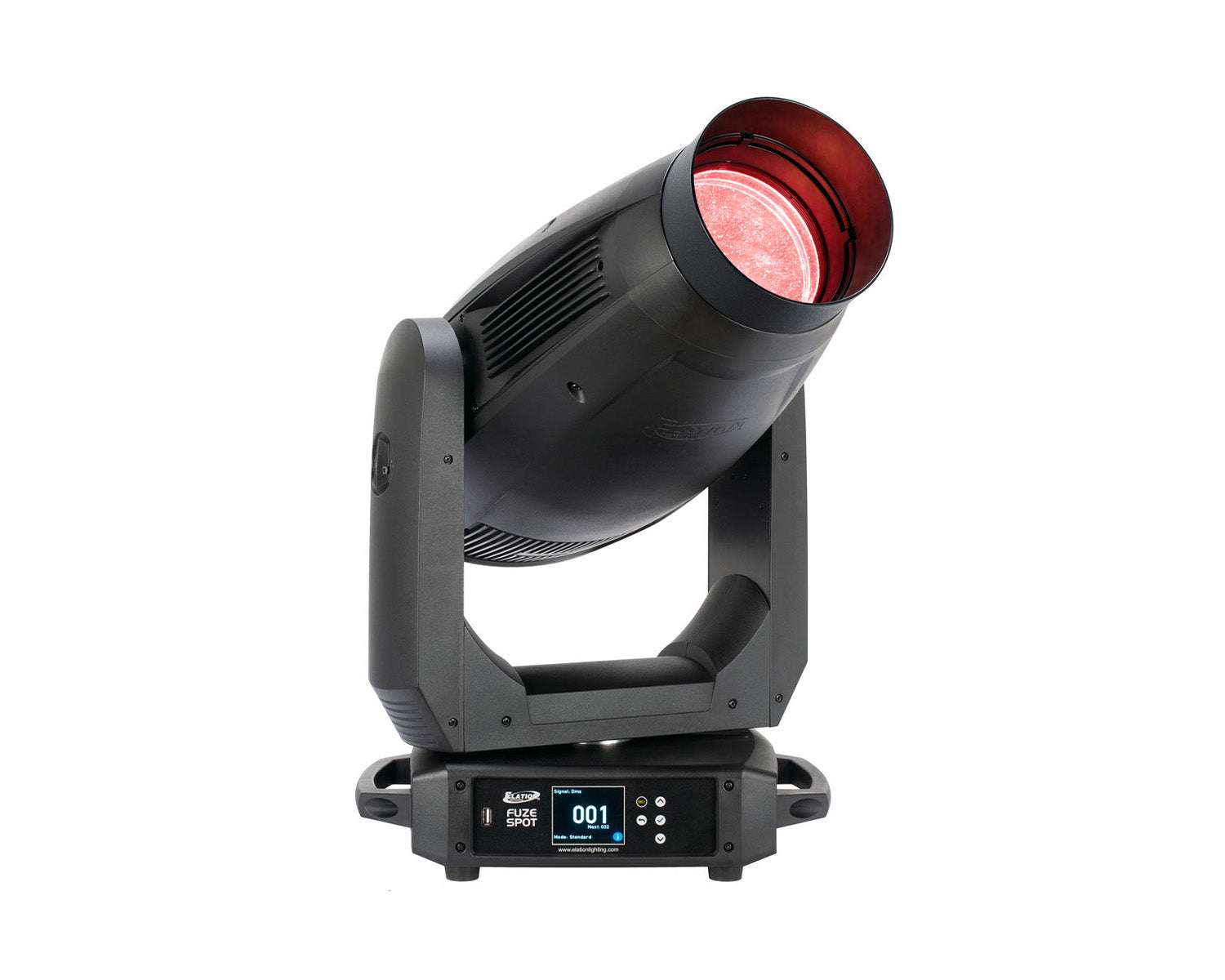

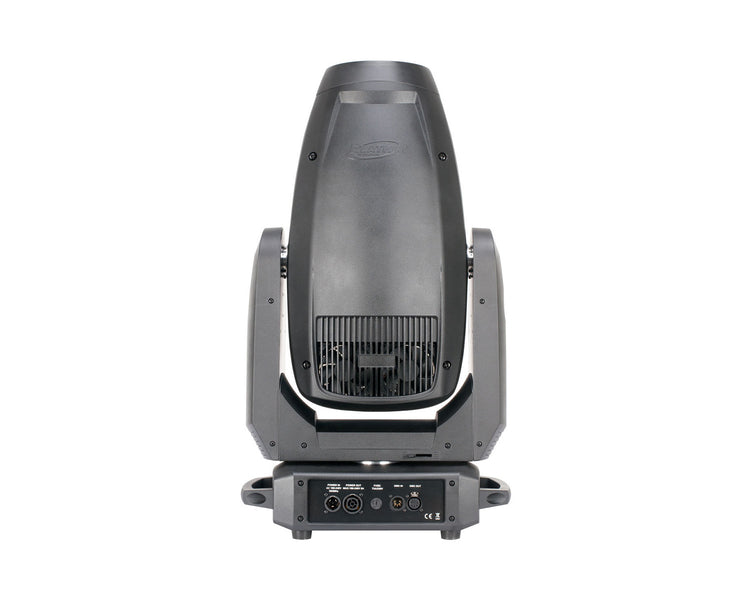

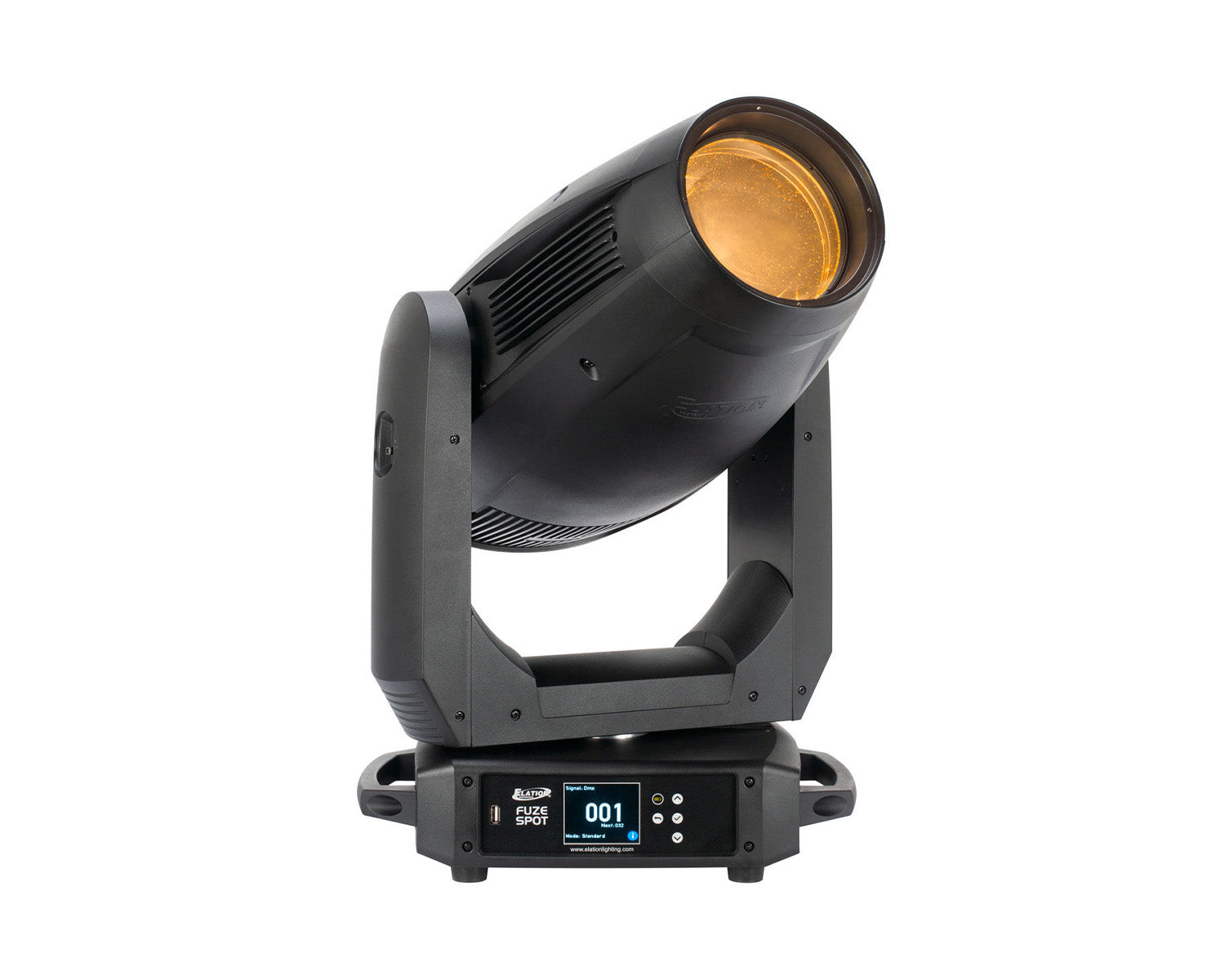

The FUZE SFX™ is a new concept LED Spot FX fixture designed for a variety of applications requiring a compact and powerful multi-purpose luminaire. The SFX is capable of projecting tight beams to wide washes using a highly efficient optical design, while providing over 12,000 lumens of output from its 300W white LED engine.

Housing 18 carefully designed gobos and a 4.5° to 38° zoom, the FUZE SFX can create stunning mid-air FX as easily as precise image projections. The SFX allows for even stage washes utilising its variable frost filter, while a wide array of beautiful colours is possible from a seamless CMY colour-mixing system plus colour wheel. Dual independent rotating and overlaying prisms, plus a fast iris, round out the comprehensive feature set.

A truly remarkable compact powerhouse for any application, the FUZE SFX is sure to create amazing effects, outstanding projections, and beautiful bright washes on any stage.

Product Features

• 300W LED 6,600K White LED Engine
• 12,135 Total Lumen Fixture Output
• Spot and Effects Fixture
• Zoom Range from 4.5° to 38°
• Variable CMY and 7-Position Colour Wheel
• High CRI and CTO Filter
• 8 Rotating and 10 Fixed Gobos
• Dual Independent Prisms for Layering
• Motorised Iris
• Variable Wash Frost Filter

Product Specifications

Source

• 305W 6,500K RGBMA LED Engine
• 30,000 Hour Average LED Life

Photometric Data

• 10,100 Total Lumen Output
• CRI 92
• Zoom Range 7° - 42°
• Beam Angle 7.5° - 39.9°
• Field Angle 8.6° - 44.2°

Effects

• Motorised Zoom
• 4 Rotating Full Blackout Framing Blades, +/- 60 Index
• Variable Frost Filter
• 4 Facet Prism
• Motorised Iris
• Variable 16-bit Dimming Curve Modes
• High Speed Electronic Shutter and Strobe
• Pan Angle: 540°/630°
• Tilt Angle: 270°

Colour

• RGBMA Colour Array
• CMY Emulation
• Variable CCT 2400K - 8500K
• Green/Magenta Shift
• Virtual Gel Swatch Book

Gobos

• 1x 6 Rotating / Indexing Interchangeable Glass Gobos
• 1x 7 Fixed Glass Gobo
• Animation Wheel

Control / Connections

• 4 DMX Channel Modes (RGBMA 38 / 59) (CMY 36 / 55)
• 16-bit Pan, Tilt, and Dimming Control
• DMX Adjustable LED Frequency
• DMX, RDM Protocol Support
• 4 Button Touch Control Panel
• Full Colour 180° Reversible LCD Menu Display
• 16 Bit Resolution Adjustable Movement
• 5pin DMX In/Out
• IP65 Locking Power Cable In/Out
• With Wired Digital Communication Network

Electrical / Thermal

• AC 100-240V - 50/60Hz
• 540W Max Power Consumption
• 14°F to 113°F (-10°C to 45°C)
• BTU/hr (+/- 10%) 1841

Approvals / Ratings

• CE | cETLus | IP20

Size / Weight

• Length:  16.0” (407mm)
• Width:  10.1" (256mm)
• Vertical Height:  27.4" (698mm)
• Weight:  55.1 lbs. (25kg)
