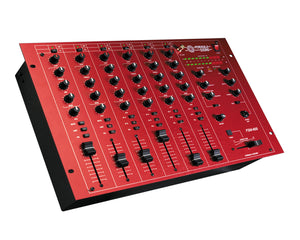

The FSM-600 is a compact fixed format stereo production mixer. The design allows the unit to accept two microphone inputs and ten stereo music inputs.

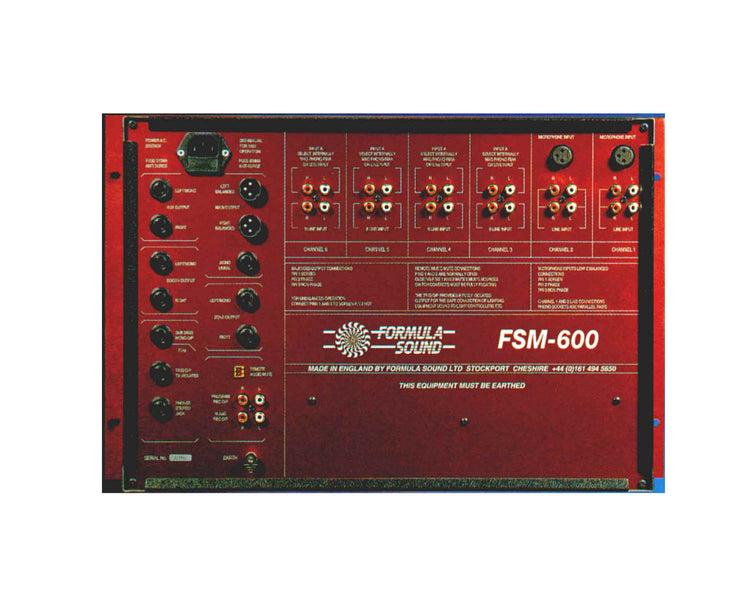

The FSM-600 is essentially a six channel mixer with each channel switchable to two inputs. Channels 1 and 2 are switchable between low impedance microphone and stereo line inputs. Channels 3 to 6 are switchable between A and B stereo line inputs. The A input may be internally selected to RIAA or normal line. These channels are fully assignable to the cross fader. Three band equalisation is fitted to all inputs along with gain and auxiliary send controls. Illuminated push buttons and a 60 mm fader complete the channel controls. Internal settings provide for the unit to be set to individual needs. The output section provides plenty of facilities to cope with the most demanding applications.

Product Features

• The input channels have 3 band EQ selectable for +-10, +-5 or no EQ.
• Voice over facility and microphone compression selectable.
• Music mute connection for possible fire alarm trigger.
• Individual internal gain trims for reducing input signal to stop clipping.
• Headphone monitoring with a split cue facility.
• Assignable cross fade on channels 3, 4, 5 and 6.
• Colour: Red

Product Specifications

• For detailed specifications please find the datasheets located in the attachments
