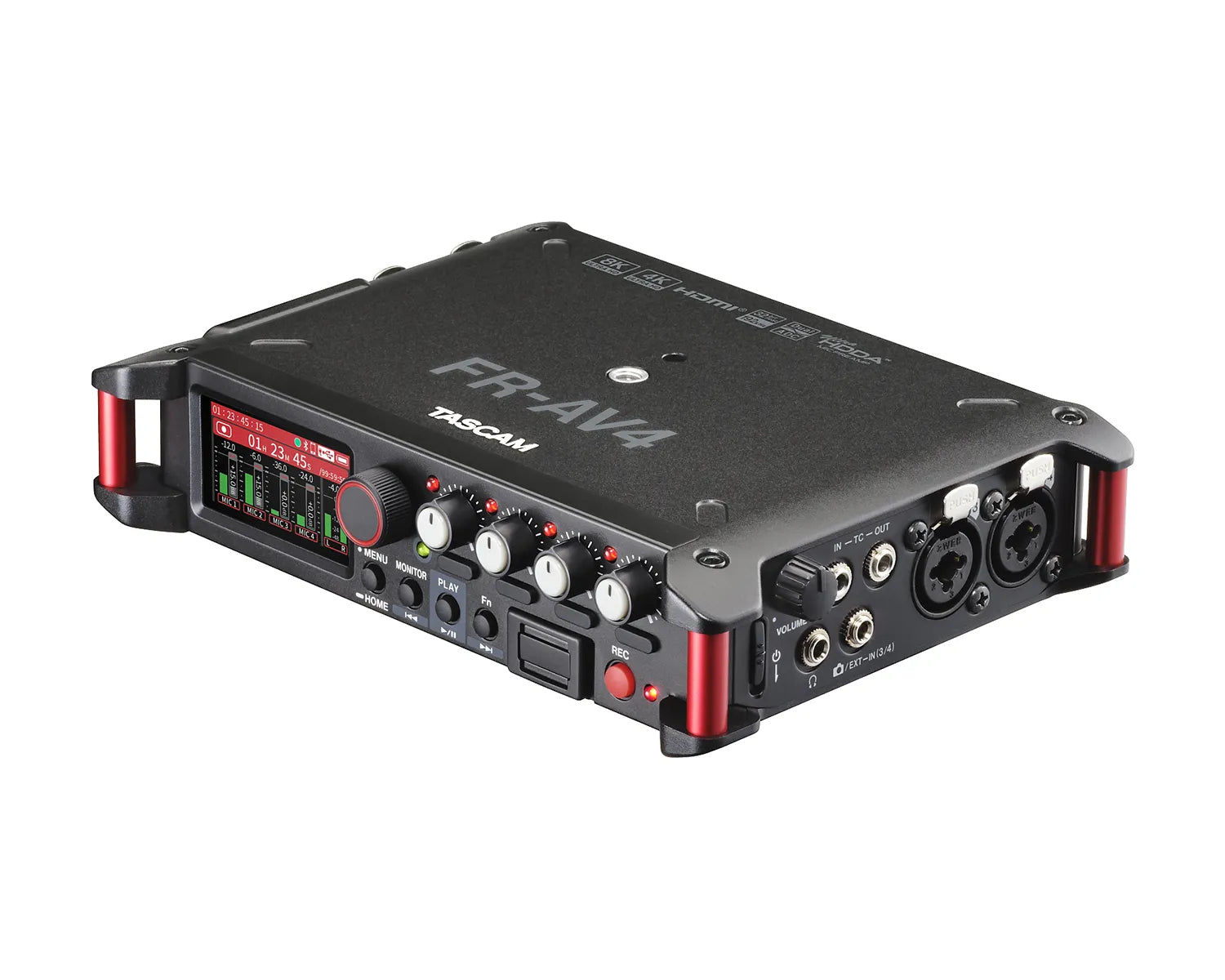

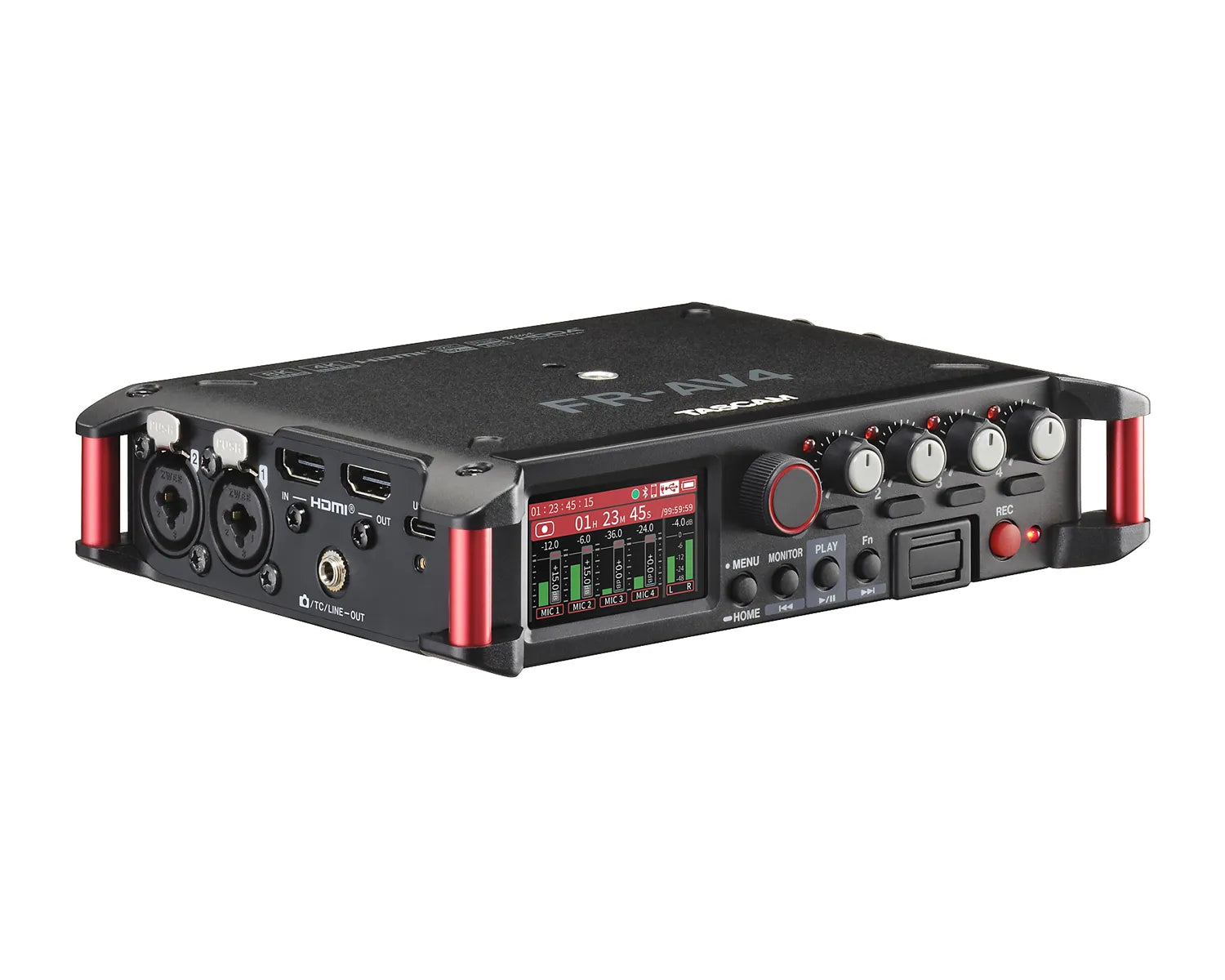

The FR-AV4 is more than just a 4-track field recorder – it’s an essential audio solution for videographers, content creators and audio professionals.

With dual A/D converters, Tascam’s Ultra HDDA low-noise microphone preamps, and 32-bit float resolution, the FR-AV4 captures every nuance, from the quietest of whispers to the largest explosions, all with crystal clarity and no fear of clipping. Thanks to a built-in timecode generator and HDMI sync to firmly lock audio to video, this compact and rugged tool is ideal for professional audio recording in virtually any environment.

Dual A/D converters and 32-bit float resolution capture every detail with over 133 dB of dynamic range and zero clipping. Each of the four XLR/TRS combo inputs features low-noise Tascam Ultra HDDA preamps (EIN –127 dBu), delivering pristine clarity, even in the most unpredictable environments.

Record a full multi-microphone setup with confidence. With four inputs and two outputs, the FR-AV4’s built-in mixer offers flexibility while simultaneously capturing all four channels – plus a stereo mix – for 6-track recording directly to SDXC media.

A built-in timecode generator ensures solid synchronisation across your entire setup with no additional gear required. It offers a wide range of timecode sync options, including HDMI I/O, dedicated Timecode In and Out, timecode output for a camera and wireless sync with Atomos via Bluetooth (optional AK-BT2 adapter required).

Product Features

• Record six tracks (four tracks + stereo mix) to an SDXC card
• Wide analogue dynamic range of 133 dB with dual A/D converters and 32-bit float resolution
• Crystal-clear audio quality thanks to ultra-low-noise preamplifiers (Ultra HDDA, EIN –127 dBu) on all four XLR/TRS combo inputs
• Built-in mixer for blending up to four inputs into two outputs
• Built-in timecode generator, synchronisation via HDMI, Timecode In/Out, USB
  Atomos Bluetooth sync*
• Precise AV synchronisation via HDMI clock, along with cascade and record trigger control, supporting 4K/8K video pass-through
• Wireless audio monitoring (using app Tascam Recorder Connect)*
• Portable, lightweight and slim design, ideal for mobile recording and studio production

• Selectable recording format to suit any project (24-bit/32-bit float, 48/96/192 kHz)
• 6-in/2-out USB-C audio interface (24-bit or 32-bit float)
• Free ‘Tascam Recorder Connect’ app for iOS and Android allows control of up to 5 devices (including FR-AV2 and DR-10L Pro)*
• Monitor button allows quick and easy selection of monitoring sources
• Assignable key can instantly recall a preferred function
• Built-in low-cut filter, EQ, limiter and noise gate
• Selectable input and output delay (0–300 ms)
• High-accuracy clock generator (TCXO) for Jam Sync and timecode generation
• Supports ambisonics audio recording in A or B format (AmbiX, FuMa)
• Automatic file closing function to prevent loss of recorded data in the event of a power failure
• Phantom power (24/48 V) can be switched on/off for each XLR input individually
• 3.5-mm TRS Camera/External input (mono/stereo) with plug-in power (2.5 V or 5 V)
• 3.5-mm stereo Camera/Timecode/Line output
• 3.5-mm stereo headphones output with level control
• Built-in tone generator for easy level matching between devices

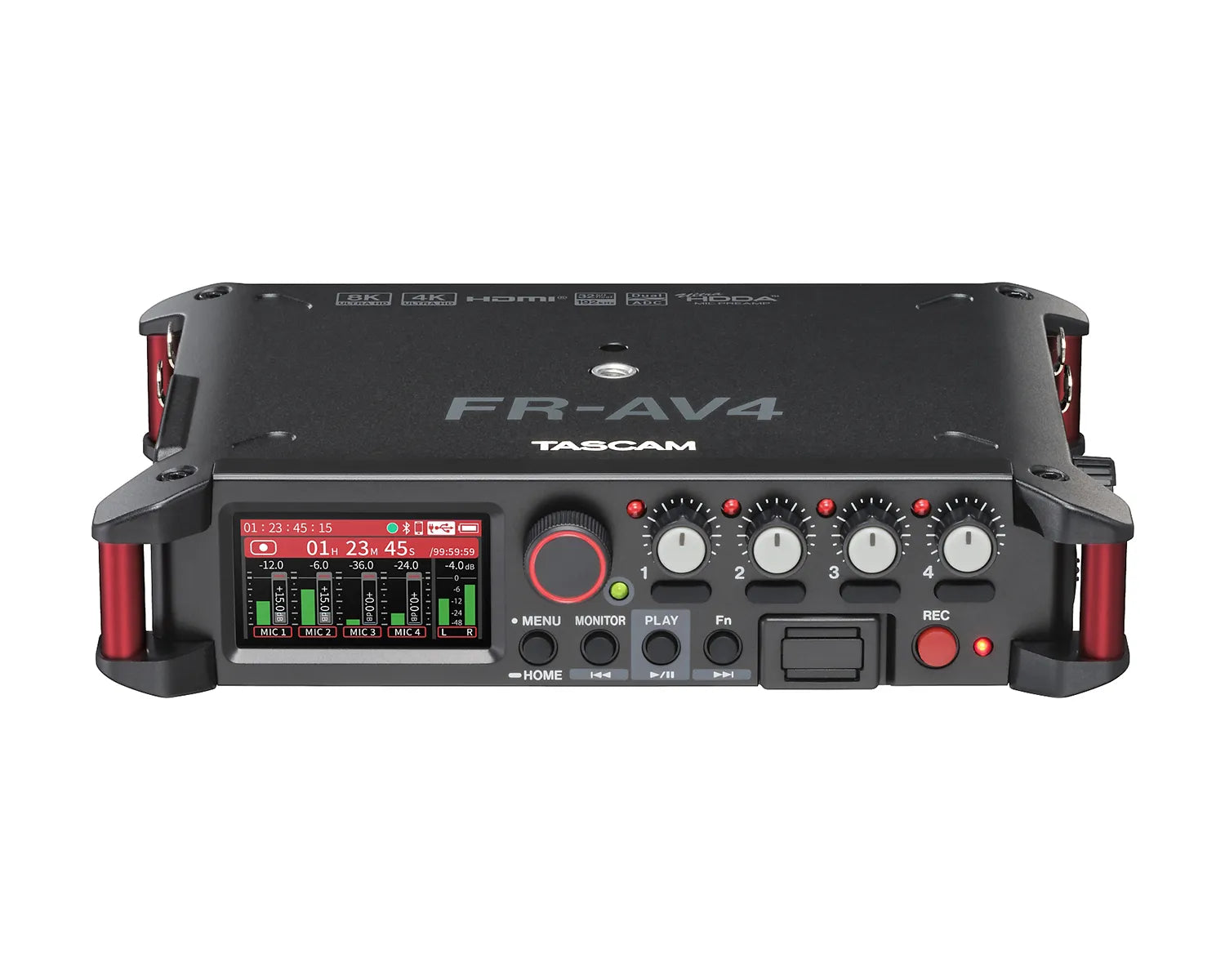

• 1.9-inch (4.8 cm) LCD touchscreen and intuitive jog wheel for easy operation

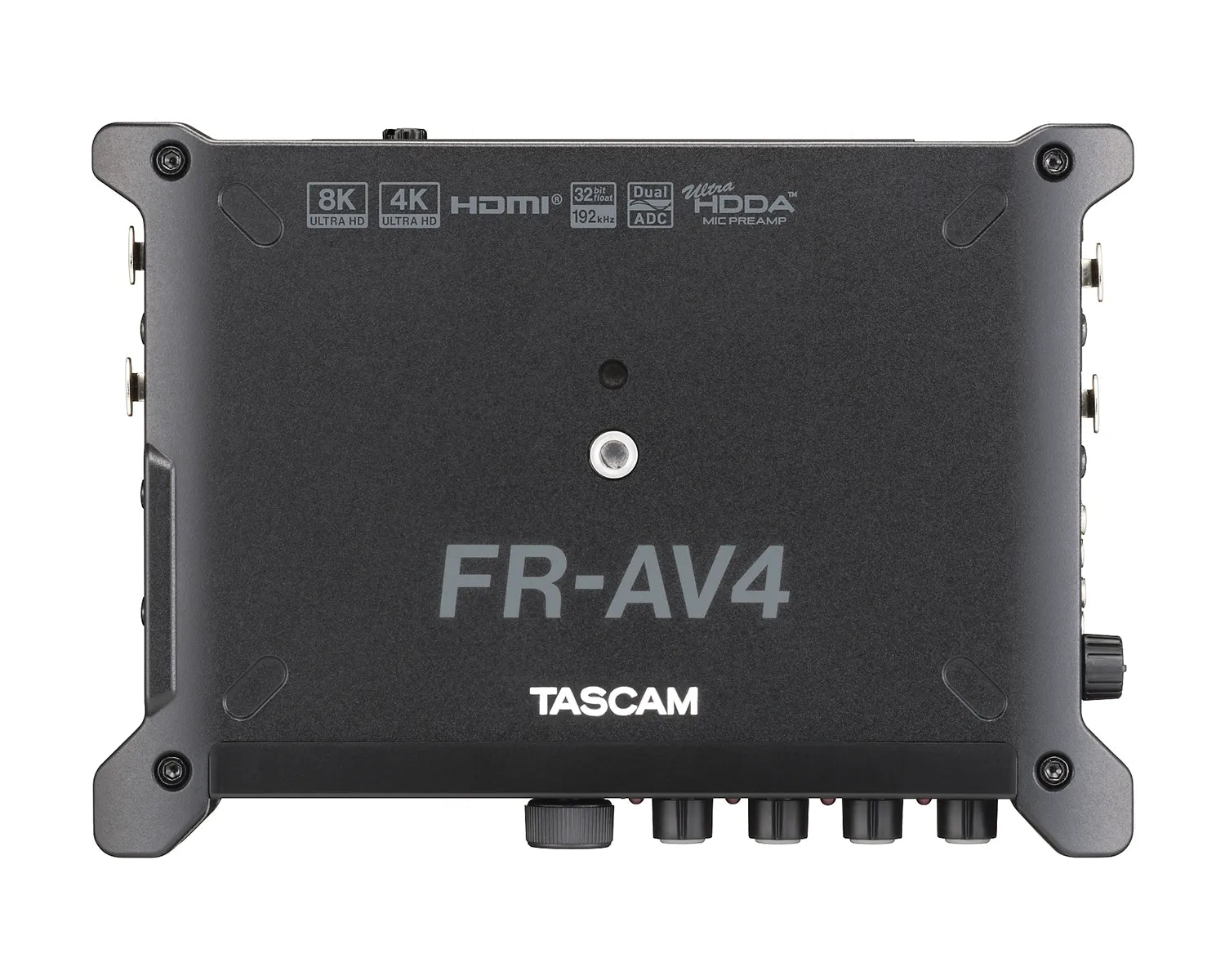

• Camera screw hole for use with camera rigs or tripods
• Power supply by four AA batteries, USB mobile battery or optional AC adapter (Tascam PS-P520U)

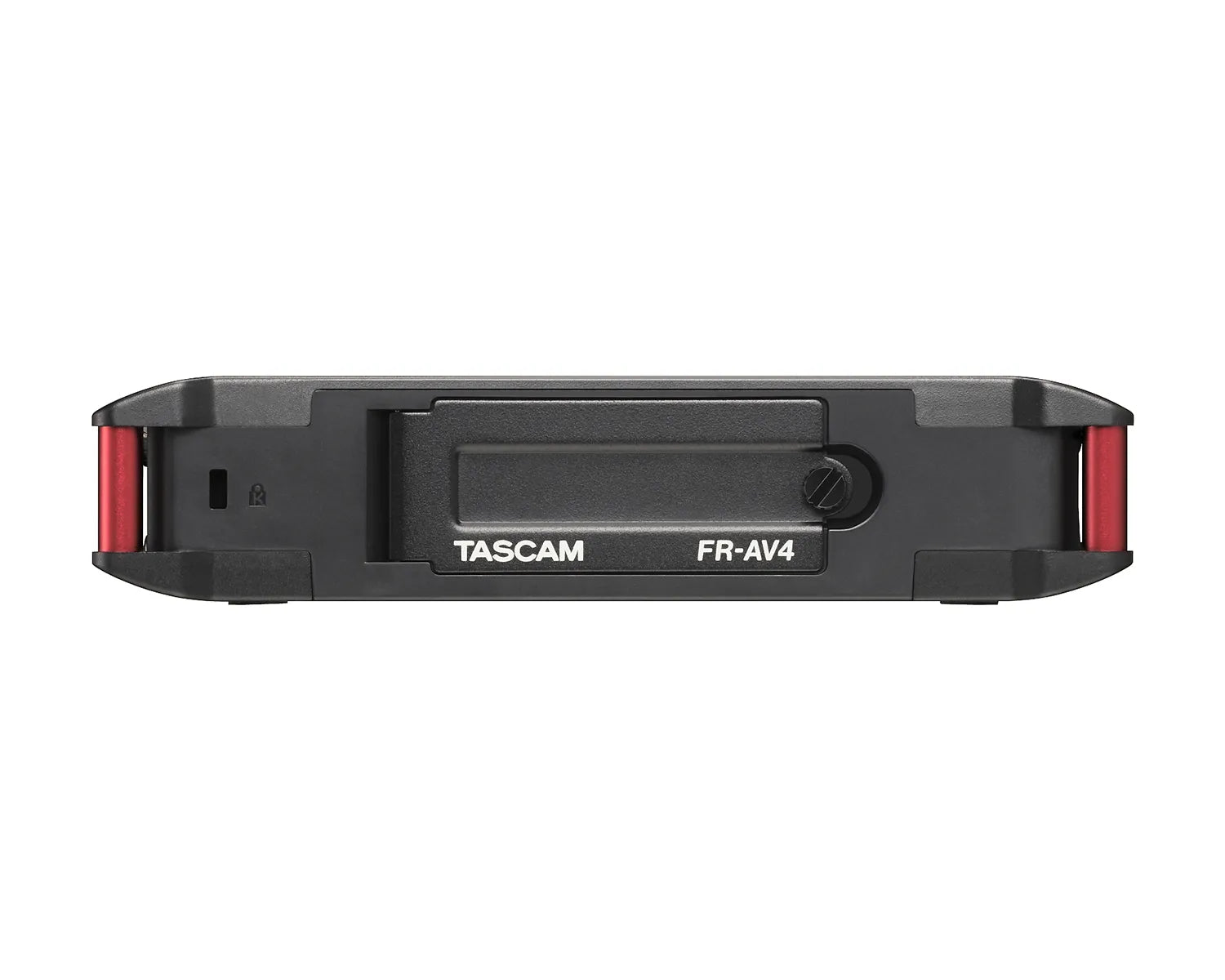

• Replaceable battery holder (BH-4AA) for quick and easy swaps (additional holders available as an option)
• * Requires optional Bluetooth adapter Tascam AK-BT2

Product Specifications

Analogue audio inputs

• Mic/Line inputs 1–4 (balanced)
• XLR-3-31 (1: GND, 2: HOT, 3: COLD)
• 6.3-mm standard TRS jacks
• (Tip = HOT, Ring = COLD, Sleeve = GND)
• When MIC is selected
  • Maximum input level:  +4 dBu
  • Minimum input level:  –76 dBu
  • Input impedance:  ≥2 kΩ
  • Phantom power:  24 V, 48 V
• When LINE is selected
  • Maximum input level:  +24 dBu
  • Nominal input level:  +4 dBu (GAIN at minimum)
  • Input impedance:  ≥8 kΩ
• Line/Camera input (unbalanced):  3.5-mm stereo mini jack (Tip: L ch, Ring: R ch, Sleeve: GND)
  • Maximum input level:  1 dBV
  • Nominal input level:  –19 dBV (GAIN at minimum)
  • Minimum input level:  –79 dBV
  • Input Impedance:
  • ≥6 kΩ (plug-in power off)
  • ≥1.6 kΩ (plug-in power on)
  • Plug-in power:   2.5 V, 5 V


Analogue audio outputs

• Line/Camera/Timecode output (unbalanced):  3.5-mm stereo mini jack
• When timecode is disabled:  (Tip: L ch, Ring: R ch, Sleeve: GND)
  • Maximum output level:  +6 dBV
  • Nominal output level:  –14 dBV
  • Output impedance:  210 Ω
• When timecode is enabled:  (Tip: timecode, Ring: audio output, Sleeve: GND)
  • Output level:  10 mVpp
  • Output impedance:  150 Ω
  • Format:  LTC (SMPTE ST 12-1 compliant)
• Headphones output:  3.5-mm stereo mini jack
  • Maximum output power:  50 mW + 50 mW (THD+N <0.1 % at 32 Ω)
  • Recommended headphones impedance:  16–600 Ω (Low-sensitivity headphones may not produce sufficient volume even within the recommended range.)


Other inputs and outputs

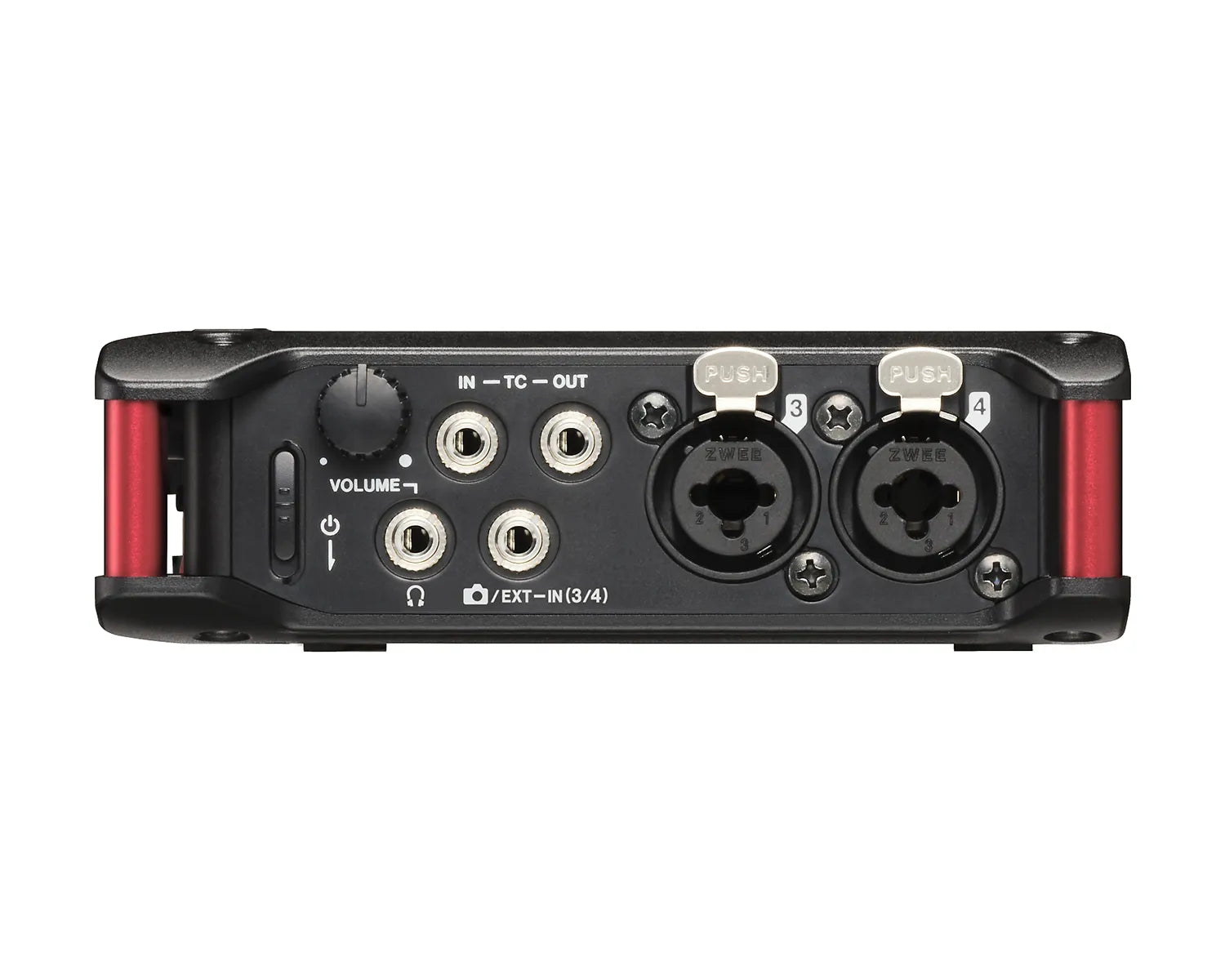

• Timecode input (TC IN):  3.5-mm stereo mini jack (Tip: timecode, Ring: –, Sleeve: GND)
  • Input voltage:  0.5–5 Vpp
  • Input impedance:  ≥10 kΩ
• Timecode output (TC OUT):  3.5-mm stereo mini jack (Tip: timecode, Ring: –, Sleeve: GND)
  • Output voltage:  1.8 Vpp
  • Output impedance:  1 kΩ
  • Format:  LTC (SMPTE ST 12-1 compliant)

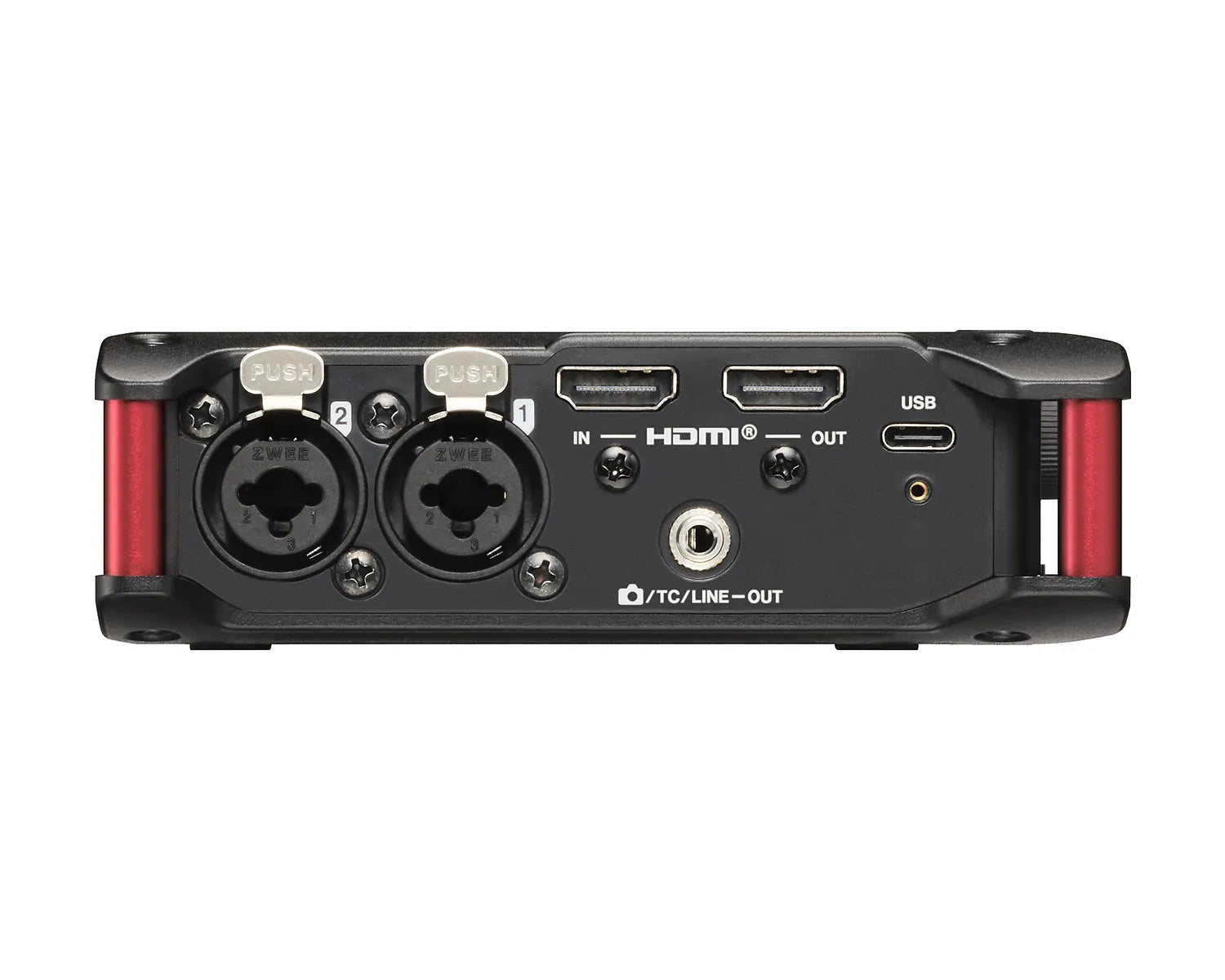

• HDMI inputs/outputs:  Type-A connector, Can be used with ATEN LockPro 2X-EA12
  • HDMI Version:  Version 2.1, supports 4k@60 Hz and 8k@30 Hz
• USB:  USB Type-C connector (compatible with single-screw lock connectors)
  • Transfer format:  USB 2.0 HIGH SPEED
  • Device Class:
    • Mass Storage Class
    • USB Audio Class 2.0
  • USB Audio:
    • Sampling frequency: 48 kHz, 96 kHz
    • Quantisation bit depth: 24 bit, 32 bit float
    • Number of inputs/outputs: 2/6 channels
• Bluetooth adapter connector:  Designed for Tascam AK-BT2


Audio performance

• EIN (equivalent input noise, mic preamp):  ≤–127 dBu Frequency response (input jacks to PCM data)
  • 48 kHz: 20 Hz – 20 kHz, +0 dB / –0.5 dB
  • 96 kHz: 20 Hz – 40 kHz, +0.5 dB / –1 dB
  • 192 kHz: 20 Hz – 60 kHz, +0.5 dB / –3 dB
• Dynamic range (input jacks 1–4 to PCM data):  ≥133 dB (20-kHz LPF, A-weighted, JEITA)
• Total harmonic distortion ratio (THD+N, input jacks 1–4 to PCM data):  ≤0.01 % (1 kHz sine wave, −2 dBFS input, input level at minimum, 20-kHz LPF, JEITA)


Supported operating systems

• FR-AV4:  Windows*, macOS, iOS/iPadOS, Android * Operation is not guaranteed using the Tascam driver with ARM64 CPUs.
• FR-AV Series Settings Panel:  Windows, macOS
• Tascam Recorder Connect:  iOS/iPadOS, Android
• Audio drivers
• Windows:  ASIO 2.0, WDM
• macOS, iOS/iPadOS:  Core Audio


Power supply and other specifications

• Power sources:
  • 4 AA batteries (alkaline, NiMH, lithium-ion)
  • USB bus power
  • TASCAM PS-P520U AC adapter (sold separately)
• Power consumption:  5.4 W (maximum)
• Dimensions (W x H x D, overall):  184 mm × 42 mm × 130 mm
• Weight:
  • 756 g (including batteries)
  • 660 g (without batteries)
• Operating temperature range:  0–40 °C
