Audix revolutionized drum and percussion miking by designing instrument-specific microphones. With the introduction of the Fusion Series, Audix created two attractively priced packages for today’s up and coming professionals.

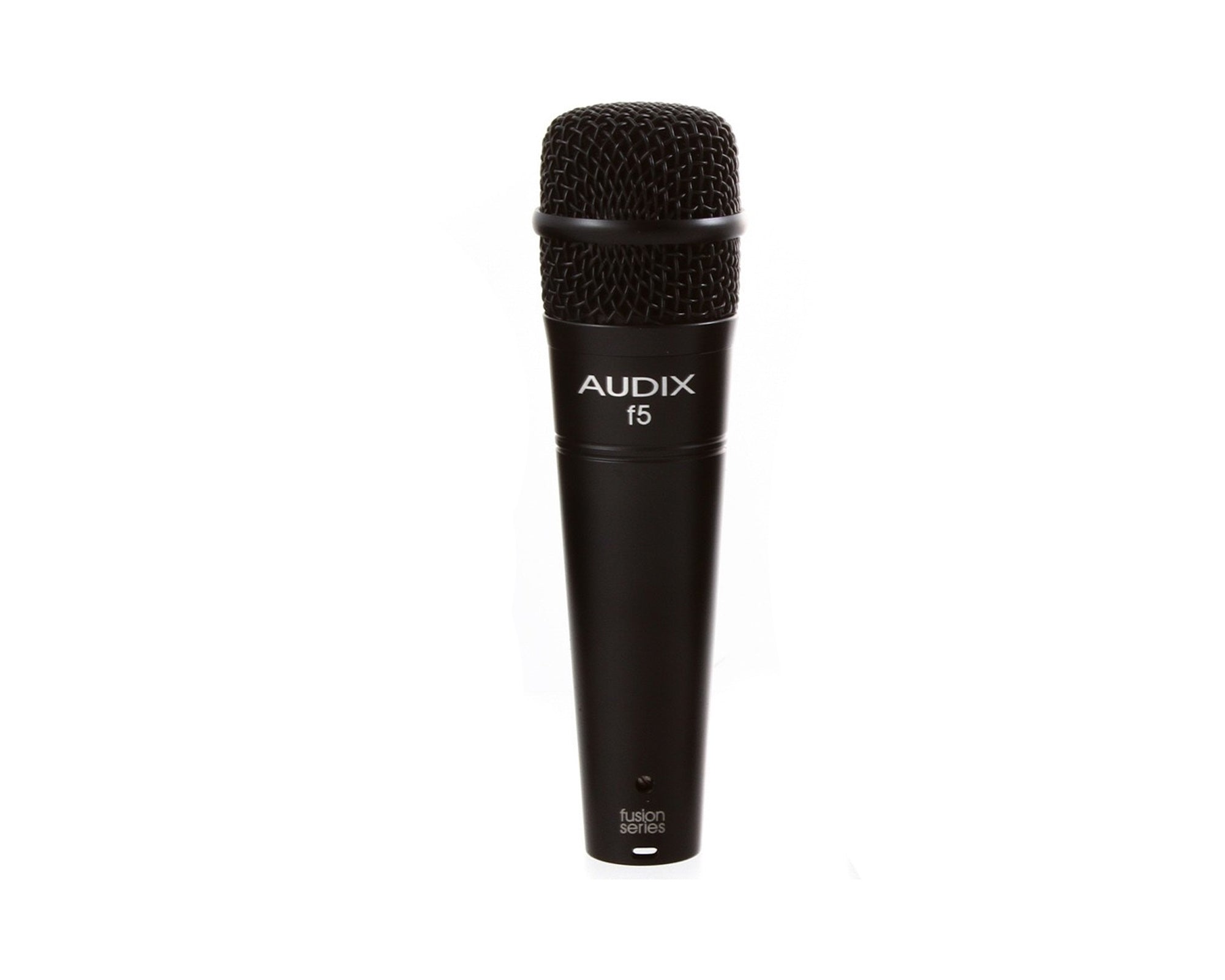

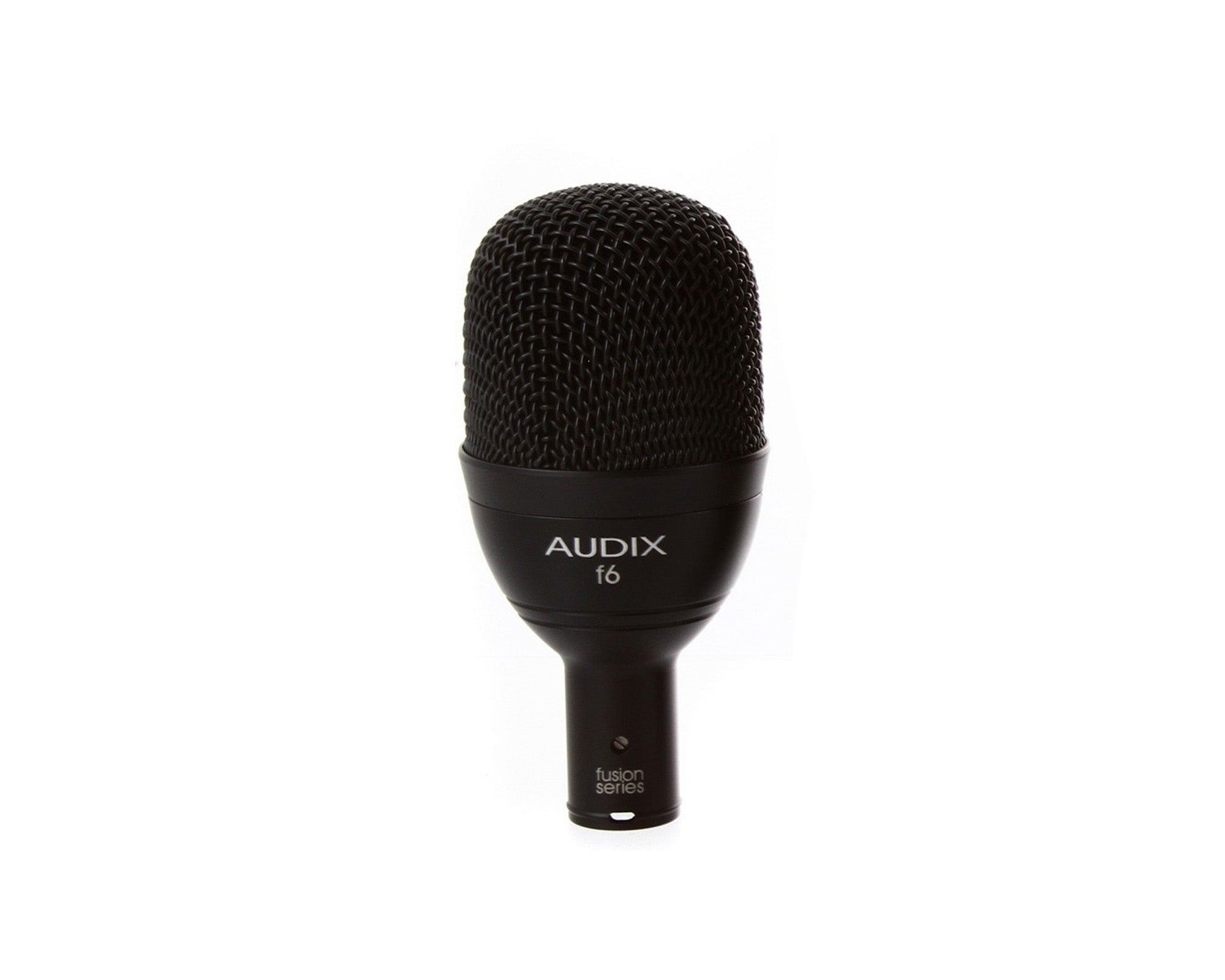

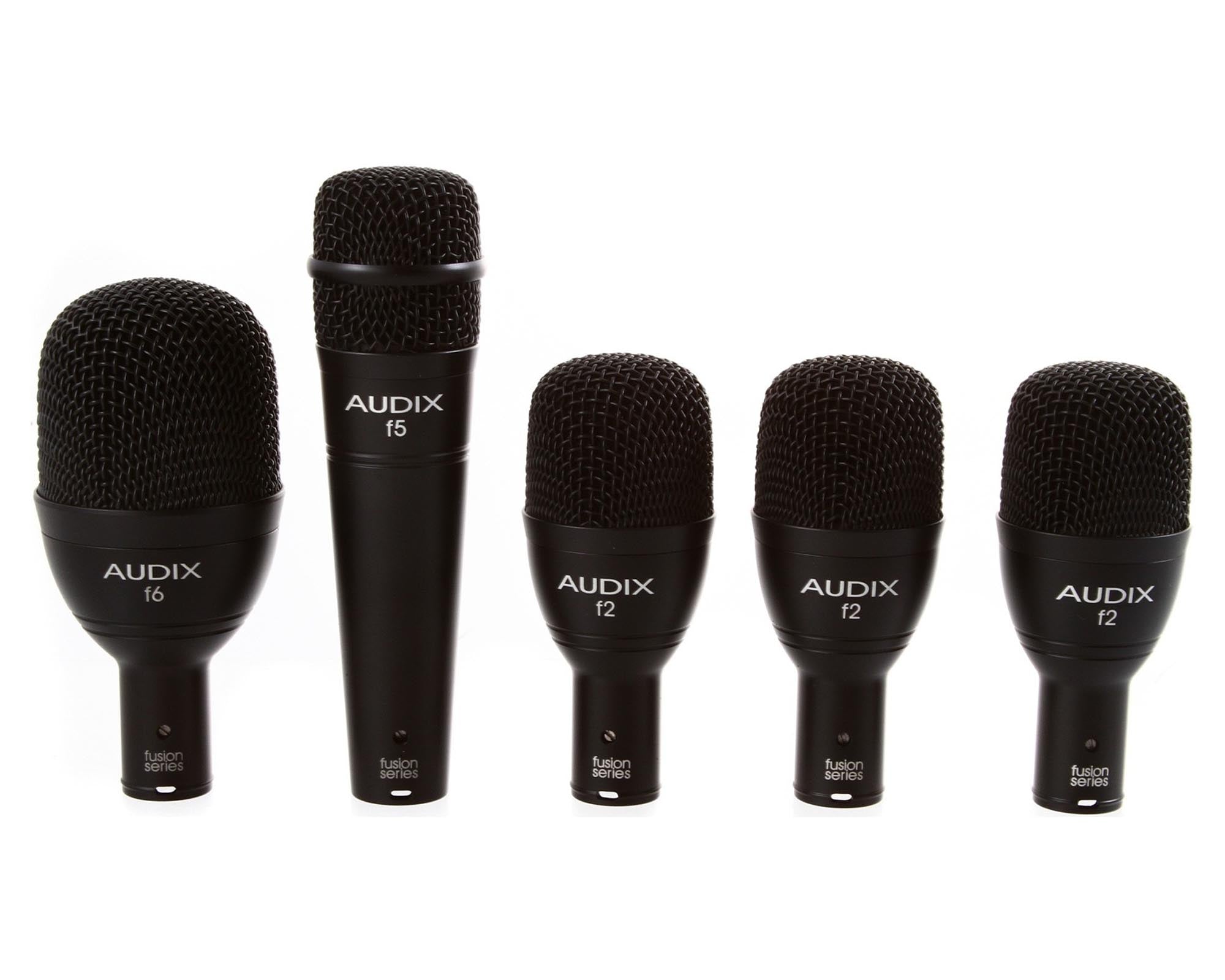

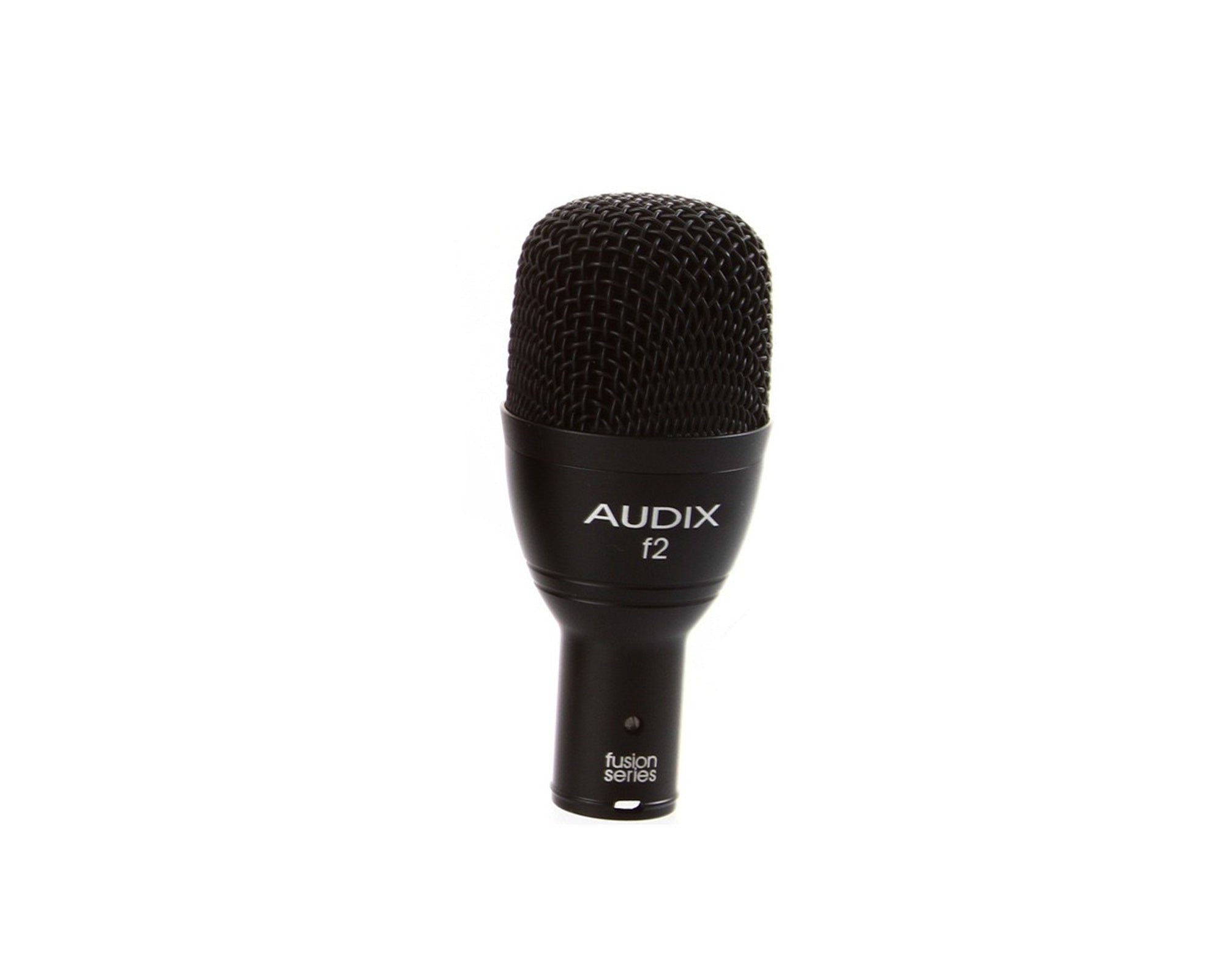

The FP5 Drum Pack contains a combination of f2, f5 and f6 dynamic microphones. The f5 is tuned for snare drum and can be used as well for bongos, timbales, guitar cabinets and acoustic instruments; the f2 is ideally suited for rack and floor toms, congas, djembe, bongos, timbales, brass and woodwind instruments. The f6 dynamic microphone, with its extended bass response, is designed for kick drum, bass cabinets, Cajon and other low-frequency instruments.

Built to withstand the rigours of live stage applications, the Fusion Series mics are also excellent for rehearsal, school, House of Worship and a wide variety of home recording applications.

Product Features

• Combination of f2, f5 and f6 dynamic microphones
• Built to withstand the rigours of live stage applications
• All-in-one solution for drum miking
• Rugged Audix quality
• All mics come with high impact mic stand adapters

Product Specifications

General

f2

• Transducer: Dynamic
• Frequency Response: 52 Hz - 15 kHz
• Polar Pattern: Hypercardioid
• Output Impedance: 580 ohms
• Sensitivity: 2 mV / Pa @ 1k
• Maximum SPL: ≥139 dB
• OFF-axis rejection: ≥20 dB
• Power Requirements: None

f5

• Transducer: Dynamic
• Frequency Response: 55 Hz - 15 kHz
• Polar Pattern: Hypercardioid
• Output Impedance: 580 ohms
• Sensitivity: 2.2 mV / Pa @ 1k
• Maximum SPL: ≥137 dB
• OFF-axis rejection: ≥20 dB
• Power Requirements: None

f6

• Transducer: Dynamic
• Frequency Response: 40 Hz - 16 kHz
• Polar Pattern: Hypercardioid
• Output Impedance: 580 ohms
• Sensitivity: 1.2 mV / Pa @ 1k
• Maximum SPL: ≥140 dB
• OFF-axis rejection: ≥23 dB
• Power Requirements: None

Physical & Dimensions

f2

• Materials / Finish: Zinc Alloy/ Black Finish
• Weight: 247 g / 8 oz
• Length: 104 mm / 4.09 in

f5

• Materials / Finish: Zinc Alloy/ Black Finish
• Weight: 283 g / 10 oz
• Length: 145 mm / 5.7 in

f6

• Materials / Finish: Zinc Alloy/ Black Finish
• Weight: 311 g / 11 oz
• Length: 121 mm / 4.76 in

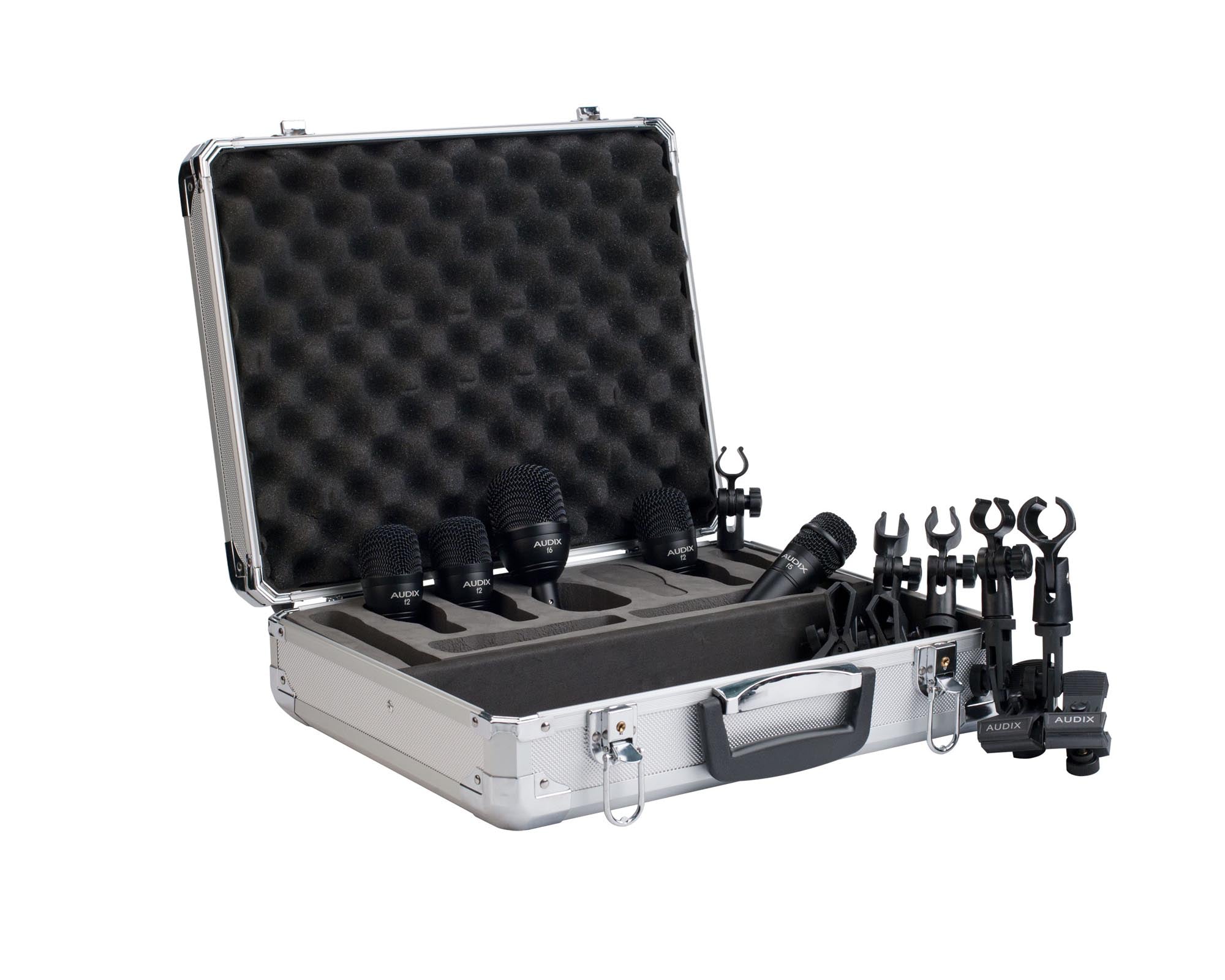

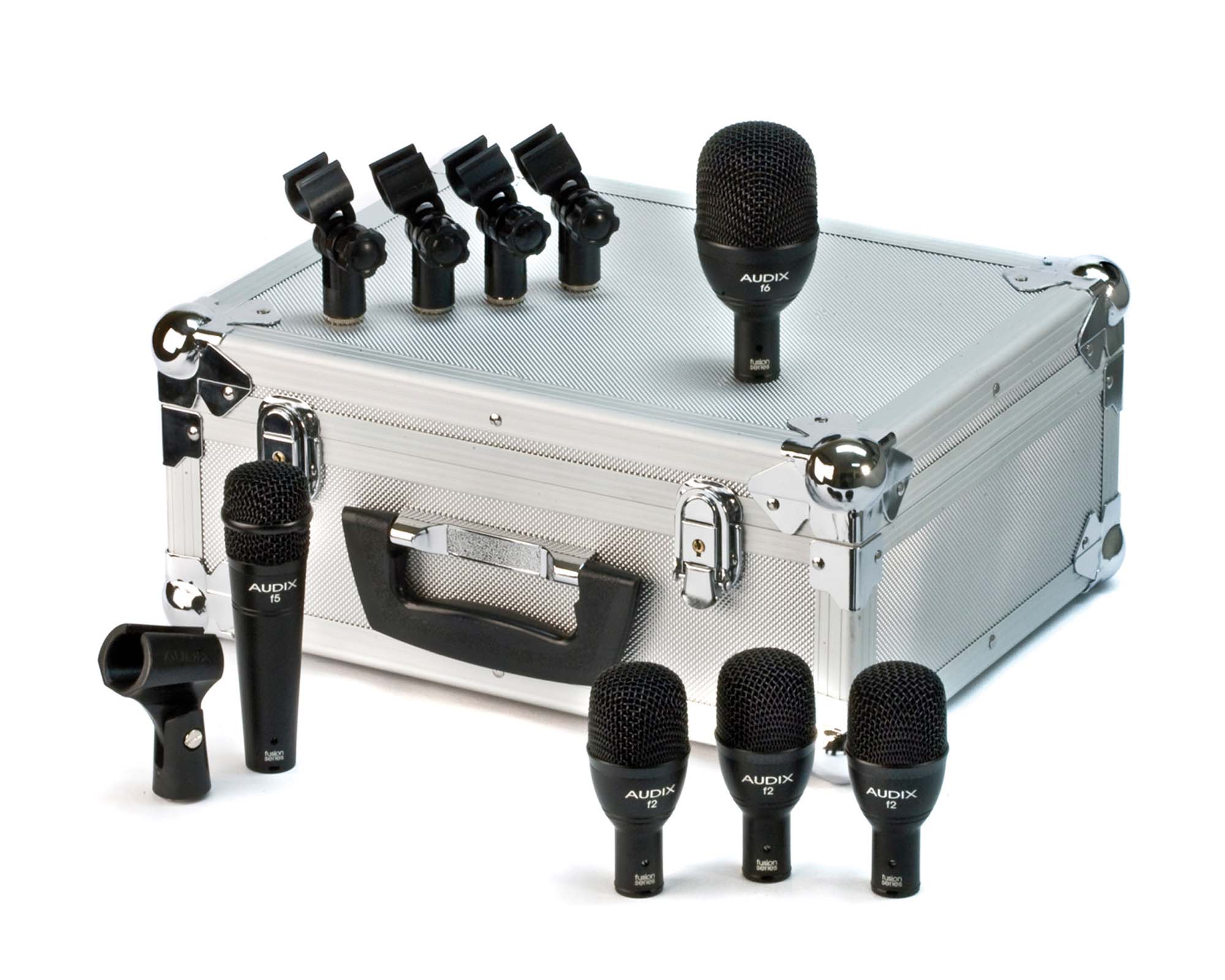

What's in the Box?

• 1 x f5 Snare Microphone
• 3 x f2 Rack and Floor Tom Microphones
• 1 x f6 Kick Drum Microphone
• 4 x DCLIP Microphone Clips
• 4 x DFLEX Microphone Clips
• 1 x MC1 Microphone Clip
• Aluminium Road Case

Optional Accessories

• DVICE - Flexible mini-gooseneck with spring loaded rim mount clamp
• DCLAMP - Flexible mini-gooseneck with drum tension lug mount
• CBL20 - 20’ premium XLR-XLR balanced mic cable. Quad conductor, twisted pair with a braided shield for maximum conductivity. 6mm PVC jacketed.
• CBLDR25 - 25’ premium right angle XLR-XLR balanced mic cable. Quad conductor, twisted pair with a braided shield for maximum conductivity. 6mm PVC jacketed.
• STANDKD - Short pedestal stand with telescoping boom arm
