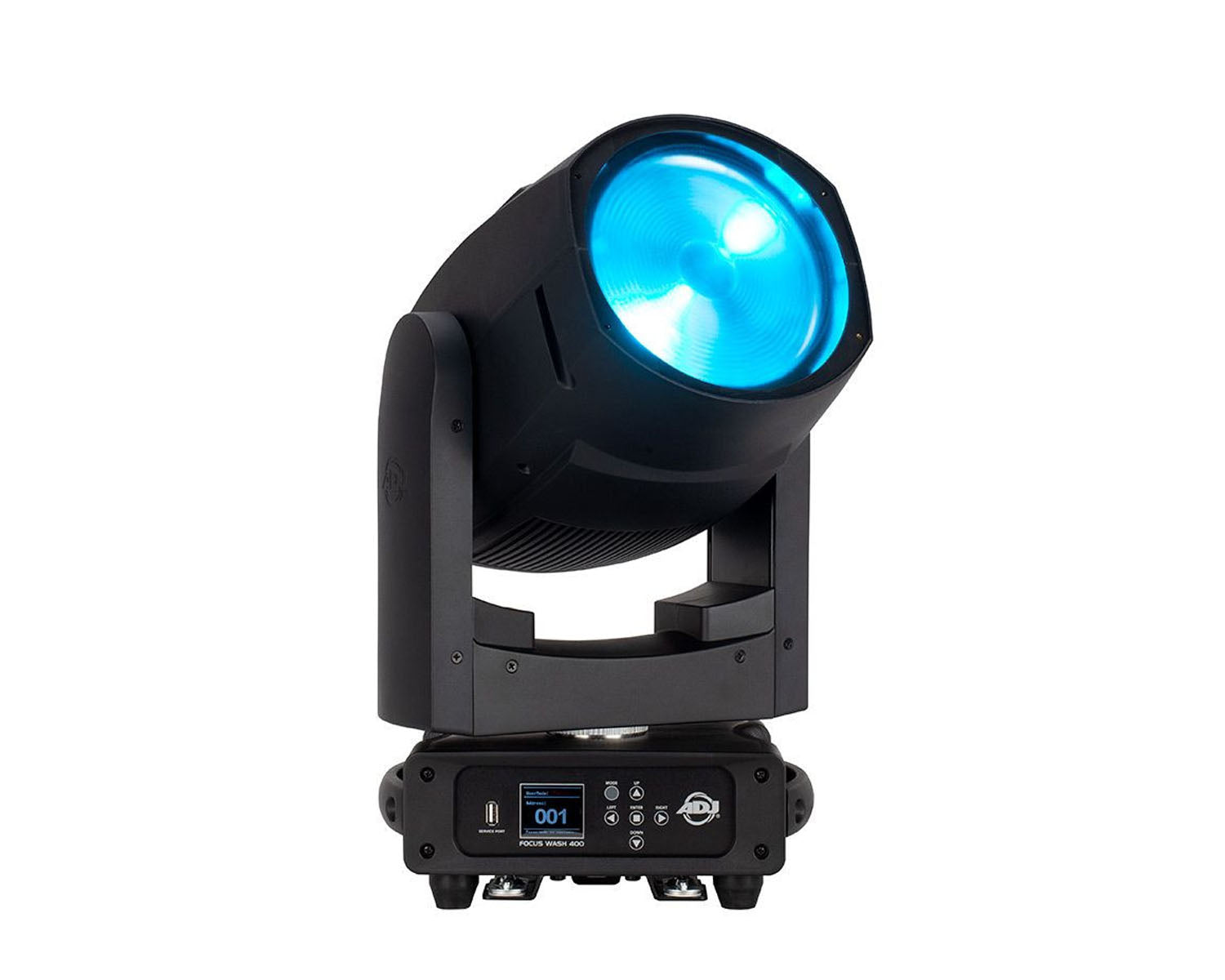

ADJ1237000240 - ADJ Focus Wash 400 400W RGBACL LED Moving Head Wash Image 1

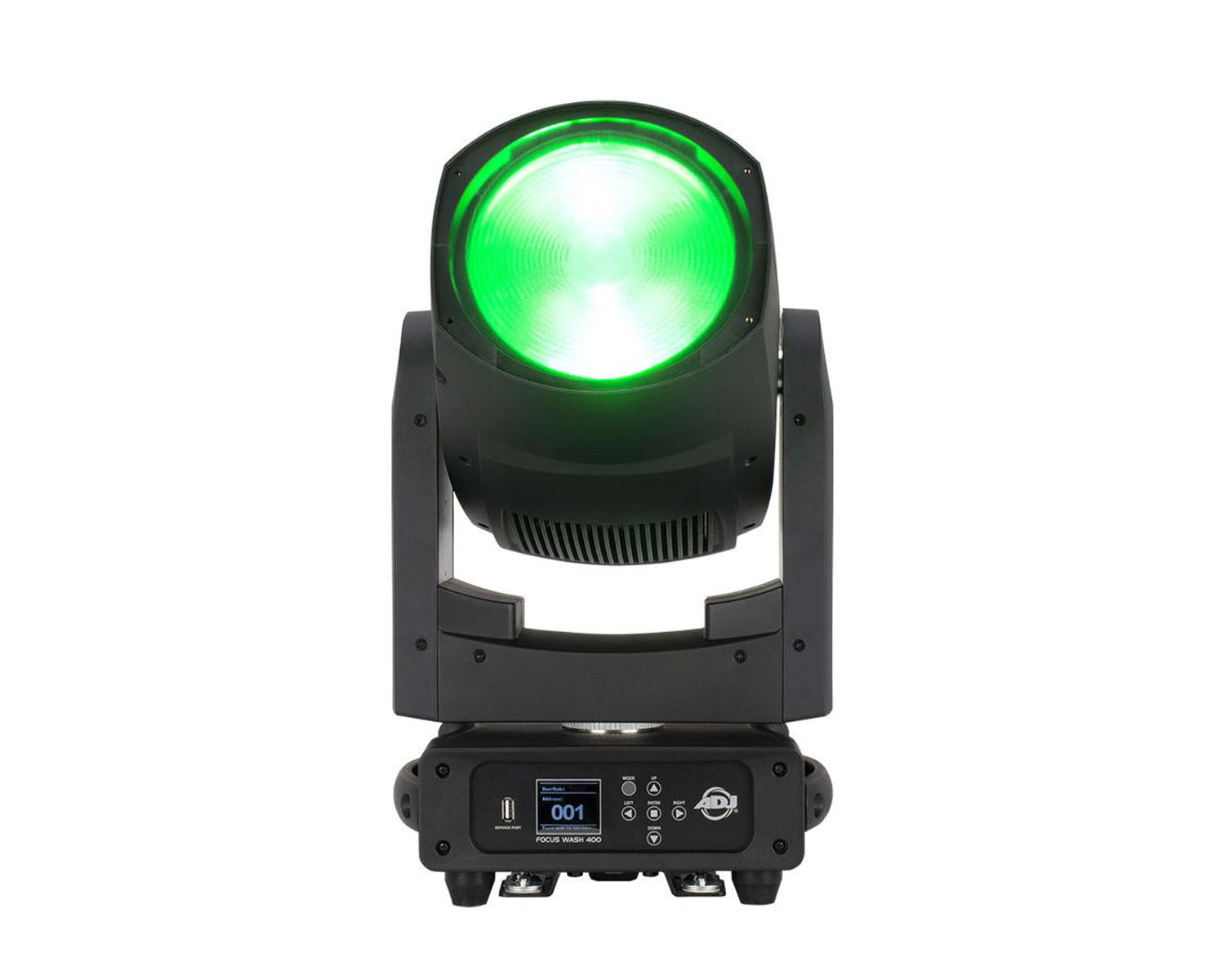

ADJ1237000240 - ADJ Focus Wash 400 400W RGBACL LED Moving Head Wash Image 2

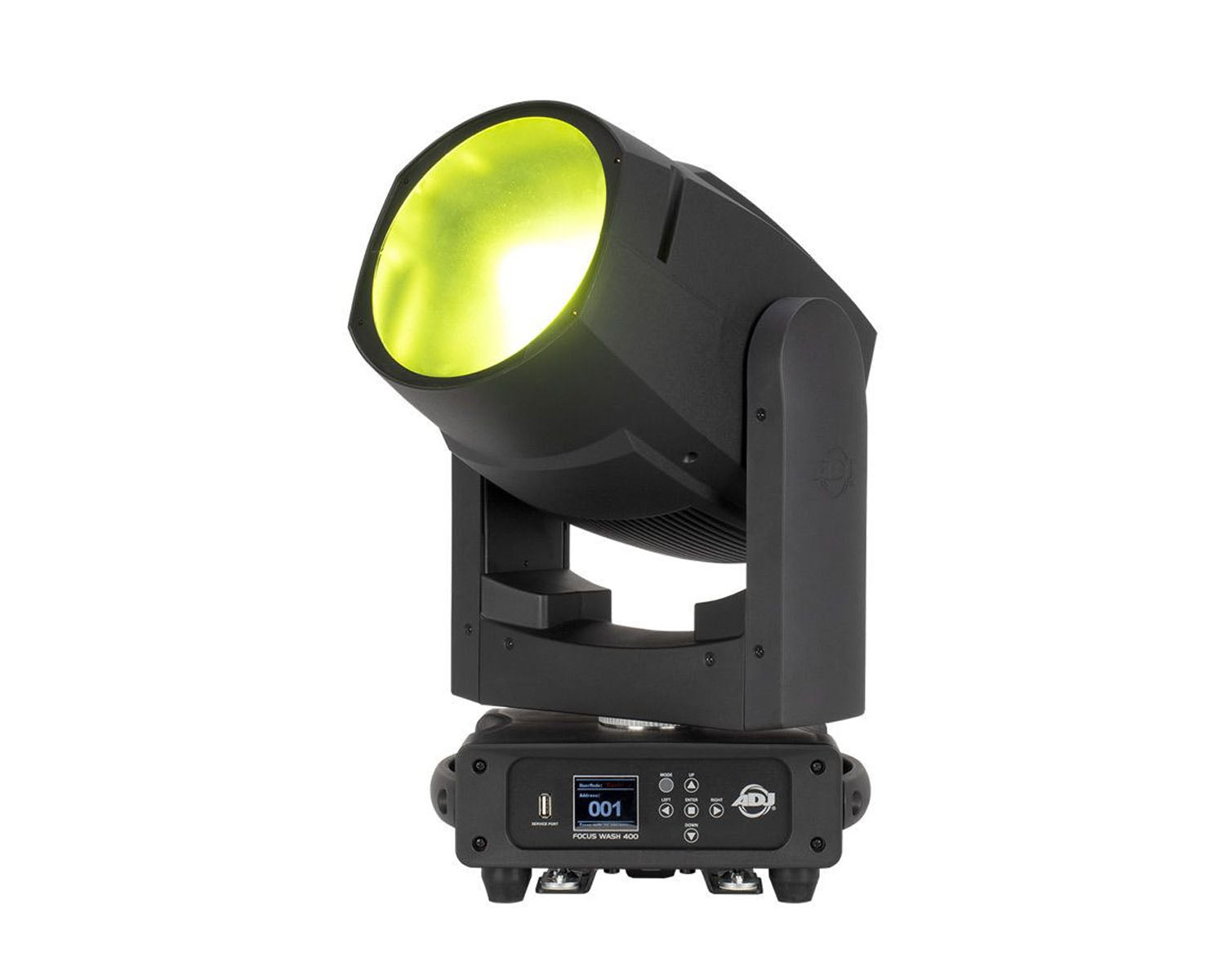

ADJ1237000240 - ADJ Focus Wash 400 400W RGBACL LED Moving Head Wash Image 3

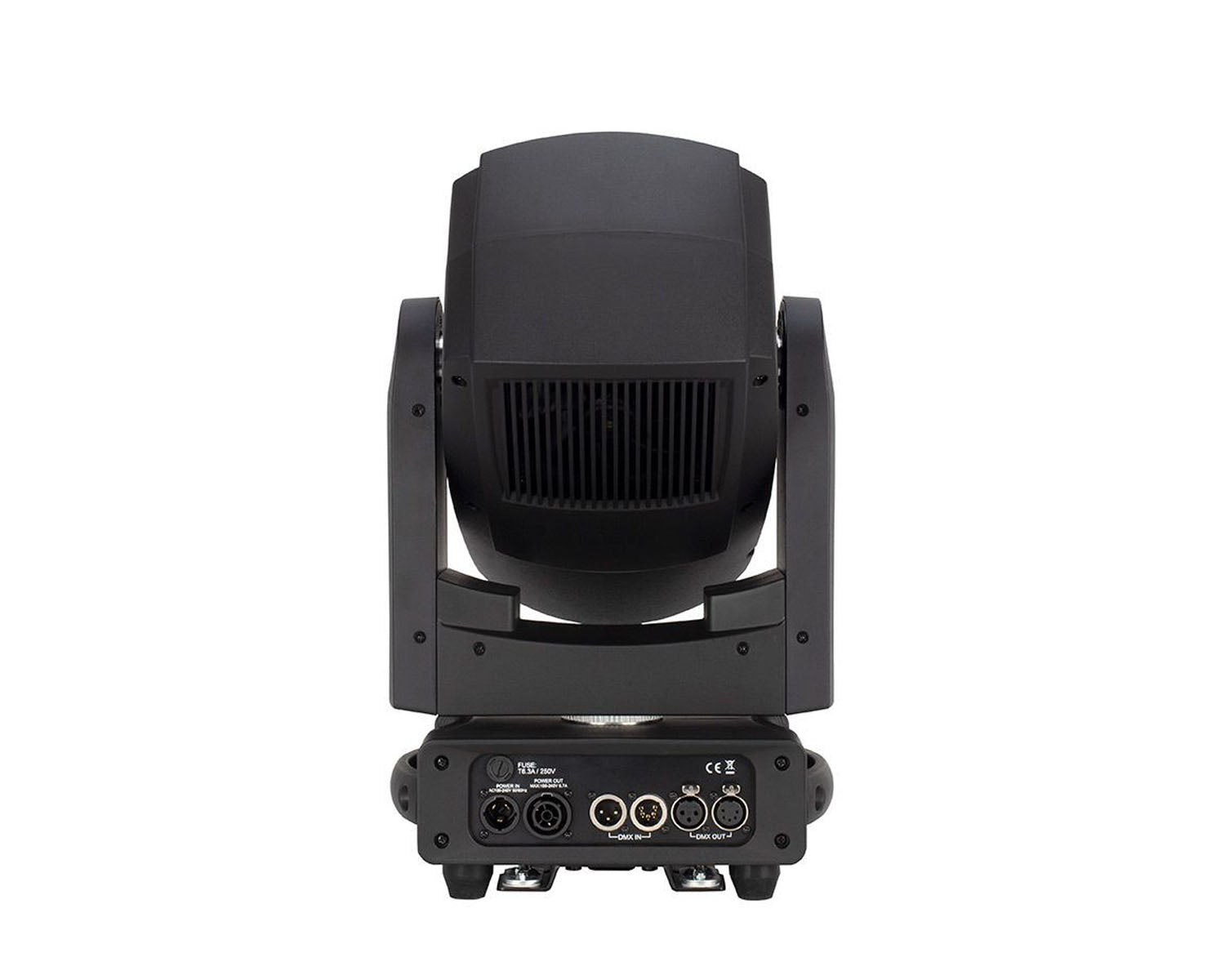

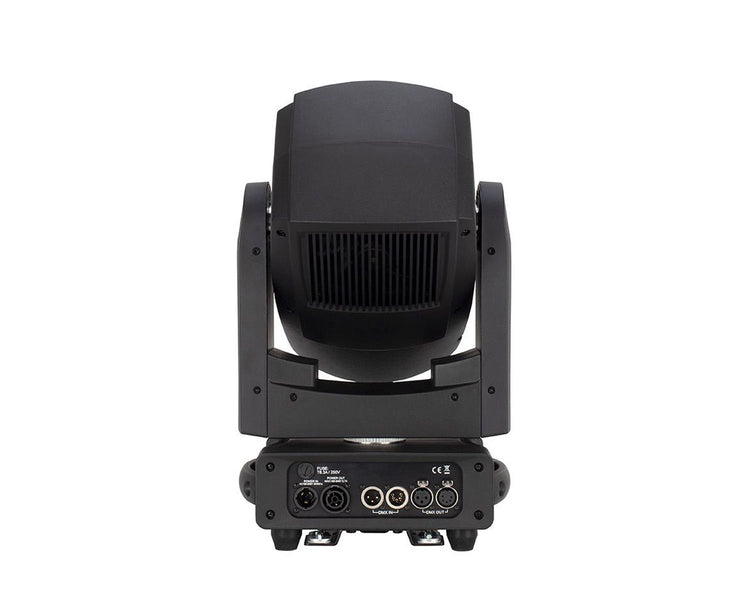

ADJ1237000240 - ADJ Focus Wash 400 400W RGBACL LED Moving Head Wash Image 4

The FOCUS WASH 400 is a 400W moving head wash fixture powered by a 400W RGBACL (Red, Green, Blue, Amber, Cyan and Lime) LED engine. A 6-inch Fresnel lens with 10 to 41-degree motorized zoom produces an even field light output.

Ideal for live broadcasting and film use, this fixture has flicker-free operation, adjustable refresh rates from 900Hz to 25kHz, a quiet fan mode, linear white colour temperature control from 2700K - 6500K, as well as, preset white colour macros (2700K, 3200K, 4000K, 5600K and 6500K). In addition to its tunable white feature, the Focus Wash 400 has a virtual CMY colour mixing channel which allows users to choose any hue on a colour picker.

The FOCUS WASH 400’s unique colour engine produces a high CRI of 90+ for bright whites and a CRI R9 of 87.3 to help make red tones more vibrant. The fixture also includes 16-bit pan/tilt movement, RGBACL colour mixing LED engine, variable dimming modes/curves and strobe effects, DMX and RDM (remote device management) protocol support.

The fixture comes standard with IP65 locking power In/Out connections, locking 3-pin & 5-pin DMX In/Out sockets, colour LCD menu display with 6 button control panel, multiple unit power linking, a multi-voltage universal auto-switching power supply (AC100-240V), USB port to conveniently update firmware, and omega brackets with two hanging points.

Product Features

RGBACL (Red, Green, Blue, Amber, Cyan, Lime) Color Mixing
10~46-degree Zoom Range
Electronic Strobe, Dimming and Variable Dimming Curves & Modes
Preset Color Temperatures (2700k, 3200k, 4000k, 5600k and 6500k)
3 DMX Channel Modes
6-button Control Panel and LCD Menu Display
RDM compatible (Remote Device Management)
Locking 3-pin and 5-pin XLR Connector In/Out
IP65 Locking Power Connector In/Out

Product Specifications

Source

Source: 400W RGBACL LED Engine
4600 Lumen
Average lifetime: approximately 50,000 hrs

Optics

Zoom range: 10 - 41 degrees
Field Angle: 19 - 54 degrees
Fresnel Lens
Motorized Zoom

Control

DMX-512 Protocol
5 DMX Channel Modes (Basic (17), Standard (22), Extended (24), CMY Standard (18) or CMY Extended (24))
RDM compatible (Remote Device Management)
16bit dimming 0-100%
6 Dimming Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
4 Dimming Curves: Linear / Square / Inverse Square / S-Curve
Various strobe effects
LCD Menu Display with 6-button Control
3 Fan settings: Auto, High and Low Noise
