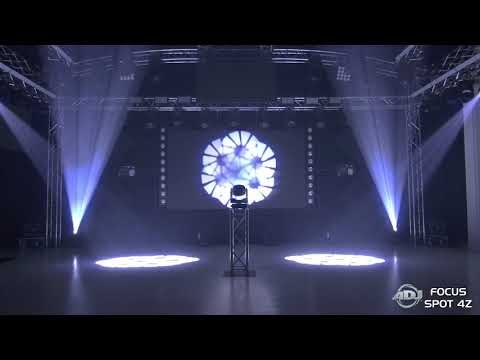

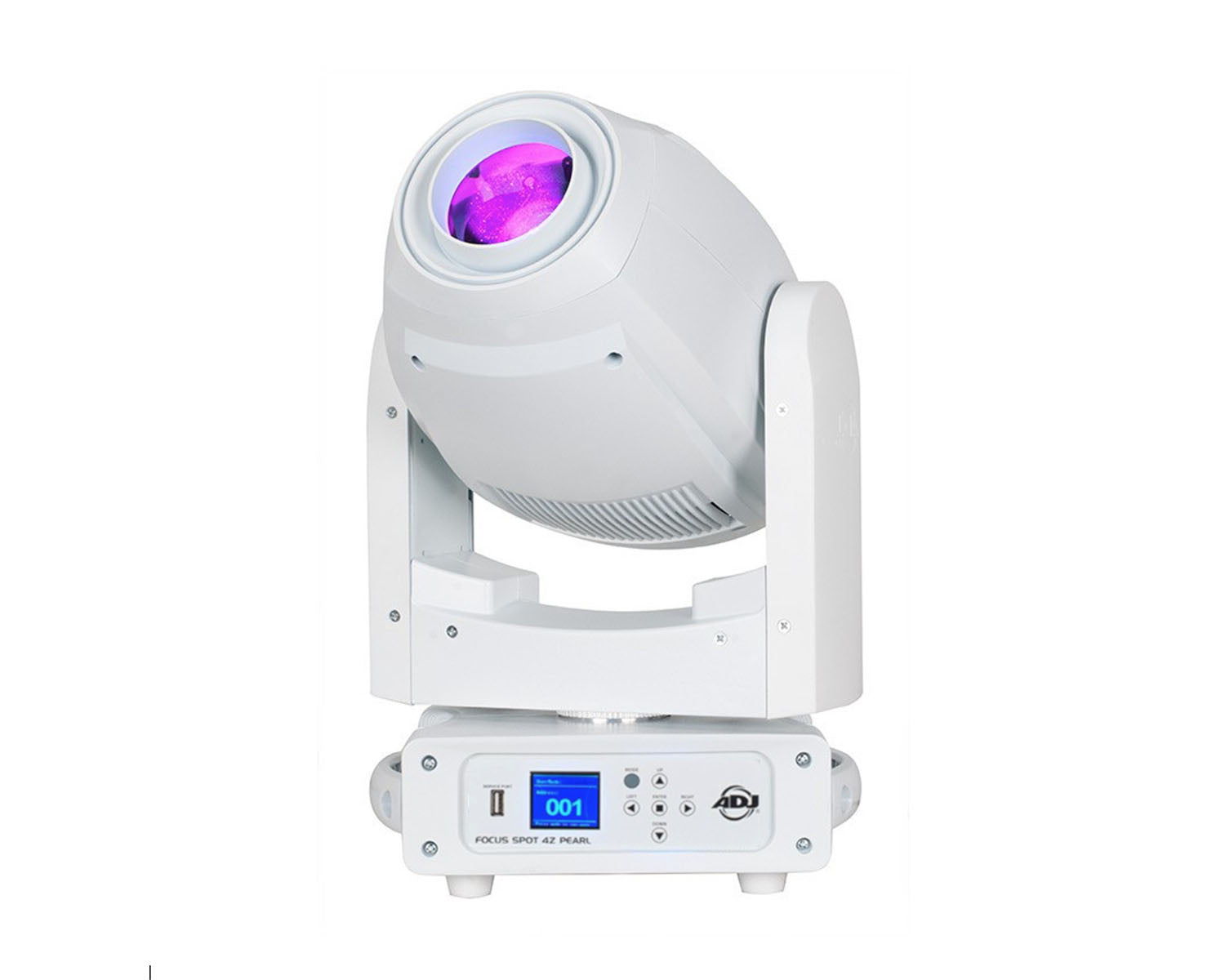

The Focus Spot 4Z is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus and zoom (11 ~ 22-degree zoom). It designed for temporary live events and fixed installations in nightclub, stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS, 8 vibrant colours plus white, and 2 prism wheels (one 5-facet linear and one 6-facet circular).

The Focus Spot 4Z has Locking Power In and out connectors to daisy chain the power, as well as Locking 3-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fine pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 4Z offers a robust light output in a lightweight, compact footprint (18-inch high and one 23 pounds).

Product Features

• Individual Colour and Gobo Wheels
• 8 Colours + White
• 6 Rotating Replaceable Gobos + Open
• Electronic Dimming 0-100%
• DMX-512 protocol
• Locking 3-Pin XLR Connections In/Out
• 3 DMX Channel Modes: 16/18/22
• Multiple Unit Power Linking

Product Specifications

Source

• Source: Cool White LED Engine
• Individual LED wattage : 200W
• Average lifetime: approximately 50,000 hrs

Optics

• Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom
• Motorized Focus
• Rotating 5-facet Linear & rotating 6-facet Circular Prism

Control

• 2 operational modes : Program Mode or DMX control
• 3 DMX Channel Modes: 16/18/22 Channels
• RDM compatible (Remote Device management)
• Internal Programs with built-In DMX Recorder
• 16bit dimming 0-100%
• 6 Dimming Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
• Adjustable Gamma Brightness : 2.0 / 2.2 / 2.4 / 2.6 or 2.8
• Adjustable LED Refresh Rate from 900Hz to 25kHz for flickerfree operation
• Various strobe effects
• 6-button Color display
• Battery inside, allowing to access the fixture Menu without power connection
• 16bit Pan: 540 & 630 degrees
• 16 bit Tilt: 270 degrees
• 3 Fan settings : Auto, High and Low Noise

Colours

• 1 colour wheel with 8 dichroic colours + white

Gobos

• 1 gobo wheel with 6 aluminium GOBOs + open
• All gobos removable, rotatable and indexable
• Gobo Shake Effect
• Gobo size: 22,5mm (outer); 19mm (viewable); 0.5-2mm (thickness)

Construction

• White Plastic housing
• 2 cooling fans

Electrical

• Multivoltage : 100-240V 50/60Hz
• Power Draw : 256W

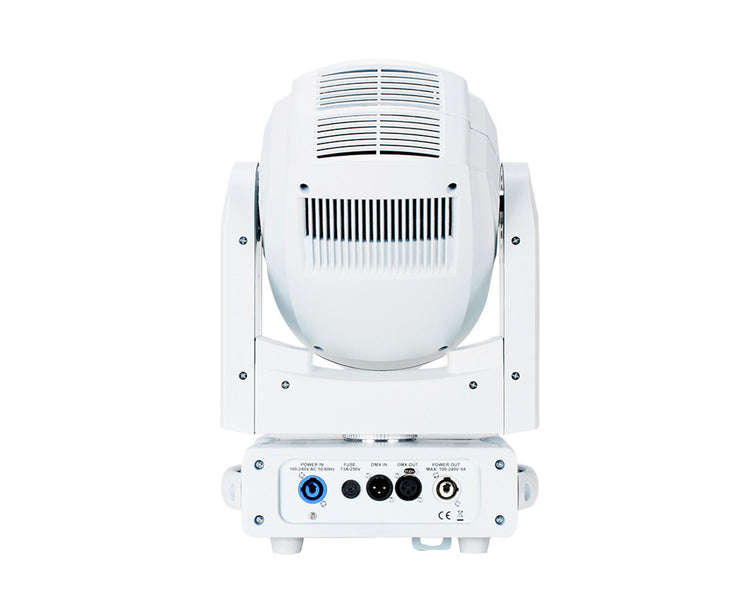

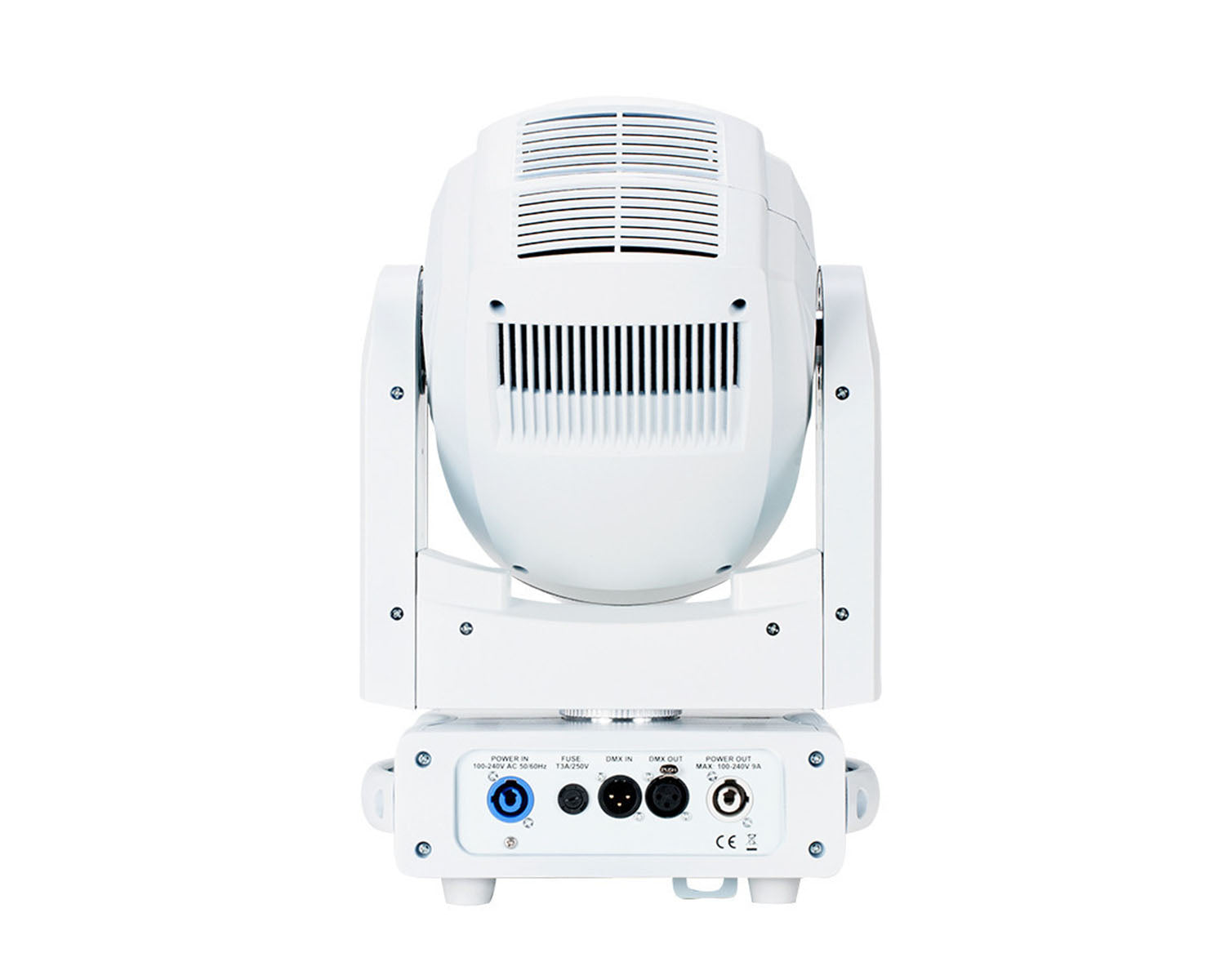

Connections

• Locking 3-pin DMX In/Out
• Locking Power In/Out (Daisy chain 4 units @ 120V; 10 units @ 240V)
• USB firmware update port

Dimensions & Weight

• Dimensions: 457 x 279 x 182mm
• Weight: 10 kg.

What's in the Box?

• 1 x FOCUS Spot 4Z Pearl
• 1 x Locking Power Cable
• 1 x Omega Bracket
• 2 x Safety Cables
