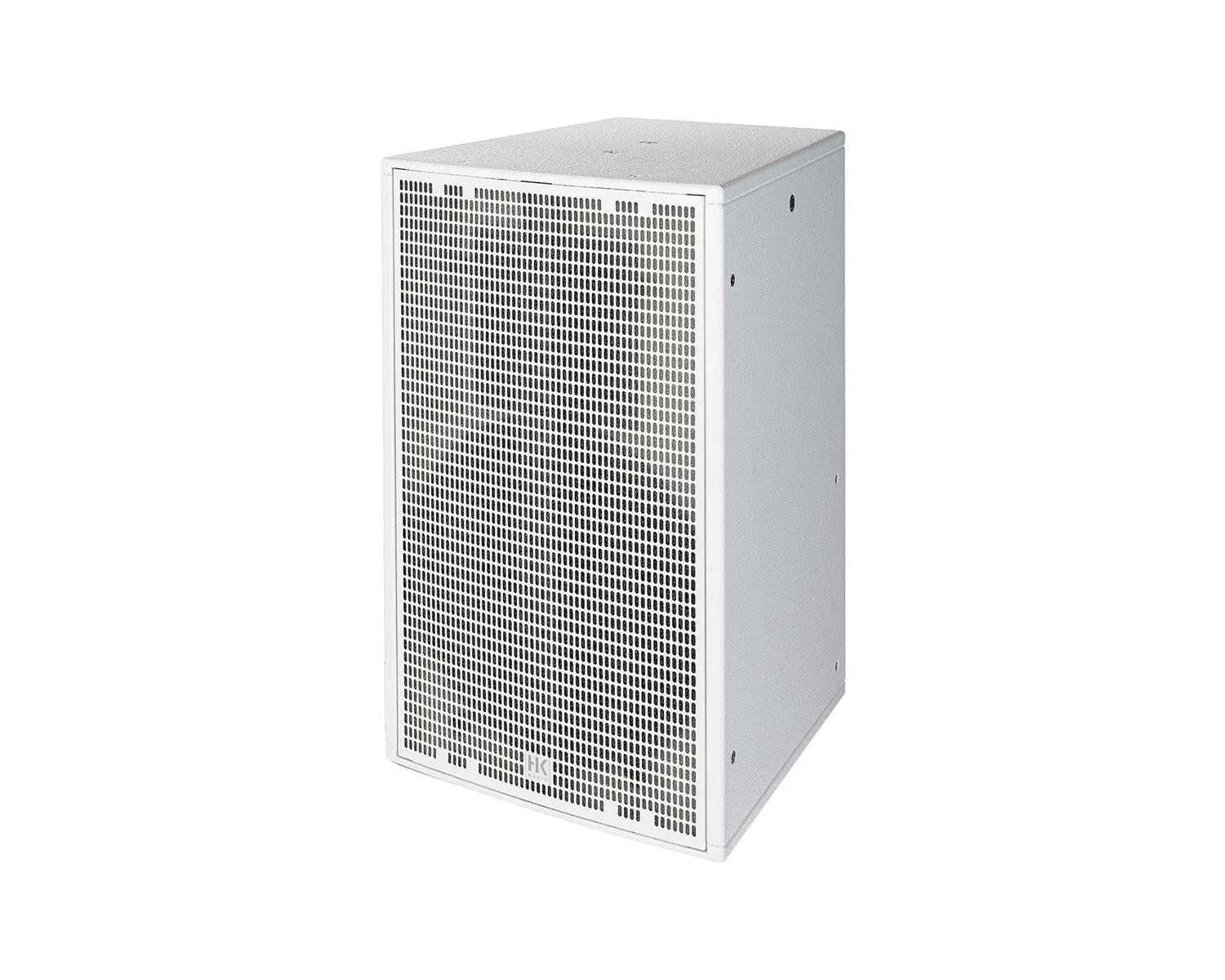

In this newly fine-tuned speaker system, the proven standard format with a 12“ low-frequency woofer and a high-resolution 1“ high-frequency driver, provides the ideal compromise between achievable sound pressure and low colouration in the reproduction of all types of music and speech.

The BEM-optimised constant directivity horn with the powerful 1“ compression driver comes from the CONTOUR X series, which was developed for the rough
and tumble of touring. With a dispersion angle of 80° x 60° and the ability to rotate 90°, it always delivers the optimum dispersion pattern whether it is used horizontally or vertically.

In combination with subwoofers such as the S118 or S218, the result is a very powerful system that can reproduce modern music styles at a high level without any restrictions. The FO 12 can also be used for larger venues, provided that further-away areas of the room are boosted with delay speakers (e.g. with the FO 5, which can be installed unobtrusively).

Product Features

• Compact, passive 2-way speaker
• Support for Lab.Gruppen IPX and LEA Professional with DSP Presets and other DSP platforms with Filter Sheets in open table format
• Rotatable, BEM-optimised constant-directivity HF of the latest generation from the CONTOUR X family
• All-new passive crossovers with self-healing HF protection circuit for maximum operational reliability in fixed installations
• Swivel and tilt wall bracket allows space-saving and visually appealing installation with precise alignment options at the same time
• Matching U-brackets allow for flown installation on ceilings, with the brackets allowing for precise angle adjustments
• Hole pattern on the back in the internationally standardised VESA format for attaching additional mounting accessories required for the
  particular application
• An external 35 mm stand flange can be attached so that the new FINEO speakers can be fitted to existing installations with appropriate
  wall brackets
• Extremely solid enclosures in acoustically beneficial MDF and foam-backed grille with additional steel reinforcements
• Standard design with 2 lockable Neutrik Speakon sockets
• Strongly constructed internal steel braces and mountings for the rigging and fixing points as standard, guaranteeing a secure fixed installation in compliance with strict German and European standards
• Simulation data for EASE and EASE FOCUS for predicting sound distribution and speech intelligibility as planning support for larger projects
• Certified ball-impact resistant in line with DIN 18032-3

Product Specifications

• Concept:  Passive 2-way mid/high unit
• Cabinet principle:  Bass reflex
• Power handling RMS:  400 W
• Power handling program:  800 W
• Power handling peak:  1600 W
• Nominal impedance:  8 ohms
• Max. SPL average:  121 dB
• Max. SPL peak:  126 dB
• Sensitivity 1 W/1m:  94 dB
• Crossover frequency:  2,6 kHz
• Frequency range -6 dB:  70 Hz - 20 kHz
• Frequency range -10 dB:  65 Hz - 20 kHz
• Dispersion angle -6 dB:  80° x 60°
• Ball impact resistance (DIN 18032-3):  certified (MPA University Stuttgart)
• IP-Protection class (EN 60529):  not specified
• Low/mid speaker:  1x 12“ Sica cone speaker with ferrite magnet and 2“ voice coil
• HF driver:  1 x 1“ Sica compression driver with ferrite magnet and 1“ voice coil
• Crossover:  High pass: 18 dB/octave, low pass: 12 dB/octave
• High frequency protection circuit:  Self-healing PTC fuse
• Horn:  BEM-optimised constant directivity horn, rotatable

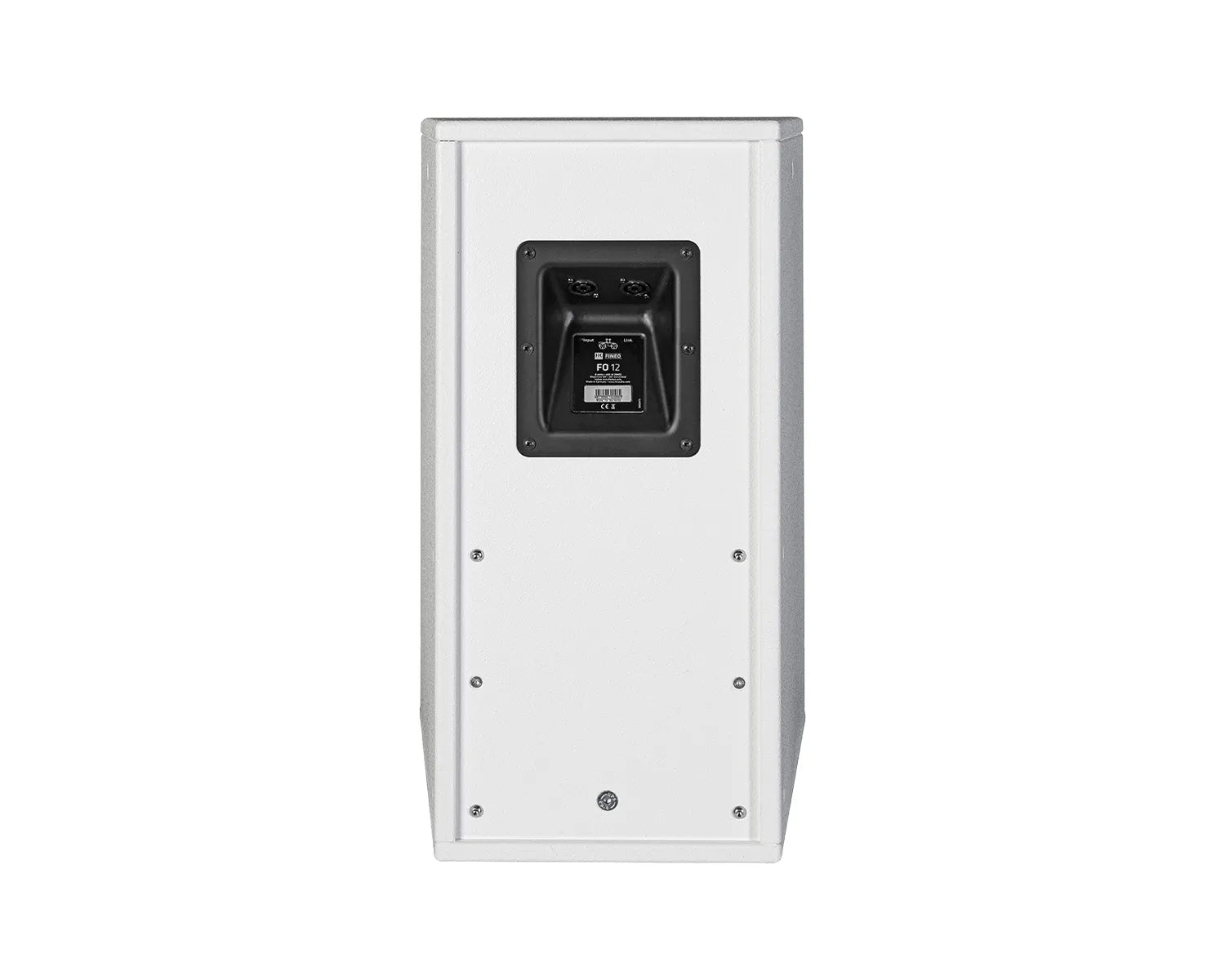

• Input:  1 x NL4 Speakon
• Output/parallel output:  1 x NL4 Speakon
• Pin assignment:  1+/- (input/parallel output), 2+/- (wired through)

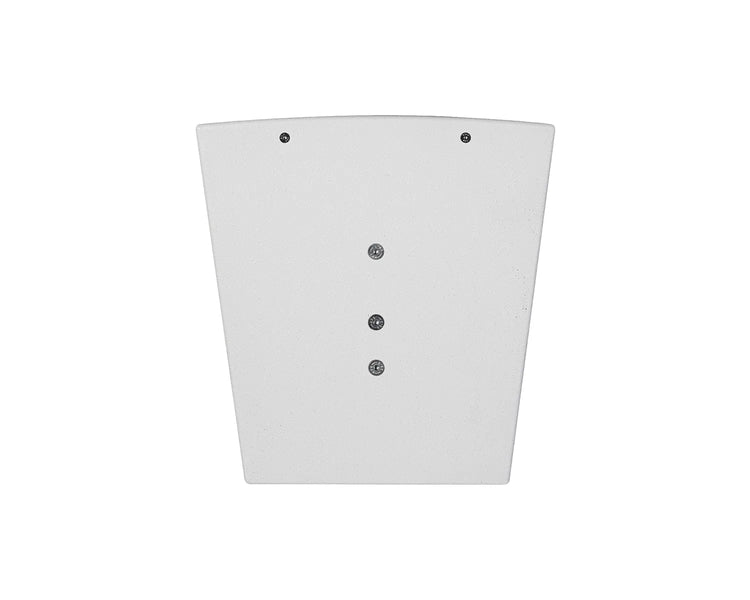

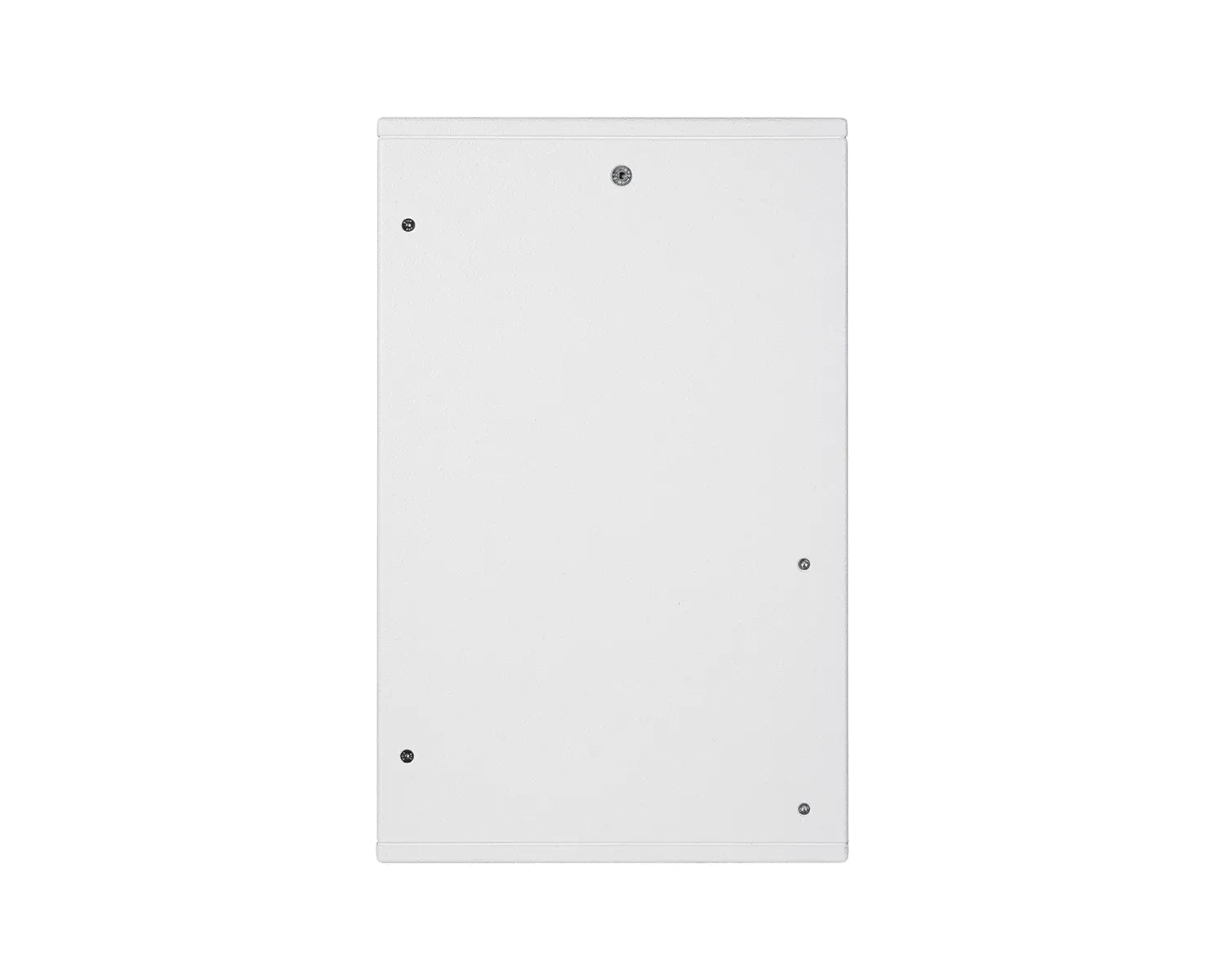

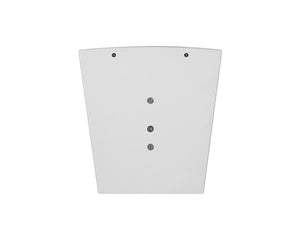

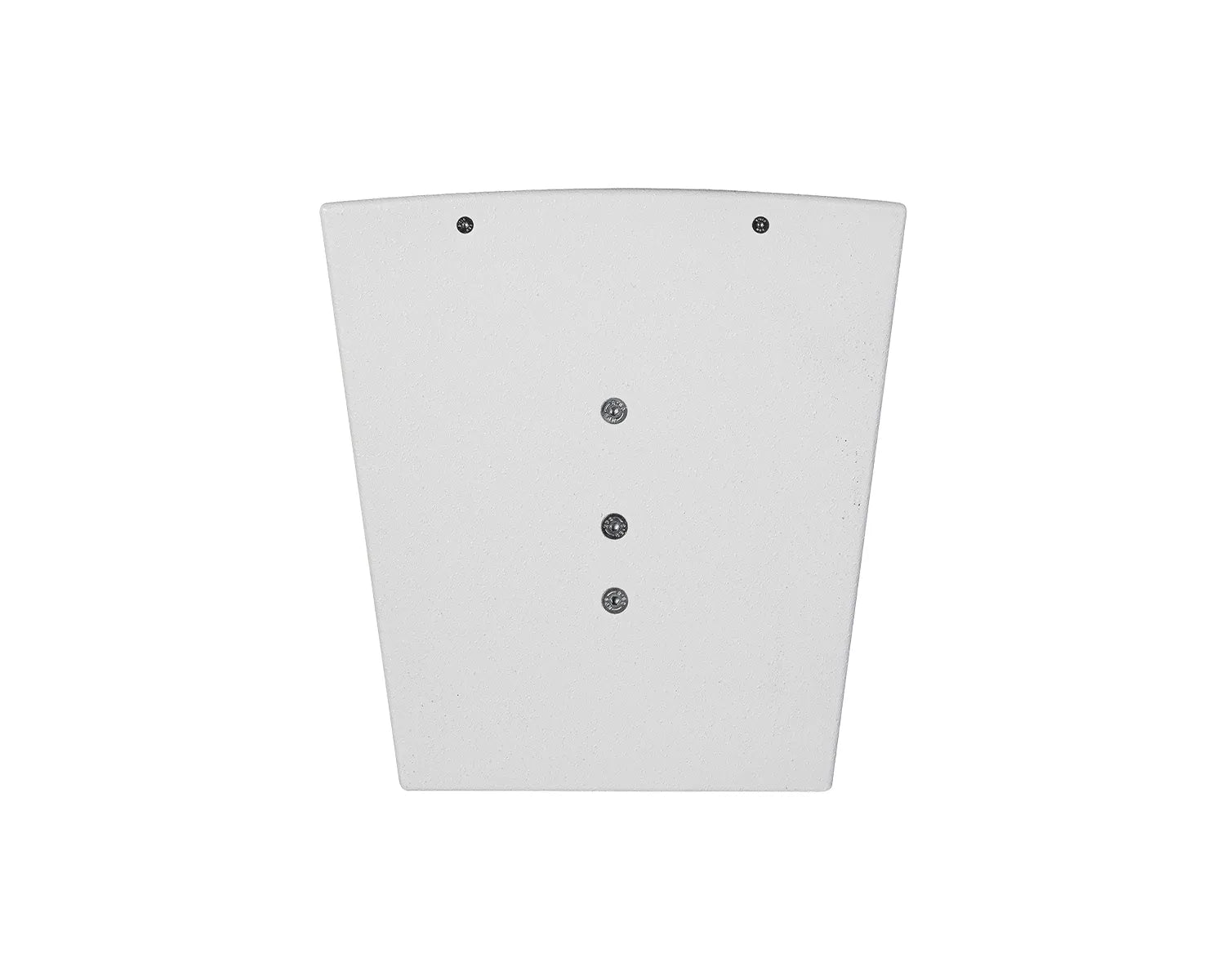

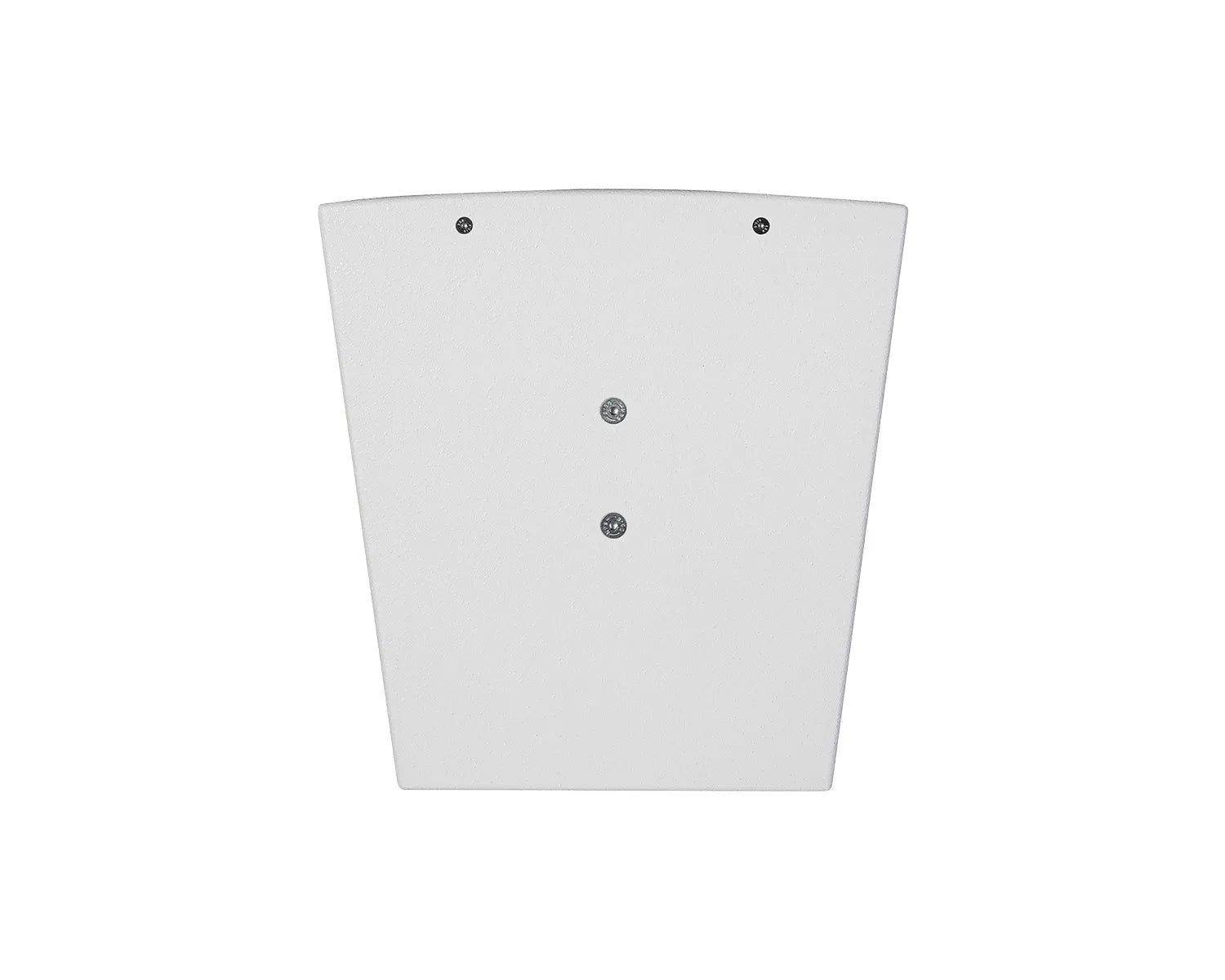

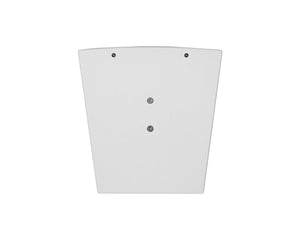

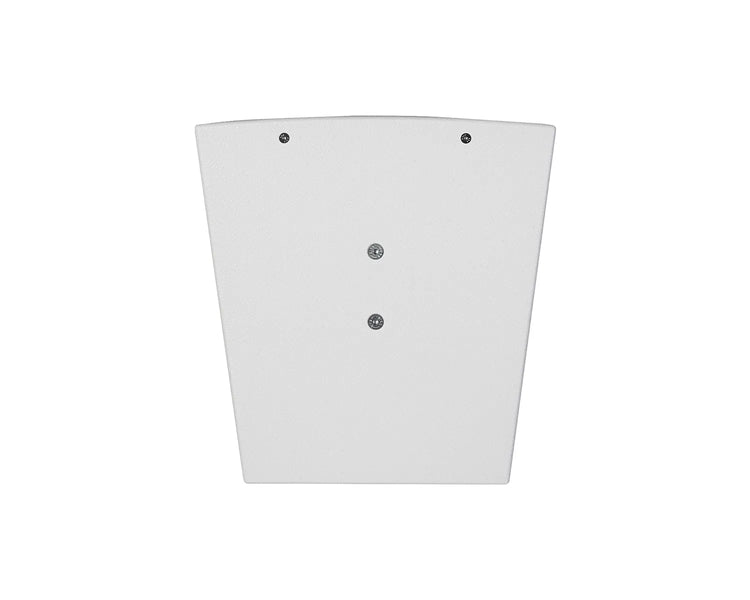

• Mounting points:  2 x M8 lateral, 2 x M8 bottom/lid, 1 x M8 rear, 4 x M6 rear
• Cabinet material:  MDF
• Cabinet surface:  1-component acrylic enamel
• Colour:  Signal white (RAL 9003)

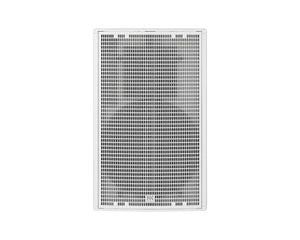

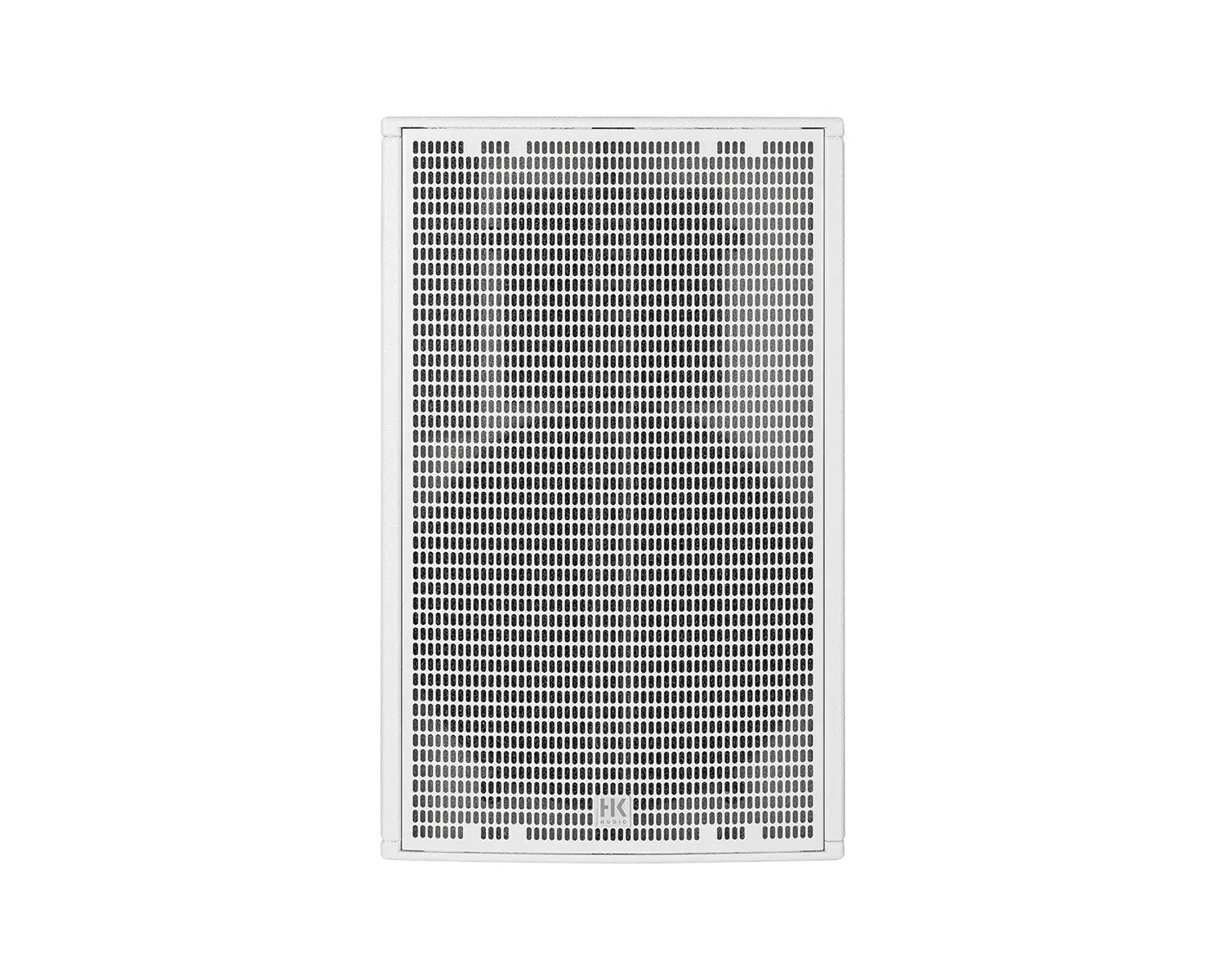

• Front grille:  Steel front grille with anticorrosive coating, backed acoustic foam and additional steel reinforcements
• Dimensions (WxHxD):  356 x 580 x 369 mm
• Weight:  17.5 kg
