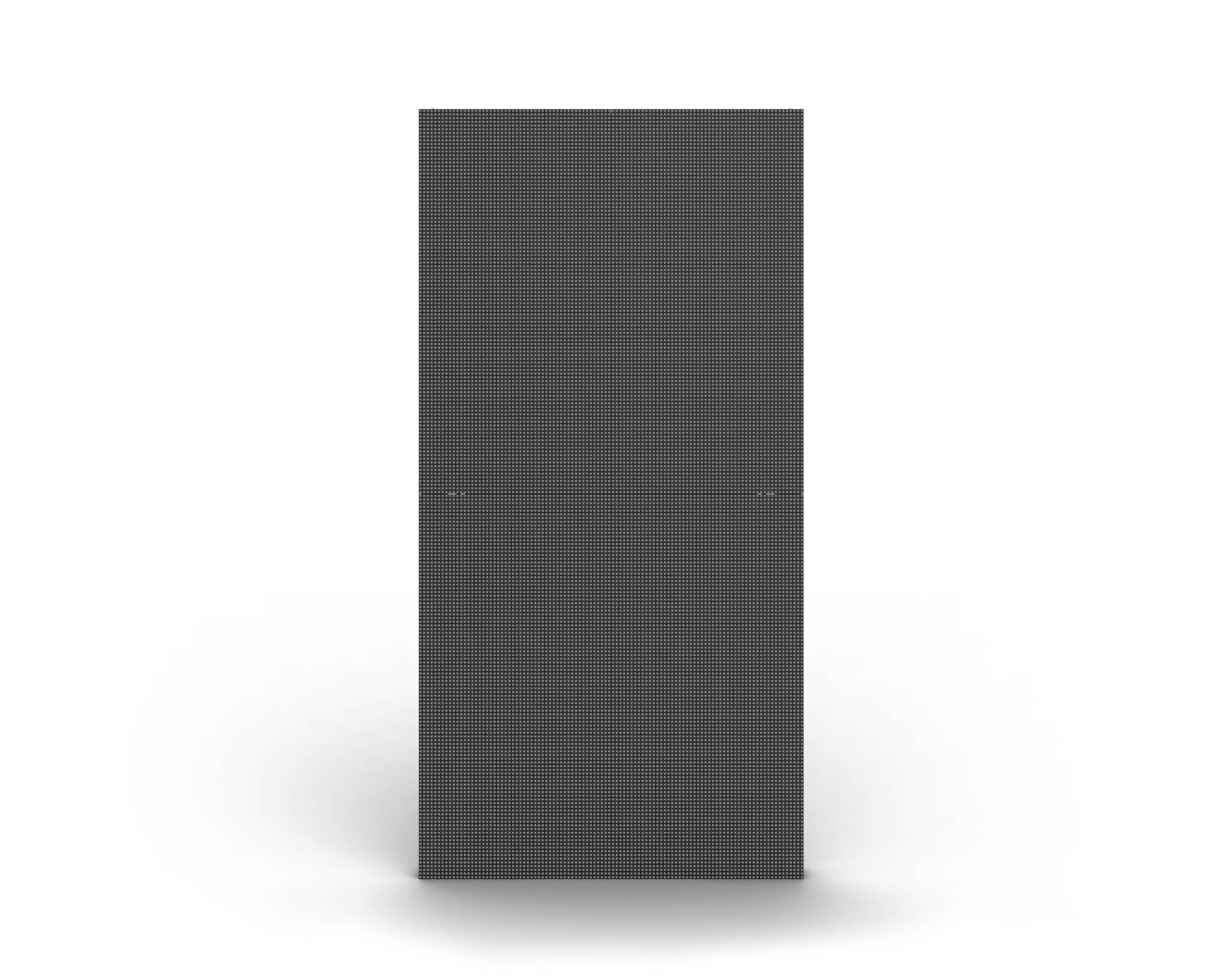

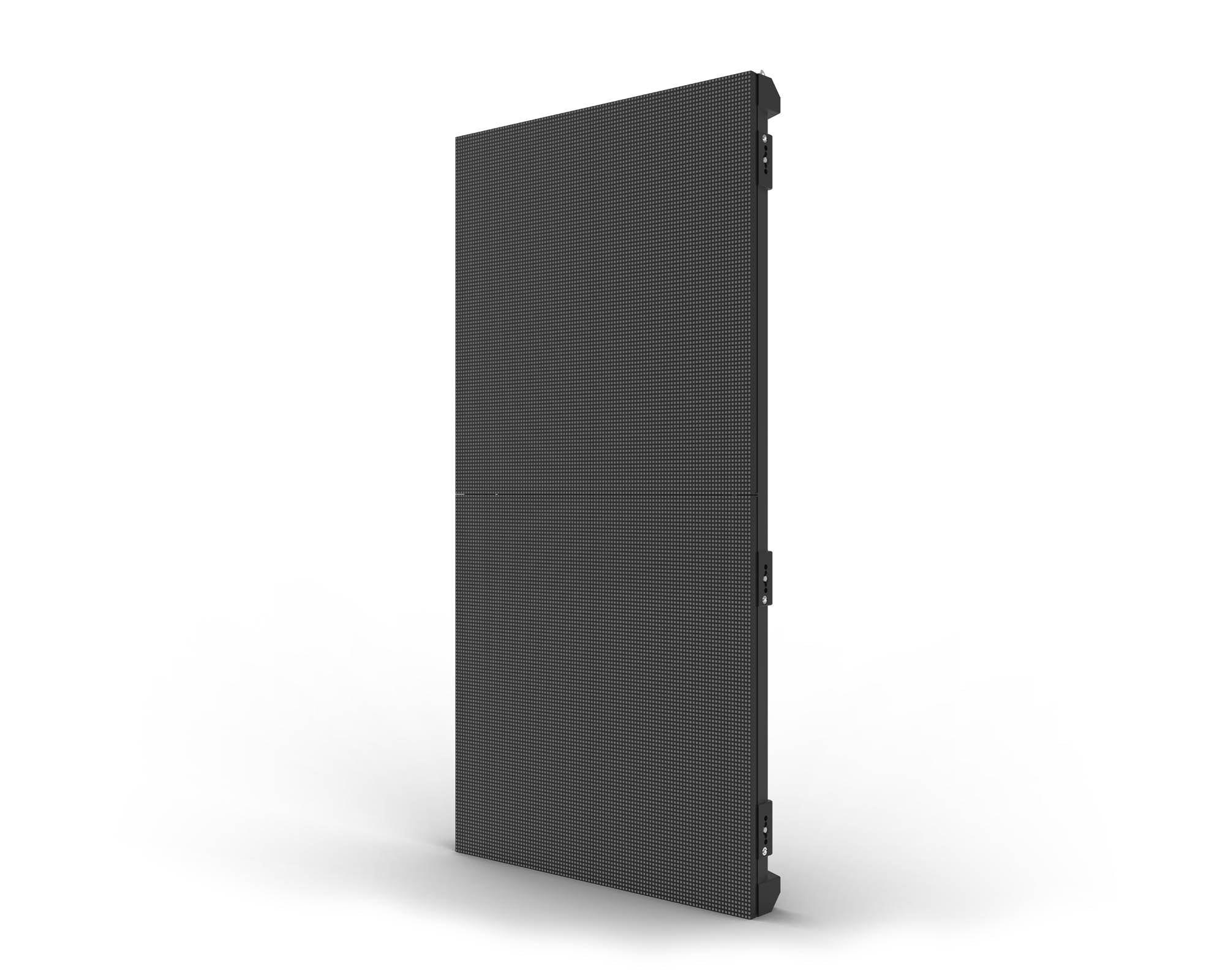

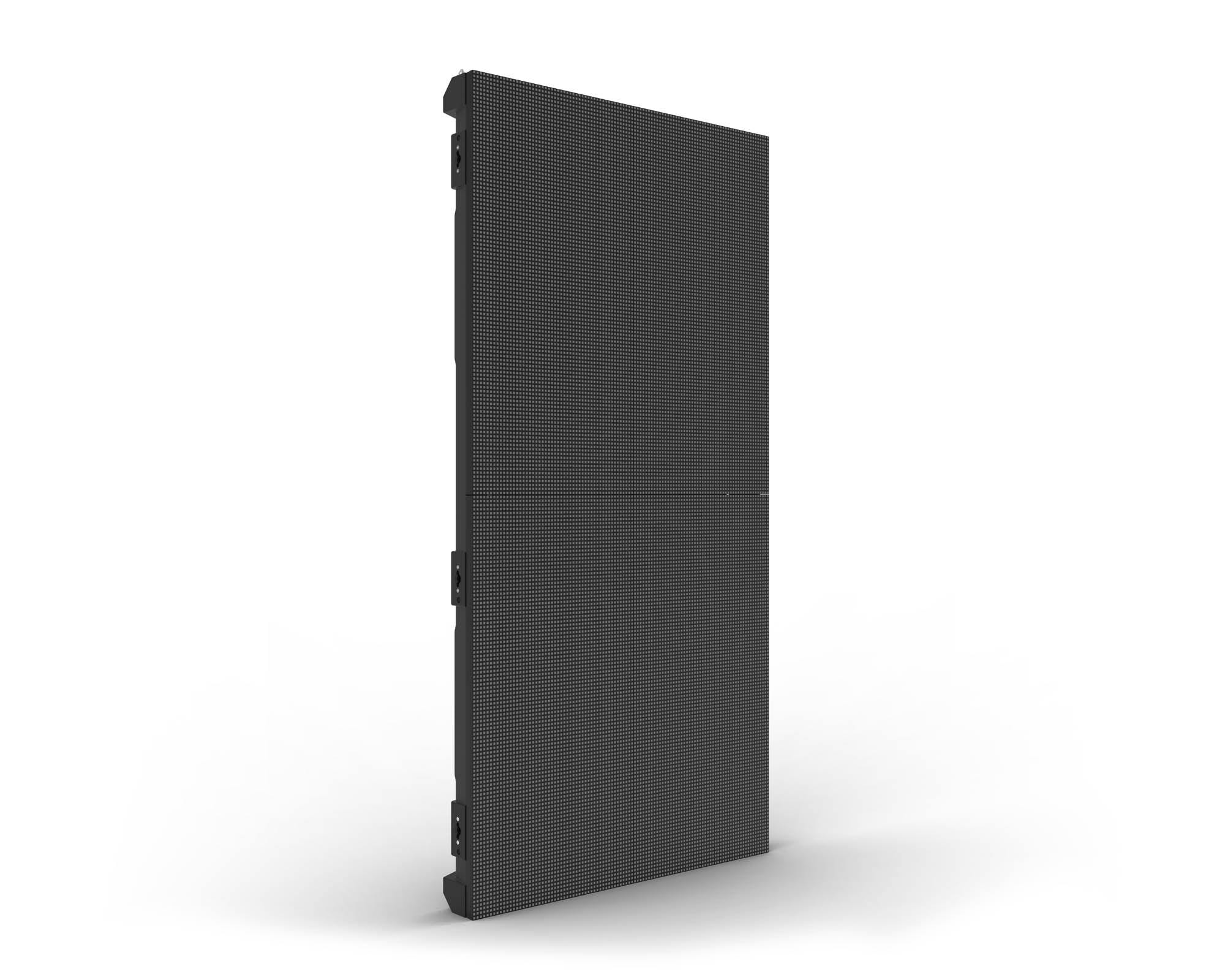

F2 is an impressive 2.9 mm pixel pitch LED video panel equipped with a high contrast 1,500 NITS and an impressive refresh rate of 3,840 Hz for crisp high-quality imagery. This high-performance video panel is the ideal solution for corporate events with text, high-res IMAG and any space with a shorter viewing distance. F2 set up is optimised by its advanced light-weight die-cast magnesium housing and magnetic assisted hanging features. This magnetic LED module is also both front and rear serviceable to simplify maintenance and installation. The fully equipped unit comes with a road case and power/data linking cables.

Product Features

• 2.9 mm pitch high resolution indoor video panel works with the VIP Drive 43Nova2, using the Novastar control protocol
• High quality black body LEDs accurately reproduce video at 16-bit grayscale, operating on the A5s receiver card from Novastar (18-bit available)
• High-performance digital LED drivers deliver 3840Hz refresh rate and a clear, vibrant image
• Uses specialised LED dimming control via S-PWM (scrambled PWM), which enhances on-camera performance.
• Intelligent, high-speed magnetic LED modules with dedicated memory stores factory calibration, ensuring optimal image quality, colour uniformity, and simplifies maintenance by making service fast and easy
• 1,000 x 500 x 82.5 mm, 30 lb (13.6 kg) magnesium die-cast housing (500 x 500 mm available) makes this product among the lightest and slimmest in its class without compromising strength—capable of hanging up to 23 panels vertically safely

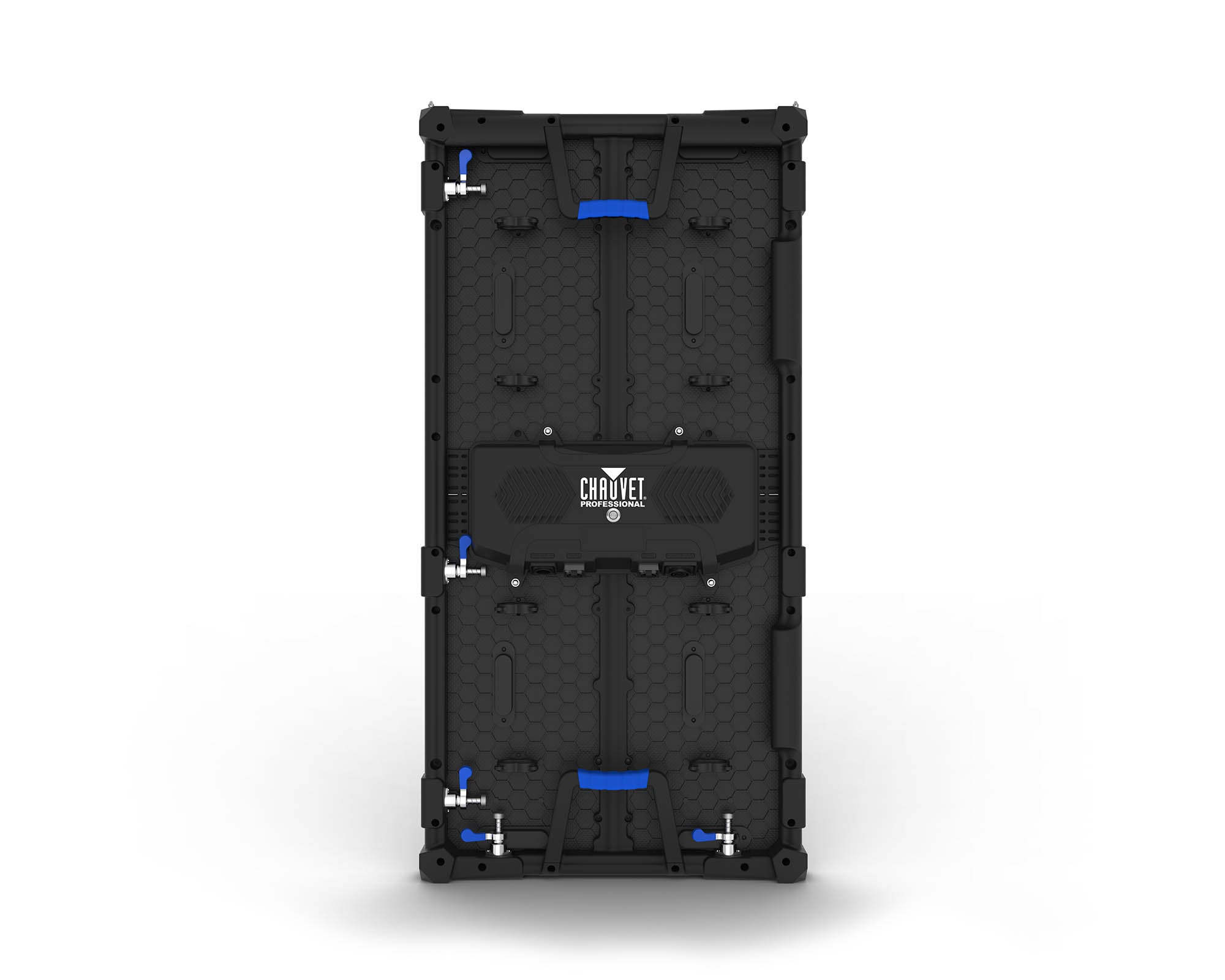

• Specialised frame design allows for overhead hanging, ground stacking, and wall mounting maximising installation flexibility and aftermarket front and rear service; simply push out modules from the rear using the handles, or use the included service tool from the front
• Front LED surface protective design features prevent damage when handling: 4x stainless steel standing feet to keep the LEDs from touching the floor, specialised LED board design to improve impact resistance up to 3x that of other panels, and resilient led mask design to optimise image viewing angle and uniformity without exposing the LEDs to front or side impacts
• Strong, magnetic assisted hanging makes setting up the panels fast and easy with a minimal crew
• Optimised heat dissipation ensures an even colour across the F2
• Dual power supplies increase the stability of the system
• Cable management solutions include angled connectors on panels for easy operation, long cables that can connector horizontally or vertically, and handles on the bottoms of each panel to organise cables and keep them neat

Product Specifications

OPTICAL

• Light Source: 56,448 LEDs (tri-colour RGB) SMD 2121,
• 50,000 hours life expectancy
• Colour Wavelength: red (620 to 625 nm),
• green (512 to 532 nm), blue (460 to 475 nm)
• Viewing Angle (H/V): 160°/155°
• Calibrated Illuminance: 1,200 NITS
• Maximum Illuminance: >1,500 NITS
• Contrast Ratio: 8,500:1
• Grayscale : 16-bit
• Receiver Card : A5s
• Drive Type : 1/21
• Pixels: 168 x 336
• Pixel Pitch: 2.9 mm
• Minimum Viewing Distance: 7.5 ft (2.3 m)
• Pixel Density: 112,896/m2
• Display Refresh Rate: 3,840Hz

CONSTRUCTION/PHYSICAL

• Dimensions: 19.69 x 3.25 x 39.37 in (500 x 82.5 x 1000 mm)
• Weight: 30 lb (13.6 kg)
• Exterior Colour: Black
• Housing Material: Magnesium die-cast
• Maximum vertical hang: 23 panels
• Maximum horizontal hang: 17 panels
• Transparency: 0%

CONNECTIONS

• Power Connection: Edison (local) plug to Seetronic® powerKON®
• Power Input: Seetronic® powerKON®
• Power Output: Seetronic® powerKON®
• Data Connectors: Seetronic® etherKON®
• Cable Length (signal extension): 4 ft (1.2 m)
• Cable Length (power): 4 ft (1.2 m)
• Cable Length (power extension): 6 ft (1.8 m)

CONTROL

• Control Protocol: Novastar
• Maximum Panels/VIP Drive 43Nova2:
• 11/port, 44/Drive (4 ports)
• Video Input (compatible): 60 Hz

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 10 units @ 120 V; 16 units @ 208 V; 18 units @ 230 V
• Power and Current: 204 W, 1.7 A @ 120 V, 60 Hz
• Power and Current: 230 W, 1.1 A @ 208 V, 60 Hz
• Power and Current: 230 W, 1.0 A @ 230 V, 50 Hz

CERTIFICATIONS/QUALIFICATIONS

• CE, MET, FCC, ROHS
• IP Rating: IP31, dry location
• Thermal Dissipation @120V: 650 BTU per hour
• Thermal Dissipation @ 208V: 750 BTU per hour
• Thermal Dissipation @ 230V: 750 BTU per hour
• Temperature (Ambient): -4 °F to 140 °F (-20 °C to 60 °C)

What's in the Box?

• 4 x F2
• 1 x Seetronic® powerKON® power cord
• 4 x Seetronic® powerKON® power linking cords
• 4 x Seetronic® etherKON® signal linking cords
• 5 x spare LED masks
• Road Case
• Warranty Card
• User Manual
