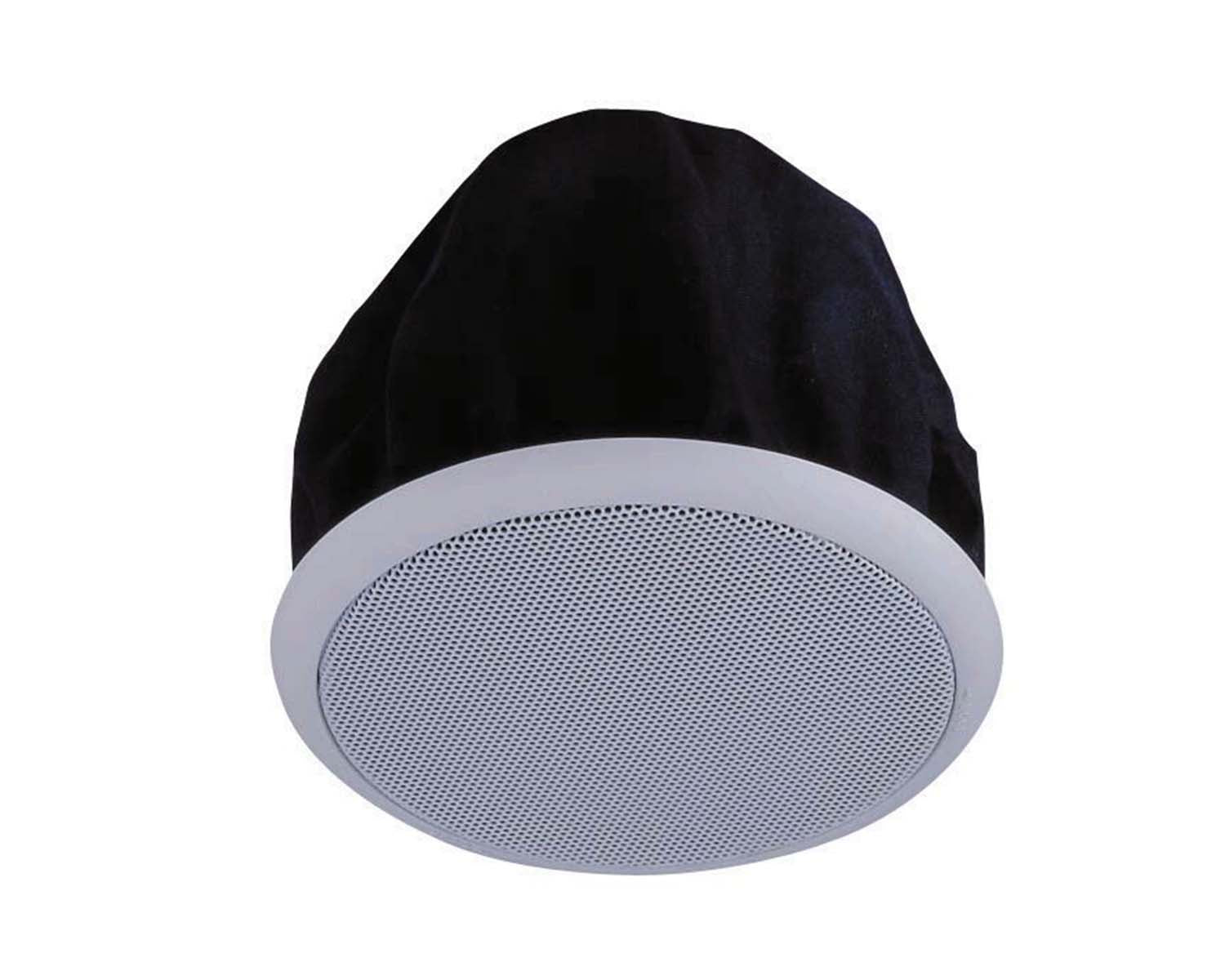

TOAF1522SC - TOA F1522SC 4inch Closed Ceiling Speaker 8 or 16ohm and 100V 6W Image 1

TOA introduces a new range of ceiling-mounted speakers that have been designed and engineered to overcome limiting factors that have been associated with conventional ceiling-mount speakers. Most noticeable has always been the high-frequency roll-off that resulted from limited speaker dispersion characteristics. TOA new ceiling speaker range provides well-balanced audio reproduction without treble attenuation over an expanded listening area thanks to the extra-wide dispersion characteristics that are part of the overall speaker design. Perceived speaker directionality and beaming tendencies are minimized, resulting in a natural, well-balanced sound over a wide area at all levels. Conventional speakers exhibit high frequency roll-off characteristics as the distance between speaker and listener increases. However TOA believes that an ideal ceiling-mounted speaker response characteristics should include wide dispersion and non-frequency dependent directionality and this new ceiling speaker series proves that.

Product Features

Designed to blend into ceilings with a smooth, low-profile design.
Extra ease of use and higher cost-effectiveness with the metal "back can" enclosure for the speaker rear.
Minimal high frequency roll-off allows clear and well-balanced sound reproduction over a wide listening area.
Quick and easy installation to precisely mount speaker onto ceilings and walls. Rotating front grille also installs quickly and conveniently.
The Electronic Controller (AC-120) option is required to provide increased control of the F-122C speaker response.

Product Specifications

General

Rated Input: 6W (high impedance)
Power Handling Capacity: Continuous pink noise: 9W(8), 6W (16). Continuous program: 18W (8), 12W(16)
Impedance (100V Line): 1.7kΩ (6W), 3.3kΩ (3W)
Impedance (70V Line): 830Ω (6W), 1.7kΩ (3W), 3.3kΩ (1.5W)
Impedance (25V Line): 830Ω (0.75W), 1.7kΩ (0.4W), 3.3kΩ (0.2W)
Low (Adjustable): 16Ω, 8Ω
Sound Pressure Level: 88dB (1W, 1m)
Frequency Response: 65 - 18,000Hz (-10dB), 45 - 20,000Hz (-20dB) at installation in 1/2 free sound field (measured by installing the unit in the center of a ceiling.)
Speaker Component: High frequency: 10cm cone- type
Speaker Component: Low frequency: 10cm cone- type
Mounting Hole: 135mm(maximum ceiling thickness: 37mm)
Input Terminal: Push-in connector (Bridging terminal-2 branch type)
Usable Cable: 600V Vinyl-insulated cable (IV wire or HIV wire), Solid copper wire; 0.8 - 1.6mm (equivalent to AWG No.20 - 15), 7-core twisted copper wire:0.75 - 1.25mm² (equivalent to AWG No.18 - 17)
Baffle: Fire-resistant ABS resin (resin material grade; UL-94 V-0 or its equivalent), black
Rim: Fire-resistant ABS resin (resin material grade; UL-94 V-0 or its equivalent), white, paint
