Engineered for harsh conditions and creativity, Exterior Wash Pro L CTC provides a logical, user-friendly and versatile lighting solution designed to illuminate larger structures and building facades. Featuring external lenses and an optional baffle snoot, this fixture provides configurable beam control. Exterior Wash Pro L CTC offers dedicated color temperature control from 2400K- 6500K. Designed for permanent outdoor installations and backed by a 5-year warranty, this fixture meets rigorous environmental standards.

Product Features

• Logic family of four sizes and lumen packages (S, M, L, XL)
• Compact and slim design
• Extended colour temperature control from 2400K - 6500K
• More than 60 lm/W efficacy
• Narrow beam-angle using high-power LEDs
• Optional baffle snoot
• Externally mounted micro lens diffusers
• RDM and DMX control
• Local diagnostics and focusing via magnetic sensor
• Power and DMX In/Out pre-mounted cables
• Optional Hybrid In/Out cable solution
• Fully weatherized housing (IP66, IK08 and C-5 High corrosion rating)
• 5-year warranty

Product Specifications

Dynamic Effects

• Intensity: 0 - 100 %
• Colour temperature control: 2400K - 6500K

Control and Programming

• Control systems: DMX, RDM
• User interface: Magnetic sensor for local diagnostics and focusing
• Stand-alone control: Up to 20 scenes with individual fade/hold times
• Control resolution: 8-bit DMX control of each colour
• Dimmer Resolution: 16-bit DMX control of intensity
• DMX channels: 3/3 (Standard/Basic)
• DMX compliance: USITT DMX512/1990
• RDM compliance: ANSI/ESTA E1.20
• DMX/RDM Transceiver: Galvanic-isolated RS-485
• Firmware update: Serial upload via DMX link

Optics

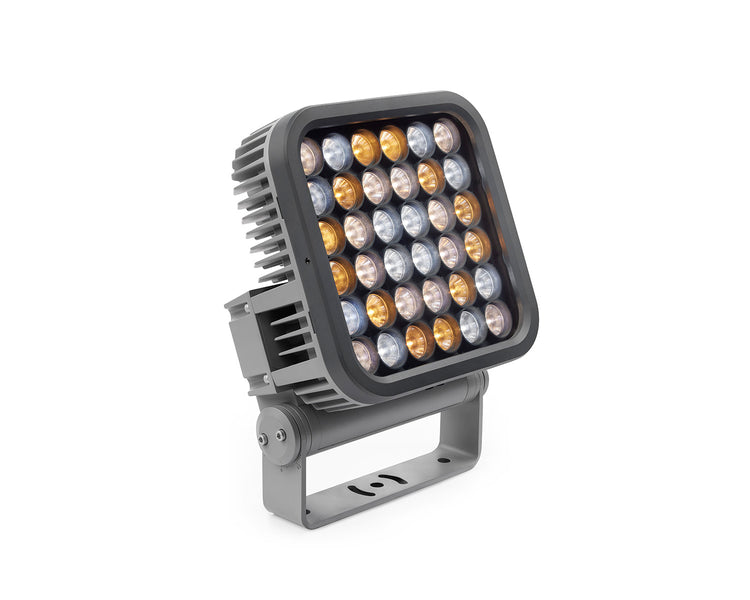

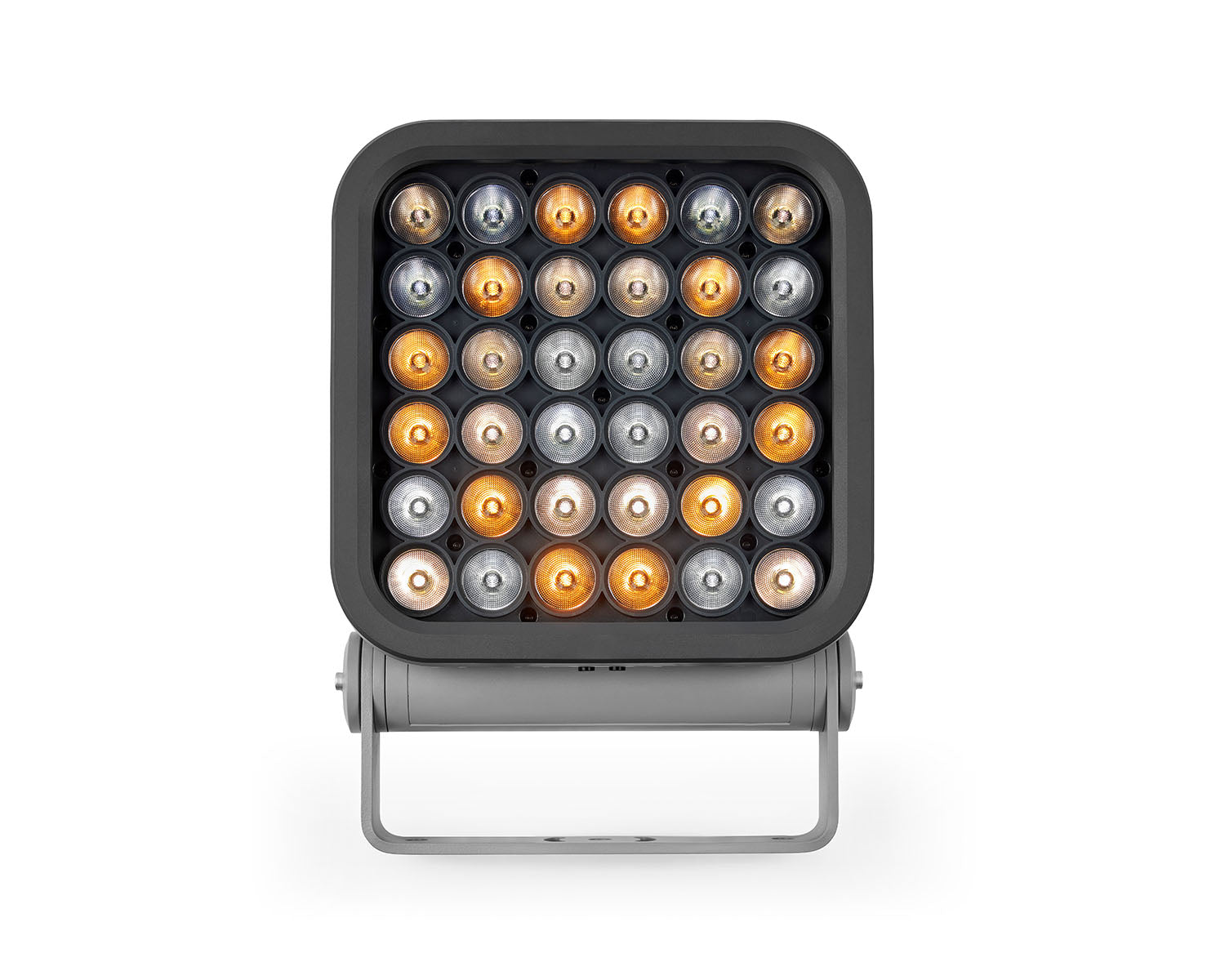

• Light source: 12 x 2400K, 12 x 4000K, 12 x 6500K white colour LEDs
• Minimum LED lifetime: 100 000 hours (to > 70% luminous output)*
• LED manufacturer: Cree
• Binning: Tight colour and flux binning
  • *Figure obtained under manufacturer test conditions at Ta = 25° C.

Beam Angle Options

• Native beam angle: 7°
• Narrow micro lens: 9°
• Medium micro lens: 15°
• Wide micro lens: 30°
• Very Wide micro lens: 50°
• Asymmetric micro lens: 8° x 60°

Photometric Data

• CRI (Colour Rendering Index) : > 70
• CCT: 2400K - 6500K (default 4000K)

Luminous Output*:

• 2400K: 4900 lm
• 4000K: 10500 lm
• 6500K: 7500 lm
  • * All Photometric Data measured in steady state (30 minutes warm-up time) at 25 °C ambient.

Installation

• Mounting: Adjustable bracket
• Orientation: Any
• Minimum distance to illuminated surfaces: 0.1 m (0.3 ft.)

Connections

• Power connection: 2 m (6.5 ft.) cable tail open ended
• Power input cable type, EU models: H07RN-F 3G 1.0 mm², 450/750V, VDE
• Power input cable type, US models: PVC SJTW 3 x 1.31 mm² (16AWG) 105° C 300 V VW-1
• Data connection: 2 m (6.5 ft.) open ended 6-conductor combined input + output cable tail
• Hybrid power/data cables (in & thru) 8-pin custom connectors available on request

Electrical

• AC power: 100 - 240 / 277 V nominal, 50/60 Hz
• Power supply unit: Auto-ranging electronic switch-mode
• Typical half-cycle RMS inrush current: 13 A
• Surge protection: 4 KV
• Max earth leakage: 0.5 mA
• Power factor: 0.99 @ 110 V / 120 V, 0.95 @ 208 V / 230V, 0.92 @ 277 V
• Max current draw: 1.50 A @ 100 V, 1.25 A @ 120 V, 0.65 A @ 230 V, 0.54 A @ 277 V

Power Consumption

• Maximum: 150 W (reduced mode 120W)*
• Idle: 3.5 W*
  • * Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Idle: all LEDs at zero intensity

Thermal

• Cooling: Convection
• Total heat dissipation (calculated, +/- 10%): 512 BTU/hr
• Maximum ambient temperature: 45° C (113° F)*
• Minimum ambient temperature: -30° C (-22° F)**
  • *Above this temperature, the fixture regulates output to protect from overheating.
  • **Power must be maintained below -20° C (-4° F)

Environmental

• RoHS: Compliant
• REACH: Compliant
• WEEE: Compliant
• Proposition 65: Compliant
• Efficacy (max output): 71 lm/W
• LWR*: 847 lm/kg (385 lm/lb)*
  • *LWR = Lumen-to-Weight Ratio
• Packaging: FSC certified cardboard inlay and outer box

Construction

• Housing: Cast Aluminium
• Colour: Traffic grey RAL 7042 - other colours available on request
• Surface treatment: Anodized and electrostatic powder-coated
• Protection rating: IP66
• Effective Projected Area (EPA): 0.097 m² / 0.120 m²
• Impact resistance: IK08
• Corrosion resistance: C5 High (ISO 12944-6)
• Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6), 0,7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)

Physical & Dimensions

• Length: 165 mm (6.49 inch)
• Width: 275 mm (10.83 inch.)
• Height: 370 mm (14.57 inch.)
• Weight: 12.4 kg (27.3 lbs)
