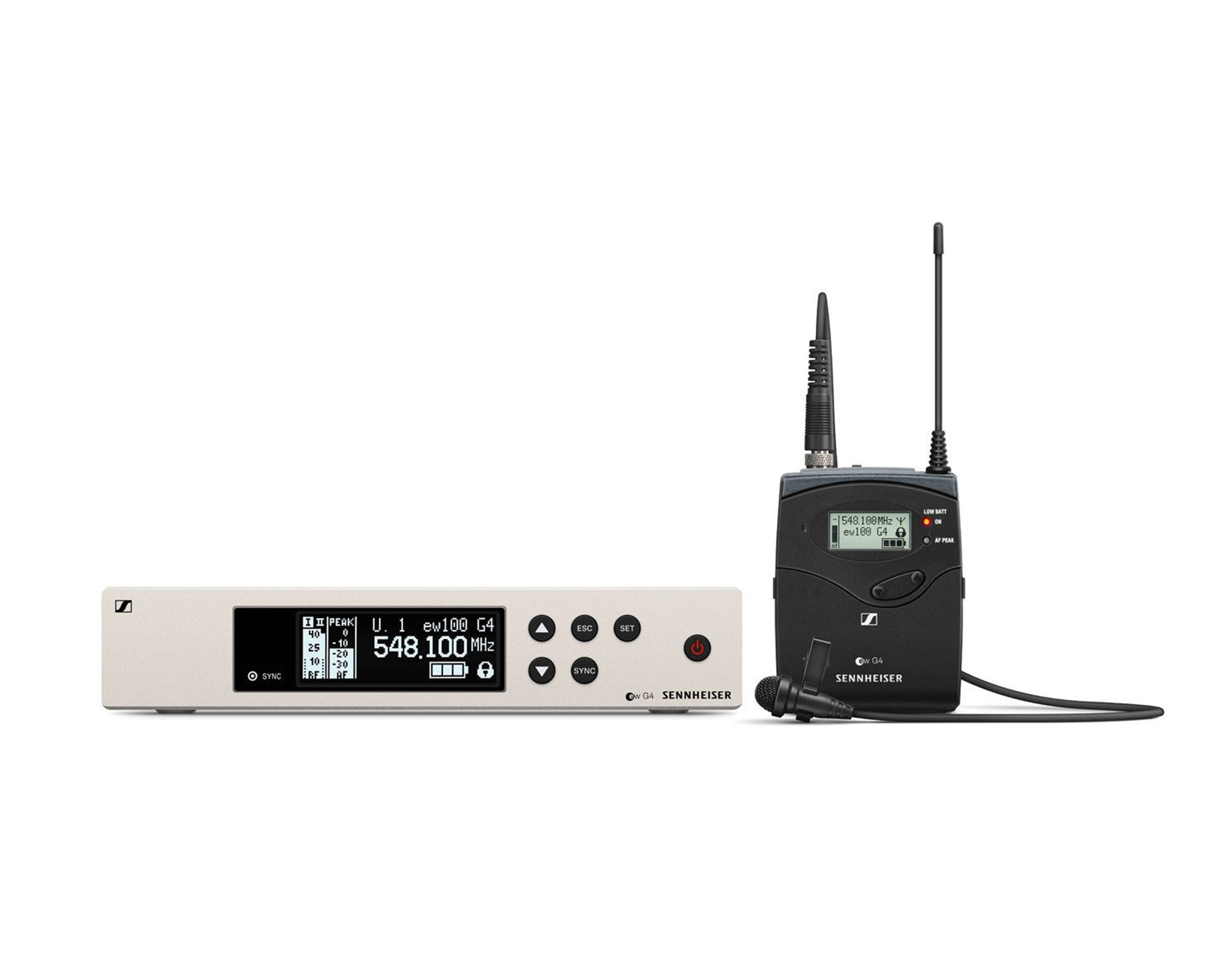

SENEW10021G - Sennheiser EW100 G4 ME2 1G8 Lapel System with ME2 Omni Lapel Mic 1.8GHz Image 1

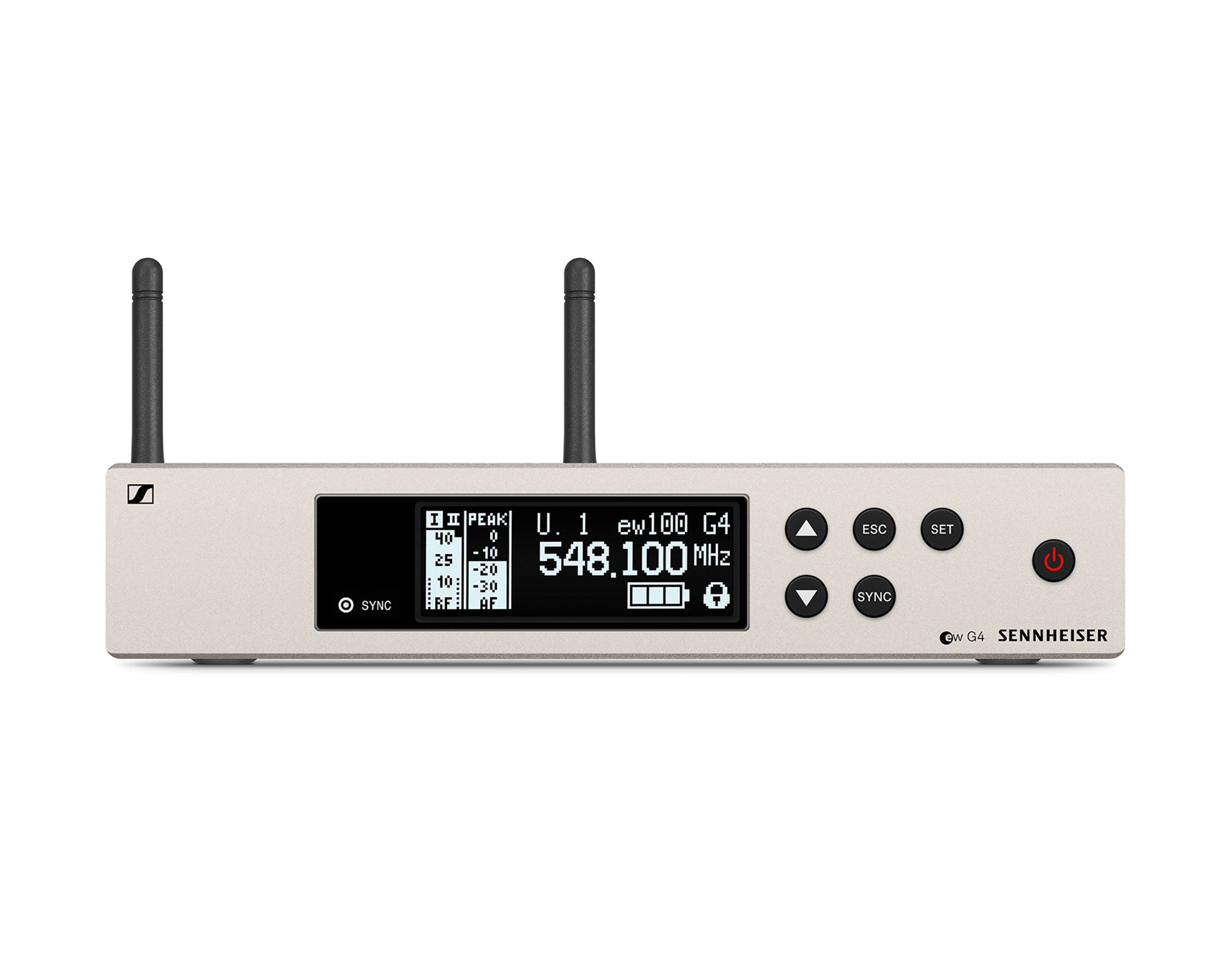

SENEW10021G - Sennheiser EW100 G4 ME2 1G8 Lapel System with ME2 Omni Lapel Mic 1.8GHz Image 2

SENEW10021G - Sennheiser EW100 G4 ME2 1G8 Lapel System with ME2 Omni Lapel Mic 1.8GHz Image 3

SENEW10021G - Sennheiser EW100 G4 ME2 1G8 Lapel System with ME2 Omni Lapel Mic 1.8GHz Image 4

Versatile wireless systems for those who sing, speak or play instruments with up to 42 MHz tuning bandwidth in a stable UHF range and fast, simultaneous setup of up to 12 linked systems.

The perfect choice for moderators and presenters: Robust bodypack transmitter and unobtrousive clip-on microphone ME 2-II (omni-directional) with high speech intelligibility for easy hands-free operation on any stage.

THIS ITEM (NO.507507) OPERATES ON 1G8 (1G8: 1785 - 1800 MHz)

Live stock levels for trade accounts. Shipping cut-off 4pm.

Product Features

Engineered for professional live sound: Rugged all-in-one wireless system for presenters and moderators
Robust bodypack transmitter and unobstrusive clip-on microphone ME 2-II (omni-directional) with high speech intelligibility for daily use on stage
True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
Easy and flexible wireless synchronization between transmitter and receiver via infrared
Fast frequency allocation for up to 12 receivers via new linking functionality
Up to 20 compatible channels
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
Transmission Range: up to 100 meters / 300 feet
High RF output power (up to 30 mW) depending on country regulations

Product Specifications

THIS ITEM (NO.507507) OPERATES ON 1G8 (1G8: 1785 - 1800 MHz)

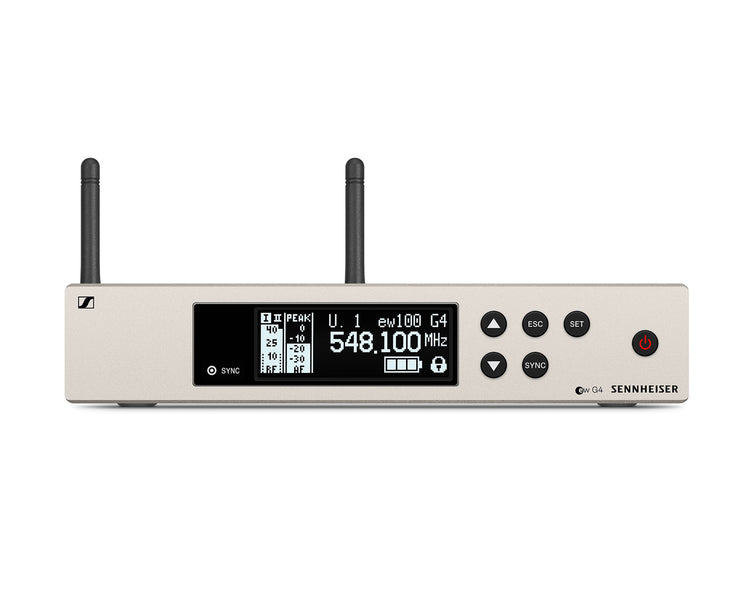

EM 100 G4 - General

Modulation: Wideband FM
Frequency ranges
- A1: 470 - 516 MHz
- A: 516 - 558 MHz
- AS: 520 - 558 MHz
- G: 566 - 608 MHz
- GB: 606 - 648 MHz
- B: 626 - 668 MHz
- C: 734 - 776 MHz
- D: 780 - 822 MHz
- E: 823 - 865 MHz
- JB: 806 - 810 MHz
- K+: 925 - 937.5 MHz
- 1G8: 1785 - 1800 MHz
Receiving frequencies
- Max. 1680 receiving frequencies, adjustable in 25 kHz steps
- 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
- 1 frequency bank with up to 12 programmable channels
Switching bandwidth: up to 42 MHz
Nominal/peak deviation: ±24 kHz / ±48 kHz
Receiver principle: True diversity
Sensitivity (with HDX, peak deviation): < 2.5 μV for 52 dBA eff S/N
Adjacent channel selection: Typically ≥ 65 dB
Intermodulation attenuation: Typically ≥ 65 dB
Blocking: ≥ 70 dB
Squelch
- low: 5 dBμV
- middle: 15 dBμV
- high: 25 dBμV
Pilot tone squelch: Can be switched off
Antenna inputs: 2 BNC sockets
Compander system: Sennheiser HDX
EQ presets (switchable, act on line and monitor outputs)
- Preset 1: Flat
- Preset 2: Low Cut (-3 dB at 180 Hz)
- Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
- Preset 4: High Boost (+6 dB at 10 kHz)
Signal-to-noise ratio (1 mV, peak deviation): ≥ 110 dBA
Total harmonic distortion (THD): ≤ 0.9 %
AF output voltage (at peak deviation, 1 kHz AF)
6.3 mm jack socket (unbalanced): +12 dBu
XLR socket (balanced): +18 dBu
Setting range “AF Out”: 48 dB (3 dB steps)
Temperature range -10 °C to +55 °C
Power supply 12 V DC
Current consumption 300 mA

EM 100 G4 - Physical & Dimensions

Height: 43mmm
Width: 212mm
Depth: 190mm
Weight: 980g

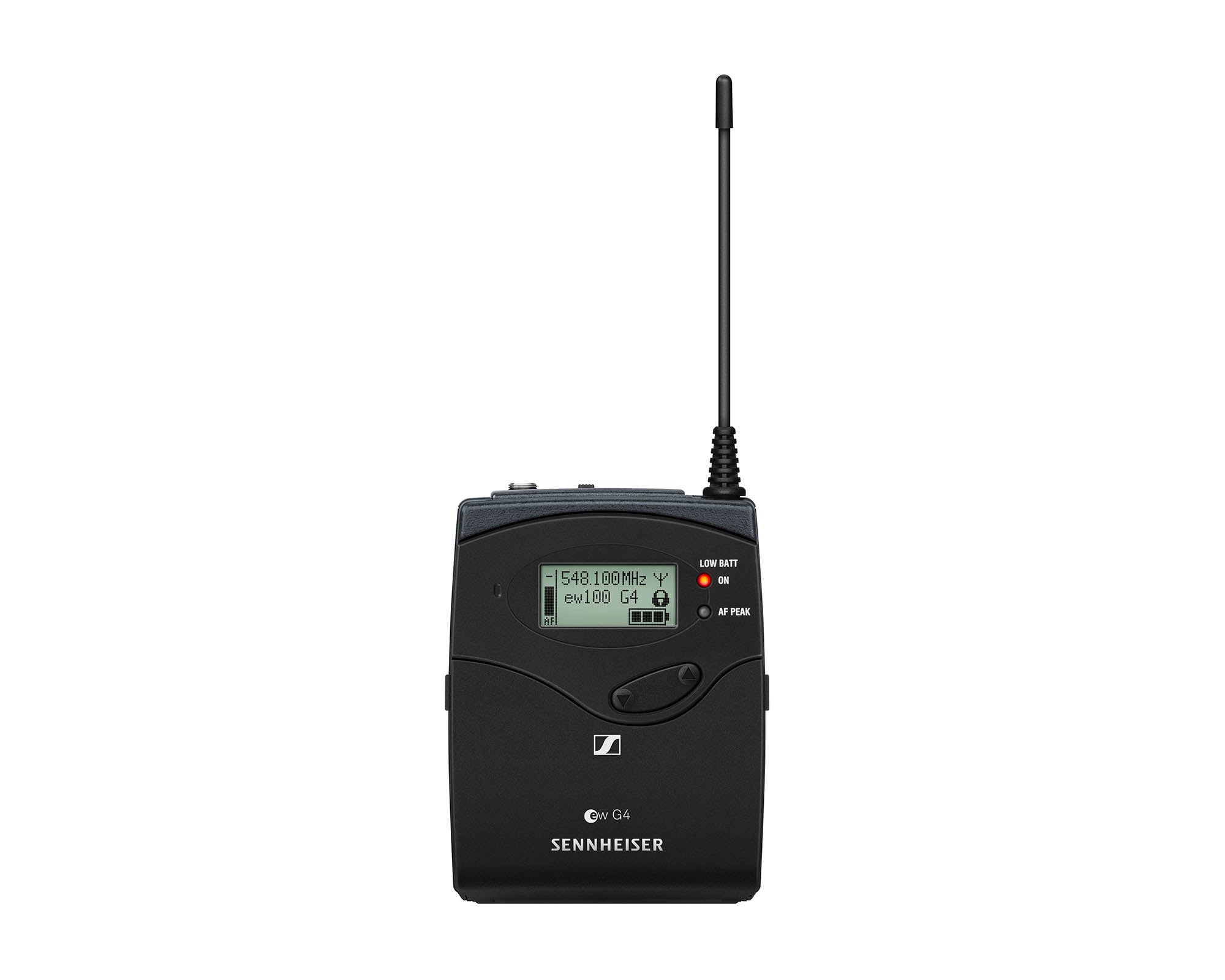

SK 100 G4 - General

Modulation: Wideband FM
Frequency ranges
- A1: 470 - 516 MHz
- A: 516 - 558 MHz
- AS: 520 - 558 MHz
- G: 566 - 608 MHz
- GB: 606 - 648 MHz
- B: 626 - 668 MHz
- C: 734 - 776 MHz
- D: 780 - 822 MHz
- E: 823 - 865 MHz
- JB: 806 - 810 MHz
- K+: 925 - 937.5 MHz
- 1G8: 1785 - 1800 MHz
Transmission frequencies
- Max. 1680 receiving frequencies, adjustable in 25 kHz steps
- 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
- 1 frequency bank with up to 12 programmable channels
Switching bandwidth: up to 42 MHz
Nominal/peak deviation: ±24 kHz / ±48 kHz
Frequency stability: ≤ ±15 ppm
RF output power at 50 Ω: Max. 30 mW
Pilot tone squelch: Can be switched off
Compander system: Sennheiser HDX
AF frequency response
- Mic: 80 – 18,000 Hz
- Line: 25 – 18,000 Hz
Signal-to-noise ratio (1 mV, peak deviation): ≥ 110 dBA
Total harmonic distortion (THD): ≤ 0.9 %
Max. microphone/line input voltage: 3 Veff
Microphone/line input impedance: 40 kΩ, unbalanced / 1 MΩ
Input capacitance: Switchable
Setting range for input sensitivity: 60 dB, adjustable in 3 dB steps
Temperature range: -10 °C to +55 °C
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Nominal voltage: 3 V battery / 2.4 V rechargeable battery
Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA
Operating time Typically: 8 h

SK 100 G4 - Physical & Dimensions

Height: 82mm
Width: 64mm
Depth: 24mm
Weight: 160g

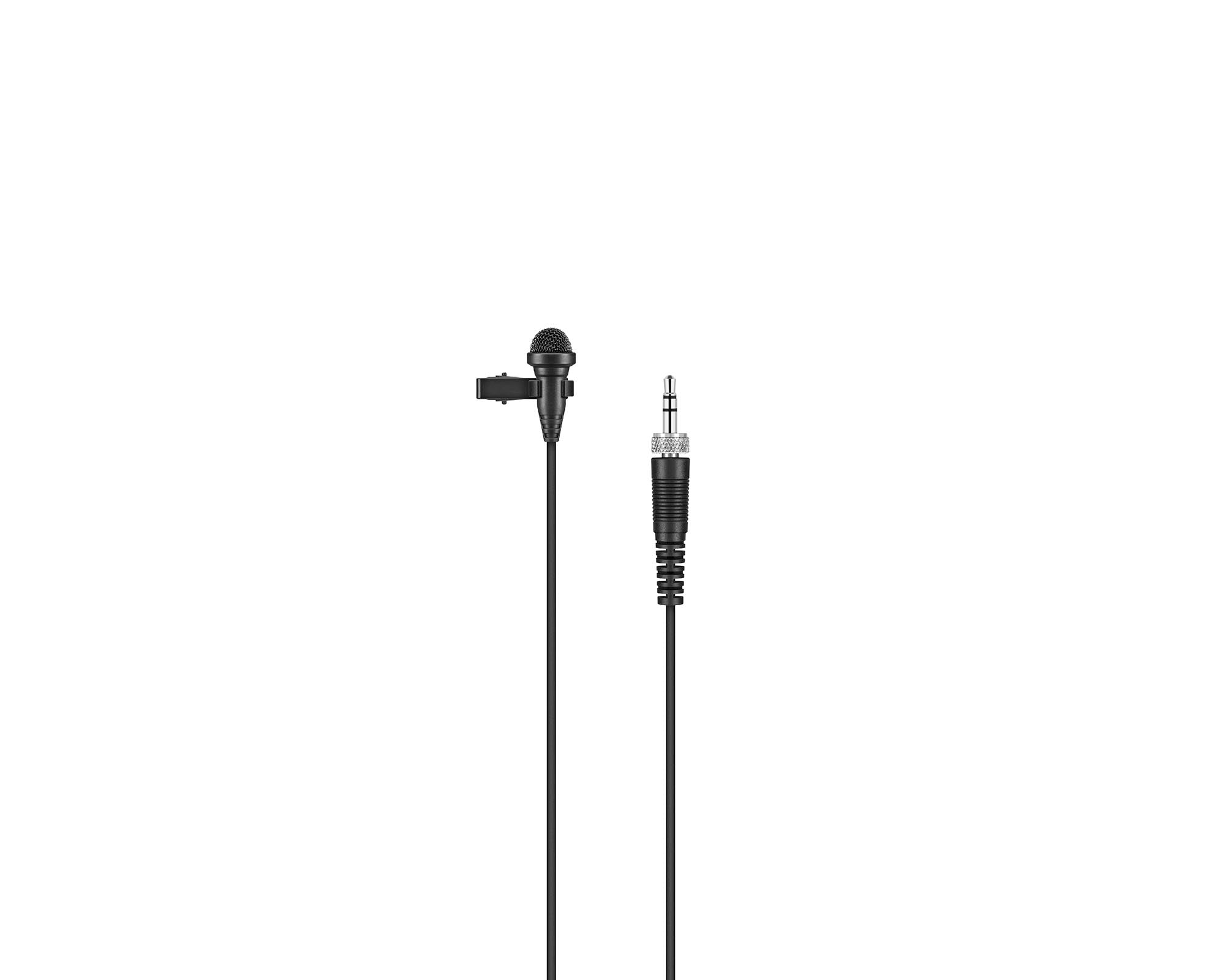

ME 2 - General

Transducer principle: pre-polarized condensor microphone
Pick-up pattern: omni-directional
Sensitivity (free field, no load) (1 kHz): 20 mV/Pa
Max. SPL at 1 kHz: 130 dB
Frequency response:
- "50 to 18,000 Hz (ME 2-II) 30 to 20,000 Hz (ME 2-US)"
- "Equivalent noise level A-weighted (DIN IEC 651)": 36 dB
Connector: 3.5 mm jack
Cable length: approx. 1.60 m
Supply voltage: 7.5 V
