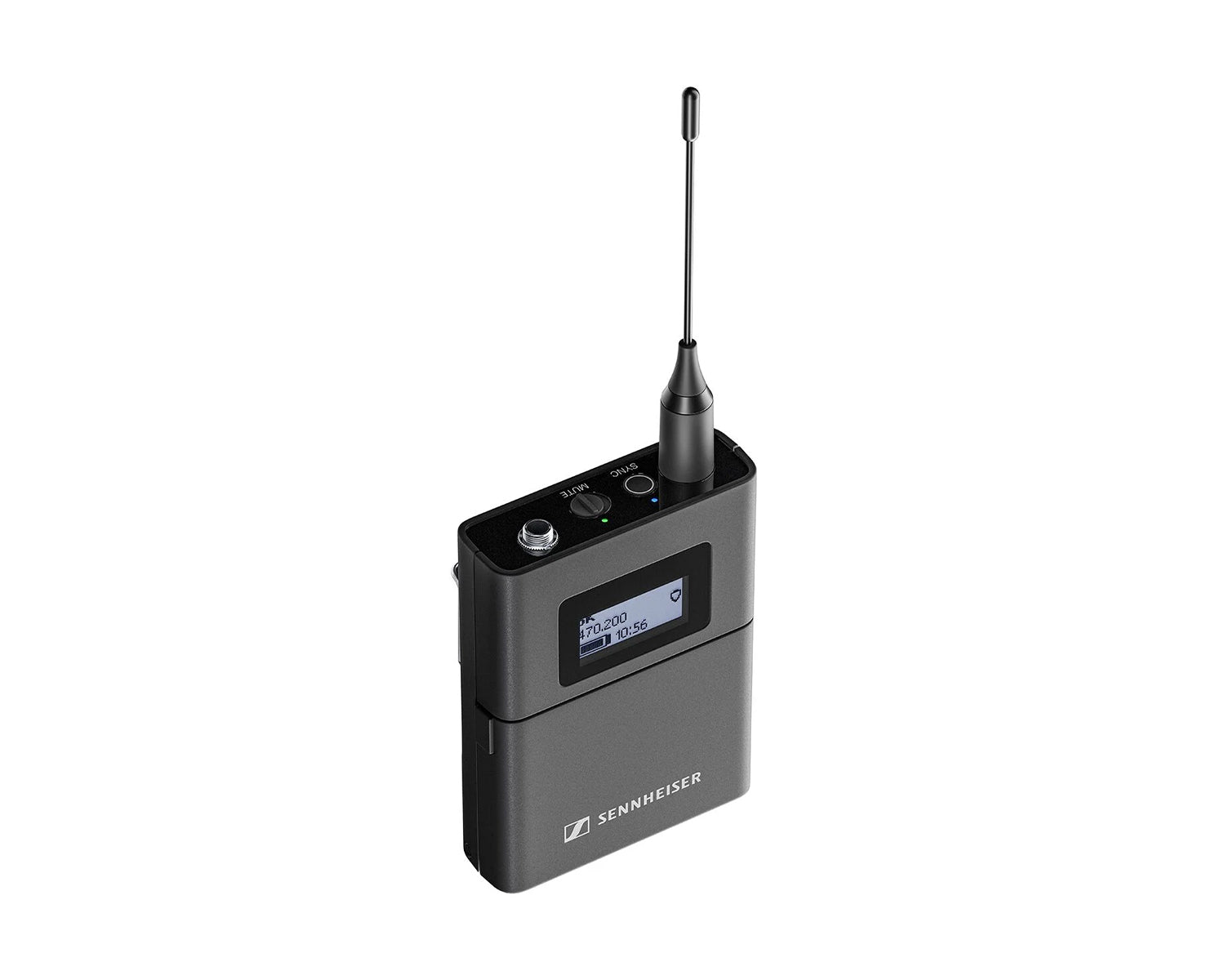

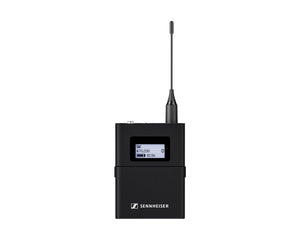

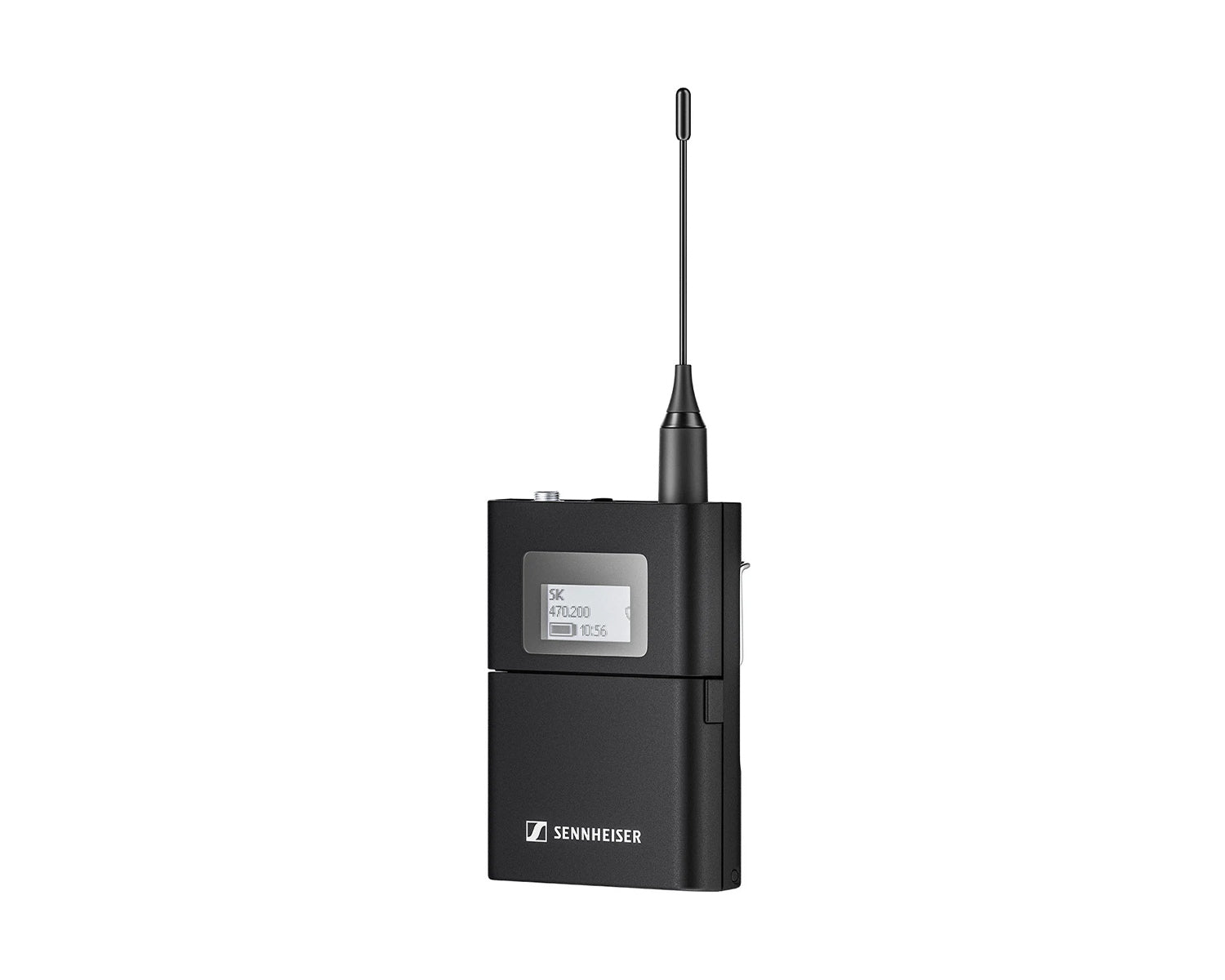

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. This bodypack transmitter is compatible with a wide range of Sennheiser headset microphones and clip-on/lavalier microphones.

Live stock levels for trade accounts. Shipping cut-off 4pm.

Product Features

• 3,5 mm jack
• 10mW RF power with up to 100m/328ft working range
• Charging contacts for in-device charging with CHG 70N
• Persistent eInk display - parameters visible on screen even when device is not powered on
• Programmable mute switch - customize the device depending on your professional needs
• Extended runtime with lithium ion batteries - up to 12 hours operation time
• Mic input trim control
• Metal housing

Product Specifications

• Audio link frequency ranges:
  • Q1-9: 470.2 - 550 MHz
  • R1-9: 520 - 607.8 MHz
  • S1-10: 606.2 - 693.8 MHz
  • S2-10: 614.2 - 693.8 MHz
  • S4-10: 630 - 693.8 MHz
  • U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
  • V3-4: 925.2 - 937.3 MHz
  • V5-7: 941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65 MHz
  • X1-6: 1350.2 - 1398.8 MHz
  • X9-18: 1435.2 - 1524.8 MHz
  • Y1-3: 1785.2 - 1799.8 MHz
• Bluetooth® Low Energy (BLE) frequency range: 2402 - 2480 MHz
• Audio frequency response: 20 Hz - 20 kHz (-3 dB)
• Audio THD:
  • ≤ -60 dB for 1 kHz
  • @ -3 dBfs input level
• Dynamic range: 134 dB
• System latency: 1.9 ms
• Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
• Relative humidity: 5 - 95 % (non-condensing)
• Input voltage: 2.0 - 4.35 V
• Input current: < 300 mA

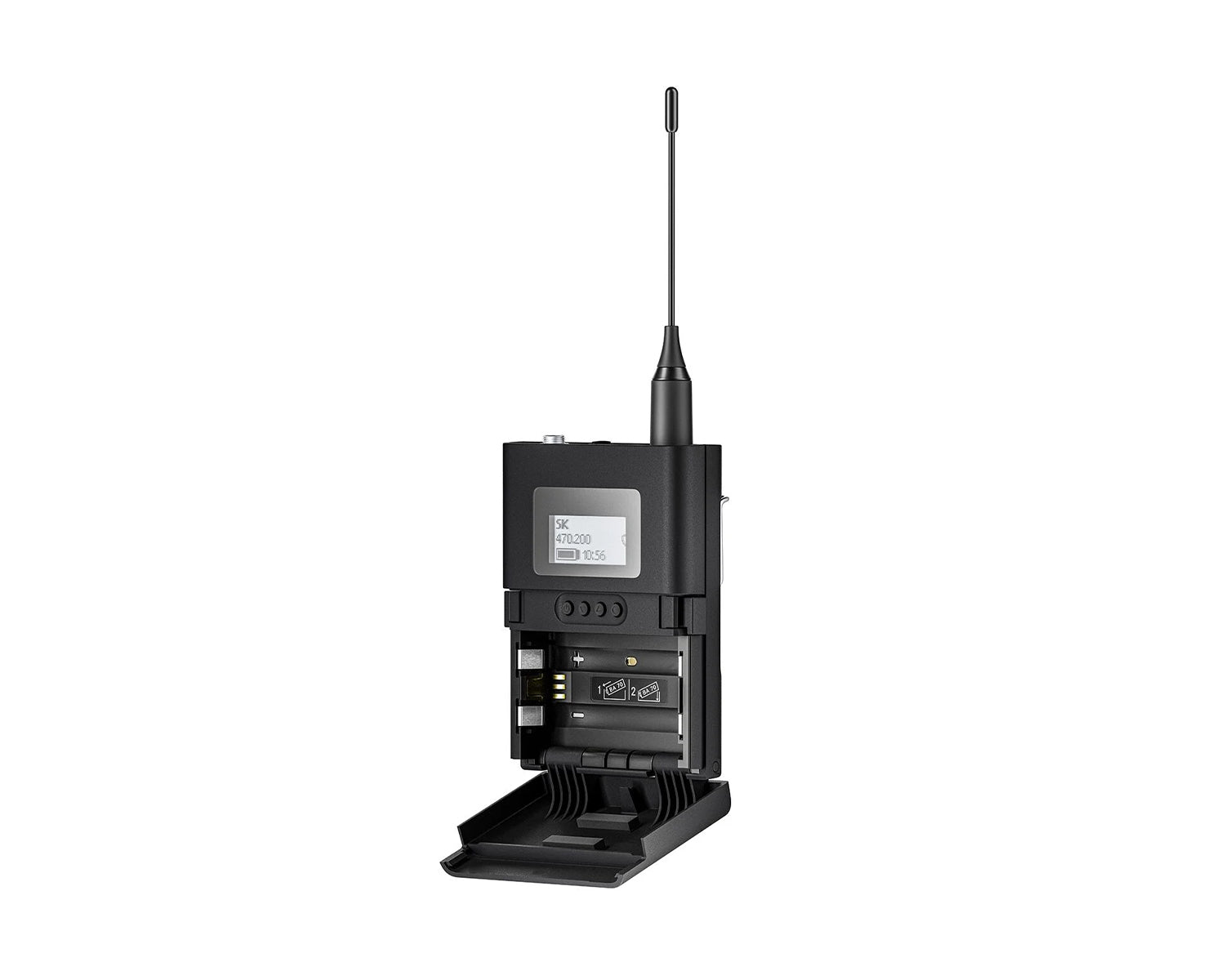

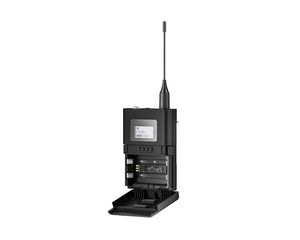

• Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
• Occupied bandwidth: 200 kHz
• Transmit power (radiated):
• Audio link: 10 mW ERP
• (Range Y1-3: 12 mW ERP)
• LD mode: 10 mW ERP
• BLE: max. 10 mW EIRP
• Dimensions (without antenna): 63.5 x 85 x 20 mm (2.5" x 3.35" x 0.79")
• Weight (without batteries): approx. 115-120 g (0.26-0,27 - lbs)

What's in the Box?

• EW-D SK bodypack transmitter

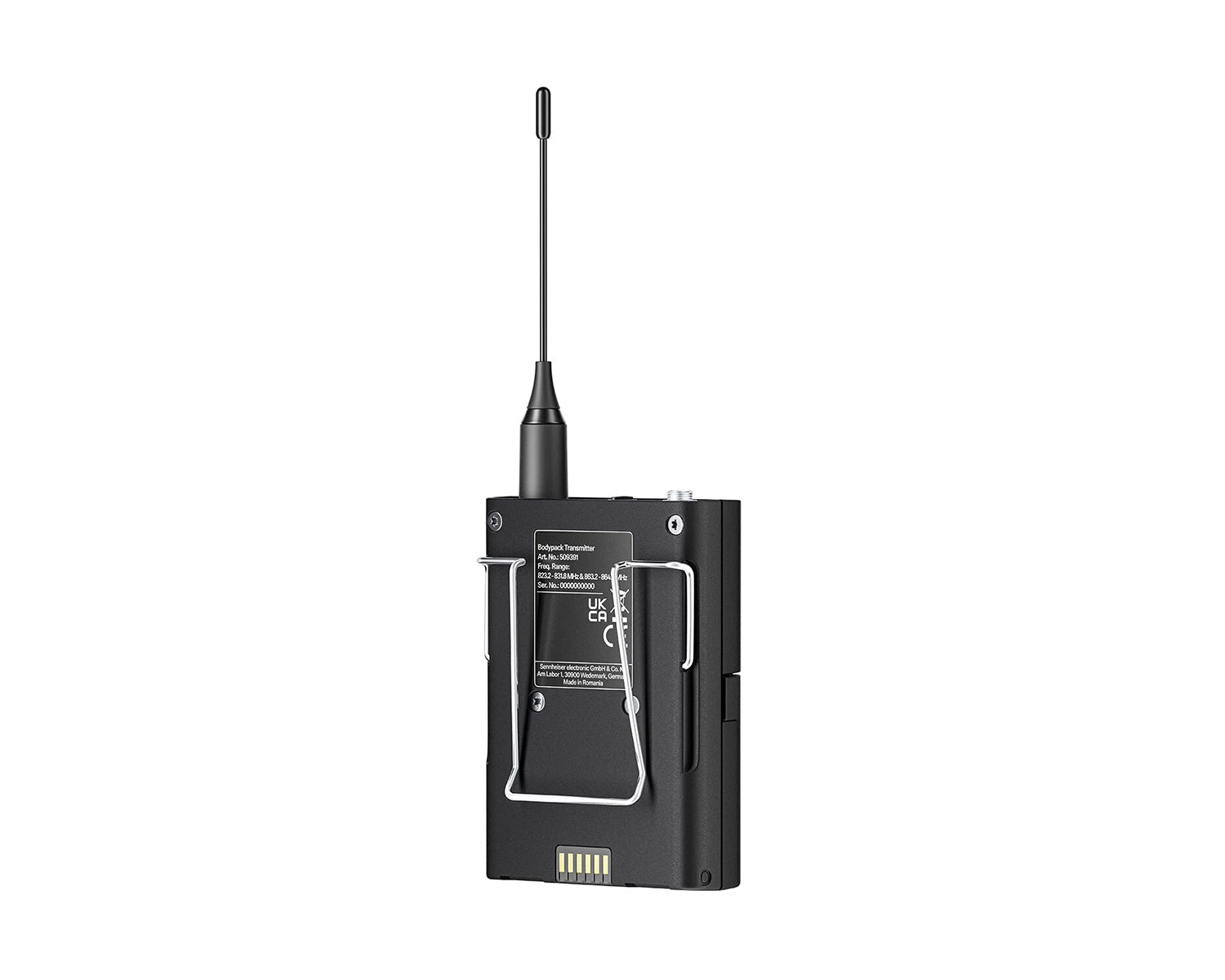

• Belt clip
• 2 Batteries (AA)
