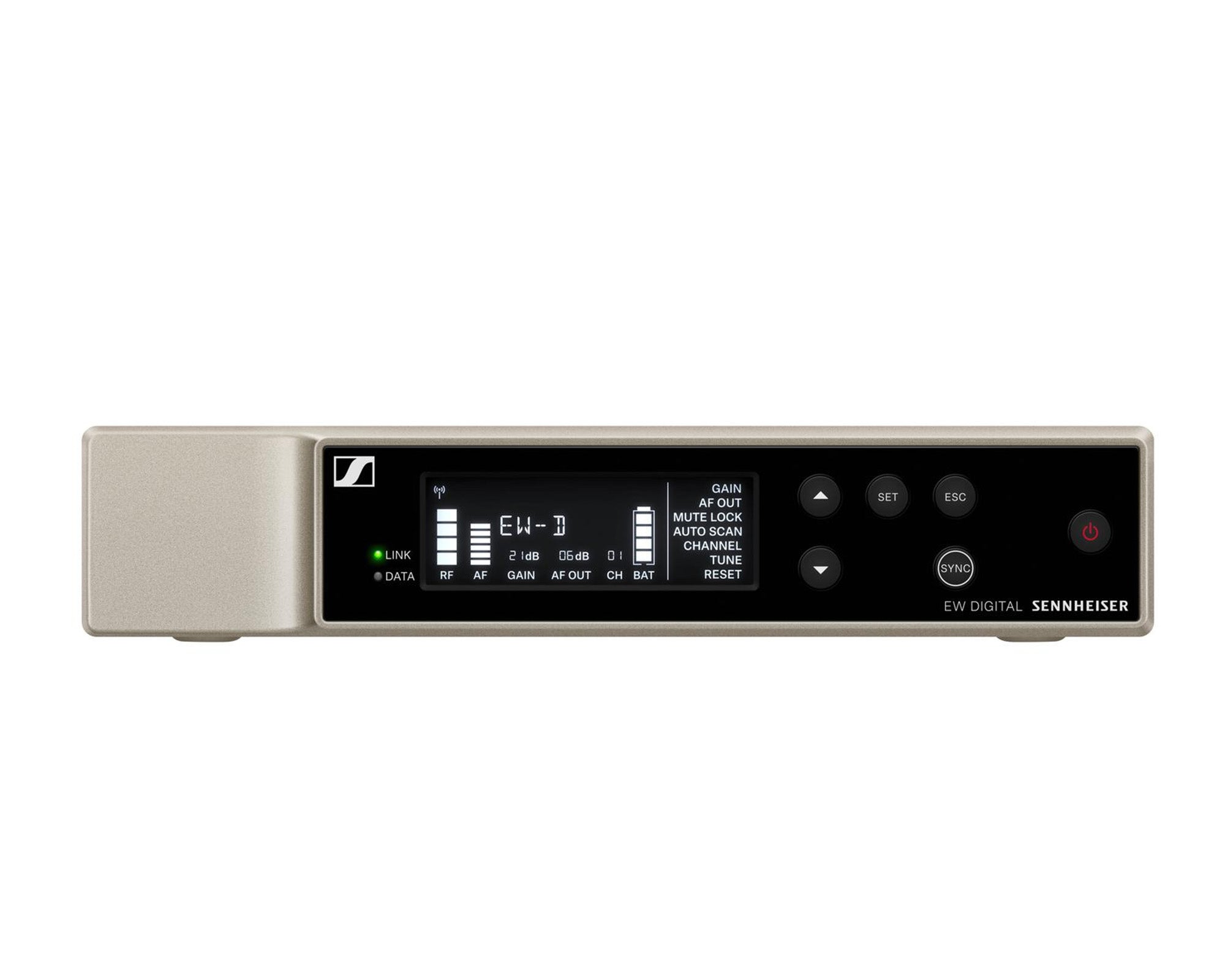

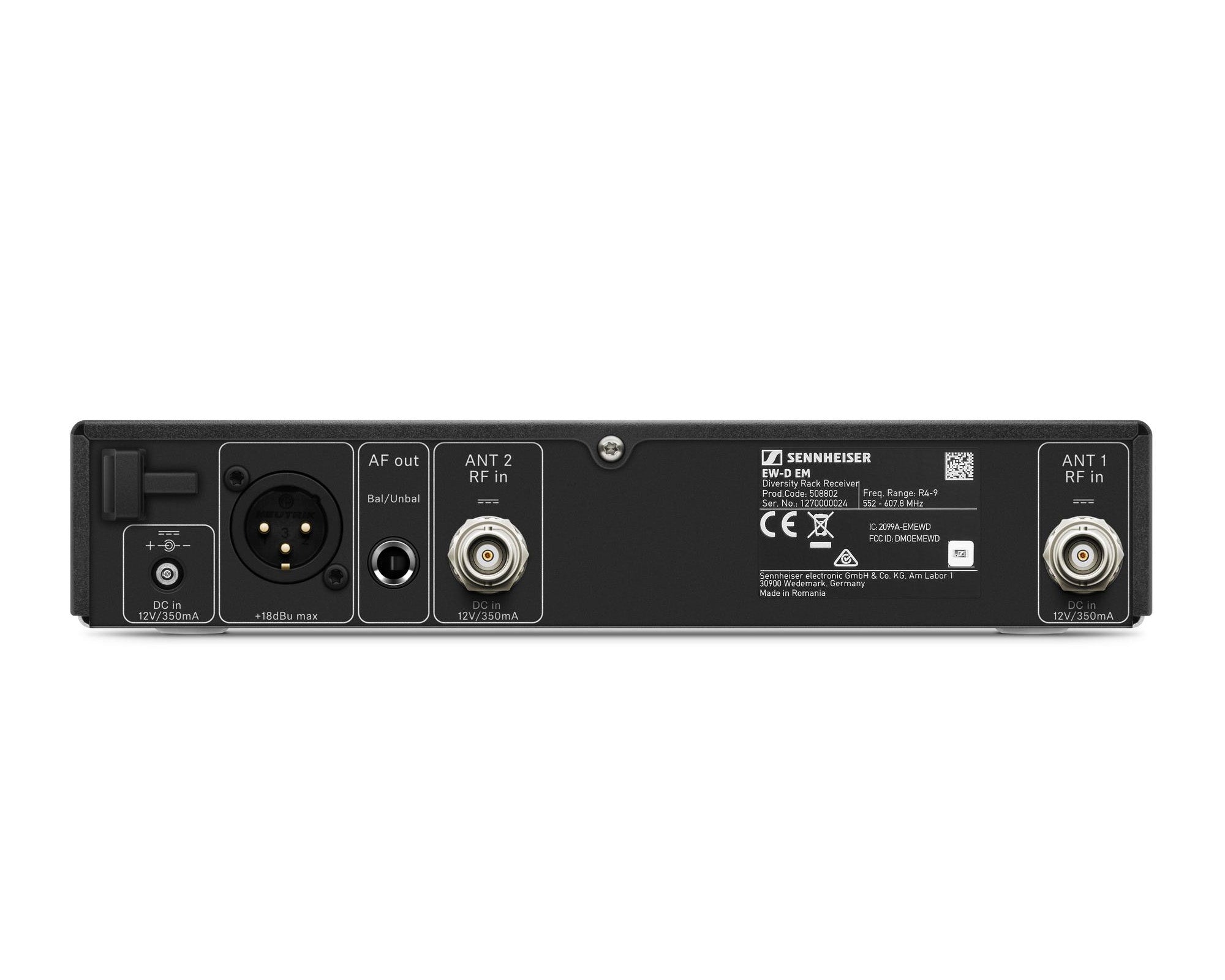

1/2 19" rack receiver for use with Evolution Wireless Digital handheld and bodypack transmitters.

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound.

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Live stock levels for trade accounts. Shipping cut-off 4pm.

Product Features

• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
• Auto scan creates reliable connections with minimal time and effort
• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
• 2,240 selectable frequencies allow for fine tuning
• Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Product Specifications

• Frequency ranges: Y1-3 1785.2 - 1799.8 MHz
• Input voltage: 11 - 13 V ⎓
• Input current: ≤ 300 mA
• Transmit power (radiated): BLE: max. 10 mW EIRP
• Audio output power: 18 dBu max.
• HD, total harmonic distortion: ≤ -60 dB for 1 kHz @ -3 dBfs input level
• Operating relative humidity: 5 - 95 % (non-condensing)
• Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
• Dimensions: 212 x 44 x 189 mm
• Weight approx.: 1000 g (without antennas and power supply)

What's in the Box?

• EW-D EM rack receiver
• 2 rod antennas
• Power supply with country adapters
• Rackmount set
• 4 rubber feet
• Quick guide
• Safety guide
• Manufacturer declaration sheet
