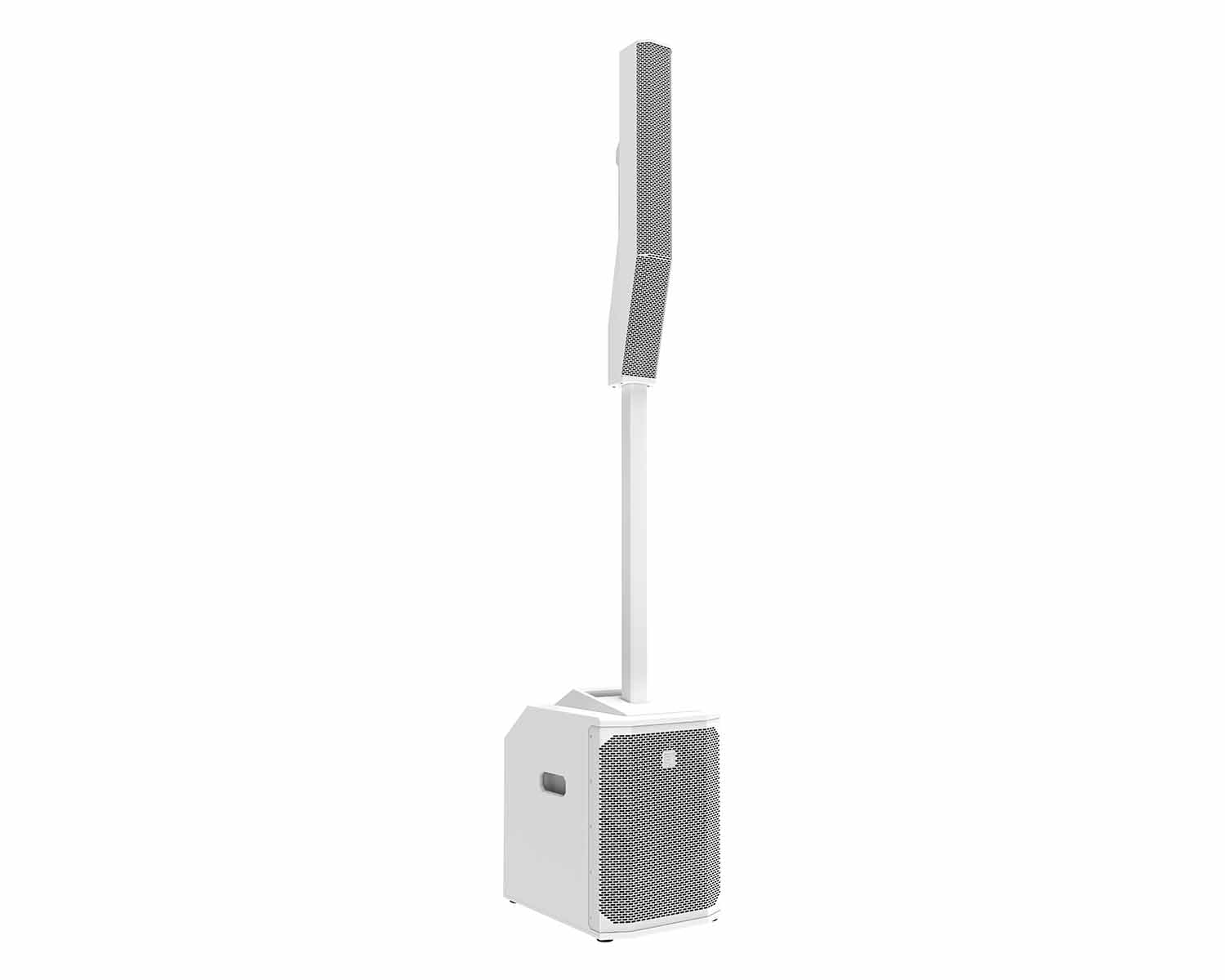

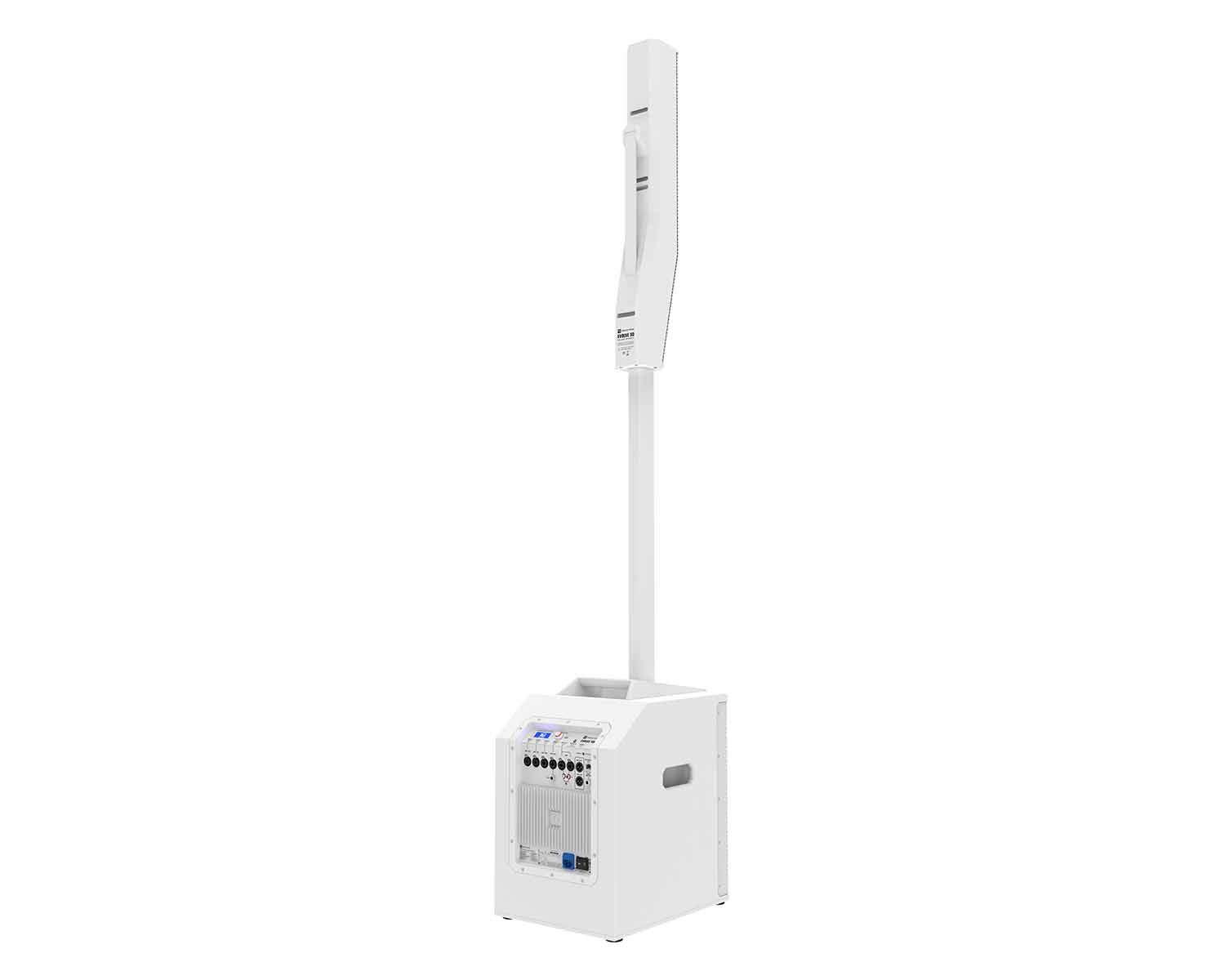

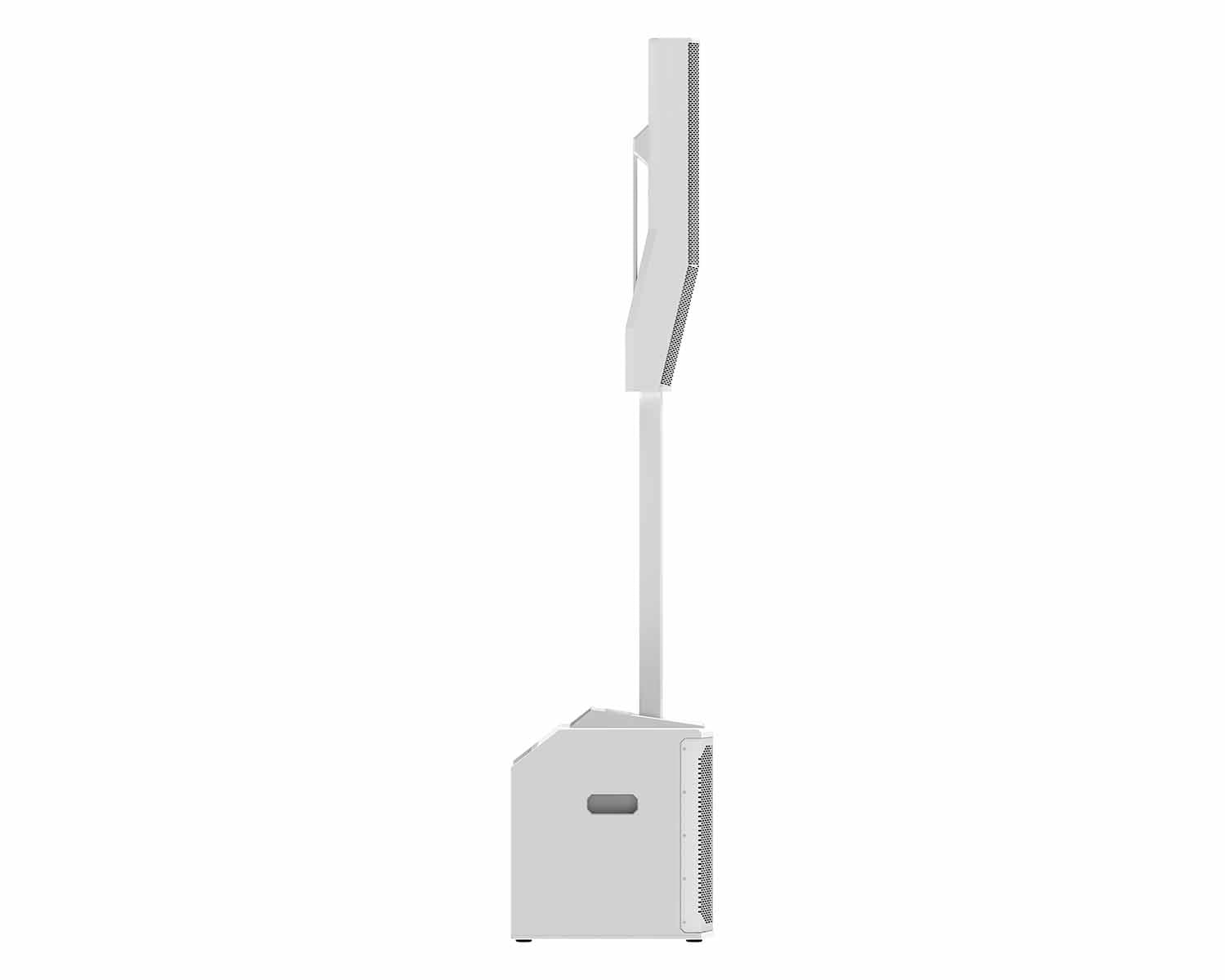

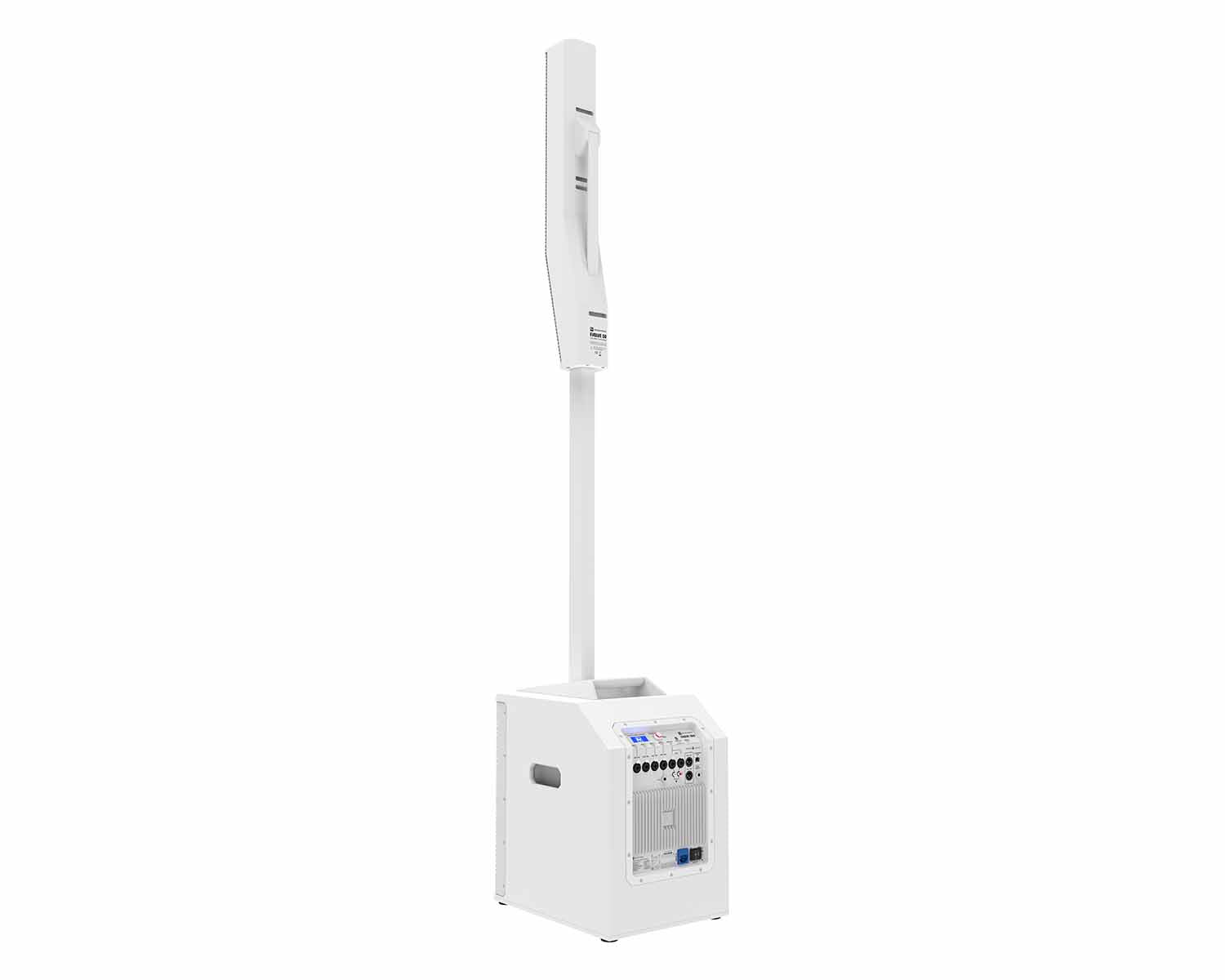

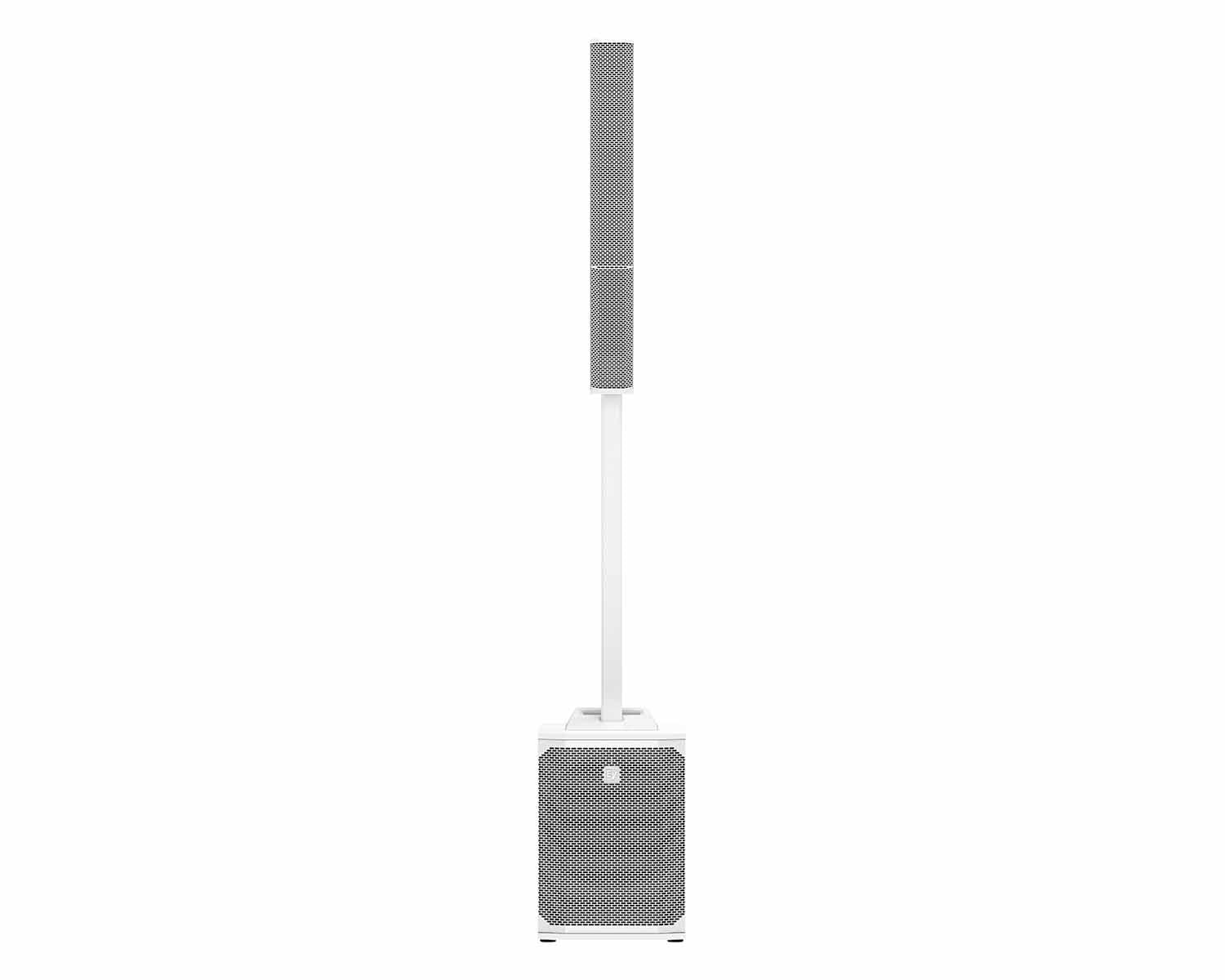

Electro-Voice is expanding its industry-leading EVOLVE series with the launch of the EVOLVE 50M column loudspeaker system. The EVOLVE 50M features ElectroVoice’s new QuickSmart Link digital audio and control technology, an onboard mixer, DSP and effects - all combined within the sleek EVOLVE 50 format. The EVOLVE 50M is the perfect choice for bands/musicians, AV rental companies, DJs and any application where true professional audio performance is required in a super-compact and portable package.

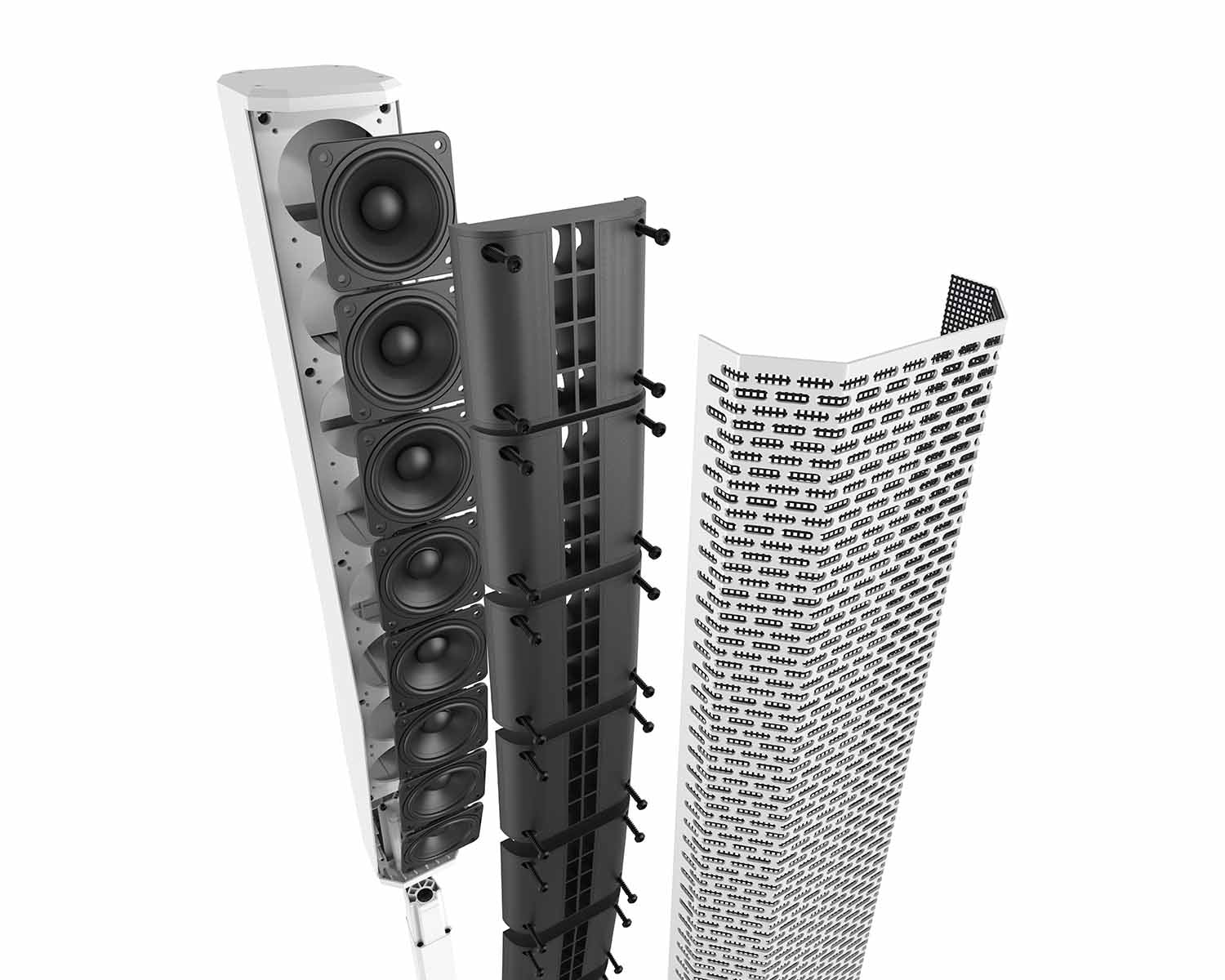

Available in black or white finishes, the EVOLVE 50M combines state-of-the-art industrial design, superior Electro-Voice-engineered components and premium materials to deliver best-in-class sound quality, power and reliability. The full-range column array and its eight lightweight 3.5” neodymium drivers provide ultra-wide, full-bandwidth 120° coverage via proprietary waveguides; array-formed 40° asymmetrical vertical coverage ensures acoustic output is directed towards both sitting and standing audience members. The array enclosure is constructed from a durable composite material and incorporates an ergonomic aluminium handle. A 12” subwoofer is housed in a 15 mm wood enclosure with a high-efficiency laminar-flow vent design, for enhanced rigidity and acoustical performance. The array and sub are connected via a symmetrical aluminium pole with internal wiring and magnetically assisted latching. The speakers are protected by a black powder-coated 18-gauge steel grille, and an array/pole carry case is included. An advanced Class-D amplifier provides up to 1000 W of power.

Product Features

• The EVOLVE 50M joins the EVOLVE 50 and EVOLVE 30M in the award-winning EVOLVE series - globally recognised as the benchmark for performance in column systems
• Professional performance, column convenience - superior Electro-Voice-engineered components and premium materials deliver best-in-class sound quality, power and reliability
• No need to bring additional gear to the gig - onboard eight-channel digital mixer with prograde preamps and studio-quality effects
• Easily expand your PA - use QuickSmart Link to connect two EVOLVE 50Ms via a network cable - double your mic/line inputs and mix the whole band via the QuickSmart Mobile app
• The EVOLVE 50M features ElectroVoice’s new QuickSmart Link digital audio and control technology, an onboard mixer, DSP and effects - all combined within the sleek EVOLVE 50 format
• Perfect choice for bands/musicians, AV rental companies, DJs and any application where true professional audio performance is required in a super-compact and portable package.

Product Specifications

General

• Frequency response (-3 dB)1: 43 Hz to 20 KHz
• Frequency range (-10 dB)1: 37 Hz to 20 KHz
• Maximum SPL2: 127 dB
• Coverage (H x V): 120° x 40°
• Amplifier rating: 1000 W
• LF channel rating: 500 W
• HF channel rating: 500 W
• Crossover frequency: 200 Hz

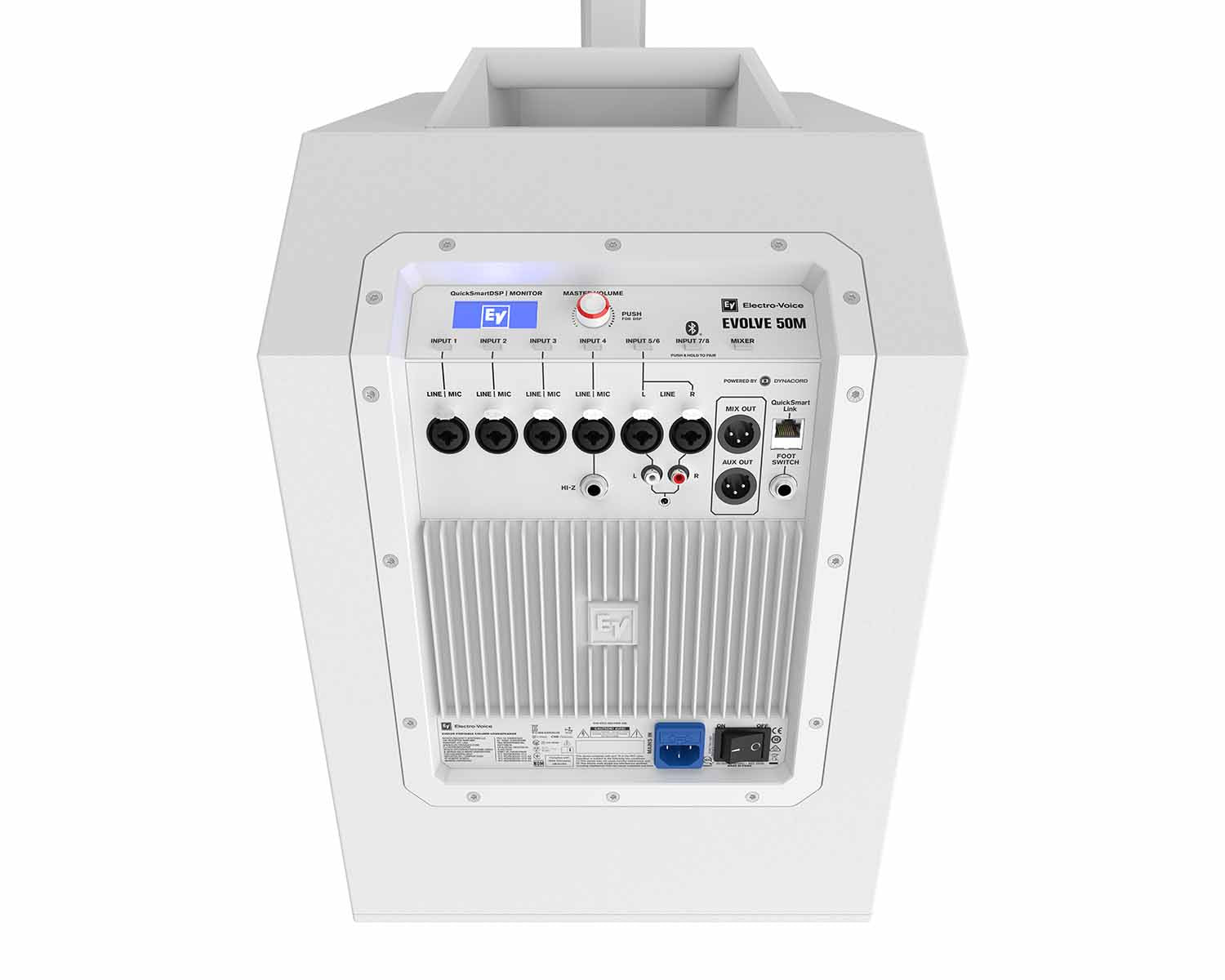

• Connectors:
  • 4x XLR/TRS Combo Jack Line / Mic Input
  • 1x 1/4" TRS HI-Z input
  • 2x XLR/TRS Combo Jack for Stereo Line Input
  • 1x Stereo RCA Input
  • 1x 3.5 mm Stereo Input
  • 1x Wireless Stereo Bluetooth® Audio Input
  • 1x 1/4" Foot Switch Input
  • 1x XLR MIX OUT Output
  • 1x XLR AUX OUT Output
  • 1x RJ45 QuickSmart-Link connector
• Frequency Band: 2402 MHz to 2480 MHz
• Transmitter Power: EIRP:4.8 dBm
• Power consumption3: 100-240 V AC, 50-60 Hz, 1.5-0.6 A

Physical

• Materials
  • Enclosure: Sub: 15 mm plywood
  • Column: Composite
  • Pole: Aluminium
  • Grille: Steel with black or white powder coat
• Colour: Black or white
• Dimensions
  • Dimensions (HxWxD) - mm (in)
    • Subwoofer: 530 x 345 x 471 (20.9 x 13.6 x 18.5)
    • Column: 825 x 102 x 172 (32.5 x 4.0 x 6.9)
    • Sub pole: 929 x 48.5 x 55 (36.6 x 1.9 x 2.2)
  • Assembled dimensions (HxWxD) - mm (in): 2045 x 345 x 471 (80.5 x 13.6 x 18.5)
• Weight
  • Net weight: Subwoofer: 20.3 kg (44.66 lb)
  • Column: 4.7 kg (10.34 lb)
  • Pole: 1.25 kg (2.75 lb)
  • Subwoofer cover: 0.4 kg (0.9 lb)
  • Bag for column and pole: 0.85 kg (1.87 lb)
• Shipping Weight
  • Shipping weight (sub box): 23 kg (50.71 lb)
  • Shipping weight (column box): 8.3 kg (18.30 lb)

1 - Half-space measurement using live DSP preset.

2 - Maximum SPL is measured at 1 m using broadband pink noise at maximum output.

3 - Current rating is 1/8 power.
