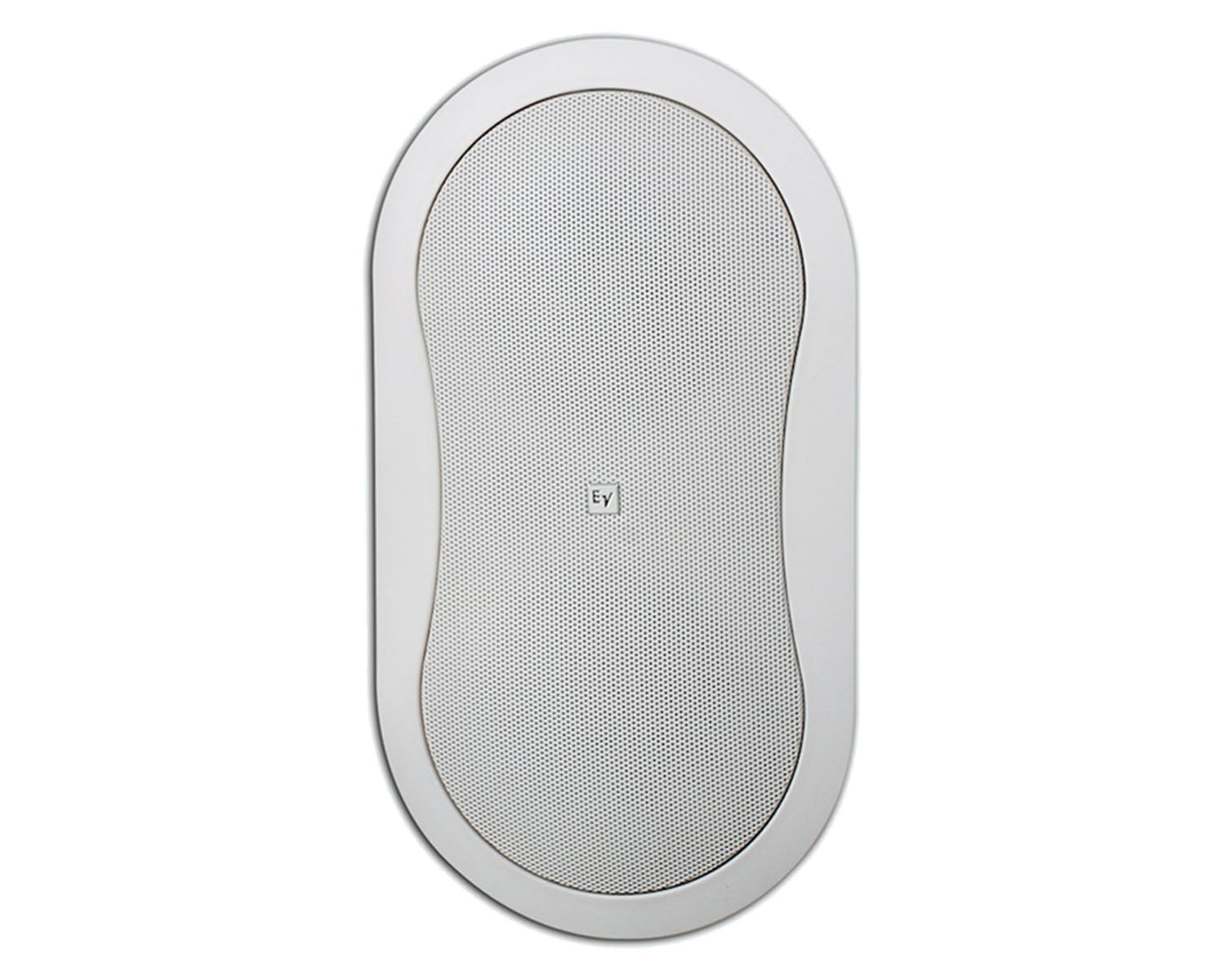

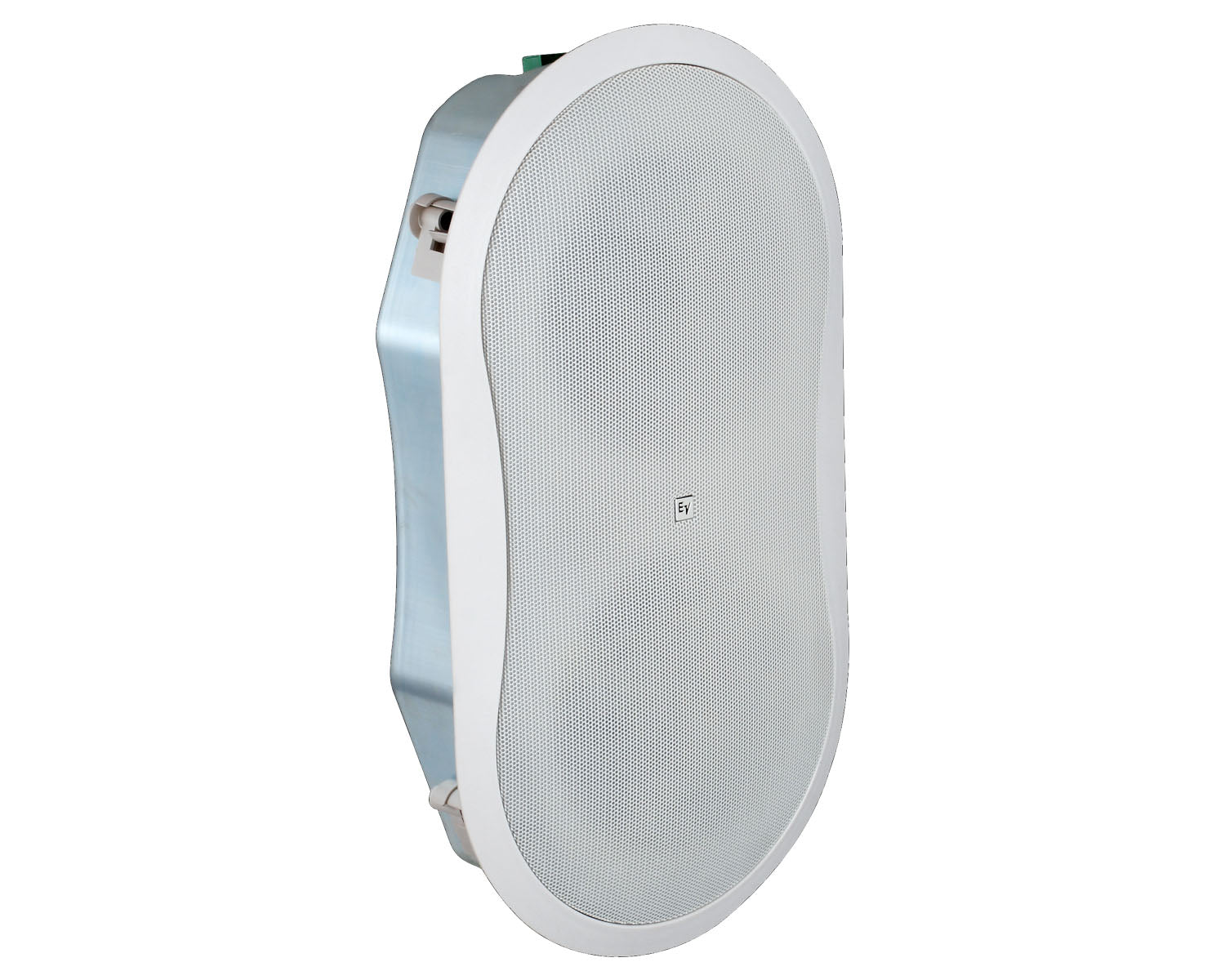

The Electro-Voice EVID FM6.2 loudspeaker system is a complete twoway in-wall loudspeaker package. The package consists of a bezel assembly, grille, rear enclosure, 6.5 inch two-way loudspeaker coupled with a 6.5 inch passive radiator and an internal line-matching transformer. The loudspeaker features 6.5 inch low-frequency cone and high-temperature voice-coil assembly along with a 6.5 inch long excursion passive radiator and titanium coated dome tweeter. The EVID FM6.2 loudspeaker utilises a crossover network, centered at 3,300 Hz, that provides 16-dB-peroctave tweeter protection outside of its operating range. In addition the FM6.2 features a comprehensive protection circuit to shield the woofer and tweeter drivers from excessive power levels.

Product Features

• Shallow profile, ideal for tight wall or ceiling spaces
• Tuned passive radiator extends bass, enhances performance
• High quality 1-inch titanium dome tweeter
• Full-bandwidth overload protection
• 70 V, 100 V, and 8 ohms operation in the same model for off-the-shelf versatility
• Front-panel mode/wattage selector
• Fully-sealed enclosure provides superior isolation to protect adjacent rooms
• Secure Phoenix-style pass-through connectors for easy wiring and installation.
• Four point “quick mounting” tabs for fast attachment in any wall cavity
• Can-mounted transformer for enhanced rigidity
• Ribbed back can eliminates flexing

Product Specifications

• Input Connections: 4-pin Phoenix
• Transformer Taps: 7.5, 15, 30, 60 w at 70 v
• Frequency Response (-10 dB): 52 - 20000 Hz
• Sensitivity 1 W/1 m: 90 dB
• Max. SPL/1m (calc): 115 dB
• Coverage (Nominal -6 dB) H: 120°
• Coverage (Nominal -6 dB) V: 120°
• System Power Handling (Continuous/Program/Peak): 75//300 Watts
• LF Transducer: 6 inch with 6 inch passive radiator
• LF Power Handling: 6 inch, plus 6-inch passive Watts
• HF Power Handling: 1-inch (Titanium dome) Watts
• HF Transducer: 1 inch Titanium dome tweeter
• Nominal Impedance (Passive): 8Ω
• Enclosure Material: Zinc Plated Metal

Physical & Dimensions

• Height: 465mm
• Width: 256mm
• Depth: 100.3mm
• Weight: 5.8kg
