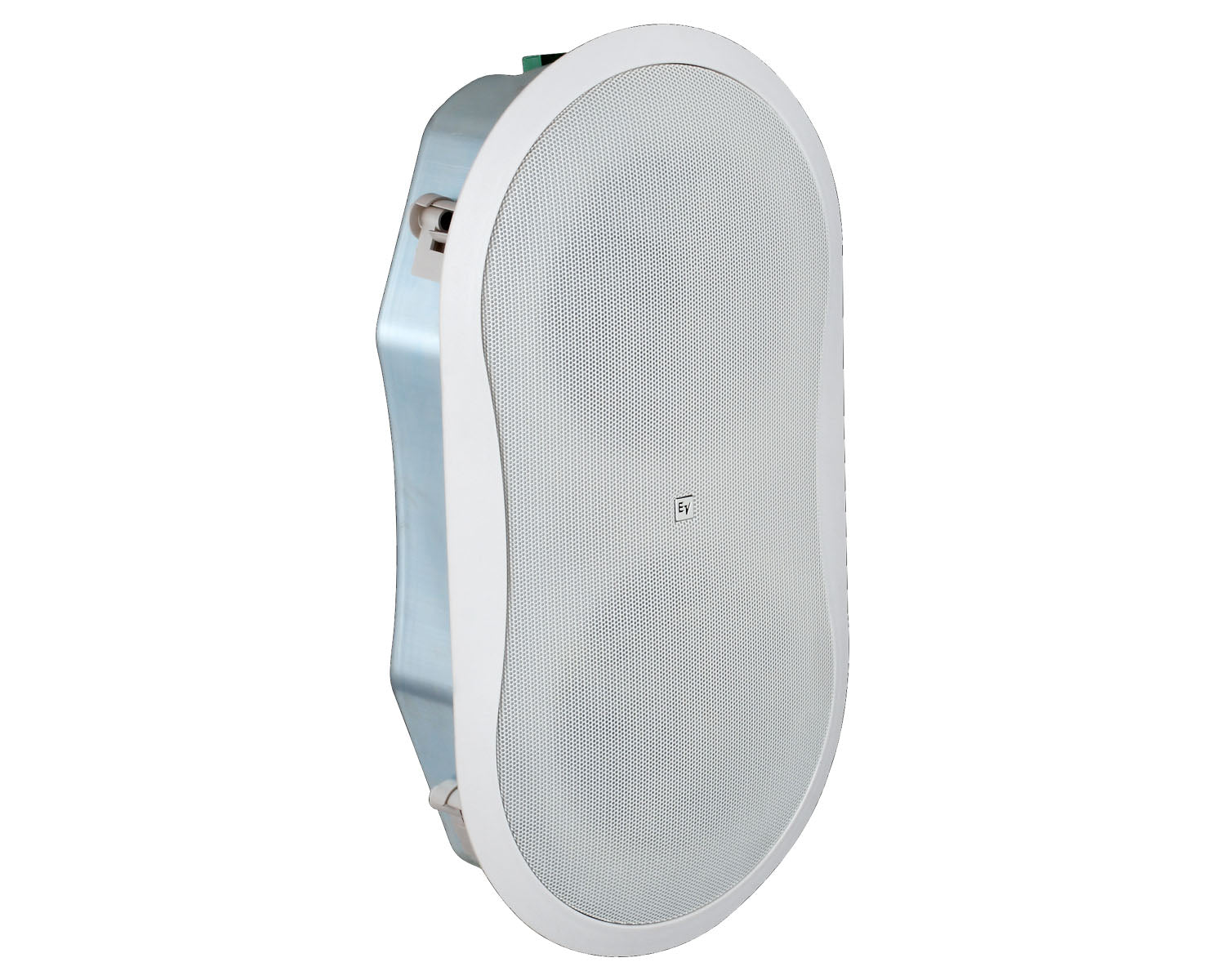

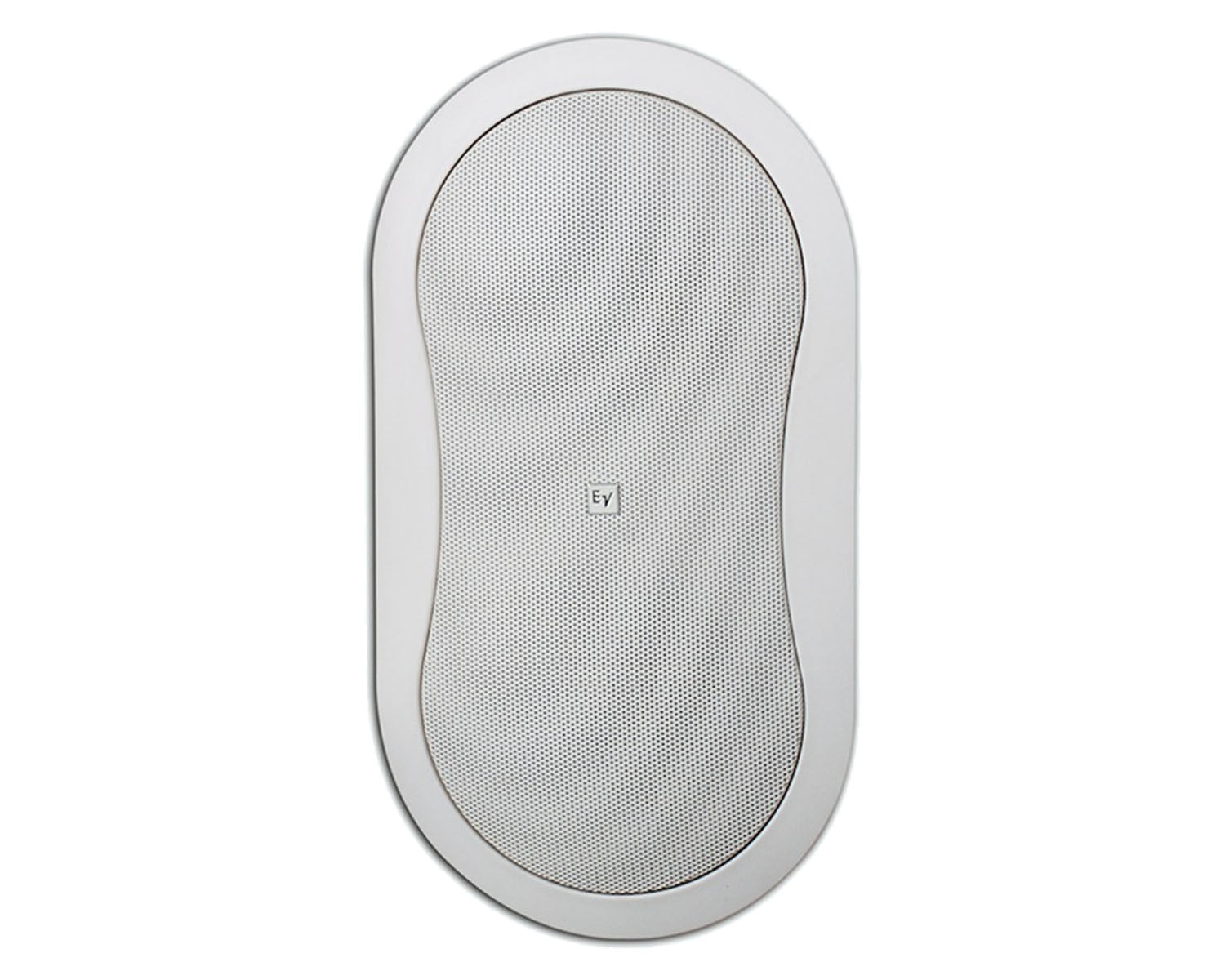

The Electro-Voice EVID FM4.2 flush-mounted loudspeaker system is a complete two-way in-wall loudspeaker package. The package consists of a bezel assembly, grille, rear enclosure, 4 inch two-way loudspeaker coupled with a 4 inch passive radiator and an internal line-matching transformer. The loudspeaker features 4 inch low-frequency cone and high-temperature voice-coil assembly along with a 4 inch long excursion passive radiator and titanium coated dome tweeter. The EVID FM4.2 loudspeaker utilises a crossover network, centered at 3,600 Hz, that provides 16-dB-per-octave tweeter protection outside of its operating range. In addition the EVID FM4.2 features a comprehensive protection circuit to shield the woofer and tweeter drivers from excessive power levels.

Product Features

• Shallow profile, ideal for tight wall or ceiling spaces
• Tuned passive radiator extends bass, enhances performance
• High quality 1-inch titanium dome tweeter
• Full-bandwidth overload protection
• 70 V, 100 V, and 8 ohms operation in the same model for off-the-shelf versatility
• Front-panel mode/wattage switch
• Fully-sealed enclosure provides superior isolation to protect adjacent rooms
• Secure Phoenix-style pass-through connectors for easy wiring and installation.
• Four point “quick mounting” tabs for fast attachment in any wall cavity
• Can-mounted transformer for enhanced rigidity
• Ribbed back can eliminates flexing

Product Specifications

General

• Input Connections: 4-pin Phoenix
• Nominal Impedance: 8Ω
• Transformer Taps: 1.75, 3.75, 7.5, 15, 30 at 70 v
• Frequency Response (-10 dB): 52 - 20000 Hz
• Sensitivity 1 W/1 m: 87 dB
• Max. SPL/1m (calc): 110 dB
• Coverage (Nominal -6 dB) H: 150°
• Coverage (Nominal -6 dB) V: 150°
• System Power Handling (Continuous/Program/Peak): 50//200 Watts
• LF Transducer: 4 inch with 4 inch passive radiator
• LF Power Handling: 4-inch, plus 4-inch passive Watts
• HF Power Handling: 1-inch (Titanium dome) Watts
• HF Transducer: 1 inch Titanium dome tweeter
• Enclosure Material: Zinc Plated Metal

Physical & Dimensions

• Height: 350mm
• Width: 188.3mm
• Depth: 95.6mm
• Weight: 2.9kg
