The ETCpad is a handheld tablet that offers purpose-built, touchscreen-based remote control for your Eos system. Adjust levels, access playbacks, and more from anywhere in your space – all with the security of dedicated hardware. The ETCpad can connect via Wi-Fi to your lighting network with a wireless access point, or it can connect directly to your lighting network using a wired RJ45 connection.

Unlike consumer tablets, ETCpad is designed specifically as an accessory for your ETC lighting system. The remote combines the convenient functionality of the Eos mobile apps with a dedicated, 8” industrial-grade tablet designed to withstand the wear and tear of production. Rather than depending on an internet connection and an individual’s store account, apps are loaded and updated via UpdaterAtor.

Product Features

• Select channels and set parameter data
• Play back and edit cues
• Park channels
• Conduct dimmer and channel checks

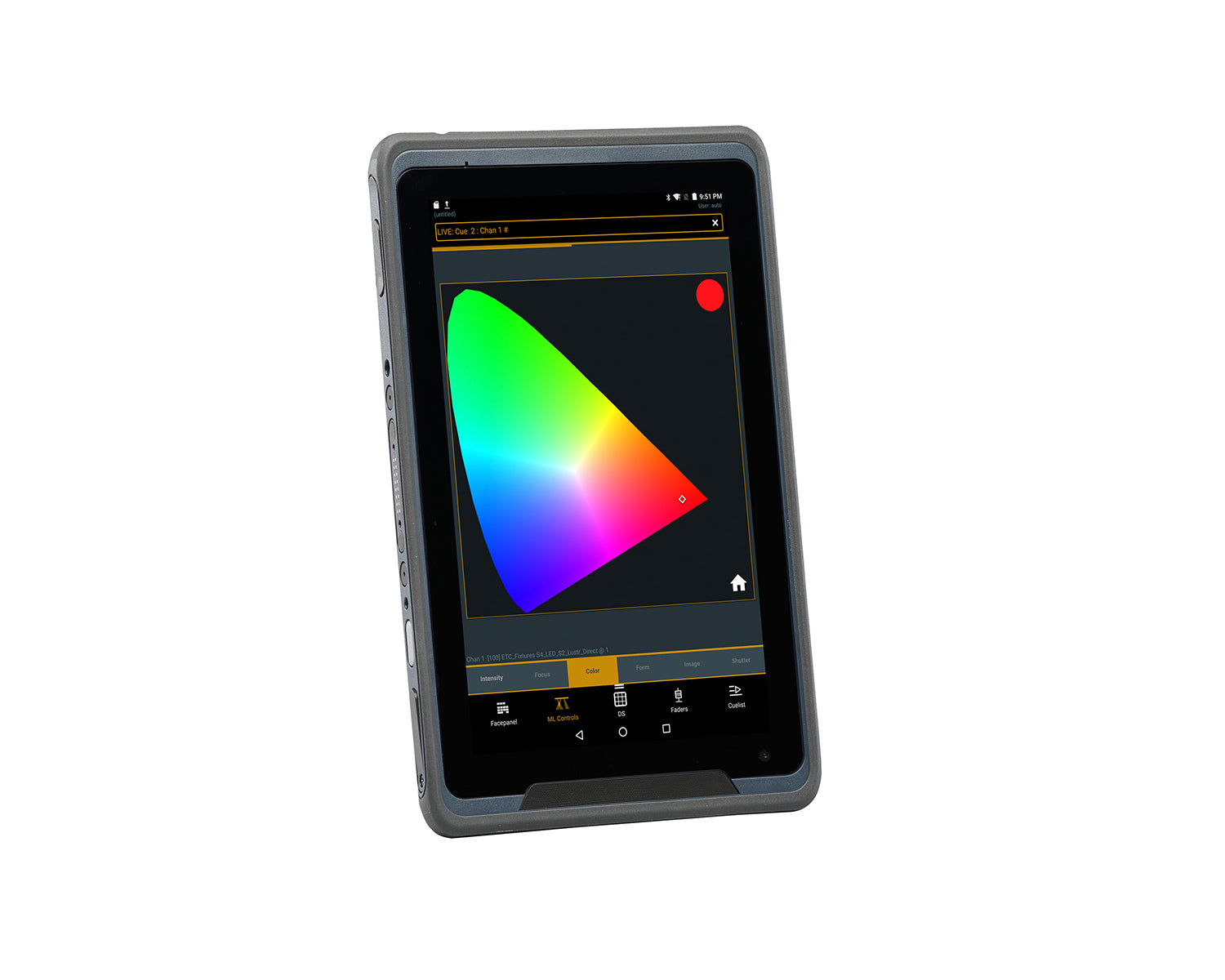

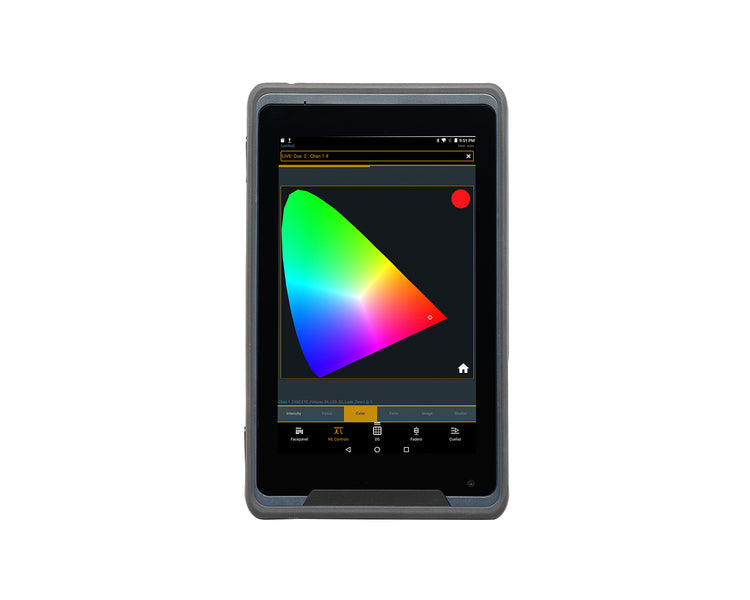

• Manipulate Color, Pan/Tilt and other parameters using dedicated graphical controllers
• View a Cue List Display (monitor only), with current cue, several previous and pending cues displayed
• View & interact with a Playback display; controls include Go, Stop/Back and Go to Cue
• Access Direct Select controls
• Ruggedized exterior with rubber edges for use in demanding environments
• Embedded Android environment, locked down to only launch supported mobile applications (listed below), no store account needed
• 8” full HD display with scratch-resistant glass and multi-touch control
• Rechargeable lithium-ion battery (3.8 V, 4900 mAh, 18.62 Wh), providing up to 12 hours of operation under normal conditions
• One 802.11ac WiFi Ethernet adapter
• Bluetooth 5.0 for connecting with supported products
• Removable wired network adapter plate, with hand-grip, one configurable Gigabit Ethernet port (RJ45 connector), management clip for cable up to 6mm in diameter
• One USB-C 3.1 port, for charging and applying updates
• One Micro SD slot, for applying updates
• One POGO expansion connector, for use with available docks and chargers
• Power switch
• Power/battery status indicator

Product Specifications

• Dimensions (HxWxD): 240mm x 142mm x 16mm
• Weight: 0.6kg
• Power consumption approximately 3 A at 5 V or 2 A at 9 V
• Ambient room temperature -10° to 50°C (14° to 122°F)

What's in the Box?

• Hand strap
• RJ45 adapter plate, with hand grip and cable management
• USB-C charger with detachable plug cable (IEC320-C15 to NEMA 5-15P)
• ETCpad USB hub
