Any combination of up to 8 handheld, body-pack, desk stand, or boundary transmitters may be used simultaneously with a single ESW-R4180DAN receiver. Simply connect a receiver via Cat 5e cable to a PoE network switch. To further simplify cable management, 8 bays of transmitter charging may be powered off of one AC adapter and connected via one Cat 5e cable for monitoring.

Up to 12 receivers can be used providing a maximum count of 192 simultaneous channels (when utilizing HD mode). Simply connect each receiver via Cat 5e cable to a PoE network switch. To further simplify cable management, 8 bays of transmitter charging may be powered off of one AC adapter and connected via one Cat 5e cable for monitoring.

Product Features

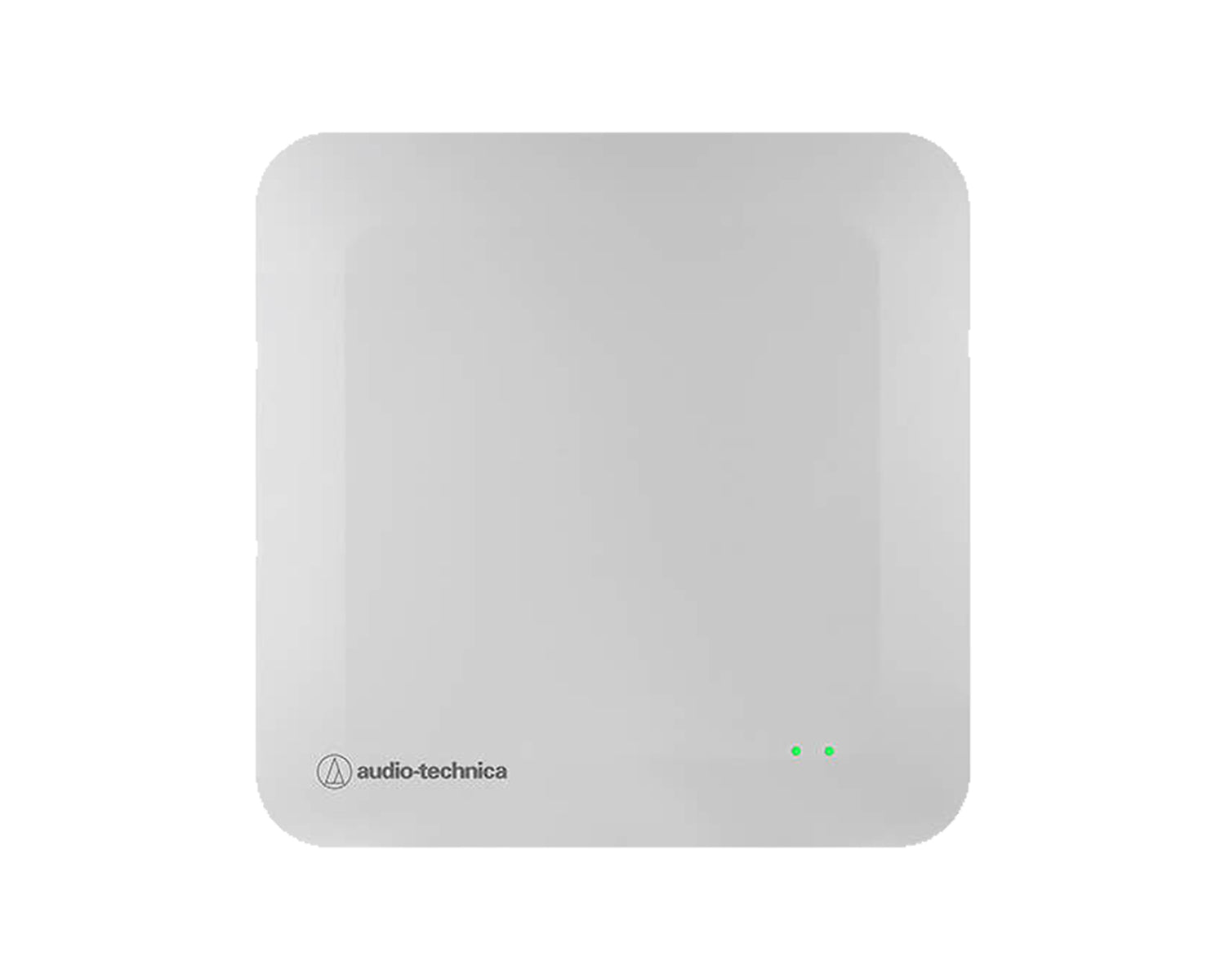

• Onboard LEDs verify link status at a glance
• Dual network ports allow Dante and IP control separation
• Supports mixed output for situations with limited input channels
• Monitor transmitter status, audio level, remaining battery time, and other information in A-T Wireless Manager
• AES256 encryption support
• With Dante

Product Specifications

• Modulation Mode:
  • A-field: π / 2-BPSK
  • B-field: π / 8-8PSK
• RF Sensitivity: < - 90 dBm
• Network:
  • Dante: 1 Gbps
  • IP Control: 100 Mbps

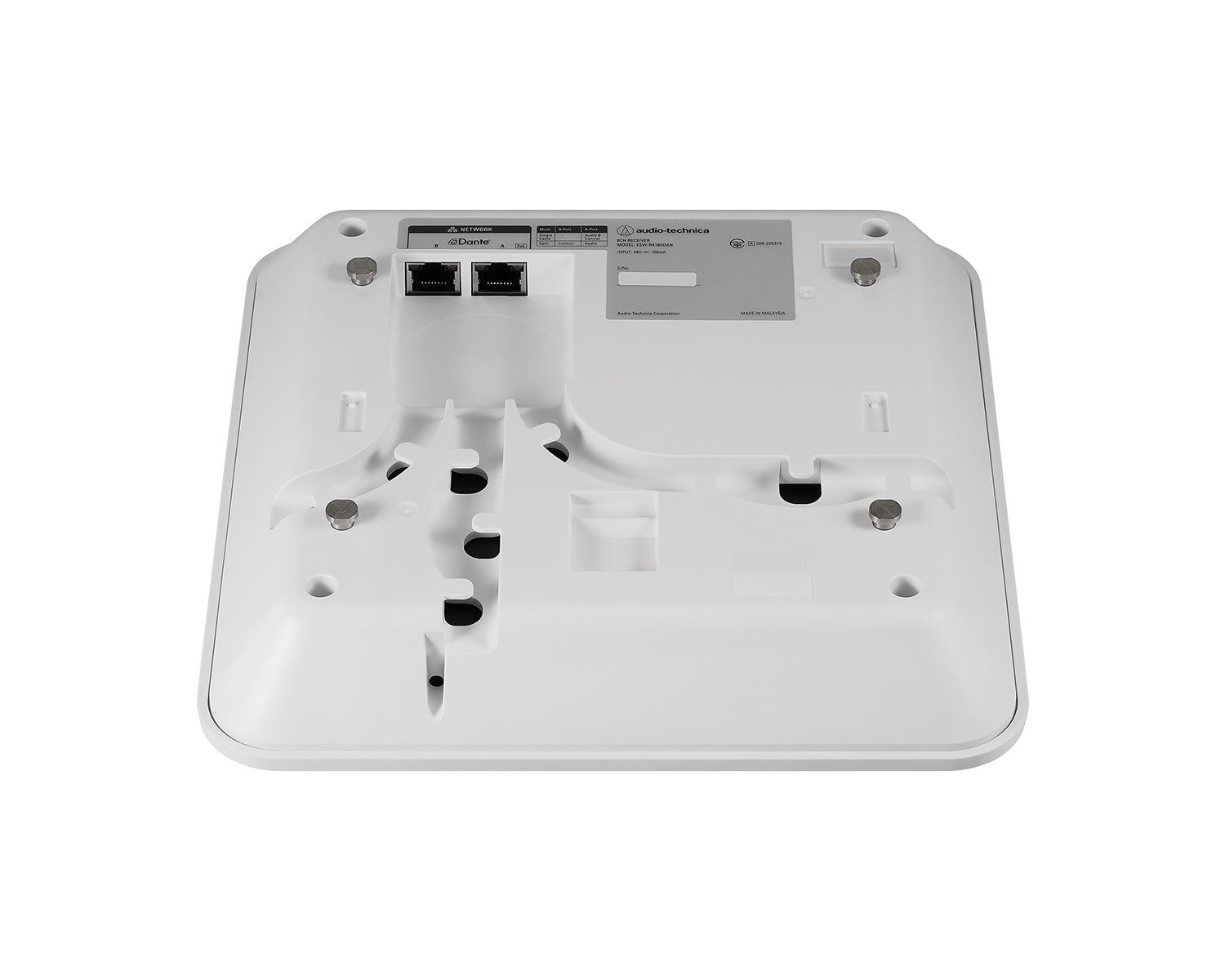

• I/O Connector: Network/Dante: RJ-45
• Power Consumption: 4.8 W
• Power Supply: PoE (IEEE 802.3af Class 0)
• Operating Temperature Range: -10◦ C to +50◦ C (14◦ F to 122◦ F)
• Dimensions: 228.6 mm (9.0") x 228.6 mm (9.0") x 43.5 mm (1.7") (W x D x H)
• Weight (without included accessories): 620 g (22 oz)

What's in the Box?

• ESW-R4180DAN 8-Channel Networked Receiver
• Bracket
