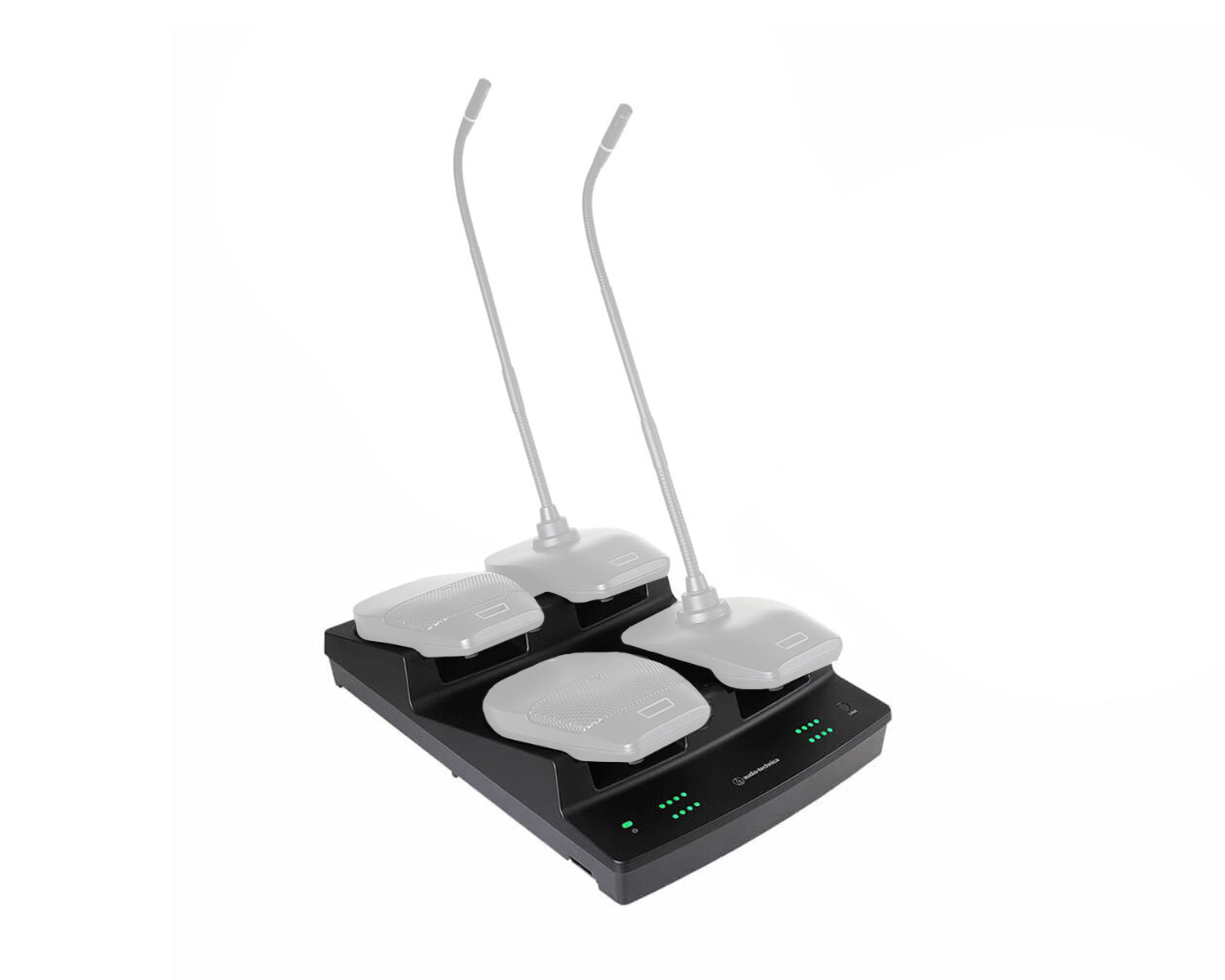

Two-Bay charging station for ESW-T4106 and ESW-T4107 transmitters.

Product Features

• Rapid recharge in as little as 2 hours
• Link up to 2 charging stations with just one AC adapter and Cat 5e cable
• Charging status and battery level appear in A-T Wireless Manager software
• Ability to update firmware remotely on all docked transmitters
• Charge up to 8 transmitters when linked
• 12 V DC, 3.0 A

Product Specifications

• Power Supply: 12 V DC, 3.0 A
• Charging Output:
  • When charging one to four transmitters: 4.2 V DC, 1.5 A
  • When charging five or six transmitters: 4.2 V DC, 1.1 A
  • When charging seven or eight transmitters: 4.2 V DC, 0.7 A
  • Power Consumption: When charging four transmitters: 30.6 W
• Charging Time (ESW-T4106/ESW-T4107):
  • When charging one to four transmitters: Approx. 50 minutes (50% charged), approx. 2 hours (100% charged)
  • When charging five or six transmitters: Approx. 1 hour 10 minutes (50% charged), approx. 2 hours 50 minutes (100% charged)
  • When charging seven or eight transmitters: Approx. 1 hour 40 minutes (50% charged), approx. 3 hours 40 minutes (100% charged)
  • This varies depending on usage conditions.
• Network: IP Control: 100 Mbps
• Operating Temperature Range: 0◦ C to 40◦ C (32◦ F to 104◦ F)
• Dimensions: 209.9 mm (8.3") x 303.9 mm (12") x 65.4 mm (2.6") (W x D x H)
• Weight: 866 g (31 oz)

What's in the Box?

• ESW-CHG5
• Link cable
• Link plate
• Link plate screws
