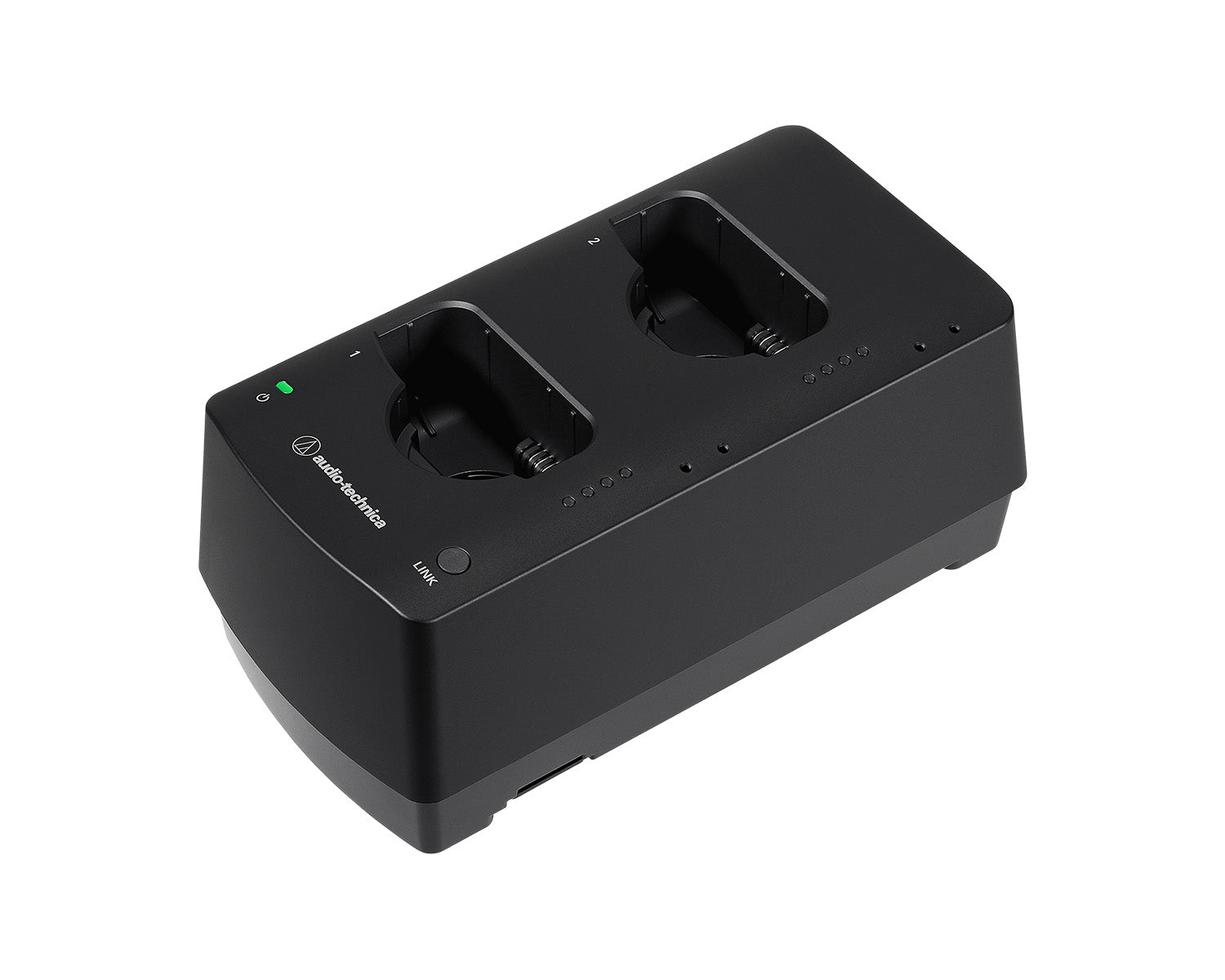

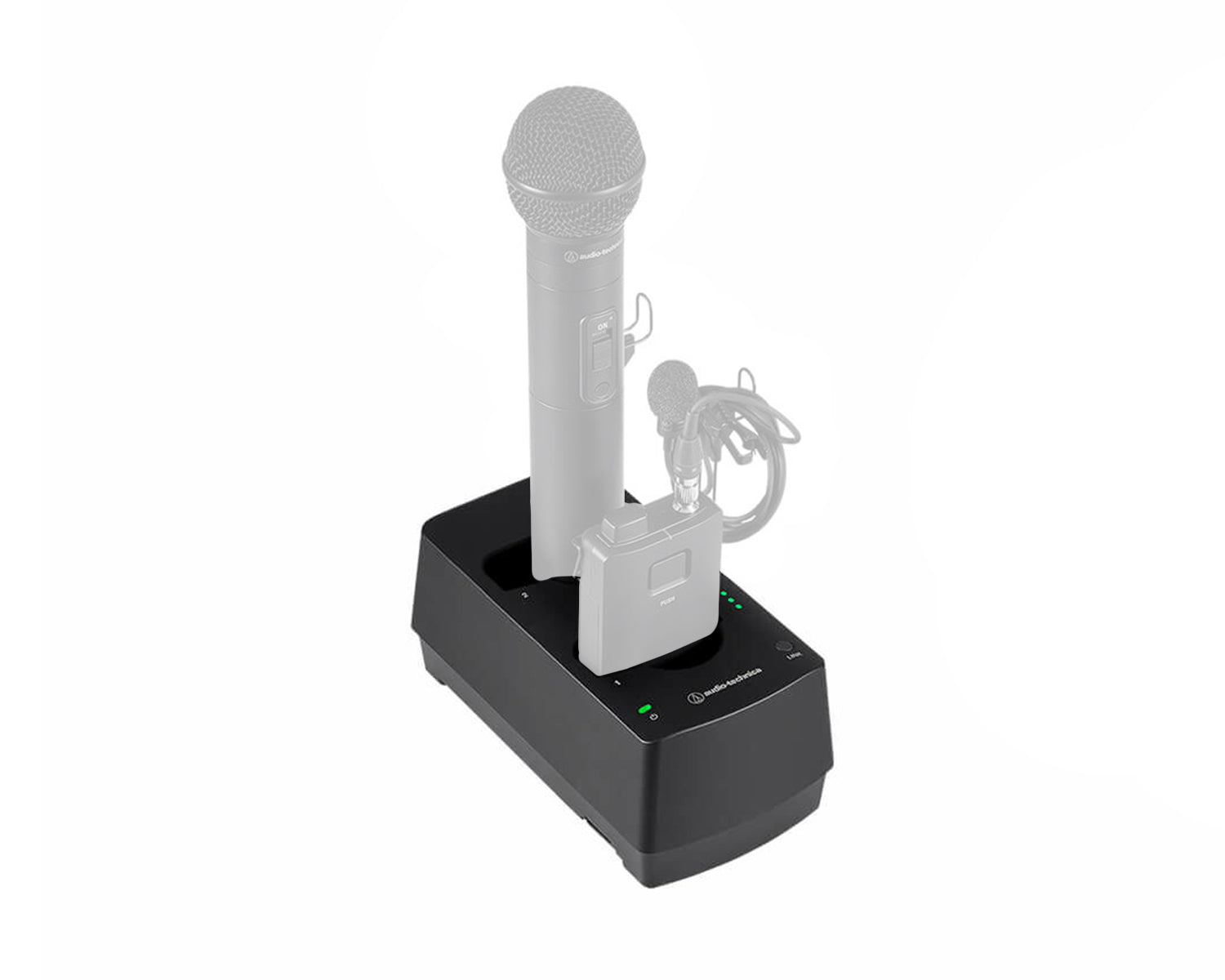

Two-Bay charging station for ESW-T4101 body-pack transmitter and ESW-T4102 handheld transmitter.

Product Features

• Rapid recharge support (approx. 2 hours for ESW-T4101; approx. 3 hours for ESW-T4102)
• Link up to 4 charging stations with just one AC adapter and Cat 5e cable
• Charging status and battery level appear in A-T Wireless Manager software
• Microphone hanger included for convenient lavalier microphone storage
• Ability to update firmware remotely on all docked transmitters
• 12 V DC, 3.0 A

Product Specifications

• Power Supply: 12 V DC, 3.0 A
• Charging Output:
  • When charging one to four transmitters: 4.2 V DC, 1.5 A
  • When charging five or six transmitters: 4.2 V DC, 1.1 A
  • When charging seven or eight transmitters: 4.2 V DC, 0.7 A
• Power Consumption:
  • When charging two transmitters: 15.6 W
  • When charging eight transmitters in four linked charging stations: 30.6 W
• Charging Time (ESW-T4101):
  • When charging one to four transmitters: Approx. 50 minutes (50% charged), approx. 2 hours (100% charged)
  • When charging five or six transmitters: Approx. 1 hour 10 minutes (50% charged), approx. 2 hours 50 minutes (100% charged)
  • When charging seven or eight transmitters: Approx. 1 hour 40 minutes (50% charged), approx. 3 hours 40 minutes (100% charged)
  • This varies depending on usage conditions.
• Charging Time (ESW-T4102)
  • When charging one to four transmitters: Approx. 1 hour 20 minutes (50% charged), approx. 3 hours (100% charged)
  • When charging five or six transmitters: Approx. 1 hour 40 minutes (50% charged), approx. 4 hours 10 minutes (100% charged)
  • When charging seven or eight transmitters: Approx. 2 hours 20 minutes (50% charged), approx. 5 hours 20 minutes (100% charged)
  • This varies depending on usage conditions.
• Network: IP Control: 100 Mbps
• Operating Temperature Range: 0◦ C to 40◦ C (32◦ F to 104◦ F)
• Dimensions: 95 mm (3.7") x 180 mm (7.1") x 78.5 mm (3.1") (W x D x H)
• Weight: 532 g (19 oz)

What's in the Box?

• Link cable
• Link plate
• Link plate screws
• Mic holder
