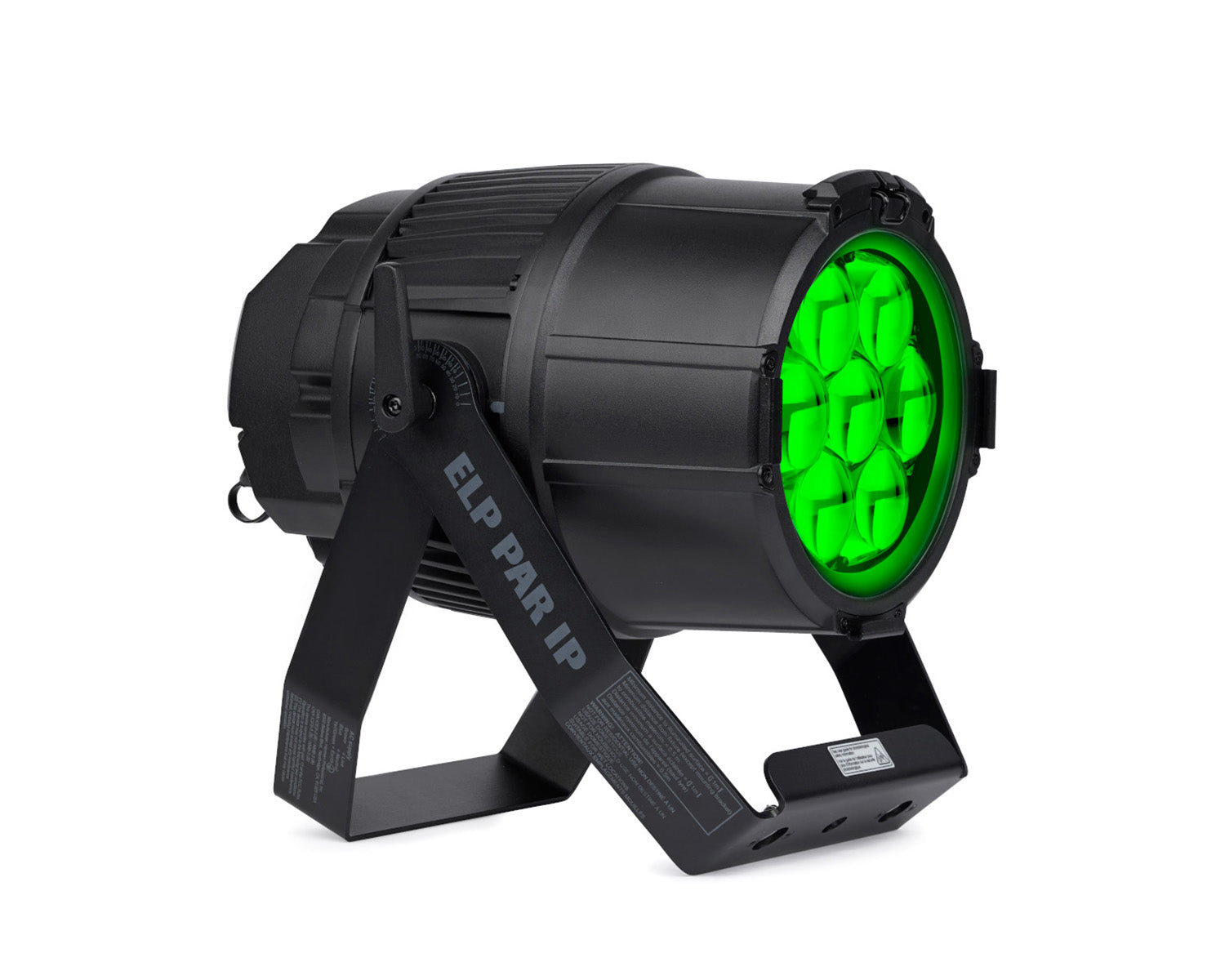

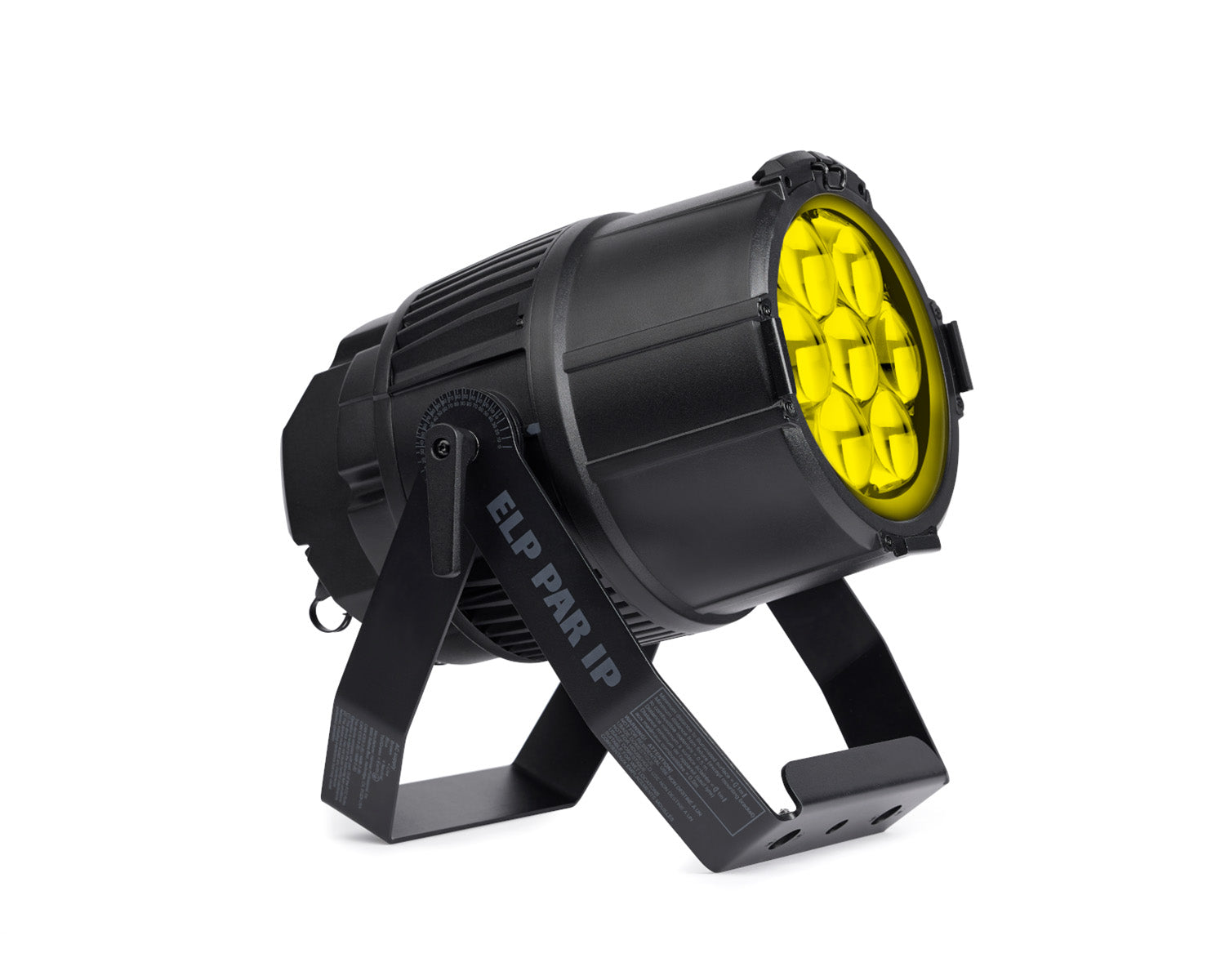

The Martin ELP PAR IP static LED fixture sets a new standard in the static wash category, with unprecedented lumen output, high-intensity narrow zoom, full-gamut colour calibration and smart rigging and control features. This fixture is ideal for indoor or outdoor applications with an IP65 rating for protection against dust and water ingress.

The ELP PAR IP makes installation faster and easier, thanks to a quick-focus system and bright angle of projection indicators. Other performance enhancements include a wide zoom range that supports both stage illumination and tight mid-air beam effects, an advanced colour-calibration system that delivers accurate colour reproduction and precise colour temperature control, an extended colour mode and a CTC channel that can modify the colour space.

Whether lighting an outdoor or indoor theatre production, festival, exhibition or corporate event, fill the stage with colour and create stunning beam effects with this versatile LED fixture that sets a new performance benchmark in its class.

Product Features

• Light engine: 7 x 40W RGBW
• Full-gamut color-calibration system
• CTC control: 1,800–12,850 K
• Quick Focus mode allows installation and focusing without the need for a console operator
• Clear of projection indicators allow quick installation
• Angled power and data connections support a clean cable run that does not impede the fixture or installation

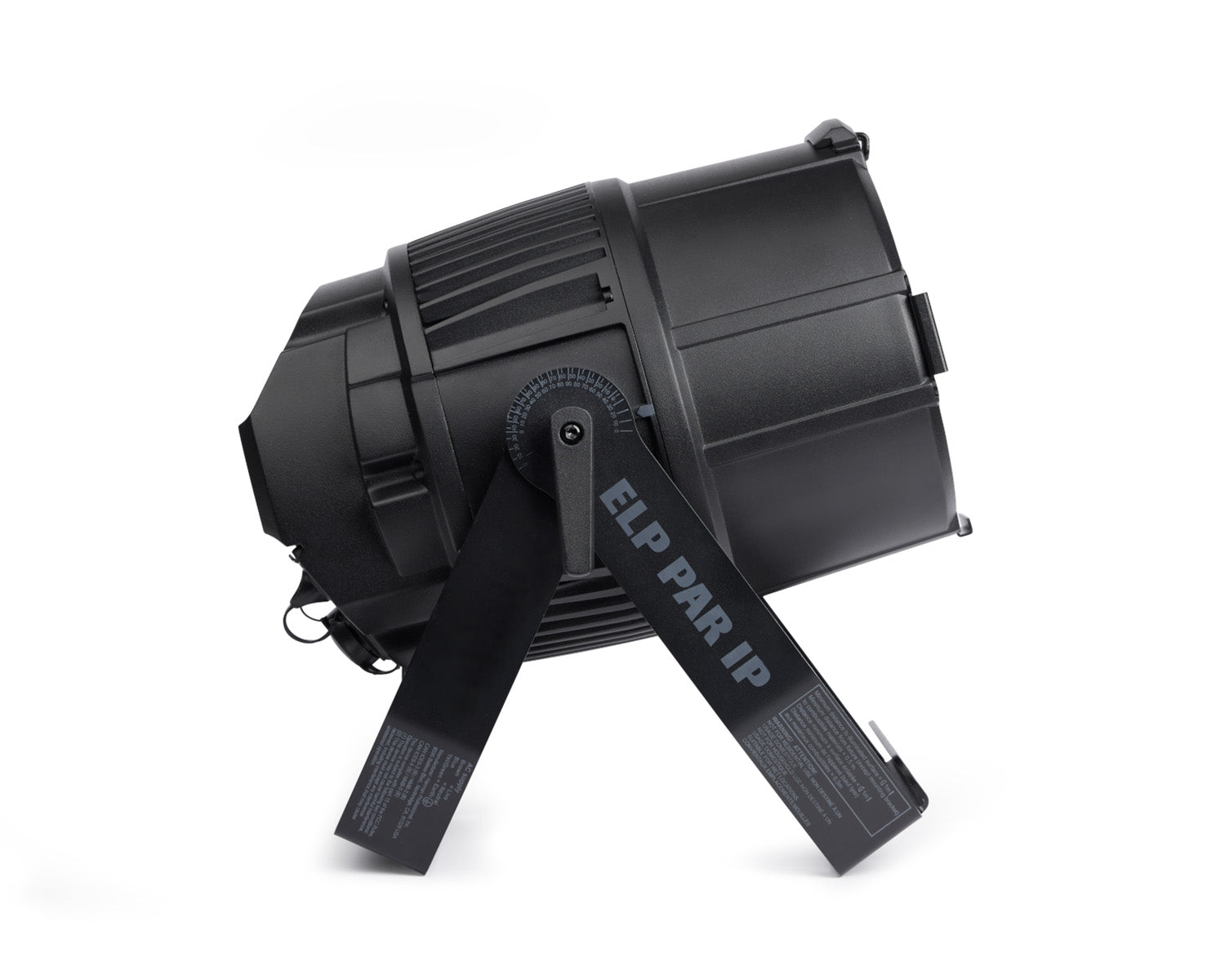

• Included truss and floor-mounting yoke with omega bracket connectivity
• Lumen output: 3,350
• Zoom: 5.5–50˚
• Intensity: 329,058 cd
• IP65 rating
• Dimensions: 315 x 285 x 498 mm (12.4 x 11.3 x 15.7 in) (inc. bracket)
• Weight: 9.1 kg (20 lbs)

Product Specifications

Dynamic Effects

• Colour mixing: RGBW
• Colour presets: 48 colour presets, virtual colour wheel effects
• Electronic dimming: 0 - 100%, four dimming curve options
• Strobe and pulse effects: Variable speed and action, random strobe
• Electronic shutter effect: Instant open and blackout
• Zoom: Motorized
• Colour temperature: Variable 1800 – 12 850 K

Control And Programming

• Control options: DMX, RDM
• DMX channels: 14
• 16-bit fine control: Dimming, RGB, Zoom
• LED colour management modes: Raw, extended and calibrated

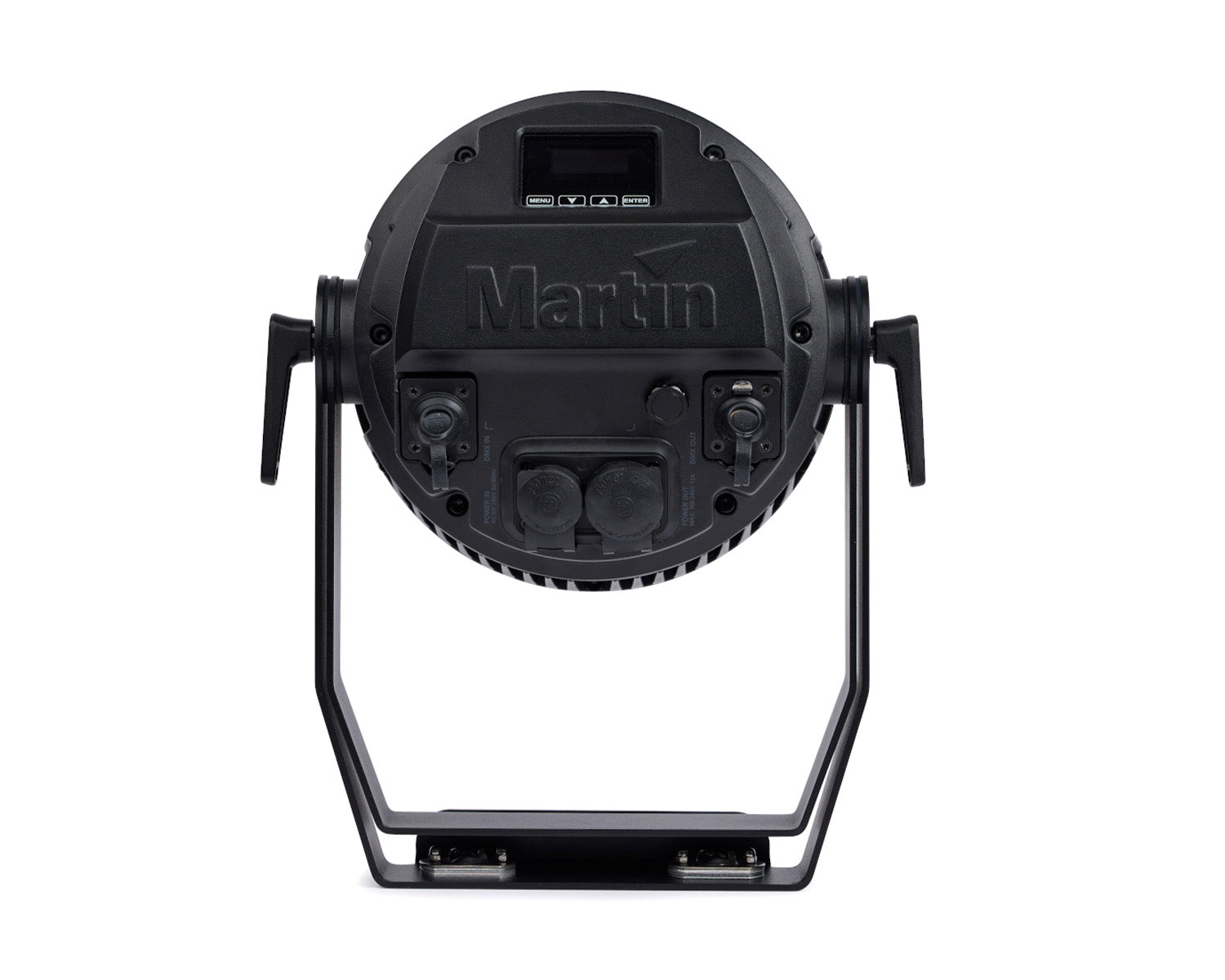

• DMX address setting: Control panel with OLED display
• DMX compliance: USITT DMX512-A
• RDM compliance: ANSI/ESTA E1.20

Optics

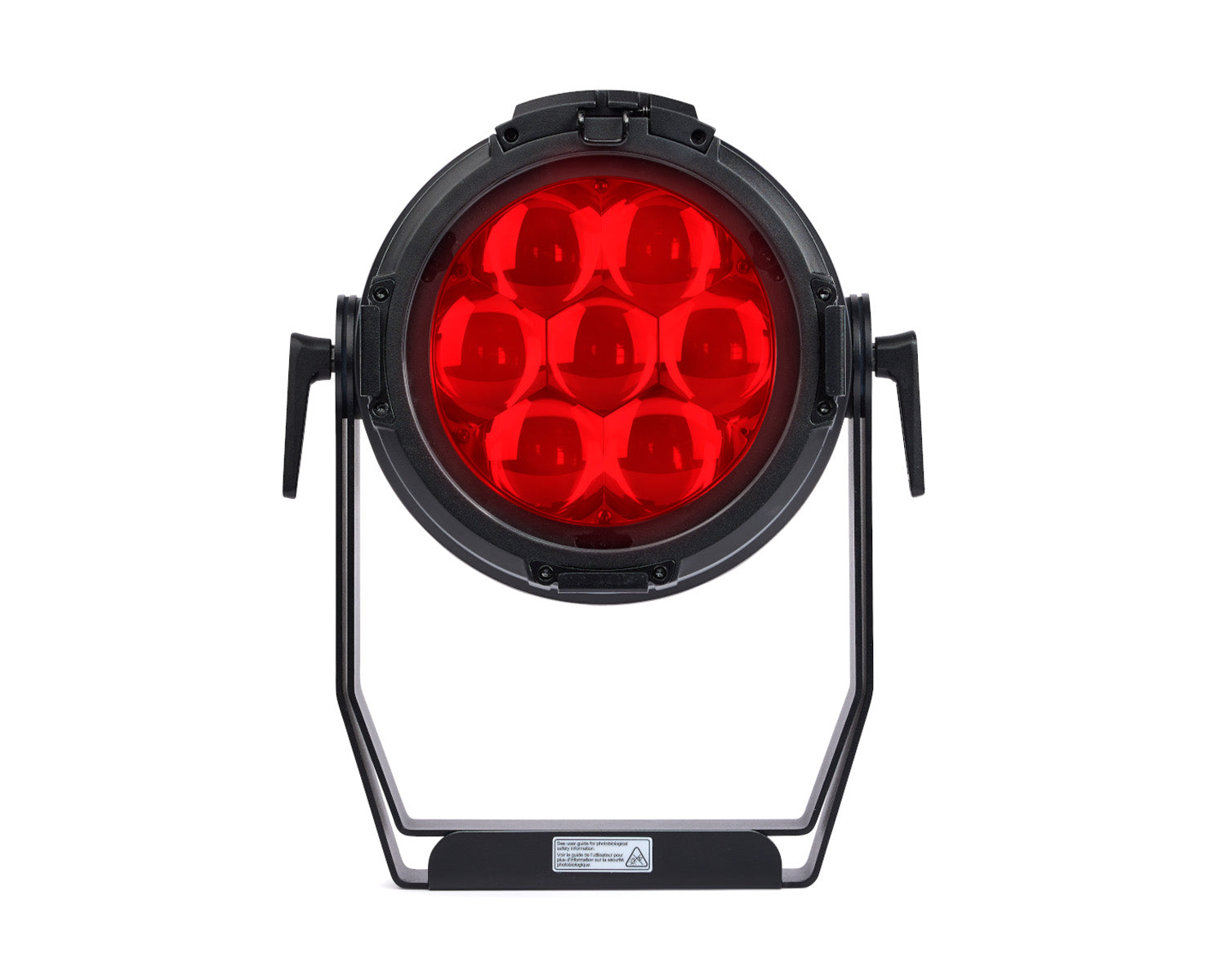

• Light source: 7 x 40 W RGBW Osram LEDs
• Minimum LED lifetime: 50 000 hours (to >70% luminous output)*
• Beam angle (half-peak): 4.4 – 33.3°
• Field angle (one-tenth peak): 5.5 – 50.0°
• Binning: Tight colour and flux binning
• Calibration: Full Gamut and Colour Calibration
• Maximum output: 3350 lumens
• *Figure obtained under manufacturer´s test conditions

Photometric Data

• Wide beam: 3350 lumens
• Narrow beam: 1626 lumens
• Fixture Center Intensity Narrow Beam: 329058 cd
• Fixture Center Intensity Wide beam: 10141 cd
• CRI (Colour Rendering Index) : >70
• CQS (Colour Quality Scale): 84
• TM-30 Rf (IES TM-30-15 Fidelity Index): 79
• TM-30 Rg (IES TM-30-15 Gamut Index): 116
• TLCI (Television Lighting Consistency Index): 61
• CCT: 6500 Kelvin
• LED refresh rate - Standard Mode: 3600 Hz
• LED refresh rate - Theatre Mode: 19200 Hz
• *All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient

Construction

• Housing: Aluminium and composite
• Filter mount: 191 x 191 mm (7.5 x 7.5 in.)
• Colour: Black
• Ingress protection rating: IP65

Installation

• Mounting points: Adjustable bracket, surface or truss mount (fits Martin Omega Bracket)
• Location: Wet locations, temporary outdoor use, not for household use
• Orientation: Any
• Minimum distance to combustible materials: 0.5 m (1.7 ft.)
• Minimum distance to illuminated surfaces: 1 m (3.3 ft.)
• Minimum clearance around fan and air vents: 0.5 m (1.7 ft.)

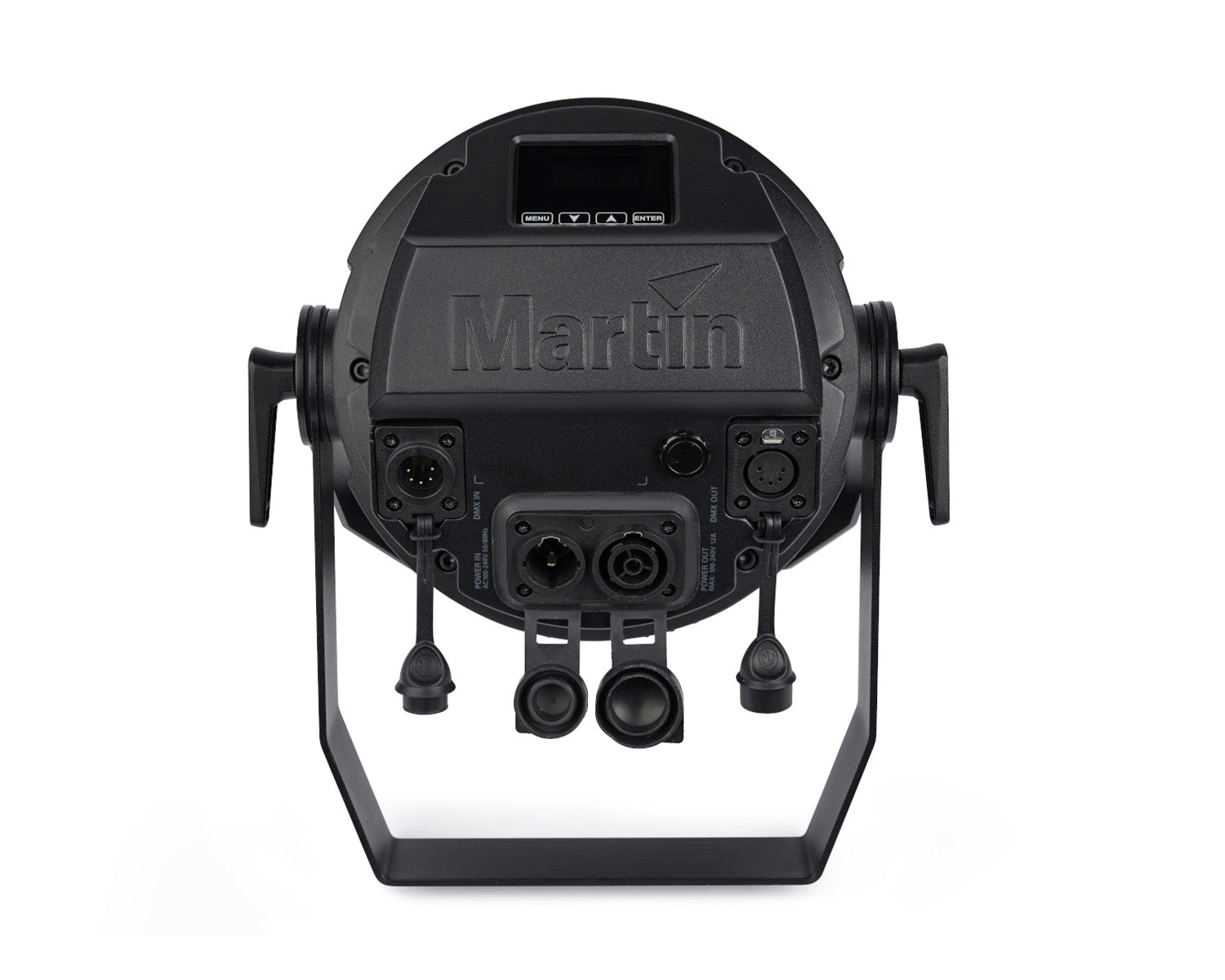

Connections

• AC power in, thru: Neutrik PowerCON TRUE1 TOP
• DMX data in, thru: Neutrik IP-rated 5-pin locking XLR

Electrical

• AC power: 100-240 V nominal, 50/60 Hz
• Typical power consumption: 300 W
• Power supply unit: Auto-ranging electronic switch mode
• Maximum half-cycle RMS inrush current: 11.2 A

Maximum Power and Current

• 100-120 V, 60 Hz : 3.7 A, 330 W, Power factor 0.99
• 220-240 V, 50 Hz: 1.7 A, 330 W, Power factor 0.94
• *Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Thermal

• Maximum surface temperature: 71° C (160° F)
• Cooling: Forced air (temperature regulated, low noise)
• Maximum ambient temperature (Ta max.): 40° C (104° F)
• Minimum ambient temperature (Ta min.): -10°C (14° F)
• Total heat dissipation*: 1126 BTU/hr.
• *Calculated, +/- 10%, at full intensity, full white

Acoustic Data

• Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 40.9 dB(A)
• Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 37.9 dB(A)

Environmental

• RoHS: Compliant
• REACH: Compliant
• WEEE: Compliant
• Proposition 65: Compliant
• Efficacy (max output): 14.3 lm/W
• LWR*: 385 lm/kg (174 lm/lb)
• LWR = Lumen-to-Weight Ratio

Approvals

• Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
• EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
• EU EMC: EN 55015, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61547
• US safety: UL 1573
• US EMC: FCC Part 15 Class B
• Canadian safety: CSA C22.2 No. 166
• Canadian EMC: ICES-003 Class B, ICES-005 Class B
• Australia/NZ: RCM
• United Kingdom: UKCA

Physical

• Length: 315 mm (12.4 in.)
• Width: 285 mm (11.3 in.)
• Height: 398 mm (15.7 in.) with bracket
• Weight: 9.1 kg (20.1 lbs.)

What's in the Box?

• ELP PAR IP
• Adjustable mounting bracket
