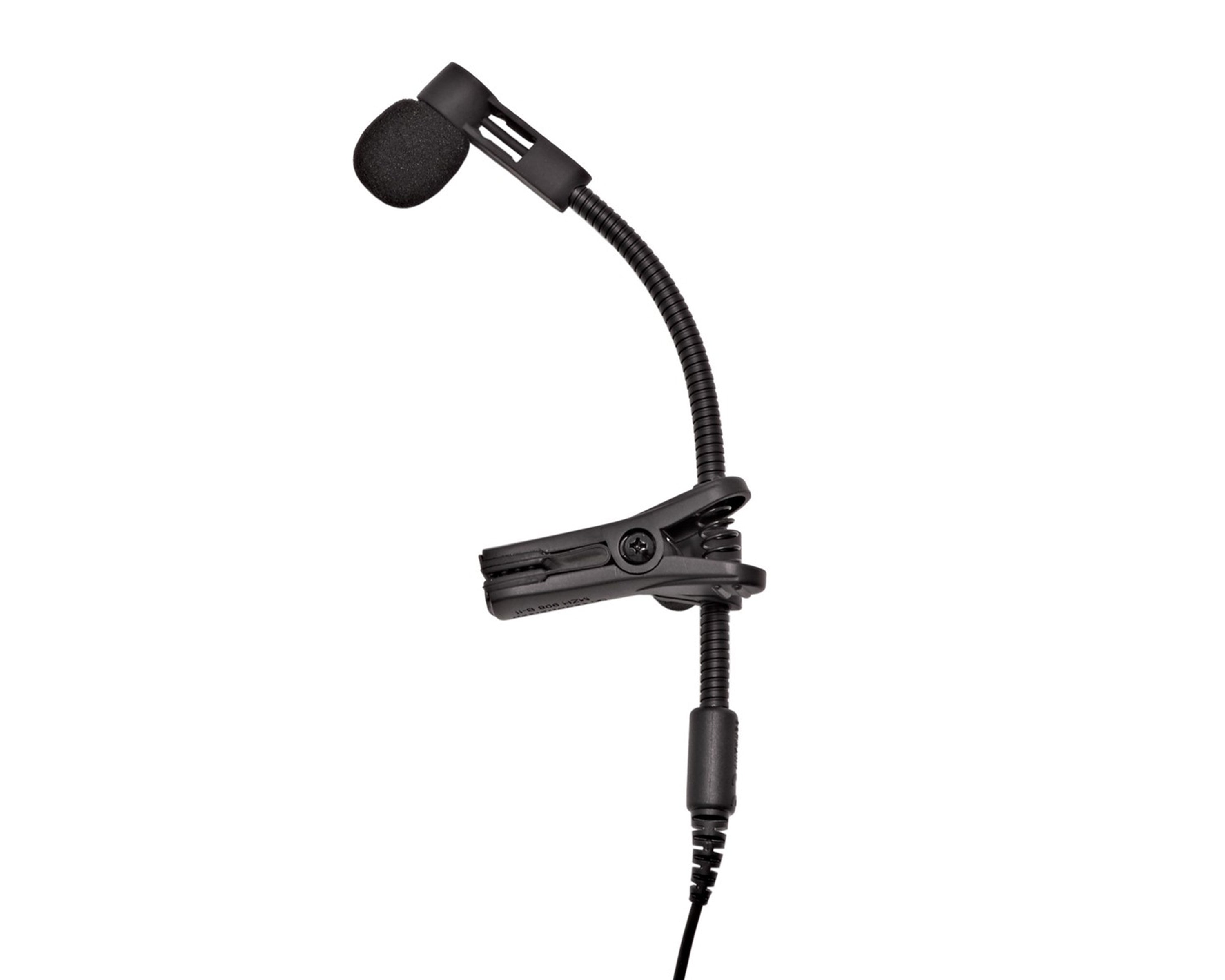

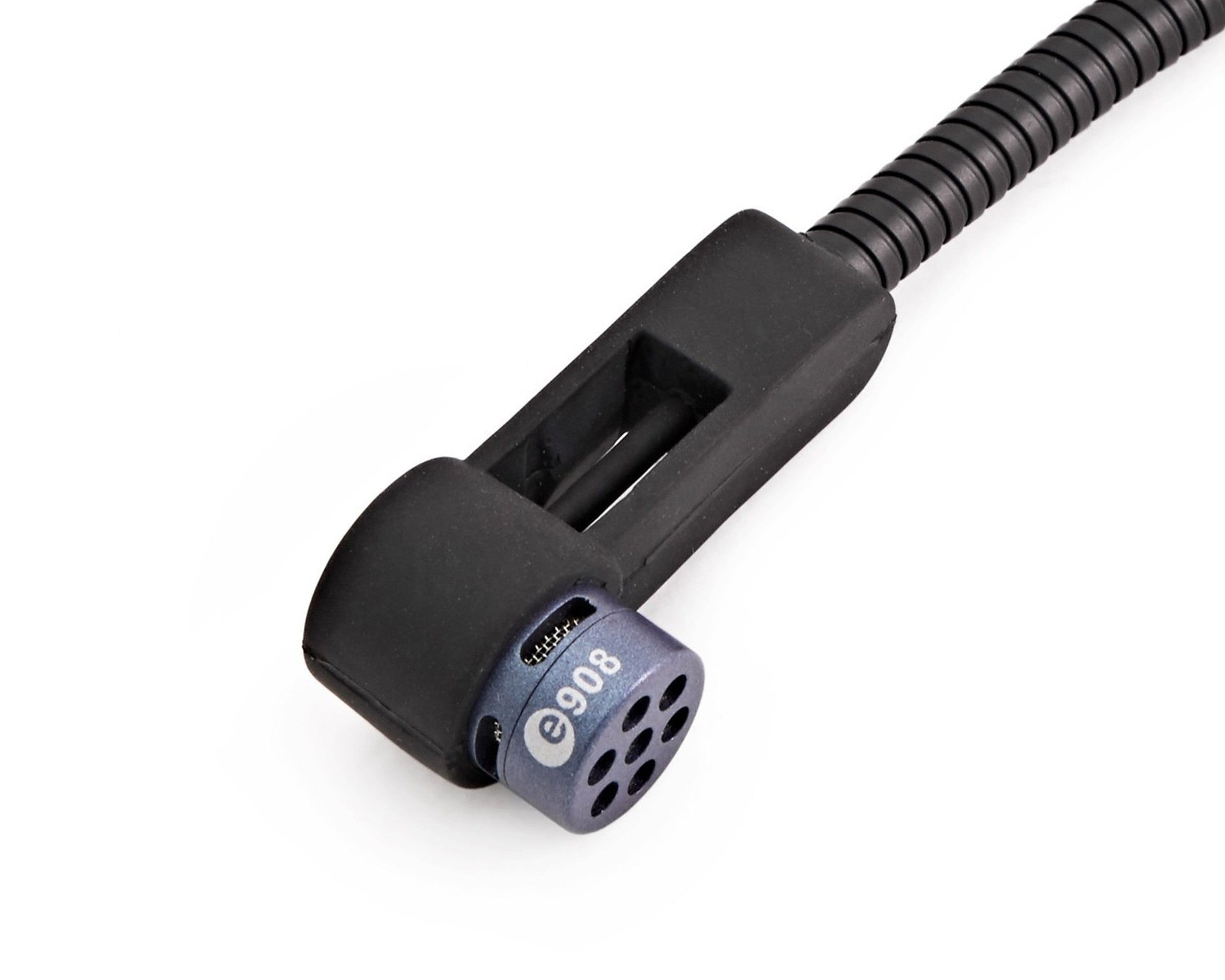

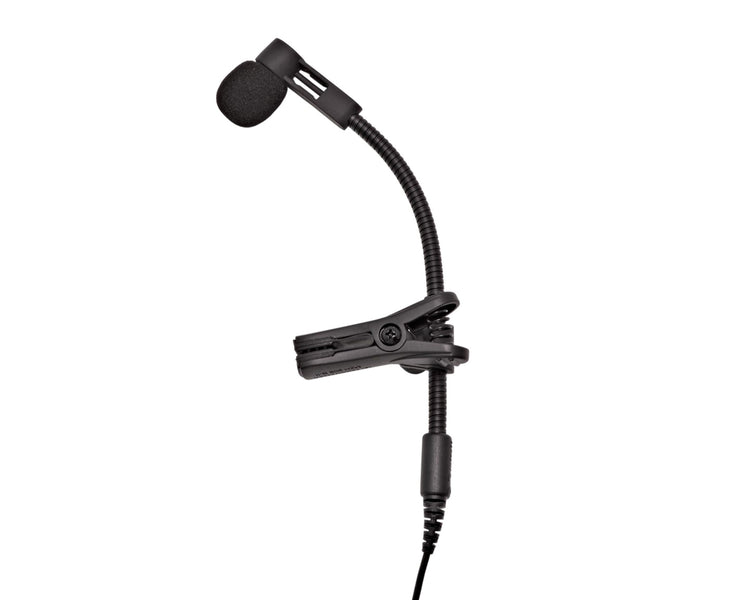

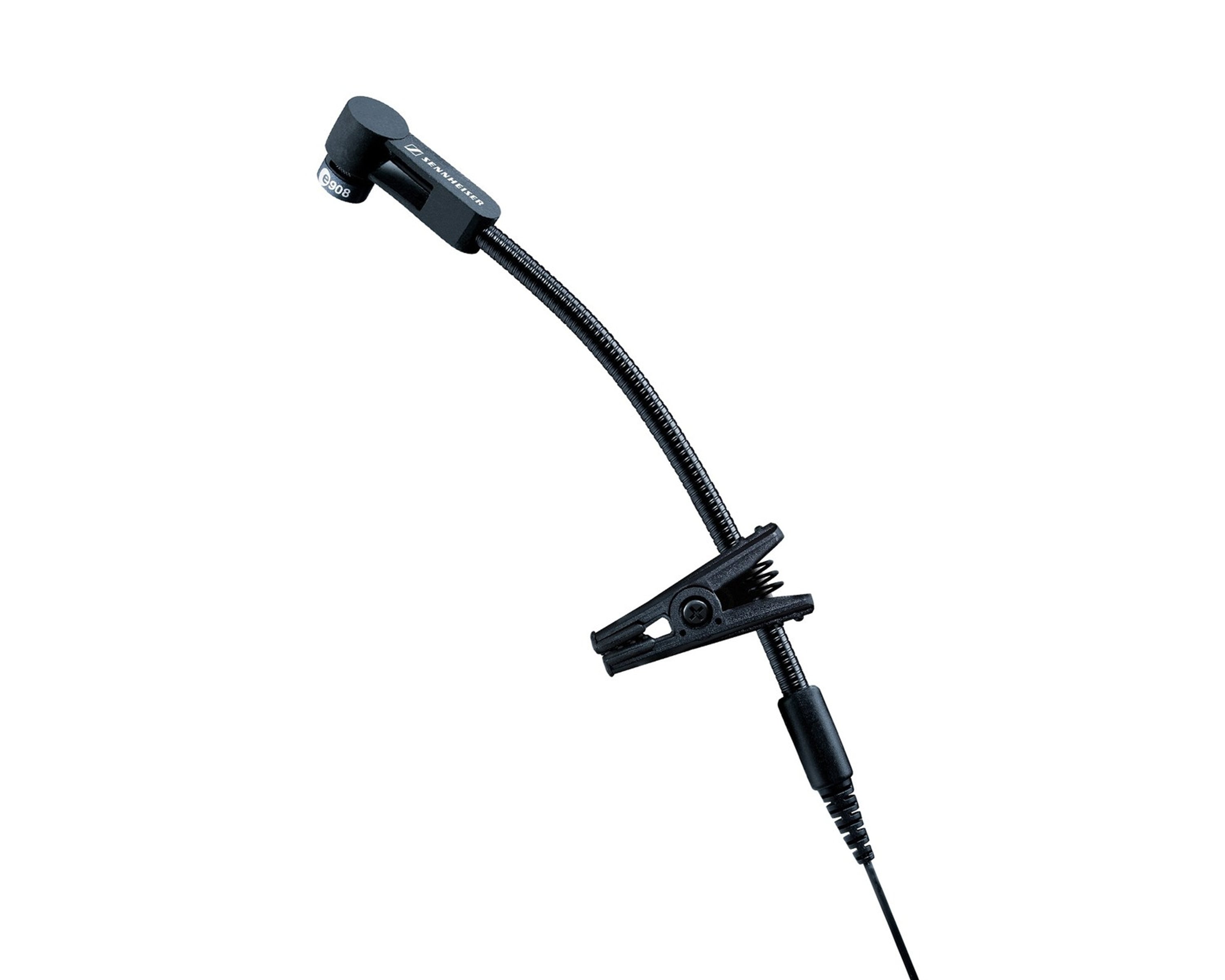

The high-end sound of a condenser microphone is combined with the features of professional stage equipment to make the e 908 a small, highly flexible marvel. With an open and high-definition character, it creates surprisingly forceful sounds. It transmits the attack in a very clear and defined manner while structure-borne noise is reliably suppressed. Thanks to its shock-mounted head, gooseneck and special clips, the e 908 can be quickly attached and precisely oriented to the sound source. Despite its delicate form, the microphone is ruggedly constructed and easily takes even hard hits. The e 908 is available in four models:

• e 908 D: for drums and percussion
• e 908 B: for wind instruments, congas, and drums with free-floating suspension system
• e 908 B ew: for wireless miking of saxophones using an evolution wireless instrument transmitter

The evolution e 908 instrument microphone is great for wireless miking of trumpets using an evolution wireless instrument transmitter.

The evolution E 908 instrument microphone is available in two variants:

• as E 908 B for wind instruments, congas, and drums with free-floating suspension system
• as E 908 T ew for the wireless miking of trumpets using an evolution wireless instrument transmitter

Product Features

• Exceptionally lively, clear sound
• Quick and flexible set-up; comes with suitable mounting clamp
• Optimal positioning with long-necked, flexible boom
• Integrated shock absorber eliminates handling noise
• Intelligent MZA 900 P in-line-preamp (cable, phantom power & level check)
• Each e 908 variant can optionally be used with any Evolution Wireless bodypack transmitter

Product Specifications

General

• Transducer principle (Microphone): pre-polarised condenser microphone
• Pick-up pattern: cardioid
• Frequency response: 40 ... 20 000 Hz
• Sensitivity in free field, no load (1kHz): 4 mV/Pa, 0,56mV/Pa (e 908T-ew)
• Nominal impedance: 100 Ohm (e908B & e908D)
• Min. terminating impedance: 2000 Ohm (e908B & e908D)
• Equivalent noise level: e908B-ew = 30 dB(A); e908B & e908D = 35 dB(A), e908T-ew = 39 dB (A)
• Max. Sound pressure level (active): 147 dB
• Phantom powering: 12 - 48 V / 3 mA (e908B & e908D)

Physical & Dimensions

• Connector: e 908 B & D = XLR-3; e908 B ew & T ew = 3.5mm mini jack
• Dimensions: 47 x 193 mm
• Weight: 140 g

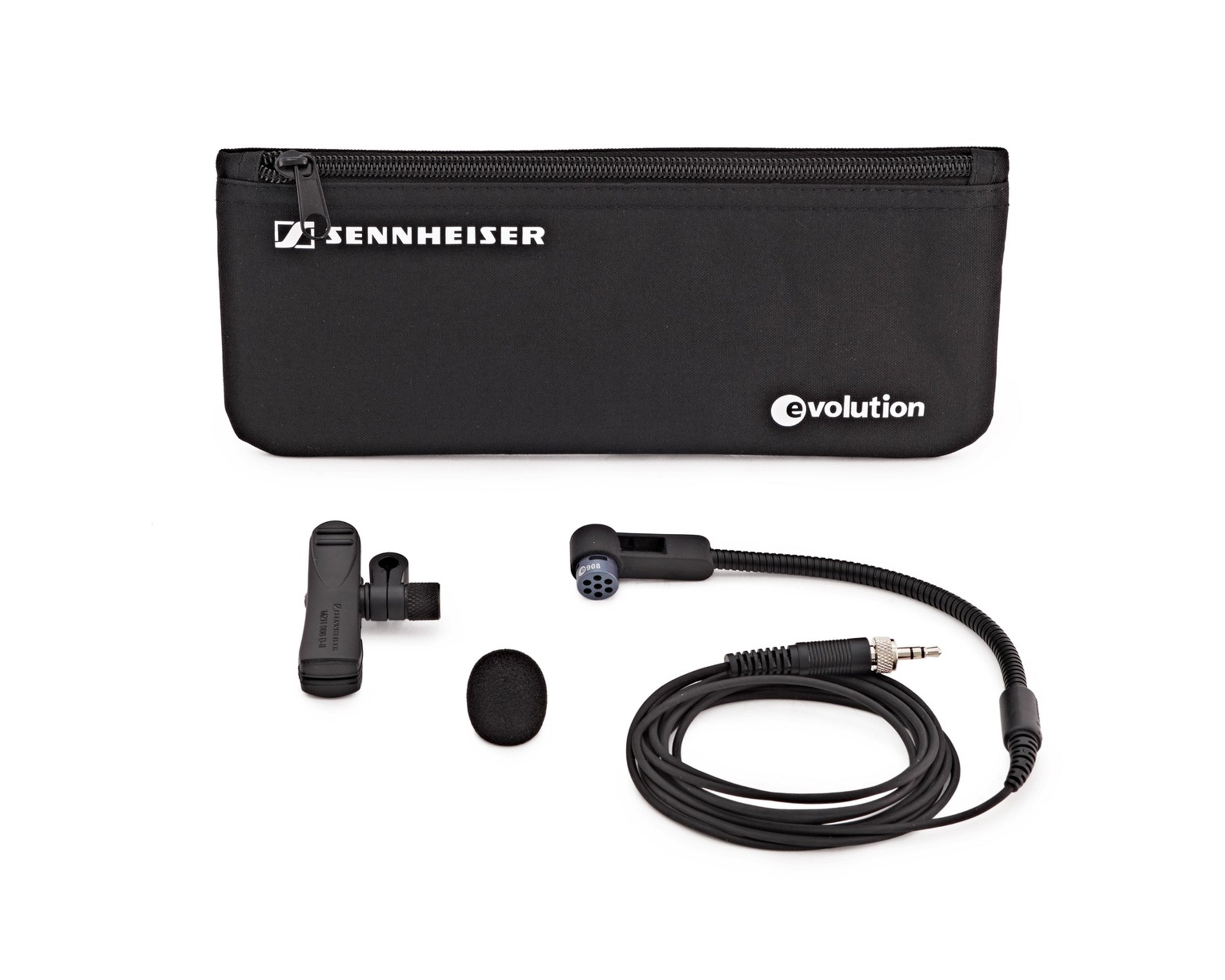

What's in the Box?

• 1 x E908B-EW microphone
• 1 x Microphone clamp
• 1 x MZA 900 P in-line-pramp (nur e 908 B und 908 D)
• 1 x Pouch
• User Manual
