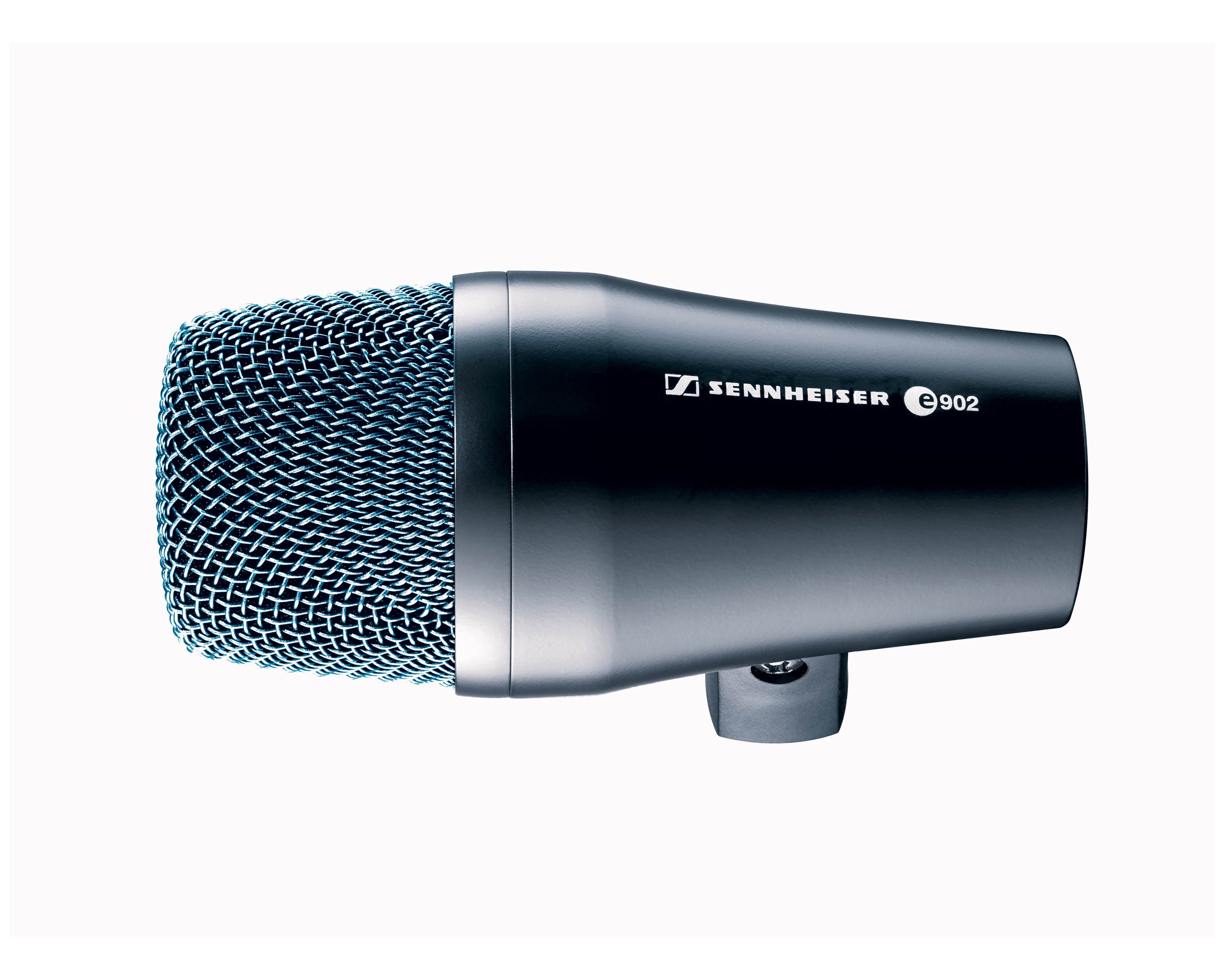

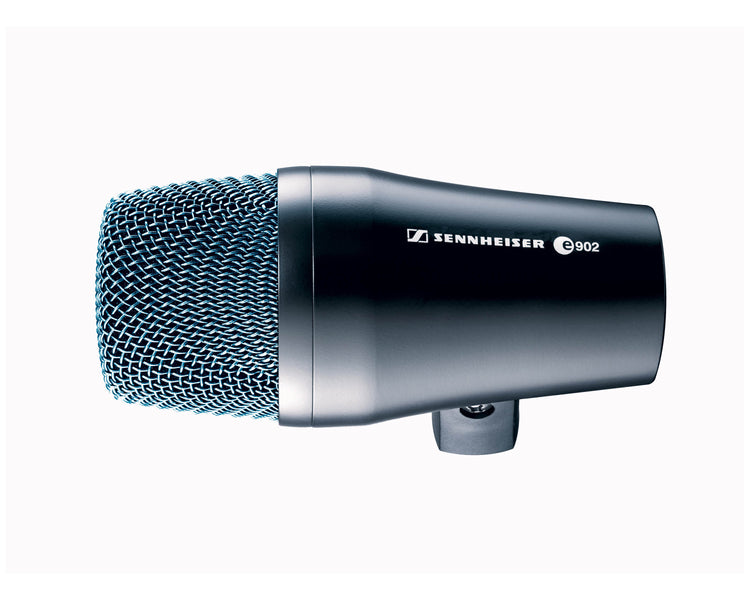

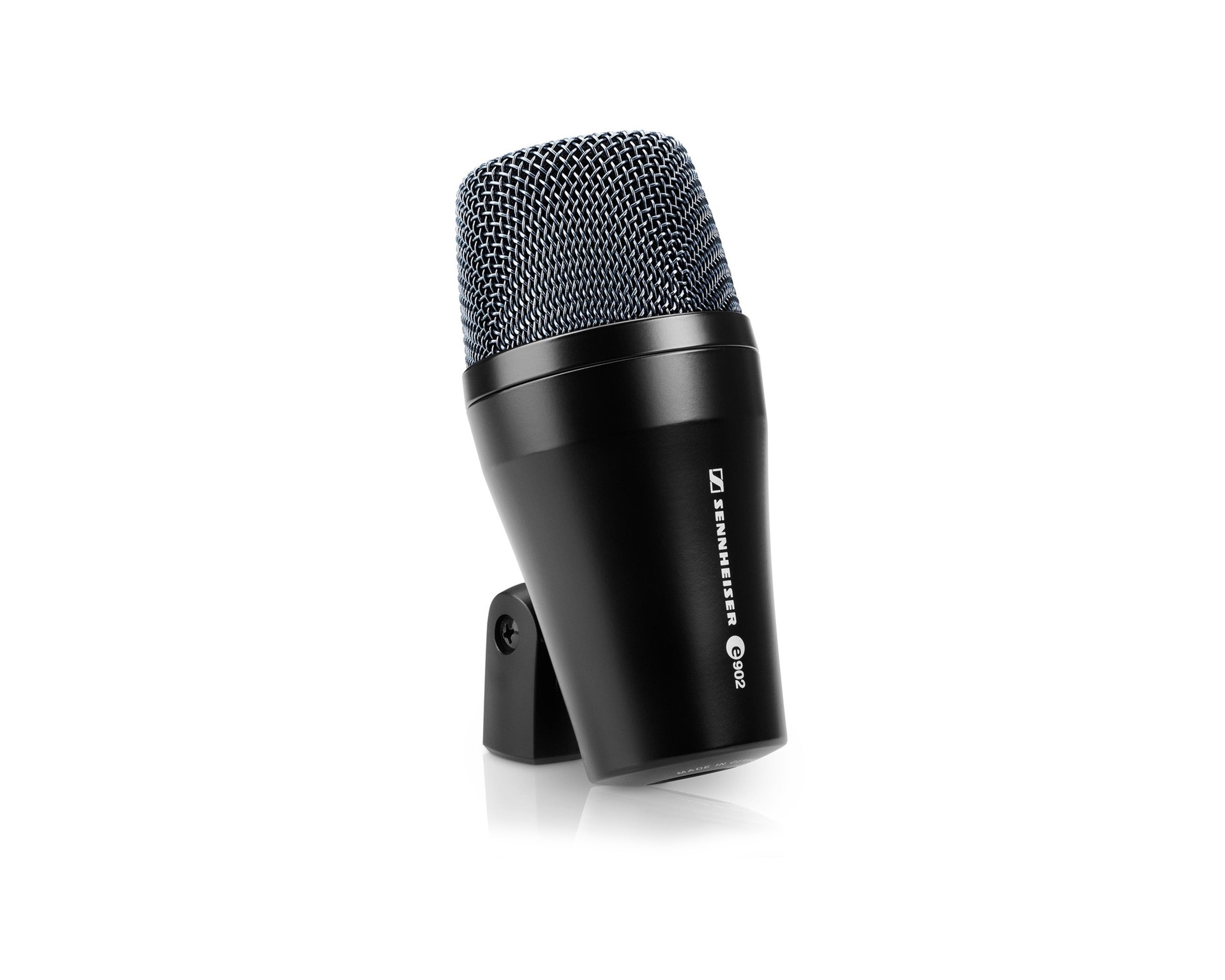

The E 902 is a dynamic cardioid instrument microphone, which was designed for lowest bass signals with very high sound pressure levels. It is suitable for kick drums, bass guitar-amps, tuba, and other bass instruments.

The e 902 was especially designed for the low sound spectrum and convinces with firm, clearly defined bass sounds with a tight punch. The strongly contoured frequency response features a pronounced damping of the mid-range and an accentuated emphasis of the high-end and bass. The result: a clear, grainy sound with a full body and a precise kick that effortlessly asserts itself in a band context. The sound of the e 902 can be flexibly shaped by its positioning in the drum set: from warm and round to sharp and direct. The rugged housing meets the hardest of demands during live gigs.

Product Features

• Frequency response optimized for kick drum
• Very fast attack
• Exceptionally clean and clear pick-up of the deepest bass signals
• Integral stand mount
• Hum compensating coil
• Shock mounted capsule
• Robust metal body

Product Specifications

General

• Transducer principle (Microphone): dynamic
• Pick-up pattern: cardioid
• Frequency response: 20...16000 Hz
• Sensitivity in free field, no load (1kHz): 0.2 mV/Pa; (60 Hz): 0.6 mV/Pa
• Nominal impedance: 350 Ohm
• Min. terminating impedance: 1000 Ohm

Physical & Dimensions

• Connector: XLR-3
• Dimensions: 128.5 x 60 mm
• Weight: 440 g

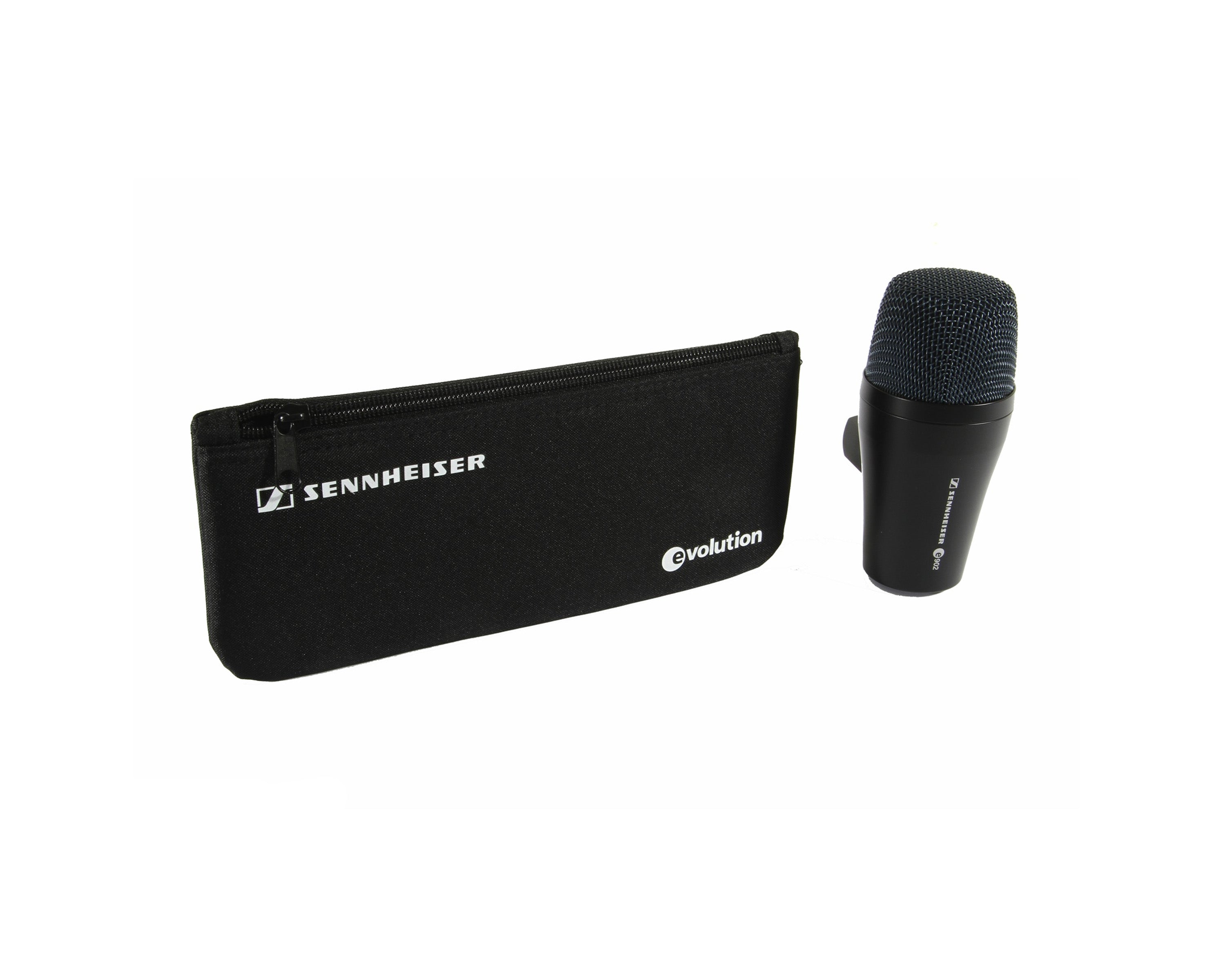

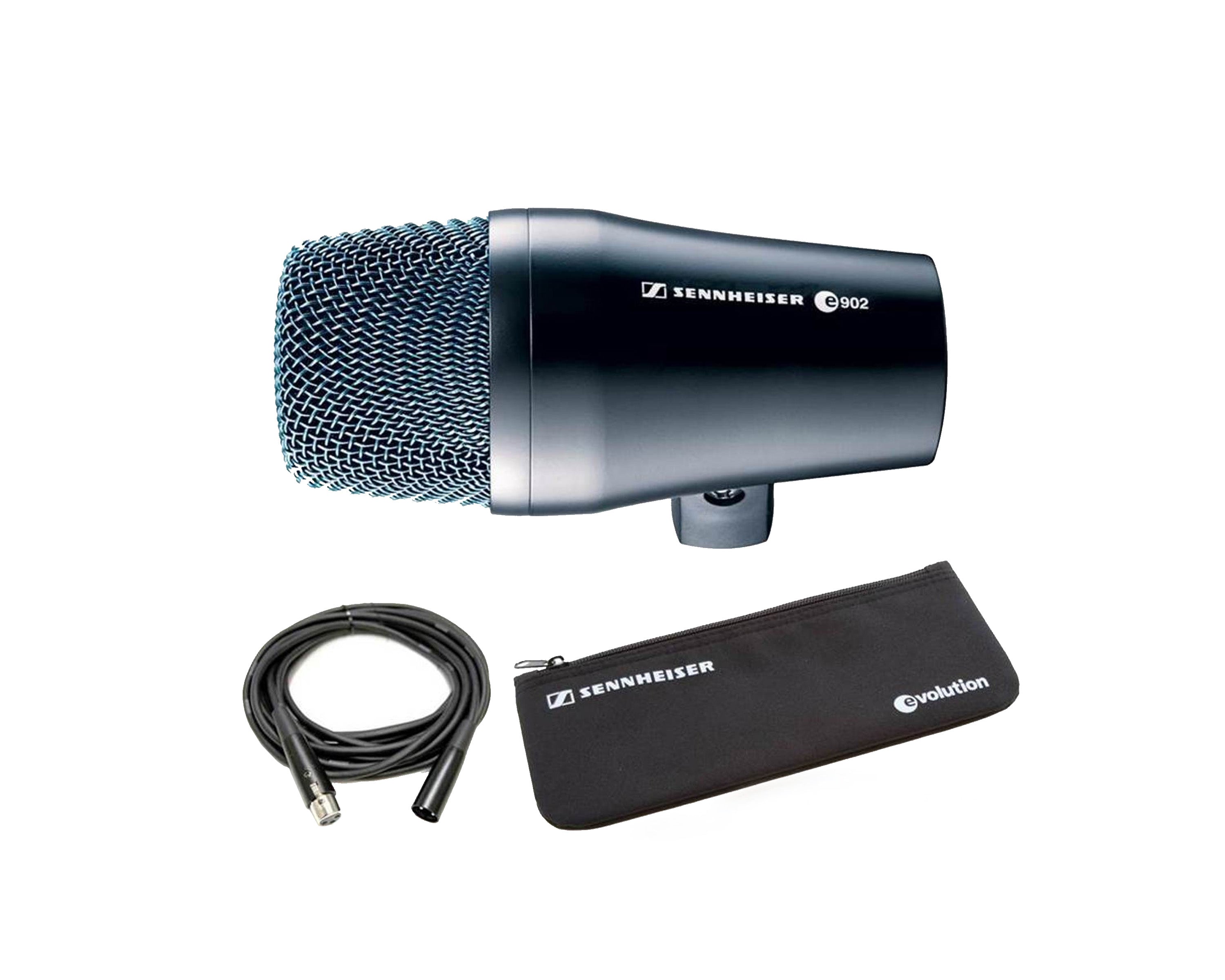

What's in the Box?

• 1 x E902
• 1 x Pouch
• 1 x Clamp
• User Manual
