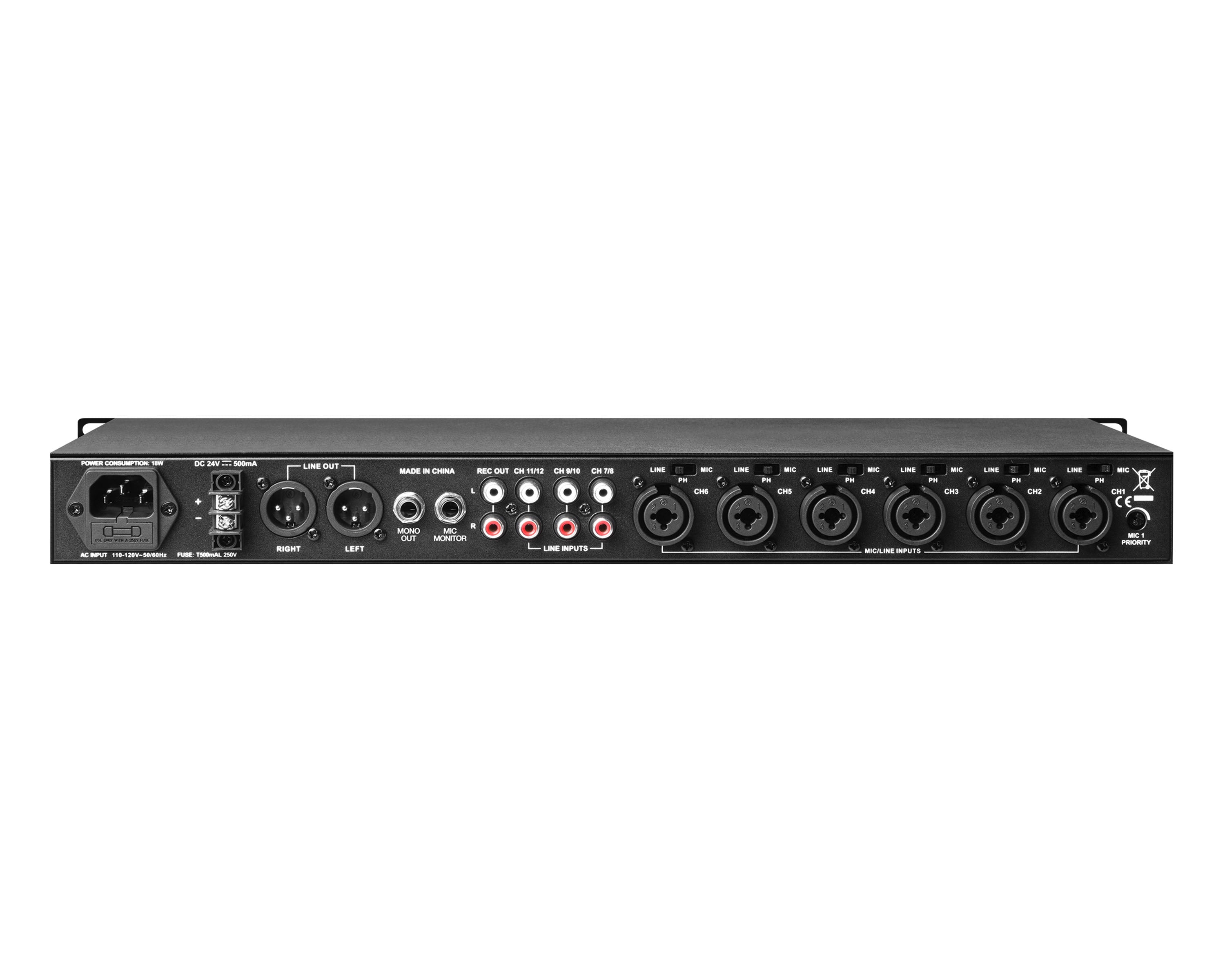

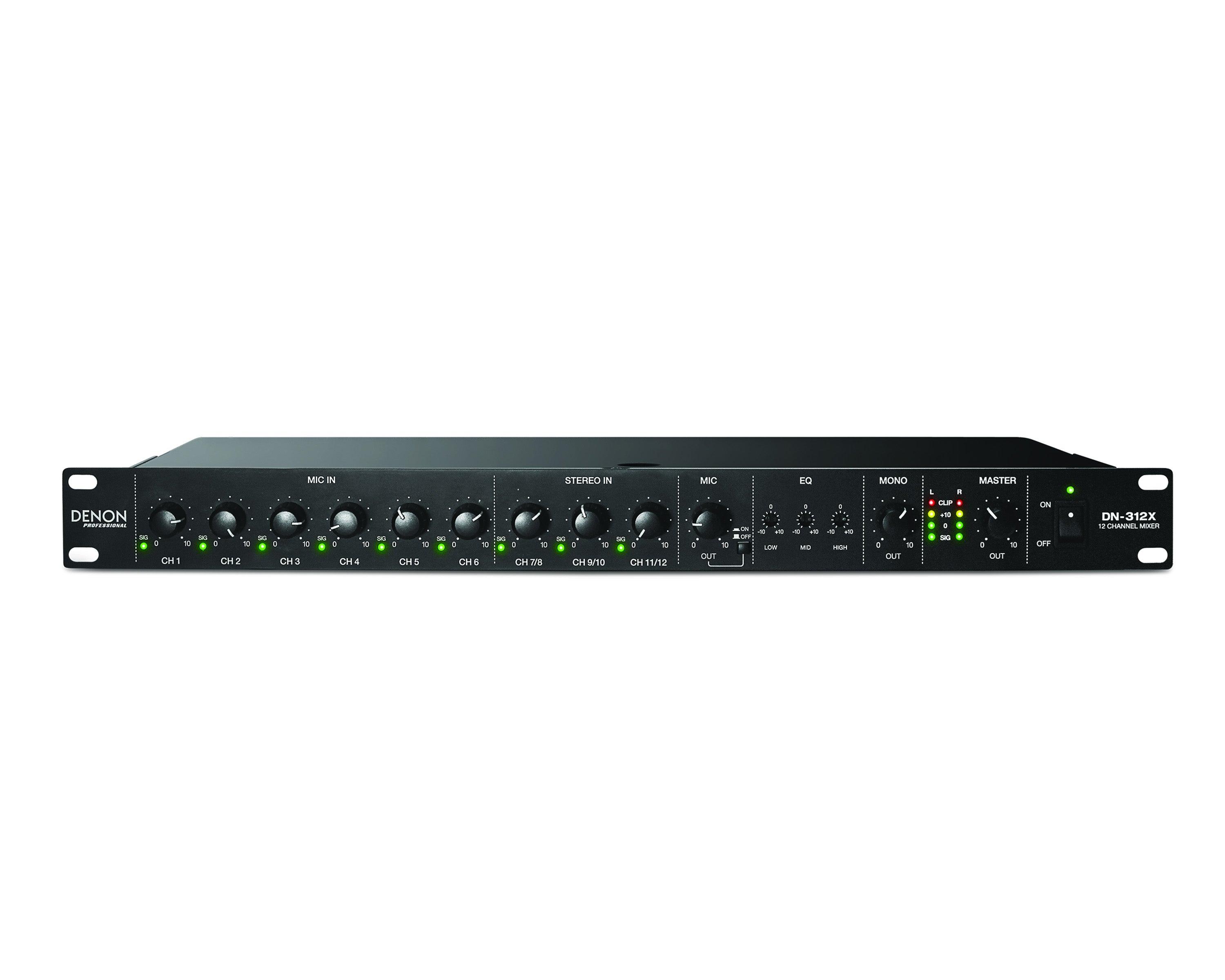

The DN-312X is a 1U rack-mounted 12-channel mixer that can solve countless audio challenges. It features 6 mic/line combination inputs (HDHQ™ Denon-Marantz proprietary mic pre’s) each with switchable phantom power and 6 additional line-level inputs. It has balanced XLR outputs, a 1/4-inch (6.3mm) mono output that can be used to connect the DN-312X to a remote mixer, a pair of RCA stereo outputs to connect to a remote recording device, and 1/4-inch (6.3mm) mic monitoring port that can be used to monitor the mics’ signals.

The DN-312X provides individual level control for all inputs in addition to level control for the mono output port and a master level control. Rounding off the feature set, It has a 3-level equalizer and a controlled priority for Mic/Line 1. It can be powered from standard AC or a 24V DC power source, inviting it to be used in a variey of applications; everything from a classtroom to a tour bus.

Product Features

• 6 HDHQ™ Combination inputs with MIC, Phantom and Line selector switches
• 6 mono (3 stereo) RCA Inputs
• Mic monitor 1/4” output for private listening of all mic inputs
• Balanced XLR line outputs
• Mono 1/4” line output can be used to feed audio to external recording device
• AC or 24V DC power inputs
• Mic 1 Priority Control
• Master and Individual level controls
• 1U rack mountable

Product Specifications

General

• Microphone Input: 6 Balanced XLR Connectors (Channels 1–6)

  • Frequency Response: 20 Hz - 22 kHz
  • THD+N: < 0.03% @ 1 kHz
  • Sensitivity: -40 dBu
  • Maximum Input: -19 dBu
• Maximum Voltage Gain:
  • 60 dB (Mic Input to Line Out, Mic Out & Mono Out)
  • 50 dB (Mic Input to Rec Out)
• Signal-to-Noise Ratio: > 103 dB
• Phantom Power: 18–21 V, switch control
• Line Inputs: 6 Balanced XLR Connectors (Channels 1–6)
  • Frequency Response: 20 Hz - 22 kHz
  • THD+N: < 0.03% @ 1 kHz
  • Sensitivity: 0 dBu
  • Maximum Input: +21 dBu
• Maximum Voltage Gain:
  • 20 dB (Mic Input to Line Out, Mic Out & Mono Out)
  • 10 dB (Mic Input to Rec Out)
• Signal-to-Noise Ratio: > 103 dB
• Line Inputs: Stereo Balanced RCA Connectors (Channels 7/8-11/12)
  • Frequency Response: 20 Hz - 22 kHz
  • THD+N: < 0.03% @ 1 kHz
  • Sensitivity: +10 dBu
  • Maximum Input: +21 dBu
• Maximum Voltage Gain:
  • 10 dB (Line Input to Line Out)
  • 0 dB (Line Input to Rec Out)
  • 4 dB (Line Input to Mono Out)
• Signal-to-Noise Ratio: > 103 dB
• Impedance:
  • Mic/Line Input: 1.4 kΩ
  • Line Input: > 10 kΩ
  • All Outputs: 120 Ω
• Equalizer
  • High: +15 dB @ 12 kHz
  • Mid: +12 dB @ 2.5 kHz
  • Low: +15 dB @ 80 Hz
• Crosstalk
  • Adjacent Inputs:
    • < -70 dB @ 1 kHz (Channels 1–6)
    • < -68 dB @ 1 kHz (Channels 7/8–11/12)
  • Input to Output:
    • < -82 dB @ 1 kHz
• Main MixOutput
  • Line Output: 0 dBu (+2 dBu), balanced
  • Mic Output, Mono Output: 0 dBu (+2 dBu), unbalanced
  • Maximum Output: +21 dBu balanced/unbalanced, 1/4” (6.35 mm) jacks
  • Noise (Bus): < -83 dB @ 20 Hz – 22 kHz
• Power connection: IEC
• Input Voltage: 100V~, 110-120V~, 50/60Hz; 220-240V~, 50/60Hz or DC24V

Physical & Dimensions

• Width: 483mm
• Depth: 195mm
• Height: 44mm
• Weight: 2.9kg

What's in the Box?

• DN-312X mixer
• IEC Cable
• User Guide
• Safety and Warranty Manual
