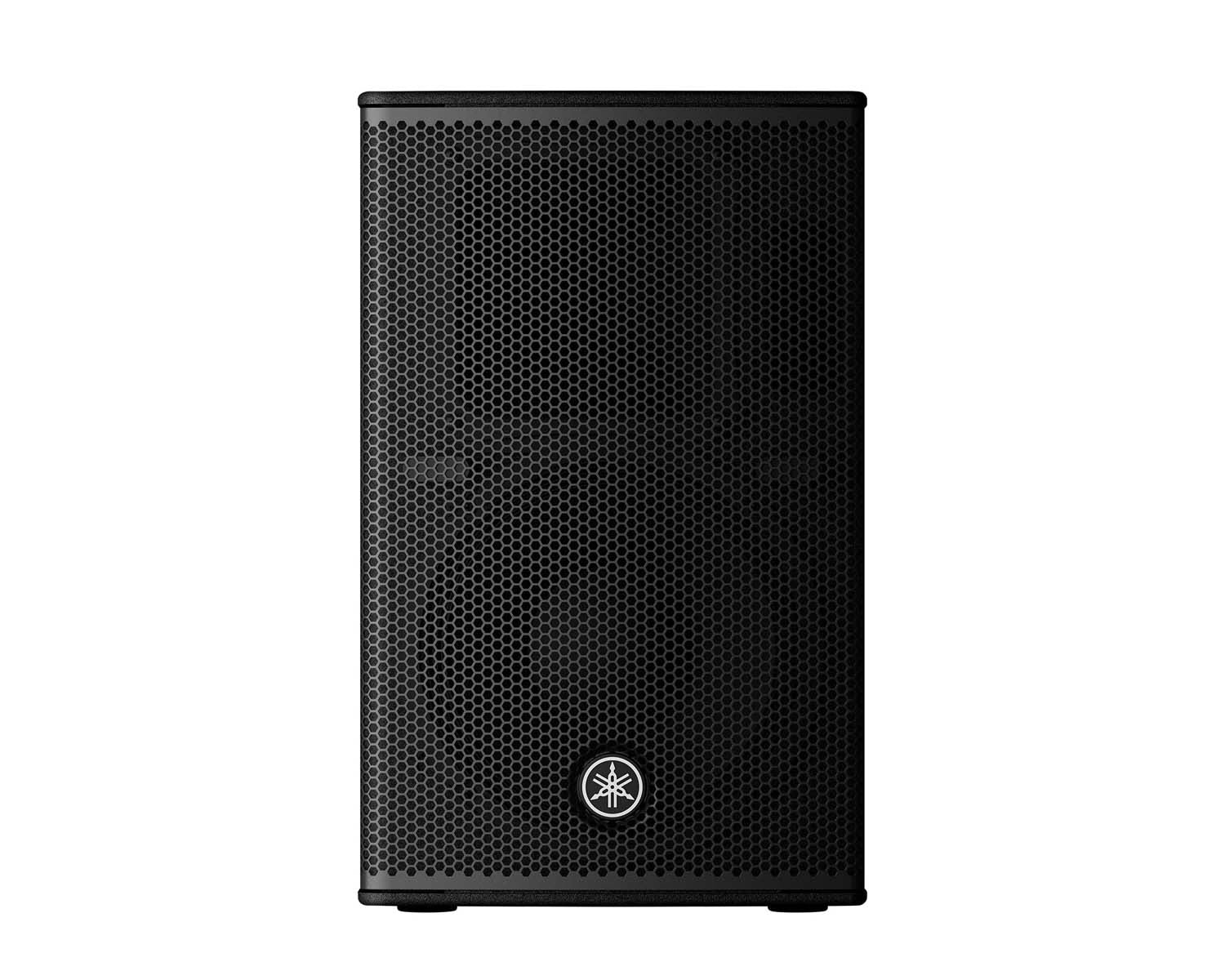

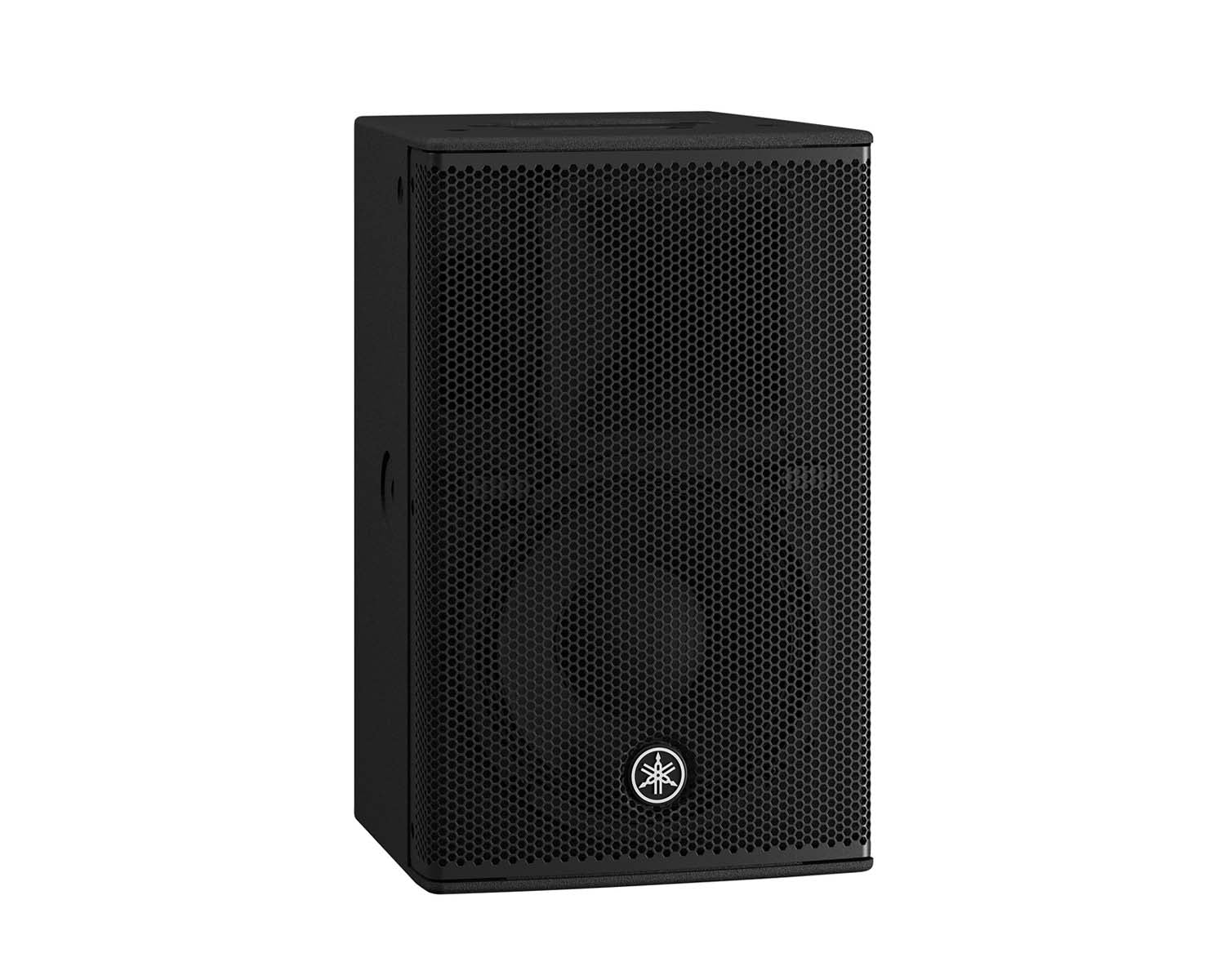

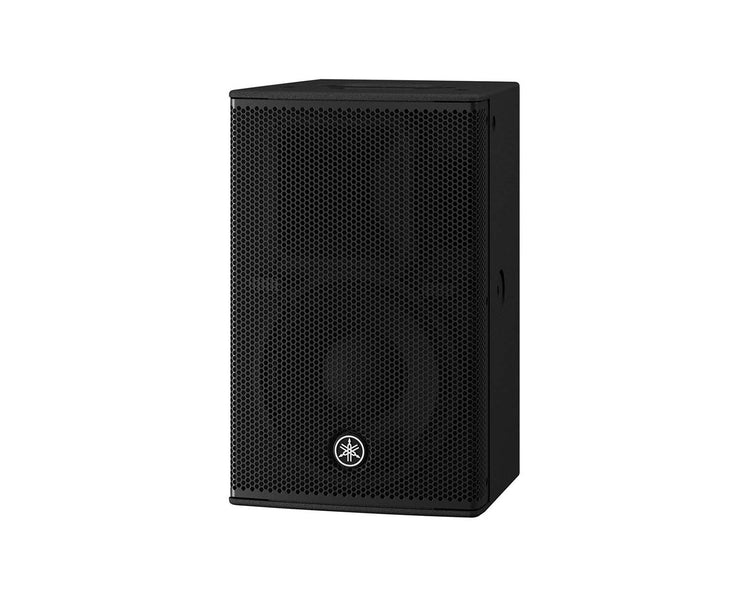

The DHR10 is a 2-way bi-amp powered loudspeaker, equipped with a 10-inch woofer and a 1.4-inch HF driver, and perfect for use in fixed installations. Combining a 700W amplifier module and high-performance DSP with the same high-grade plywood construction found on Yamaha’s high-end DZR Series, the DHR10 offers best-in-class sound quality and durability.

Product Features

• Featuring a plywood cabinet that delivers a clear sound with minimal vibration
• Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
• Compact appearance thanks to a 10-inch LF driver that provides excellent low frequency response
• Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments
• Optional UB-DXRDHR10 U-bracket allows both for vertical or horizontal use
• A pole socket for use on a stand
• Rigging points for use with eye bolts
• Proprietary FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion

Product Specifications

• Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
• Frequency range (-10dB): 52 Hz - 20 kHz
• Coverage: H90ﾟ x V60ﾟ (Rotatable)
• Crossover: 1.9 kHz: FIR-X tuning™ (linear phase FIR filter)
• Maximum Output Level (Measured peak, IEC noise@1m): 128 dB SPL
• Components

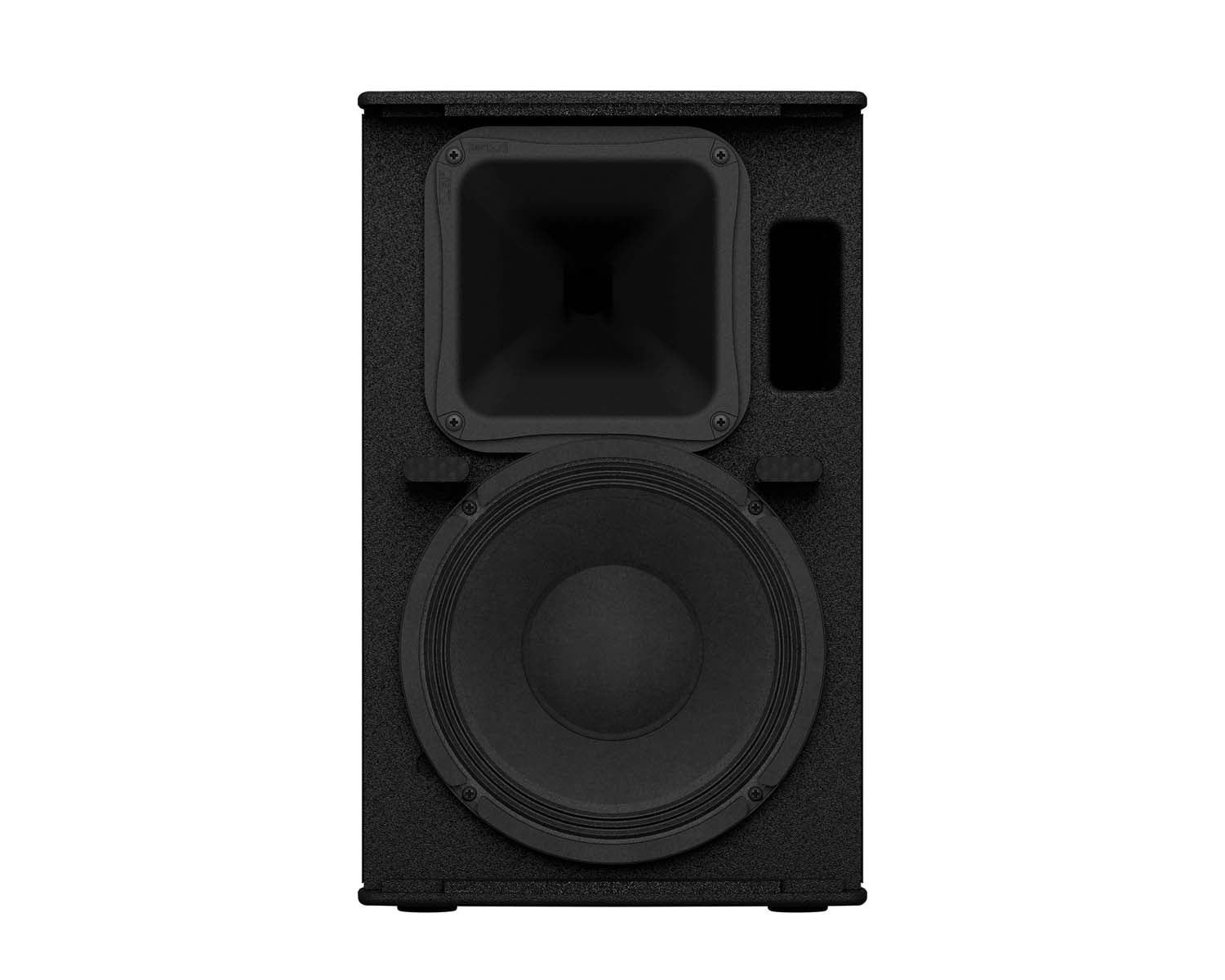

  • LF: Diameter: 10" cone, Voice Coil: 2", Magnet: Ferrite
  • HF: Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite
• Amplifier Class: Class-D
• Power rating
  • Dynamic: 700 W (LF: 500 W, HF: 200 W)
  • Continuous: 325 W (LF: 260 W, HF: 65 W)
• Cooling: Fan cooling, 4 speeds
• Power consumption: 60 W (1/8power), 18 W (Idle)
• Power requirements: 100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz
• A/D D/A Converters: 24 bit 48 kHz Sampling
• Processors: HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF

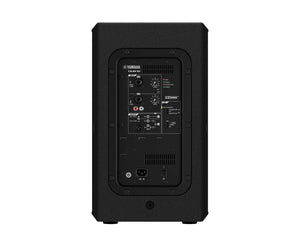

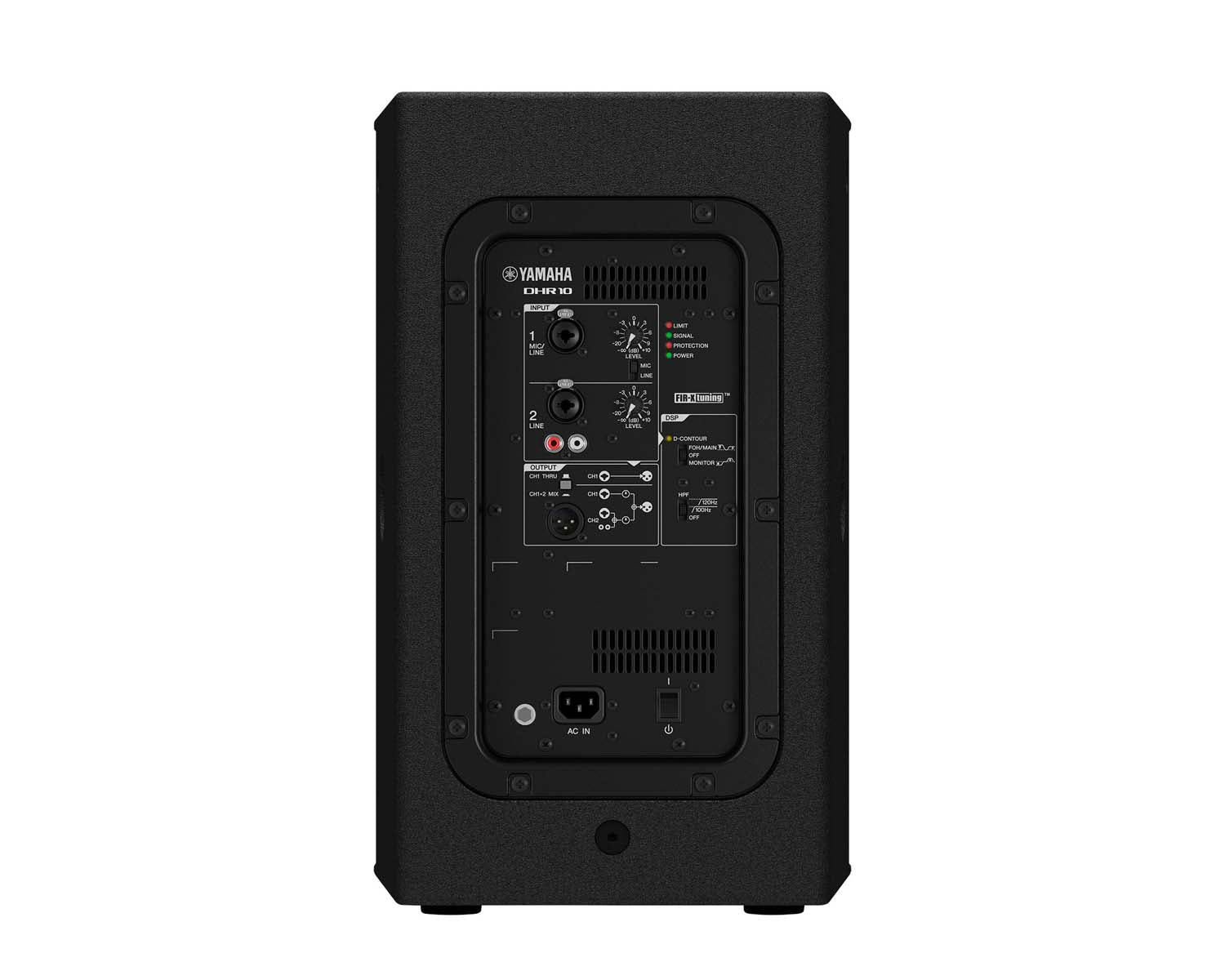

• I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
• Cabinet material: Plywood
• Finish: Durable Polyurea Painting, Black
• Handle: Top x1
• Pole Socket: Φ35 mm x1 (Bottom)
• Rigging: Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)
• Dimensions
  • W: 305 mm (12.0")
  • H: 494 mm (19.5") (with rubber feet)
  • D: 300 mm (11.8")
• Net weight: 15.0 kg (33.1 lbs)

What's in the Box?

• DHR10 Active Loudspeaker
• AC power cord
• Owner’s manual
