20,000W Amplifier with 4 Flexible Output-Channels, Lake Digital Signal Processing and Digital Audio Networking for Installation Applications.
D 200:4L Combines 20000 W of Flexible Power with the Latest Lake DSP, DANTE Digital Audio Networking and Advanced System Integrity Monitoring.
The D 200:4L is based on the same foundation of robust, high-power amplifier technologies as our renowned PLM Series – an amplifier platform with a proven record of reliability and sonic performance on the world’s most grueling concert tours and in high-profile, large-scale installations.
With the D 200:4L, those same core technologies have been updated and refocused to provide the ultimate solution for the most demanding digitally networked installed sound applications – in stadia, arenas, theme parks, performing arts centers, racecourses and other large commercial sound installations.
In addition to legendary Lab Gruppen reliability and sonic excellence, the D Series incorporates newly refined outputs stage technologies along with installation-targeted hardware and software features that optimize amplifier system design and configuration. Together, these new technologies allow systems integrators to minimize both initial equipment costs and end users’ long-term energy consumption.
Product Features
- 20,000 Watt amplifier with 4 flexible output channels and up to 5,900 Watts channel output
- Lake digital signal processing for unparalleled loudspeaker management and system control
- Integrated 8x8 channels of dual redundant Dante* digital audio networking with AES67 support
- 4 x 4,400 Watts into 2 Ohms, 4 x 5,000 Watts into 2.67 Ohms, 4 x 4,400 Watts into 4 Ohms, 4 x 2,300 Watts into 8 Ohms, 4 x 1,150 Watts into 16 Ohms, 4 x 3,300 Watts into Hi-Z 70 V, 4 x 4,700 Watts into Hi-Z 100 V
- Proven and reliable Class-TD output stage with proprietary Intercooler high-efficiency cooling system
- Rational Power Management (RPM) provides total flexibility to allocate available power across all 4 output channels
- Best-in-class Power Factor Correction (PFC) with Current Draw Modelling reduces running costs and minimizes environmental impact
- Under-Voltage Limiting (UVL) for continued operation during severe mains supply voltage drops
- Dedicated on-board surveillance and load monitoring for mass notification applications
- Redundant audio inputs and on-board system surveillance for voice alarm systems
- CAFE (Configuring Amplifiers For the Environment) software for design, system planning, equipment planning, installation and commissioning
- Control and monitoring integration with 3rd-party matrix systems including MediaMatrix* and Q-Sys* via dedicated interfacing software
- Dedicated front-panel mute buttons for each amplifier channel with bicolour LED indication
- 4 "Lake Class" analog input channels with Iso-Float ground isolation for reliable audio distribution
- 4 input channels of AES/EBU (AES3) digital audio supporting all standard sample rates up to 192 kHz with 24-bit resolution
- 2 Neutrik etherCON* RJ-45 ports provide dual redundant Dante interfaces and remote configuration via Lake Controller and Dante Controller software
- Balanced analog and digital audio inputs and amplifier outputs on plug-in Phoenix* connectors
- Detachable Neutrik powerCON* cable rated at 250 V / 32 A with variety of wall plugs selectable on order
- Removable dust filter grille for increased air circulation and simple maintenance
- Rugged 2U rackmount chassis including rear support brackets for ease of installation
Product Specifications
General
- Processing / Network: Lake / Dante
- Number of amplifier channels: 4
- Total burst power all channels (share among channels with RPM): 20000 W
- Approvals: CE, ETL(ANSI/UL, CSA), PSE, RCM
Max output power (all channels driven)1
- 2 ohms: 4400 W
- 2.67 ohms: 5000 W
- 4 ohms: 4400 W
- 8 ohms: 2300 W
- 16 ohms: 1150 W
- Hi-Z 70 V: 3300 W
- Hi-Z 100 V: 4700 W
Max output power single channel1
- 2 ohms: 4400 W
- 2.67 ohms: 5900 W
- 4 ohms: 4600 W
- 8 ohms: 2300 W
- 16 ohms: 1150 W
- Hi-Z 70 V: 3300 W
- Hi-Z 100 V: 4700 W
Amplifier output modules (all models, all channels)
- Peak output voltage: 194 V
- Max. output current: 67 A
- Rational Power Management (RPM): Regardless of model, any channel has potential to deliver the max single channel output power
- Default voltage limitation (can be lifted with RPM configuration): 194 V
- Protection features: Current Average Limiter (CAL), Very High Frequency Protection (VHF), Direct Current Protection (DC), Short Circuit Protection, Current-Clip Limiter, Voltage Clip Limiter, Temperature protection
Amplifier platform
- Inter Sample Voltage Peak Limiter (ISVPL): Configurable Peak voltage threshold and profile
- THD + N at 1 kHz and 1 dB below clipping: < 0.04 %
- Pilot tone generation and analysis: Yes
- Load impedance analysis: Yes
- Frequency response (1 W into 8 Ohm, 20 Hz - 20 kHz): +/- 0.05 dB
- Internal Sample Rate / Data path: 48 / 96 kHz / 32 bit floating point
- Product propagation delay AES 96 kHz / analog input: 1.61 / 1.68 ms
Lake processing
- Loudspeaker processing: Up to 4 modules of Classic/linear-phase/FIR crossover, EQ, delay, LimiterMax™ - peak and RMS limiters
- System tuning: Group control with Raised Cosine™ MESA EG™ asymmetric filters
- Input redundancy / Matrix: Automatic 4 level input redundancy / 4 input mixers
- System integration: Comprehensive 3rd party protocol over UDP Ethernet
Dante Audio Network
- Dante I/O: 8 x 8
- Network topology / redundancy: Flexible topology / Supports daisy-chained and Dual redundant networks
- Sample Rates / Transport: 48, 96 kHz / Uni + Multicast
- Network latency: 0.25, 0.5, 1.0, 2.0, 5.0 ms
AES Inputs
- Inputs: 2 AES inputs (4 audio channel)
- Supported sample rates / resolution: 44.1, 48, 88.2, 96, 176.4, 192 kHz / up to 24 bits
- Sample rate conversion THD+N 20 Hz - 20 kHz unweighted: 0.0000003
Analog Inputs
- Inputs: 4 high quality inputs with Iso-Float ground isolation
- Maximum input / digital reference: +26 dBu / +21 dBu
- Sampling rate / Resolution: 96 kHz / 24 bit
- Input impedance balanced / unbalanced: 20 / 10 kOhm
- THD+N (typical at 1 kHz unweighted): 0.0000022
- THD+N (typical at 20 Hz and 20 kHz unweighted): 0.0000033

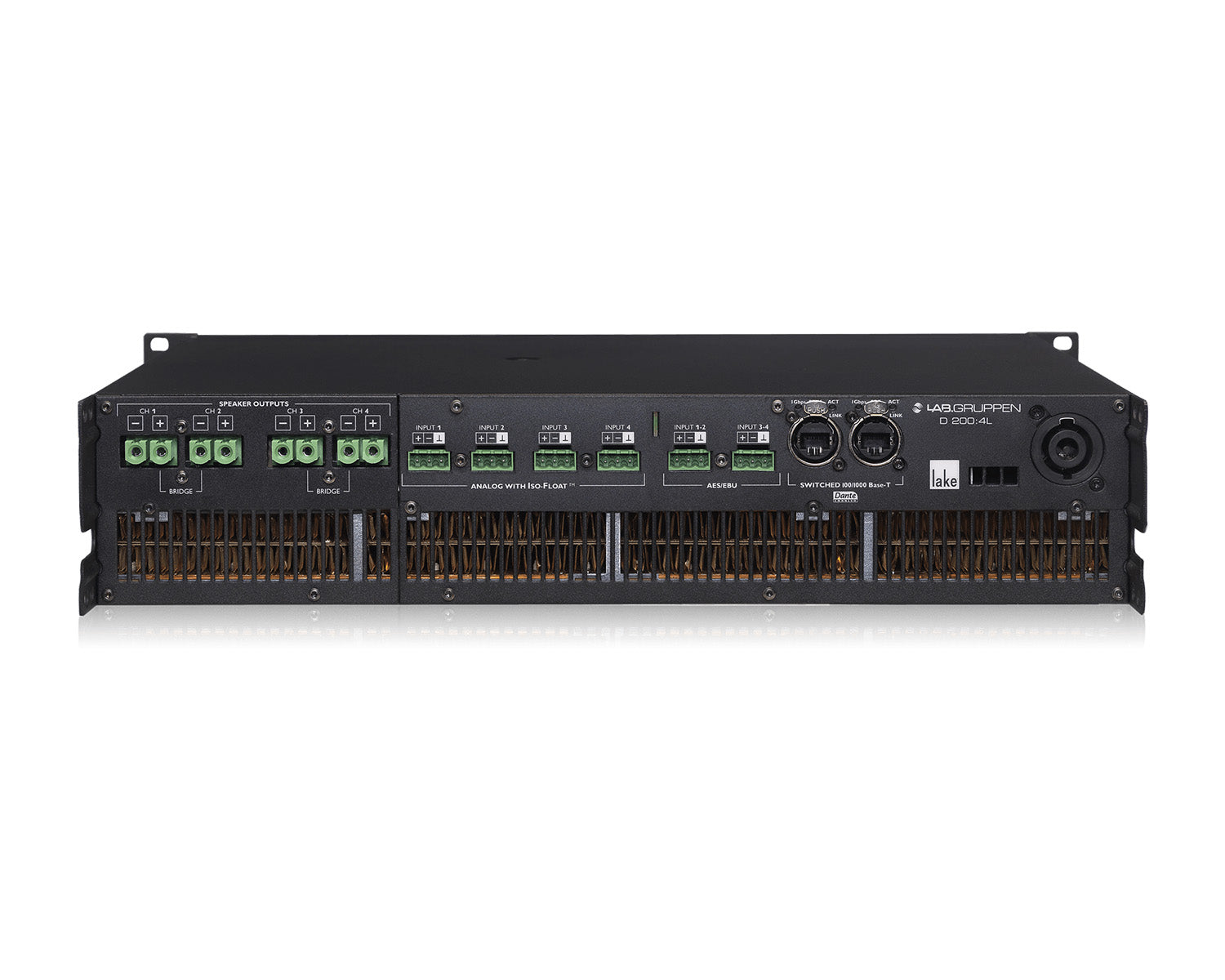

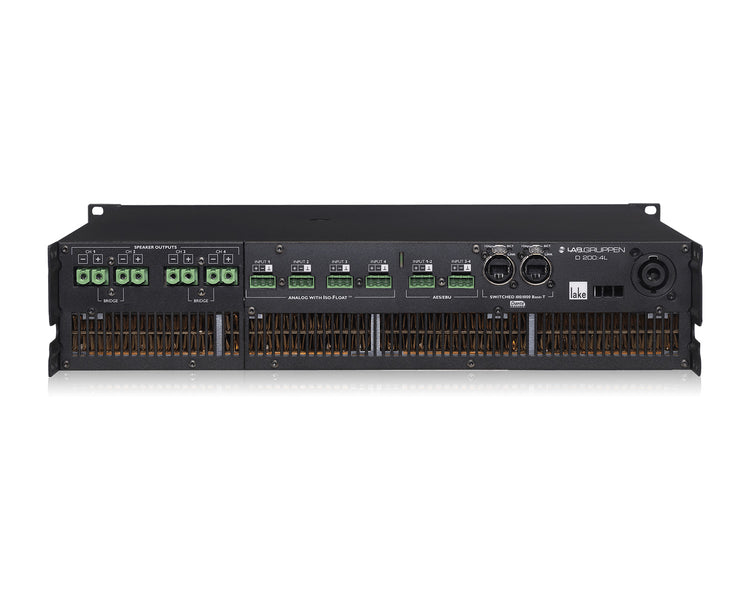

Back panel Interface
- Analog inputs: 4 x Terminal block connectors analog input with +, - and ground
- AES inputs: 4 x Terminal block connectors analog input with +, - and ground
- Output connectors: 4 x 2 pole Terminal block connectors rated at 1000 V / 76 A (exceeding amplifier capacity) Can take up to 16 mm2 (6 AWG) cables
- Ethernet Ports: 2 x EtherCon RJ45 100/1000 Base-T for the Lake Controller, Dante controller and/or DLM (3rd party protocol)
- Detachable mains cord: Neutrik PowerCon rated at 250V/32A

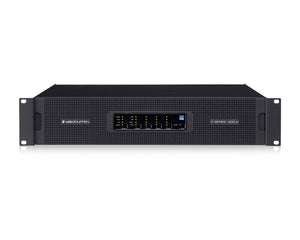

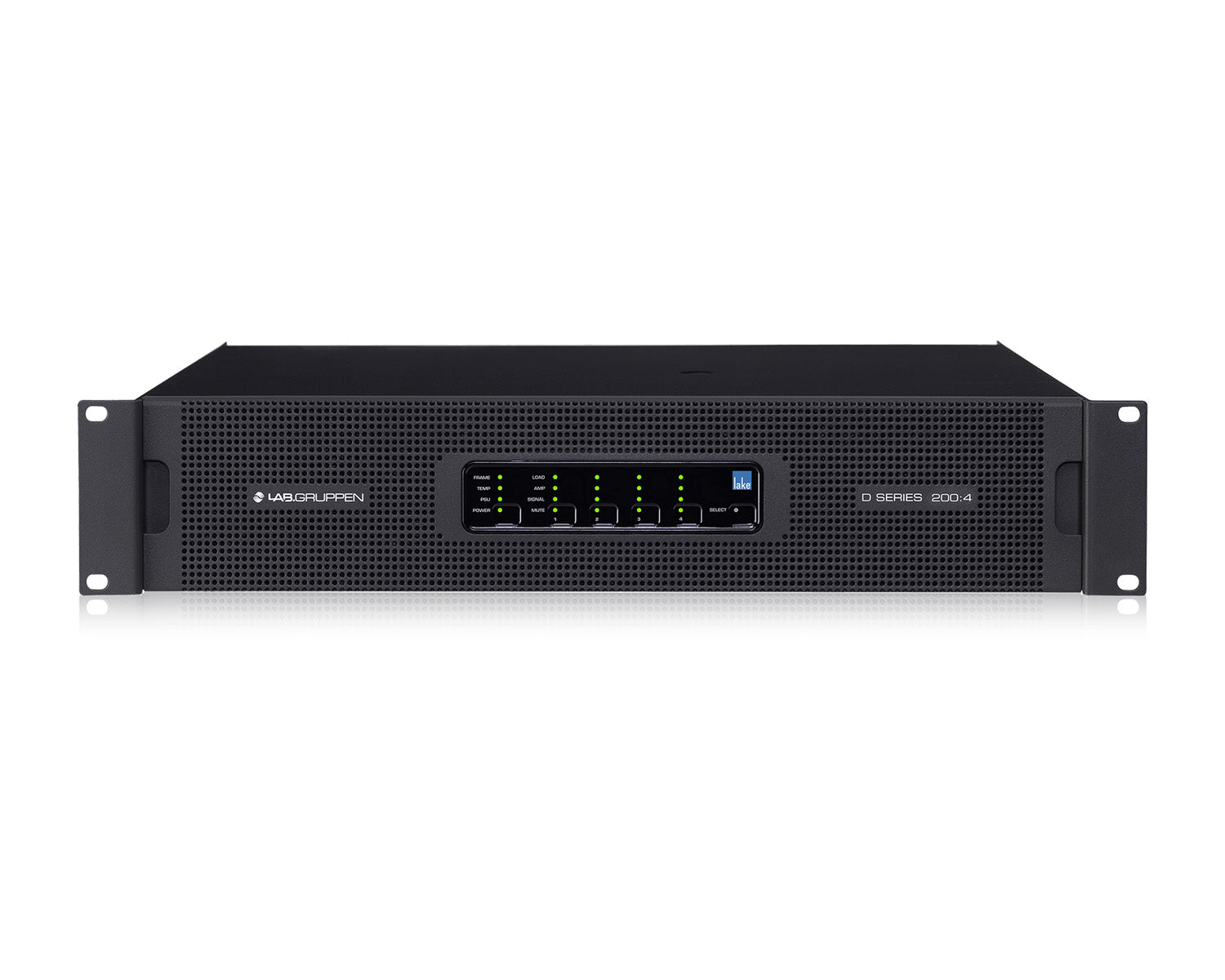

Front-panel user interface
- System status indication: 3 x 3 coloured LED. FRAME, TEMP, PSU for device status indication
- Channel status indication: 3 x 3 coloured LED per channel. Status indication separated for channel LOAD, AMP, SIGNAL status
- Mute: Per channel touch button for mute control and bicoloured LED for indication
- Power: Touch button for ON/STANDBY control and bicoloured LED for power state indication
- Select: Touch button and LED for bidirectional Device -Software select functionality
Mains Power
- Nominal voltage: 100 - 240 Volt AC 50 - 60 Hz
- Operating voltage: 70-265 V AC 45 – 66 Hz
Power supply features
- Soft start / Inrush power: Yes/ Max 8 Ampere
- Power Factor Correction (PFC): > 0.98 for mains power > 400 W
- Regulated switch mode power supply (R.SMPS): Yes
- Breaker Emulation Limiter (BEL): Configurable current threshold and breaker profile
- BEL max current threshold: 25 A
- Power Average Limiter (PAL): Yes
- Under Voltage Limiter (UVL): Yes
- Mains undervoltage and overvoltage protection and mains glitch tolerance: Yes
Physical & Dimensions
- Rack rail to rear panel: W: 483 mm (19"), H: 88 mm (2 U), D: 424 mm (16")
- Overall depth front-rear support: D: 463 mm
- Weight: 16.5 kg (36 lbs)
- Finish: Black painted steel chassis with black painted steel / aluminum front
