CXA4250 power amplifiers has been designed to provide configurable, consistent and reliable high performance audio power amplification for residential, commercial and entertainment applications.

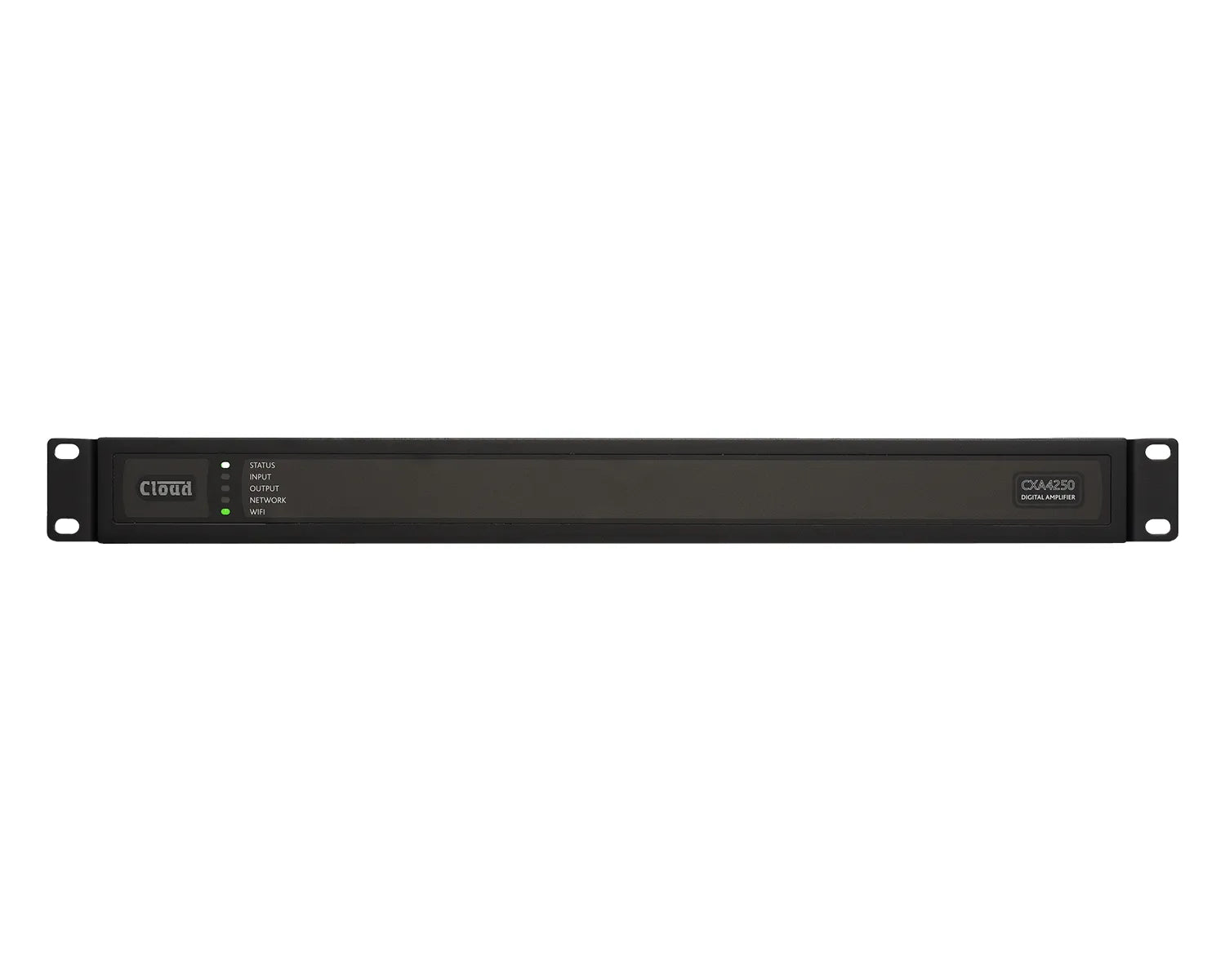

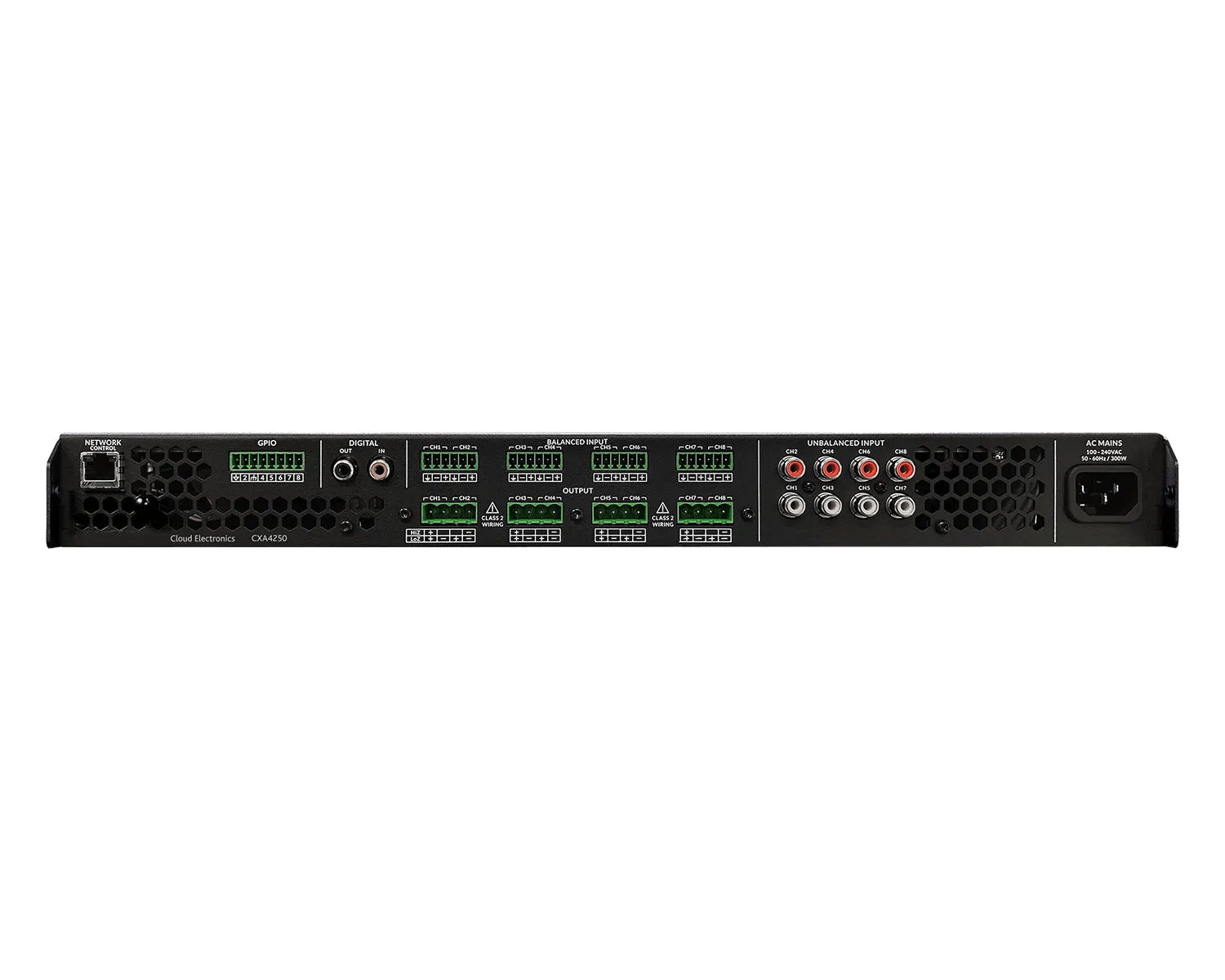

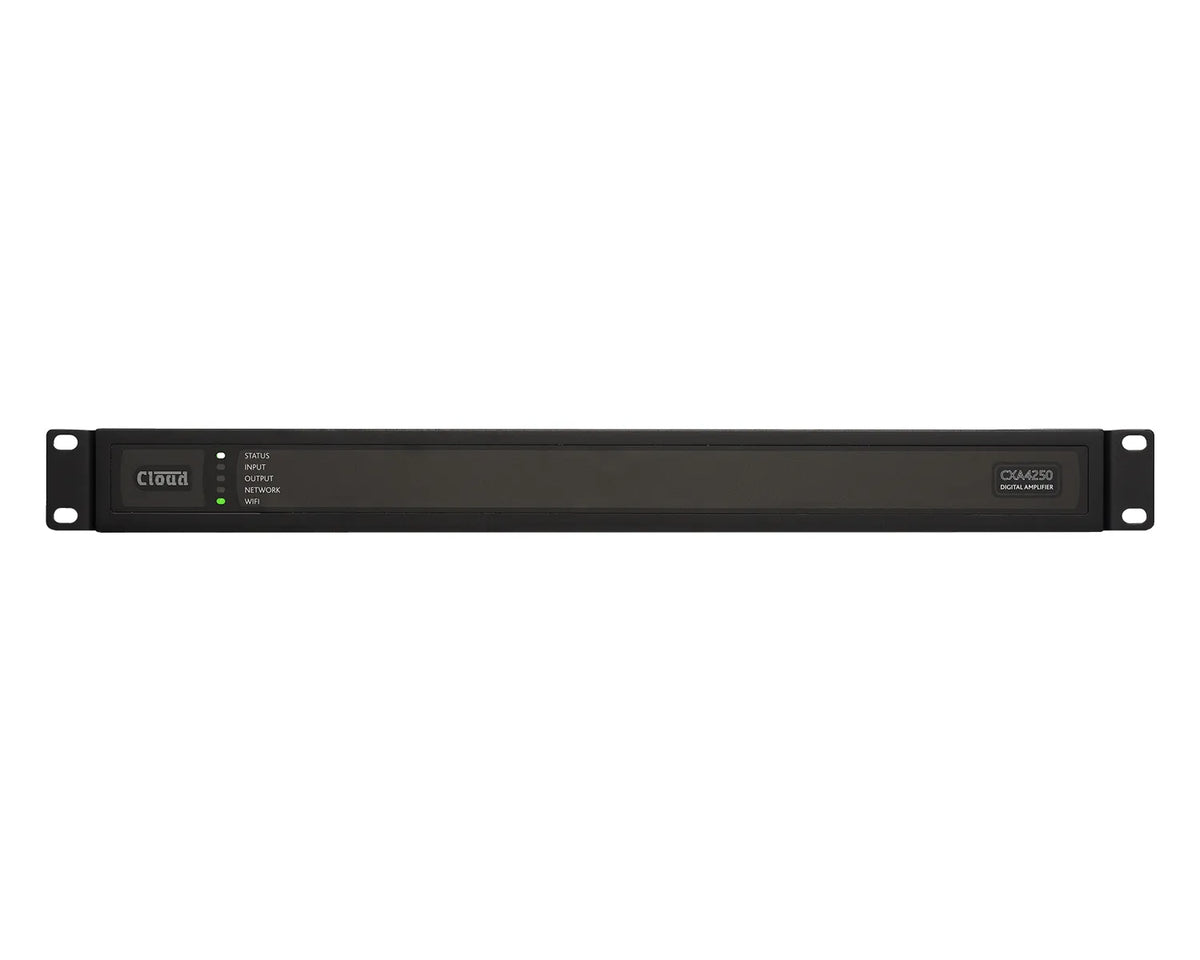

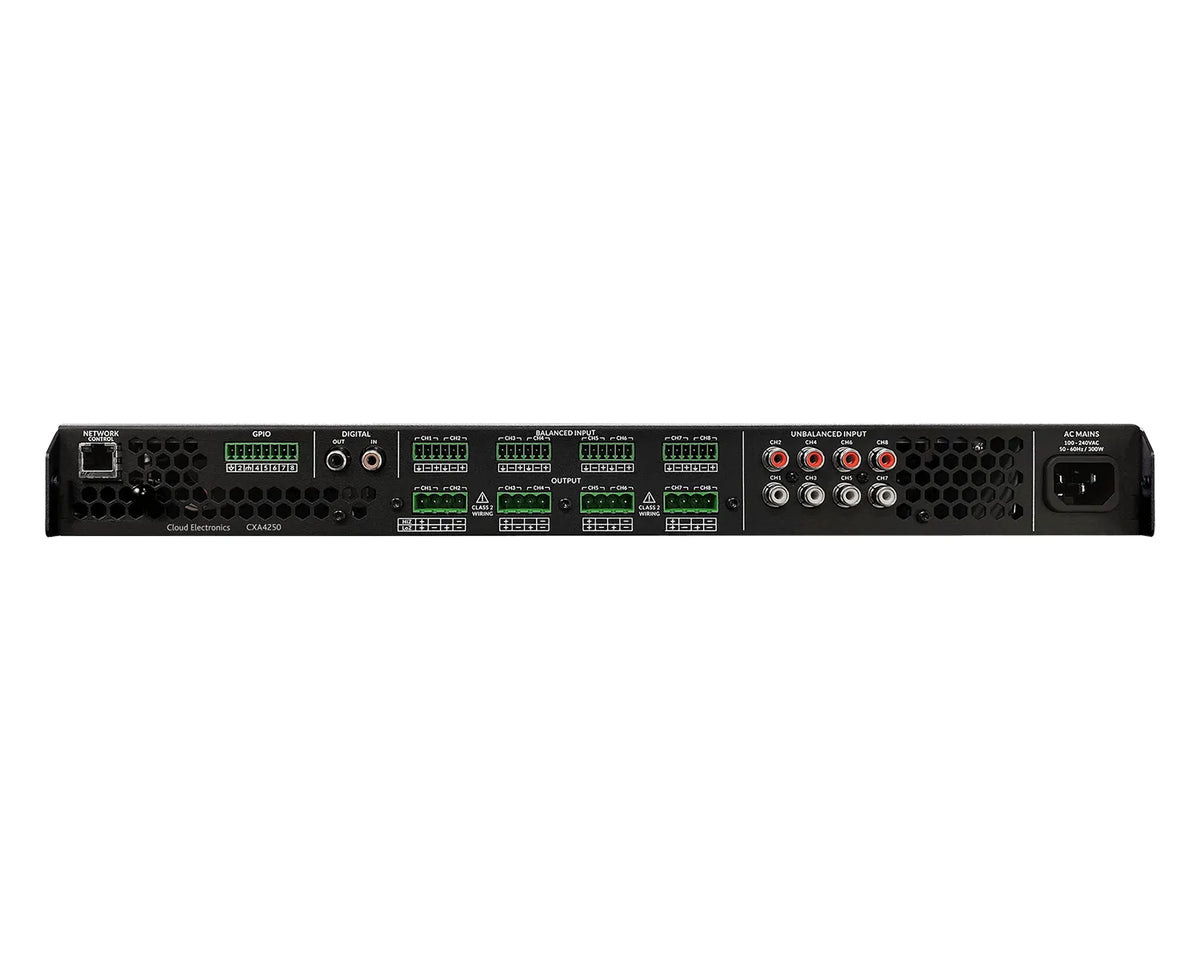

The CXA4250 amplifier is full rack width, 1U format power amplifier that can drive both conventional low impedance (Lo-Z, 4Ω to 16Ω) loudspeakers and high impedance (Hi-Z, 70V/100V) transformer coupled loudspeakers. Full-matrix DSP configuration via built in CXA web app. They provide four analogue inputs, one stereo S/PDIF digital input, and either eight outputs (Lo-Z mode), or four outputs (Hi-Z).

CXA4250 amplifier model output channel counts and power outputs are as follows:

Product Features

• Total System Power: 1000 W
• Output Power @ 4/8Ω: 8 x 125 W
• Output Power @ 70/100V: 4 x 250 W
• Automatic power sharing technology
• Drives both conventional low impedance (Lo-Z, 4Ω to 16Ω) loudspeakers and high impedance (Hi-Z, 70V/100V) transformer coupled loudspeakers
• 1U

Product Specifications

• Total System Power:  1000 W
• Output Power @ 4/8Ω:  8 x 125 W
• Output Power @ 70/100V:  4 x 250 W
• Powershare (up to) Across all channels:  4 x 250 W
• Power Consumption:  300W
• Power Ratings:  1% THD @ 120Vac and 230Vac
• Output Circuitry UMAC™ Class D - full bandwidth PWM modulator with ultra-low distortion
• Output Voltage 70Vp / 140Vpp (unloaded) // Bridged 140Vp / 280 Vpp (unloaded)
• Signal To Noise-Ratio >106dB (A-weighted, 20Hz-20kHz, 8Ω load)
• THD+N (typical) < 0.05% (20Hz-20kHz, 8Ω load, 3dB below rated power)
• Frequency Response 20Hz-20kHz (+0/-0.8dB (8Ω load, 3dB below rated power)
• Protection Circuits:  Short circuit -, DC -, Undervoltage -, Temperature - and Overload protection
• Power Supply:  UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and standby converter
• Operating temperature:  0-40°C
• Operating Voltage/Frequency:  Universal Mains, 100V-240V, 50Hz-60Hz
• Standby Consumption:  < 0.6W
• Dimensions:  44 x 220 x 319mm (1.7 x 8.7 x 12.6 in)
• Weight:  3.8 kg (8.4 lbs)


What's in the Box?

• Amplifier unit
• 4 x Output connector
• 2 x Rack mount ears (fitted)
• 4 x Adhesive rubber feet
• Mains power cable
• Document pack
• 4 x Input connector
• GPIO socket connector
