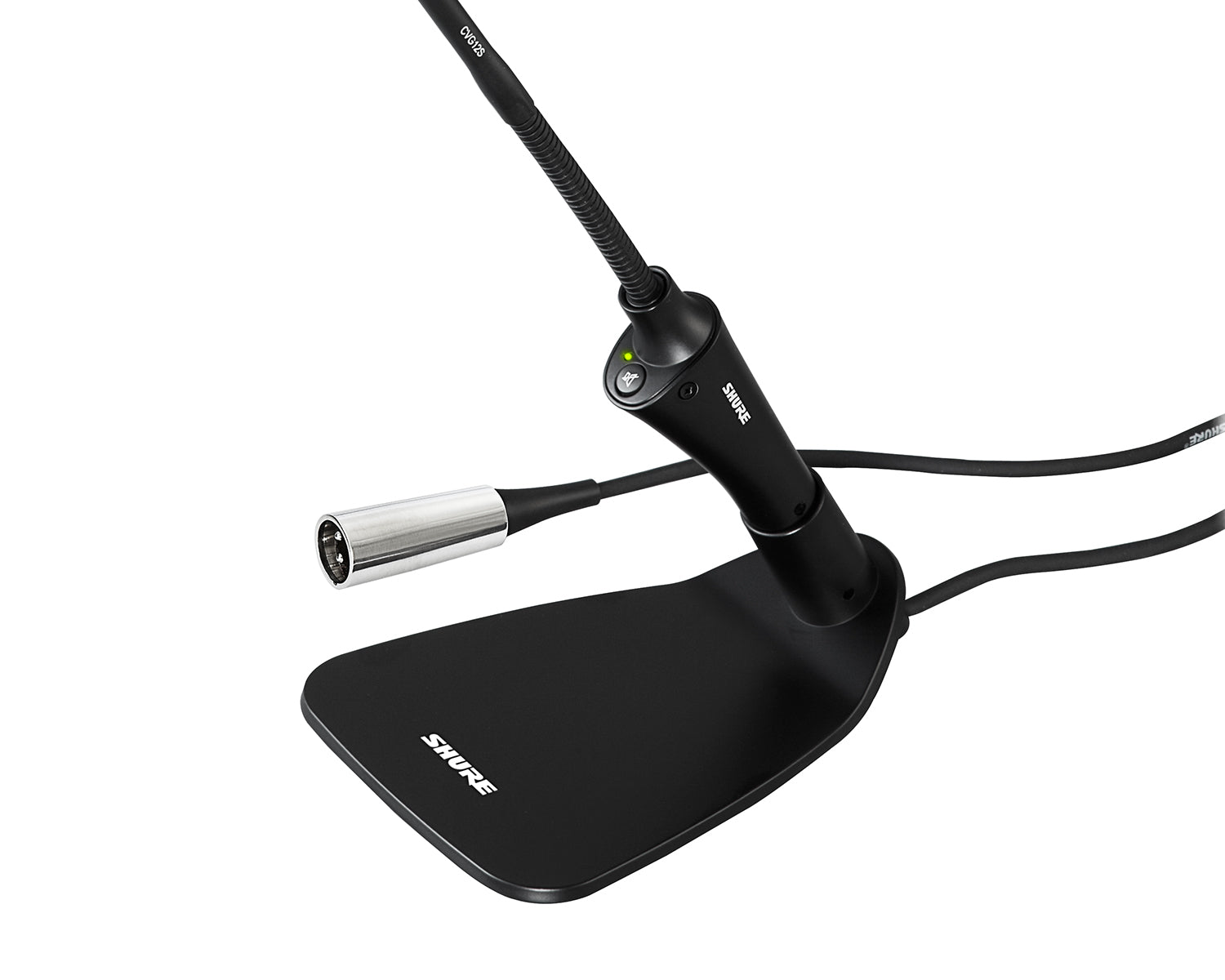

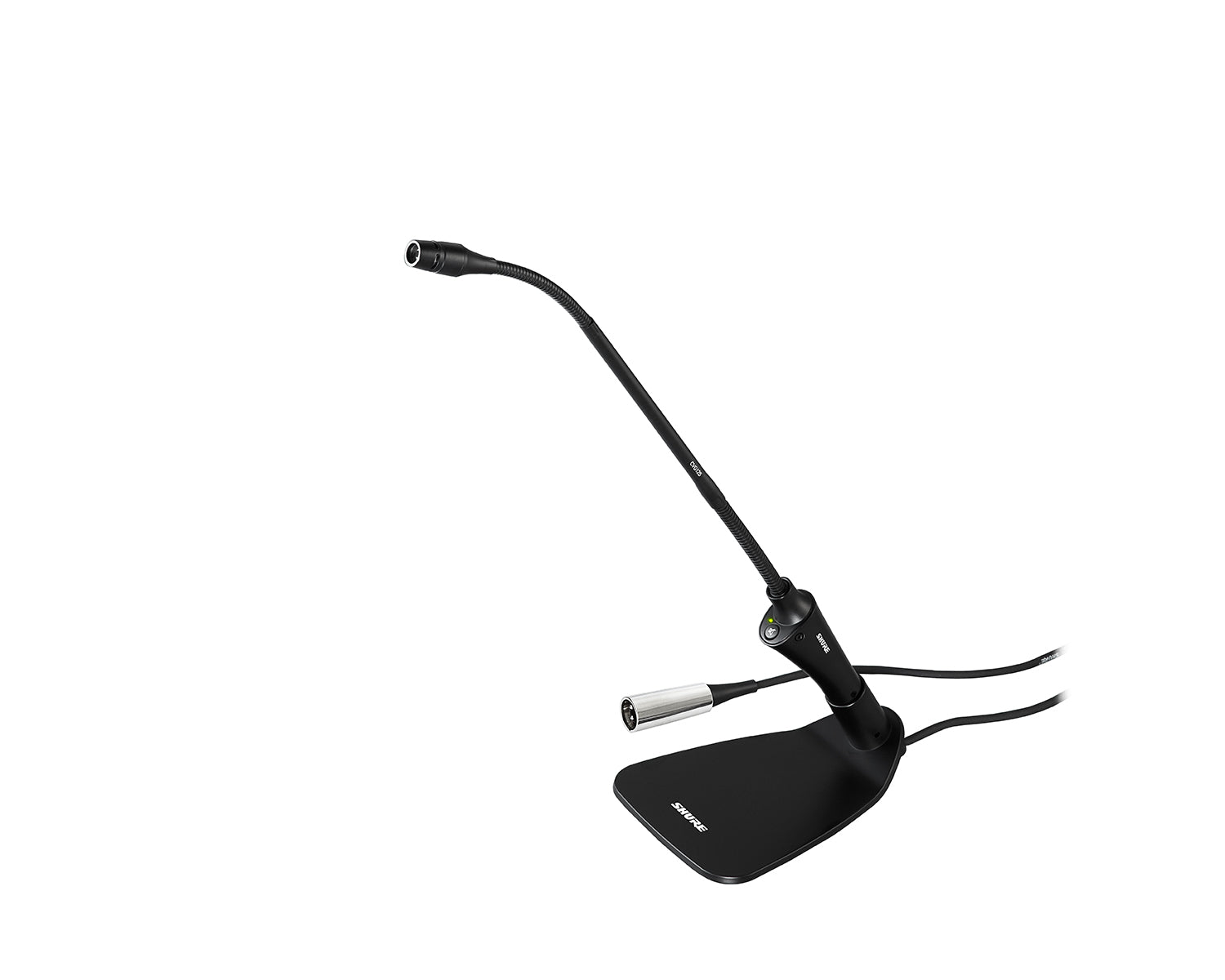

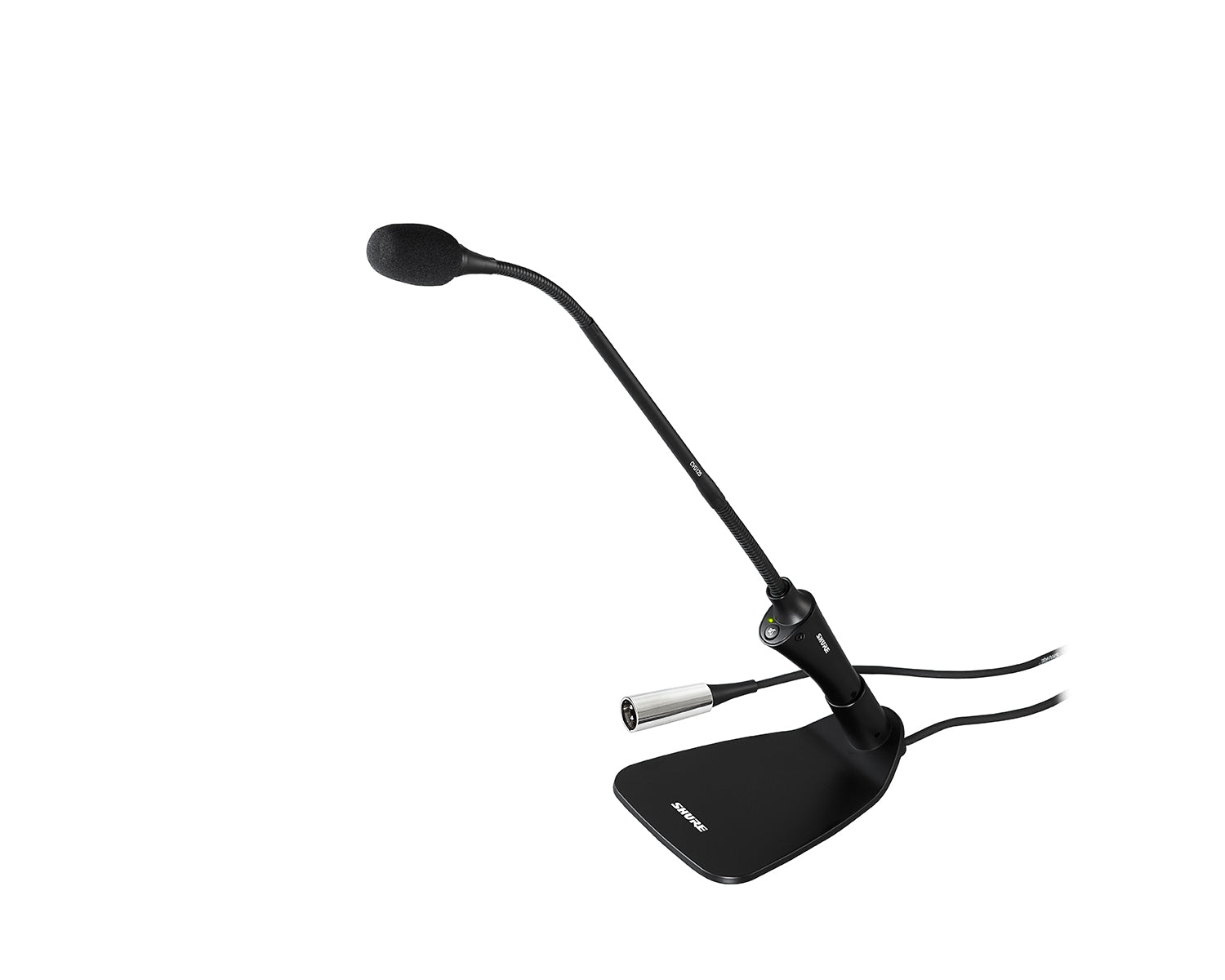

Gooseneck cardioid microphone consists of an integrated desktop base and inline preamplifier for use in installed sound reinforcement or conferencing. Features a dual-section gooseneck for positioning and Commshield RF Filtering for interference.

Designed with dual gooseneck sections for full articulation and an integrated base for precise positioning, the CVG12D provides scalable, high level performance in a wide variety of locations, including podiums and desktops.

Product Features

• Cardioid polar pattern with tailored response for speech
• Integrated desktop base
• 12” (30.5 cm) gooseneck
• With inline preamp, mute switch, and LED indicator
• Dual-section gooseneck enables ease of positioning and placement options
• XLR cable/connection. Plug-and-play solution for minimized setup times
• All Centraverse models are equipped with Commshield® RF Filtering Technology
• Guards against unwanted RF Interference from portable wireless devices (smartphones, etc.)
• High resistance to intense nearby radio signals
• Includes integrated 12\' (365 cm) cable with XLR termination

Product Specifications

• Cartridge Type: Electret Condenser
• Frequency Response: 70–16000 Hz
• Polar Pattern: Cardioid
• Output Impedance: 180 Ω
• Sensitivity (at 1 kHz , open circuit voltage): –33 dBV/Pa (22 mV)
• Maximum SPL (1 kHz at 1% THD): 120 dB SPL
• Signal to Noise Ratio (referenced at 94 dB SPL): 67 dB
• Dynamic Range: 93 dB
• Self Noise (equivalent SPL, A-weighted, typical): 27 dB SPL
• Common Mode Rejection (10 Hz to 100 kHz): >45 dB
• Preamplifier Output Clipping Level (1% THD): −7 dBV
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
• Power Requirements:
  • CVGD: 11–52 V DC, 2.0 mA
  • CVGD/S: 11–52 V DC, 5.5 mA
  • CVGD/RS: 11–52 V DC, 5.0 mA
• Environmental Requirements:
• Operating Temperature Range: –18 °C to 57 °C (0 °F to 135 °F)
• Storage Temperature Range: –29 °C to 74 °C (–20 °F to 165 °F)
• Relative Humidity: 0 to 95%

What's in the Box?

• 1 x 95A16670 Windscreen (black)
