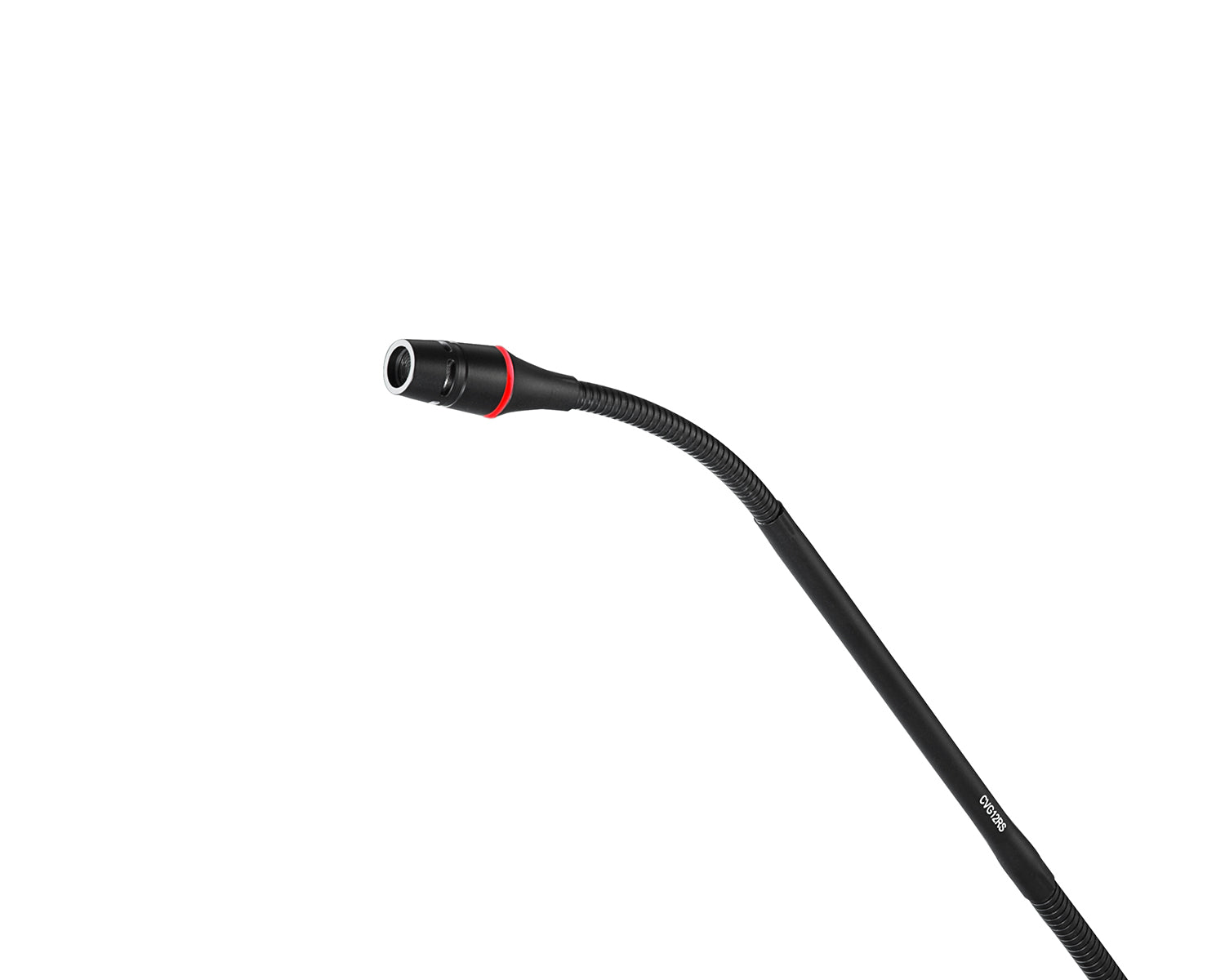

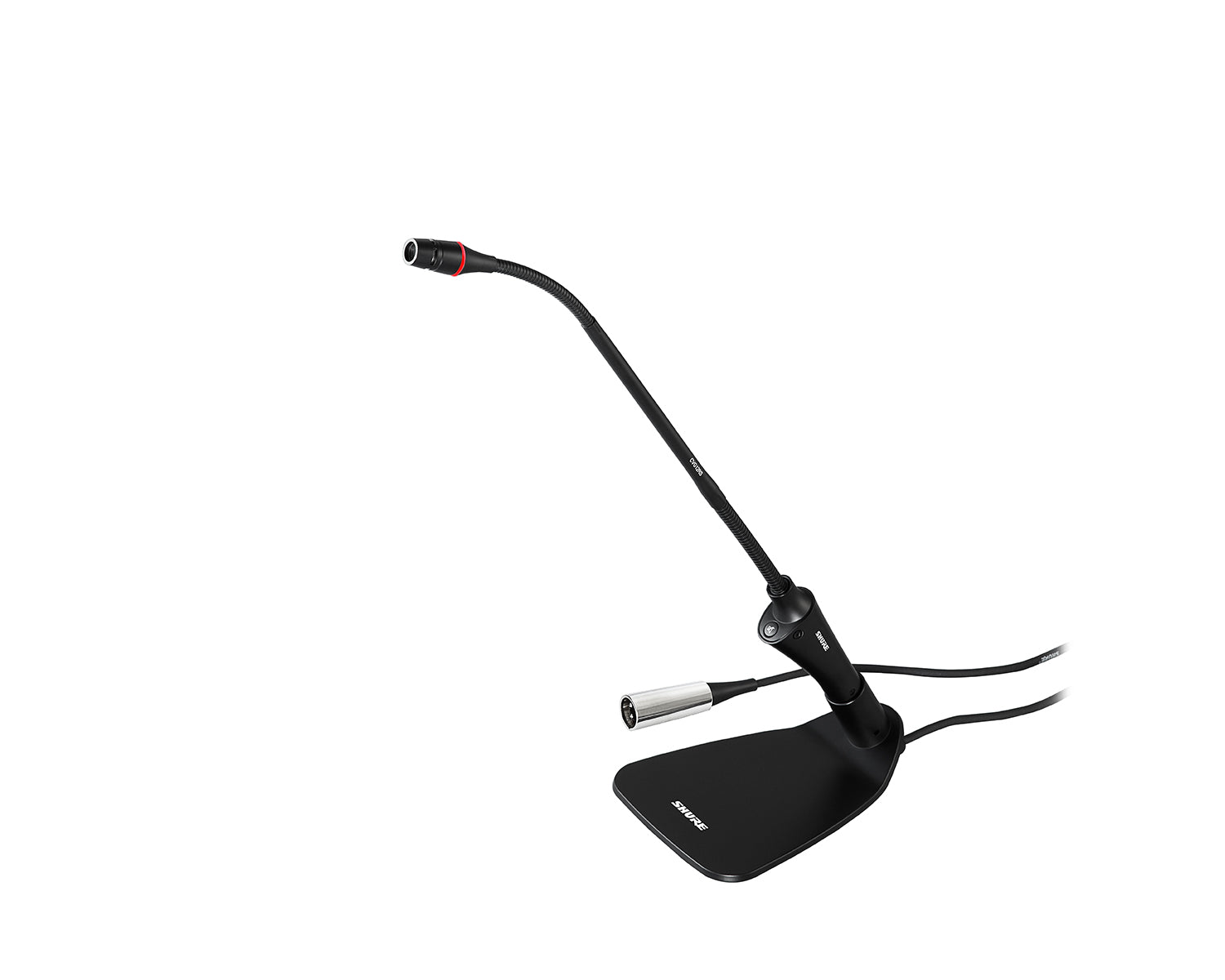

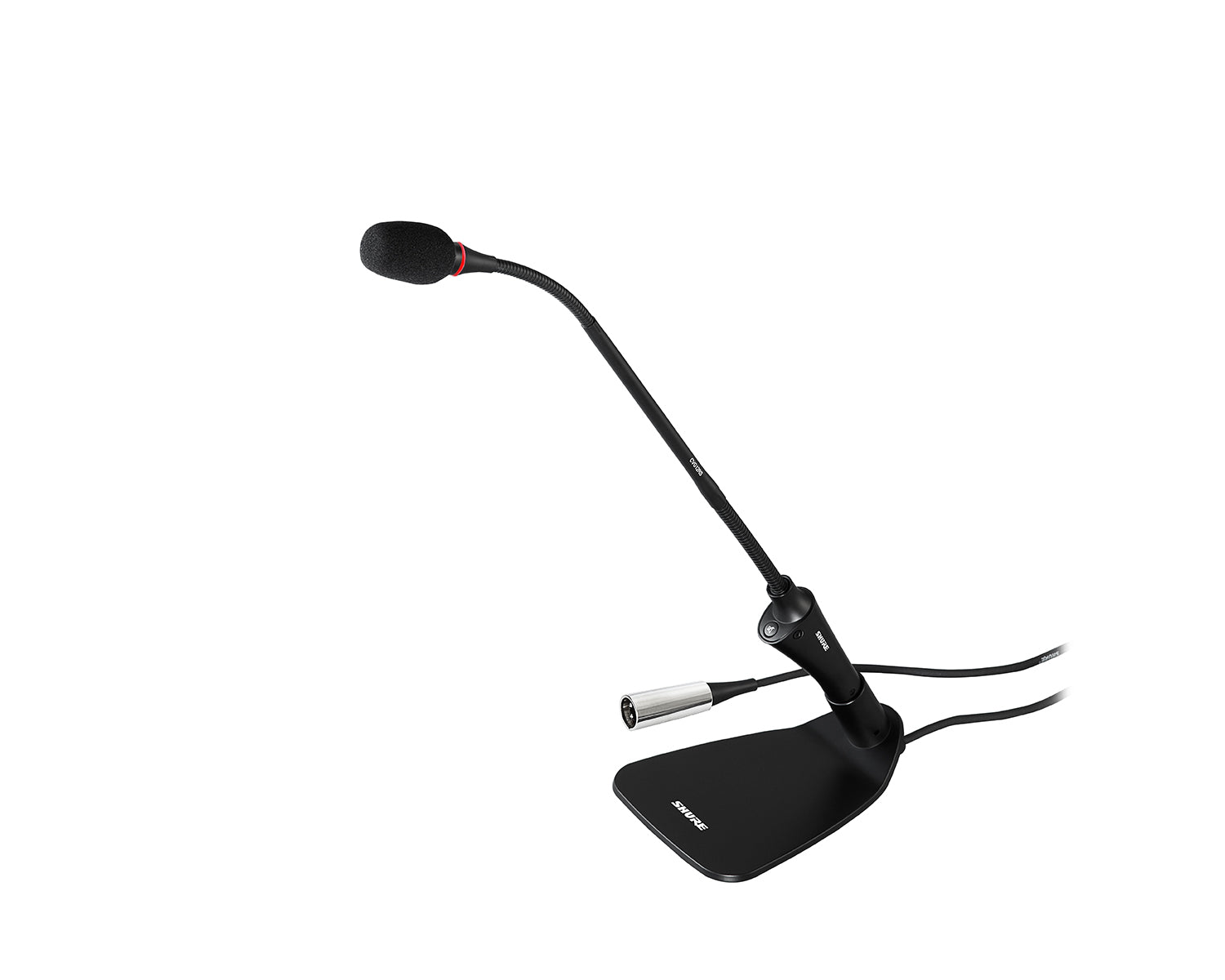

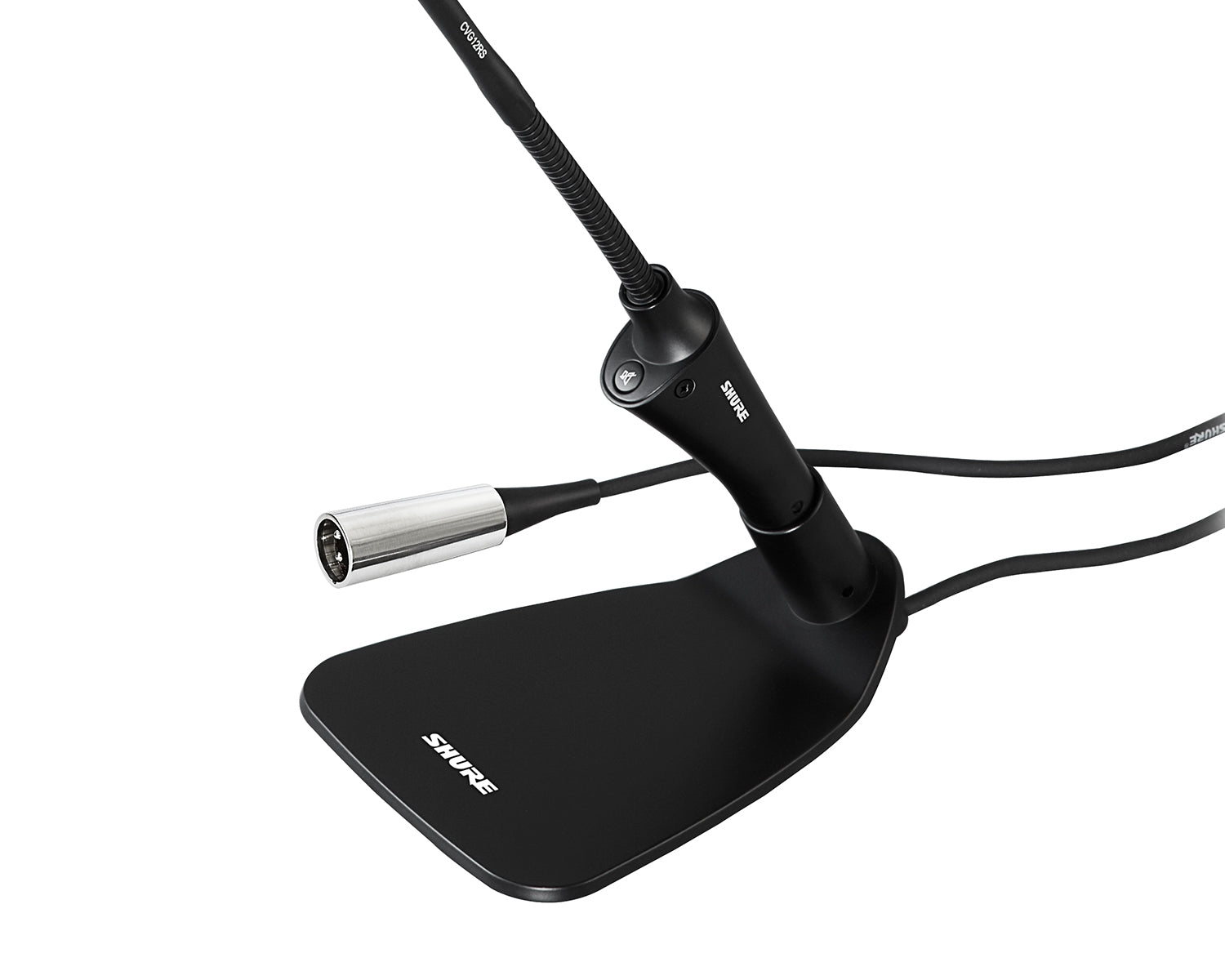

SHUCVG12DRSBC - Shure CVG12DRS B or C Cardioid 12inch Gooseneck Mic w or Base or Switch or LED Image 1

SHUCVG12DRSBC - Shure CVG12DRS B or C Cardioid 12inch Gooseneck Mic w or Base or Switch or LED Image 2

SHUCVG12DRSBC - Shure CVG12DRS B or C Cardioid 12inch Gooseneck Mic w or Base or Switch or LED Image 3

SHUCVG12DRSBC - Shure CVG12DRS B or C Cardioid 12inch Gooseneck Mic w or Base or Switch or LED Image 4

Gooseneck cardioid microphone consists of an integrated desktop base and inline preamplifier for use in installed sound reinforcement or conferencing. Features a dual-section gooseneck for positioning and Commshield RF Filtering for interference.

Designed with dual gooseneck sections for full articulation and an integrated base for precise positioning, the CVG12D provides scalable, high level performance in a wide variety of locations, including podiums and desktops.

Product Features

Cardioid polar pattern with tailored response for speech
Integrated desktop base
12” (30.5 cm) gooseneck
With inline preamp, mute switch, and light ring indicator
Dual-section gooseneck enables ease of positioning and placement options
XLR cable/connection. Plug-and-play solution for minimized setup times
All Centraverse models are equipped with Commshield® RF Filtering Technology
Guards against unwanted RF Interference from portable wireless devices (smartphones, etc.)
High resistance to intense nearby radio signals
Includes integrated 12\' (365 cm) cable with XLR termination

Product Specifications

Cartridge Type: Electret Condenser
Frequency Response: 70–16000 Hz
Polar Pattern: Cardioid
Output Impedance: 180 Ω
Sensitivity (at 1 kHz , open circuit voltage): –33 dBV/Pa (22 mV)
Maximum SPL (1 kHz at 1% THD): 120 dB SPL
Signal to Noise Ratio (referenced at 94 dB SPL): 67 dB
Dynamic Range: 93 dB
Self Noise (equivalent SPL, A-weighted, typical): 27 dB SPL
Common Mode Rejection (10 Hz to 100 kHz): >45 dB
Preamplifier Output Clipping Level (1% THD): −7 dBV
Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Power Requirements:
- CVGD: 11–52 V DC, 2.0 mA
- CVGD/S: 11–52 V DC, 5.5 mA
- CVGD/RS: 11–52 V DC, 5.0 mA
Environmental Requirements:
Operating Temperature Range: –18 °C to 57 °C (0 °F to 135 °F)
Storage Temperature Range: –29 °C to 74 °C (–20 °F to 165 °F)
Relative Humidity: 0 to 95%
