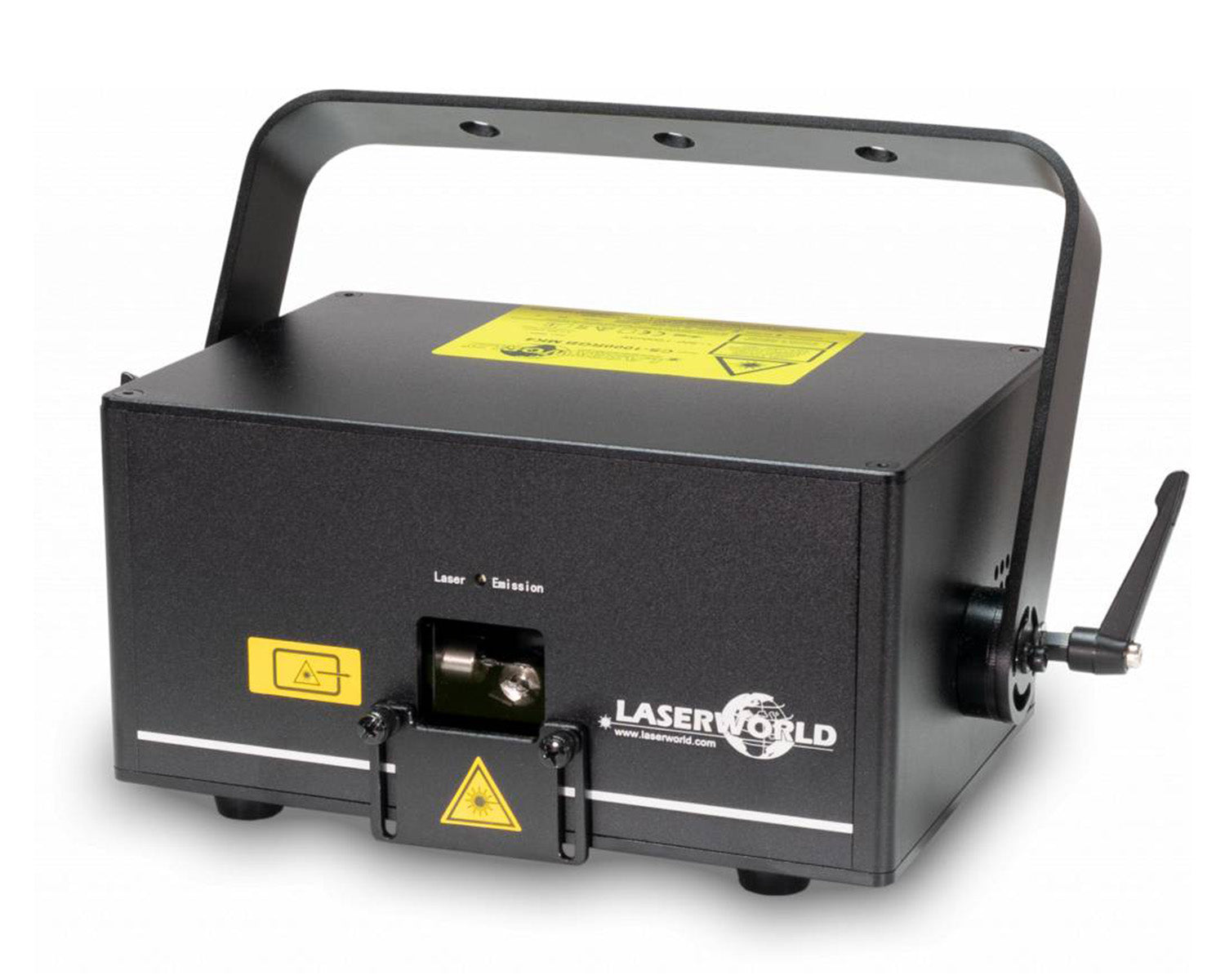

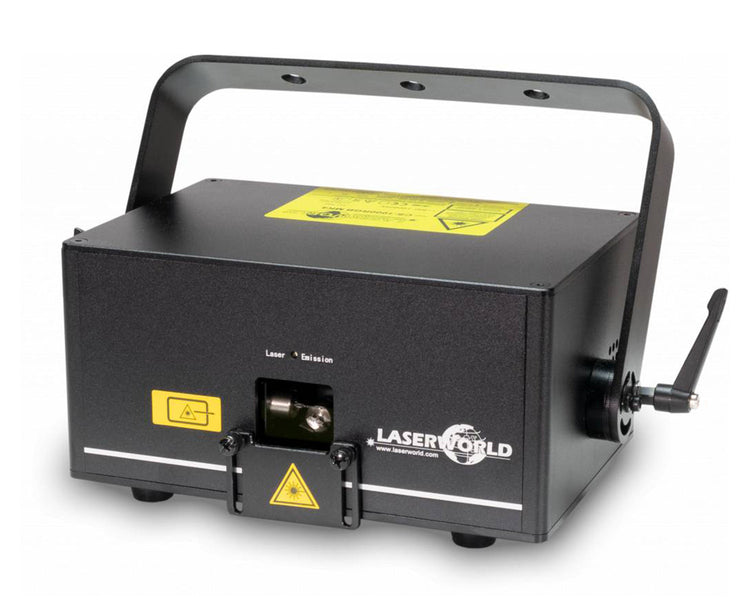

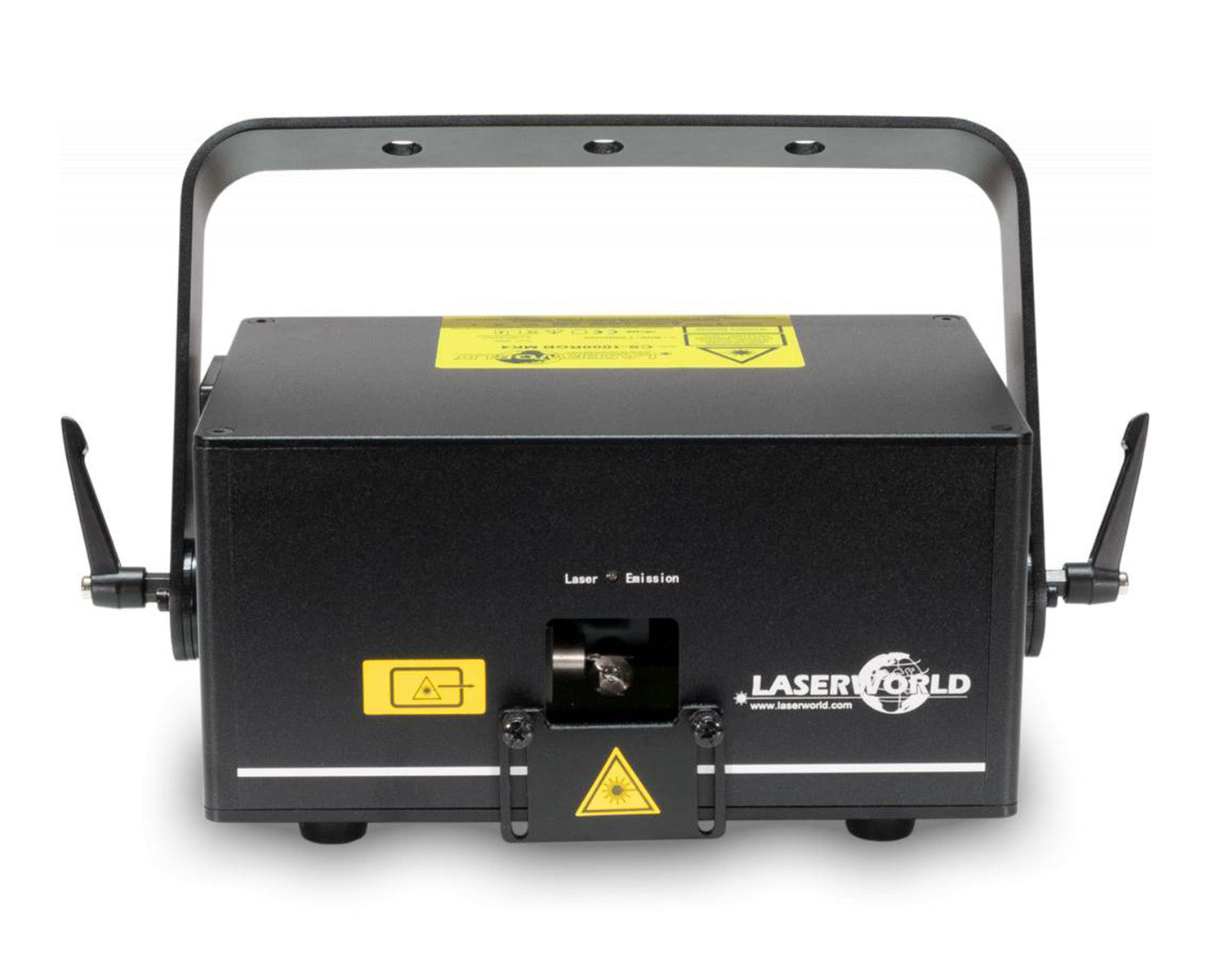

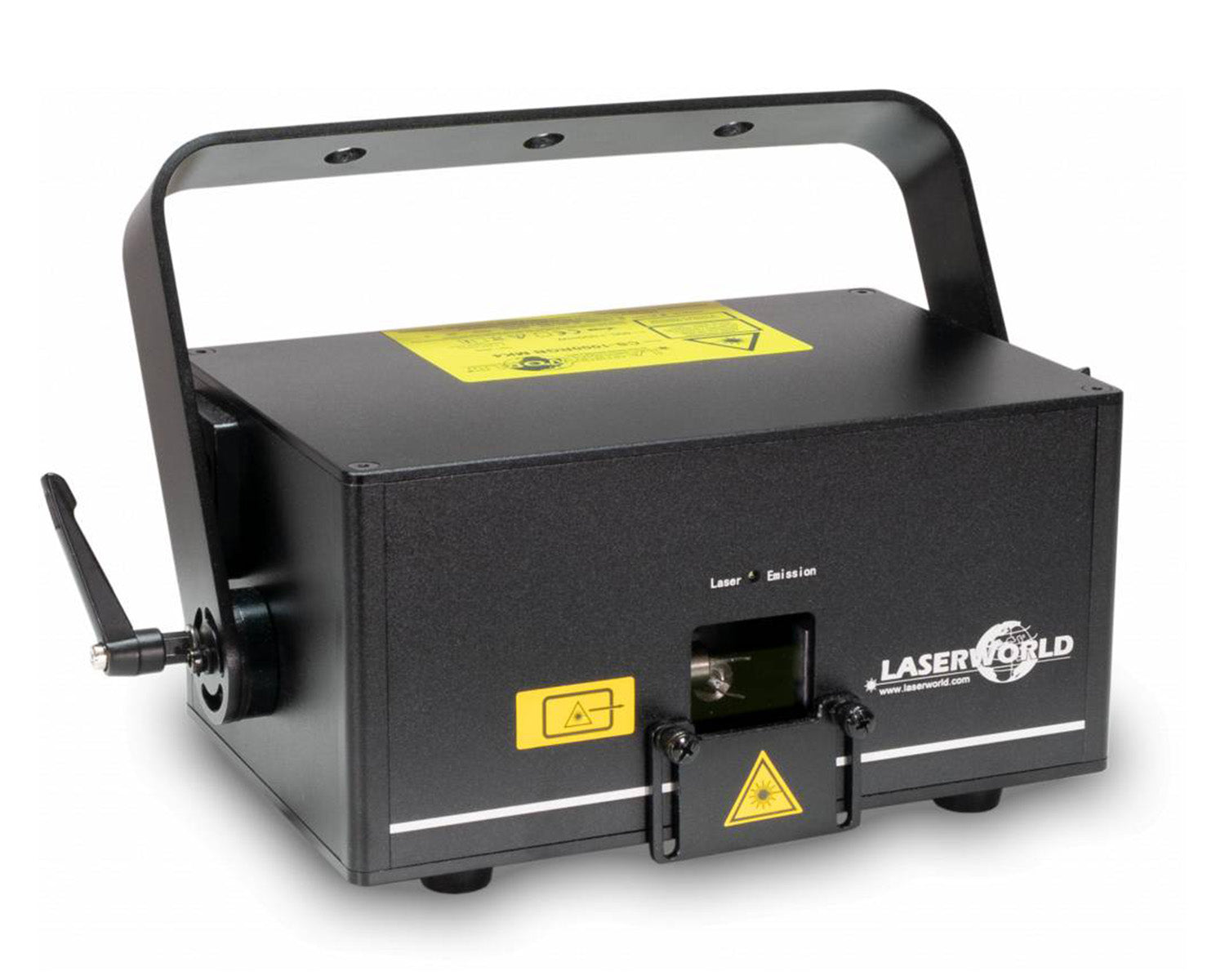

The Laserworld CS-1000RGB MK4 show laser projector comes with a completely new designed compact housing, which is light weight and has a stable bracket. The solid bracket allows for different mounting positions: a hanging as well as a standing installation is possible - ideal for mobile DJs and temporary laser shows, but also for fixed installations at a truss or at the ceiling.

The Laserworld CS-1000RGB MK4 is a analog modulated pure diode multi color RGB laser system with a total output power of up to 800 mW and a guaranteed output power of . The red laser source has an output power of 200 mW / 650 nm, the green 70 mW / 520 nm and the royal-blue laser source has an output power of 530 mW / 450 nm. The laser sources ensure brilliant colors and powerful laser beams. The projector has good beam specifications with ca. 4 mm / 1.1 mrad. The galvo system has a scan speed of up to 28 kpps @ 8° ILDA.

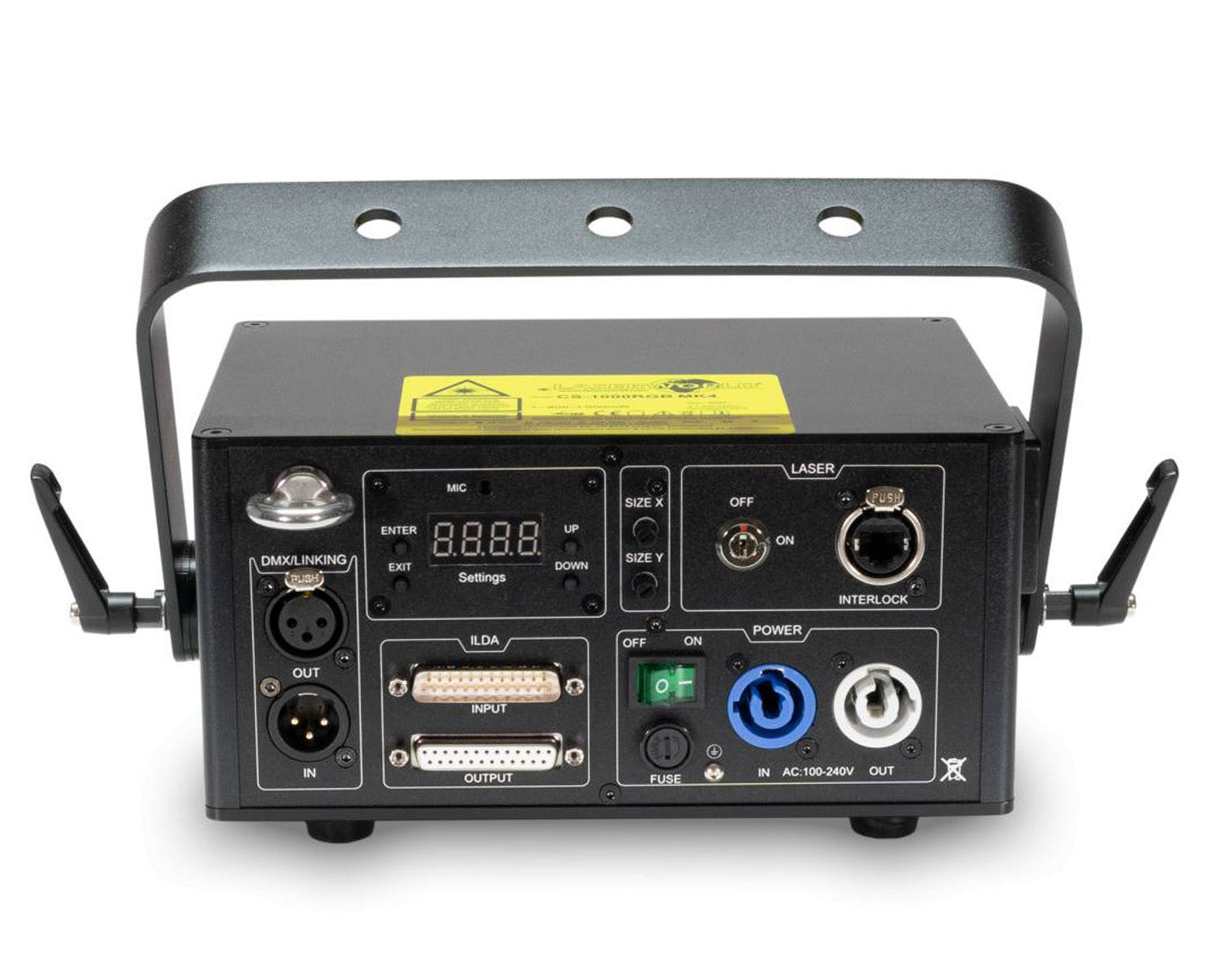

Pattern size can be set by two rotary buttons (X and Y axis) on the rear side of the housing. The sensitivity of the microphone can be adjusted via the integrated display.

There is no airflow in the optical compartment, the temperature is regulated through the separate cooling fins compartment. This reduces maintenance and cleaning requirements to a minimum.

Through DMX, in the automatic mode as well as in the sound-to-light mode ca. 130 (layers, tunnels, fences, waves, etc.) can be projected in different colors and in various speed. If the automatic mode is active, the pre-programmed patterns run without assistance and in the sound-to-light mode, the laser system projects according to the sound.

Next to the modes mentioned above, this laser projector provides a master-slave-mode. Show lasers of the same series (slave projectors), connected via DMX to a main projector (master projector) project the same patterns like the master projector.

The Laserworld CS-1000RGB MK4 is computer controllable through a professional ILDA interface. Thus custom or pre-programmed lasershows, logos, texts or own graphics and animations can be shown in combination with a laser control software.

There are safety features like a key switch, an interlock connector and an on-off switch.

The Laserworld CS-1000RGB MK4 is ideal for small to semi-professional applications and is perfectly suitable in bars, small to medium sized clubs and discos as well as for mobile DJs, private use and in any other party location.

Product Features

• 0.8 W analog modulated RGB laser system
• DMX controllable, master-slave operation possible
• Diode-only laser system
• Computer controllable via ILDA
• Sound-to-light and stand-alone mode
• Front panel laser beam masking plate
• Capable of basic graphics, texts and logos
• Several hundred colors, including white
• 28 kpps @ 8° ILDA scanners
• 360° mounting bracket

Product Specifications

• Total Power: 800 mW
• Power Red: 200 mW / 650 nm
• Power Green: 70 mW / 520 nm
• Power Blue: 530 mW / 450 nm
• Beam Specifications*: ca. 4 mm / 1.1 mrad
• Scanner: 28 kpps @ 8° ILDA
• Laser Source: Diode
• Laser Class: 4
• Operation Modes: stand-alone, sound-to-light, DMX, ILDA, master-slave
• Basic Patterns: ca. 130 (layers, tunnels, fences, waves, etc.)
• Accessories: power cable, manual, interlock, key
• IP rating: IP4X
• Power Supply: 85V - 250 V AC
• Power Consumption: 20 W
• Dimensions: 220 x 150 x 116 mm
• Weight: 2.5 kg
